2024 BMW i4 Coolant Leak at Changeover Valve TSB

Symptoms

Owners of affected 2024 BMW i4, iX, and i7 vehicles may experience a 2024 BMW i4 coolant leak from under the car. Other noticeable symptoms include low heater output. The vehicle's Check Control system might also display the message: "Drive, you can continue driving" (ID49).

Fault Codes / DTCs

Technicians may find one or more of the following diagnostic trouble codes (DTCs) stored in the vehicle's systems, indicating a 2024 BMW i4 coolant leak or related issues:

Code	Description
224163	Electric auxiliary heater for the high-voltage battery unit: Undervoltage or internal communication fault
8049AA	Coolant level sensor, expansion tank: Coolant level low or short circuit to ground or line disconnection
80124F	Electric auxiliary heater: Communication in electric auxiliary heater faulty
224F60	Coolant level sensor, expansion tank: Coolant level low or short circuit to ground or line disconnection
224111	Cooling system for power electronics: Coolant loss detected
224107	Cooling system for high-voltage battery unit, component protection: Detection of coolant loss

Cause

The root cause of these symptoms and fault codes is leakage originating from one or more coolant changeover valves. This issue is detailed in BMW Service Information Bulletin SIB 17 01 24, which is a Revision 2 document replacing the earlier SI B17 01 24 dated April 2024.

Diagnosis

To diagnose the 2024 BMW i4 coolant leak, technicians will inspect all coolant changeover valves for active leaks or residual dried coolant. If no leaks are found on the valves, further diagnosis using the ISTA system and cooling system test equipment is recommended.

Repair Procedure Summary

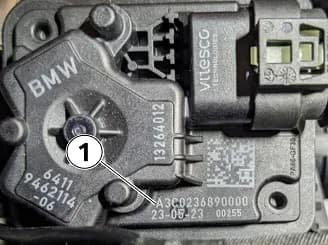

The repair involves replacing the faulty coolant changeover valve(s). This is considered a mobile-friendly repair. The number of changeover valves can vary by model: G26 (i4) typically has one, G60 (i5) has three, G70 (i7) has one, and i20 (iX) has two. Technicians must check the production date of the changeover valves; improved valves were produced on or after January 5, 2024 (5.1.2024).

After replacing the valve(s), the cooling system must be bled according to ISTA instructions, specifically under "Vehicle management/Service functions/Electric drive/Cooling/Fill and bleed the cooling system." A functional check of the electric auxiliary heater is also required, found under "Body/Heating and air conditioning functions/Electric auxiliary heater/Heating and air conditioning functions: electric auxiliary heater."

Specific repair instructions for each model are:

• G26 (i4) and G70 (i7): Refer to Repair Instruction 64 12 790.
• G60 (i5): Refer to Repair Instructions 64 12 790, 64 12 792, and 17 61 625.
• i20 (iX): Refer to Repair Instructions 64 12 792 and 17 61 625.

Required Tools or Parts

To perform this repair, the following parts may be necessary:

• Changeover valve: Part Number 64 11 9462114 (up to 3, as applicable)
• HT-12 Coolant (1 gallon concentrate): Part Number 83 19 2 468 442
• HT-12 Antifreeze RTU (Bulk 1/10 Liter) (Pre-mix): Part Number 83 19 5 A32 851
• Electric instantaneous water heater (Electric auxiliary heater): Refer to AIR/ETK for specific part number, quantity 1 if necessary.

Claim Information

This repair is covered under the terms of the BMW New Vehicle Limited Warranty or the BMW Certified Pre-Owned Program. The repair code for this issue is 6411900400, labeled as "G26 G60 G70 I20 BEV Coolant loss at changeover valve."

Important Warnings

When replacing changeover valves, ensure that any new valves have a production date older than January 5, 2024 (5.1.2024). Valves produced on or after this date are improved versions.

---

Source: NHTSA ID: 11014035, SIB 17 01 24
