2023-2024 BMW 5 Series Sedan Increased Door Closing Force

Symptoms

Owners of certain 2023-2024 BMW 5 Series Sedan (G60) vehicles may notice that their front and/or rear doors require an increased door force to close properly. This means the doors might not latch securely unless extra effort is applied or they are closed with increased speed.

Cause

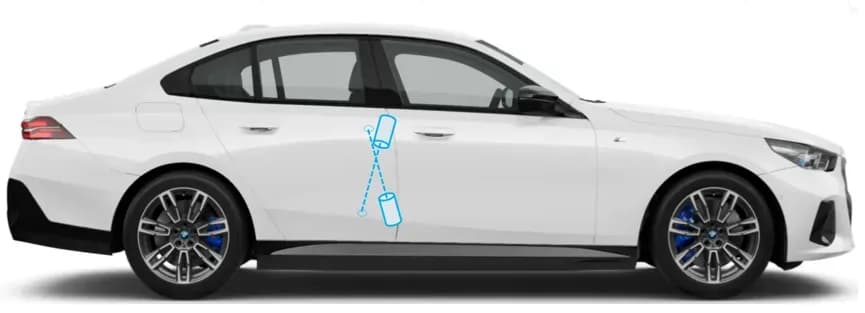

According to BMW Service Information Bulletin SIB 51 03 25, the root cause of this issue is an alignment problem. Specifically, the axis of the upper door hinge does not properly align with the axis of the lower hinge. This misalignment prevents the door from closing smoothly and easily, leading to the BMW 530i increased door force symptom.

Repair Procedure Summary

The repair for the BMW 530i increased door force involves specific adjustments and lubrication, depending on whether the front or rear doors are affected. The procedure is outlined in BMW Service Information Bulletin SIB 51 03 25.

Front Doors Adjustment

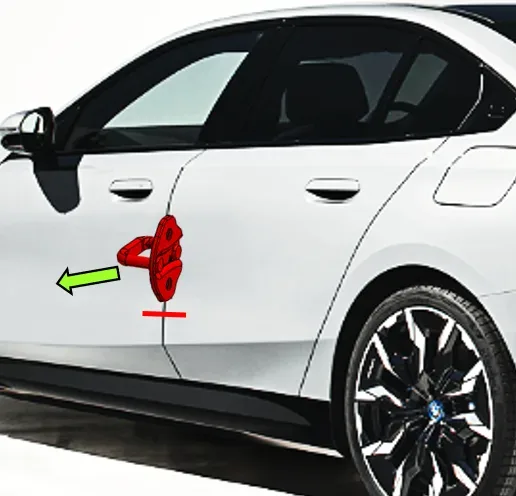

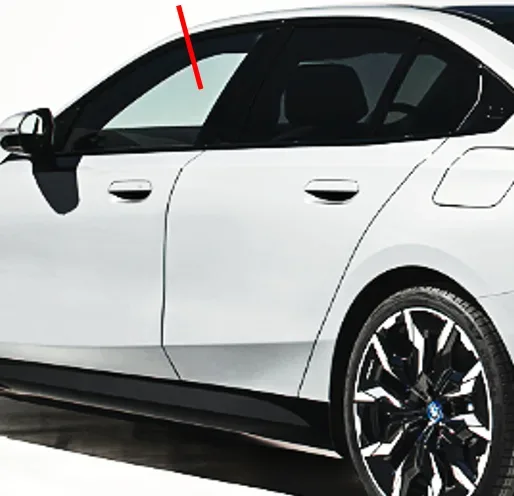

For the front doors, technicians will first move the door striker outward from the vehicle body. The goal is to achieve a door gap of no more than 1.3mm. An accompanying image in the bulletin illustrates this adjustment, showing the striker being moved outward with an arrow indicating the direction. After this initial adjustment, the technician will check if the top edge of the door frame lip is making proper contact with the roof frame area. If this contact is not established, the striker will be slightly moved back inward until the door frame lip contacts the roof frame again. Diagrams clearly show the door frame lip and roof frame interaction.

Rear Doors Adjustment and Lubrication

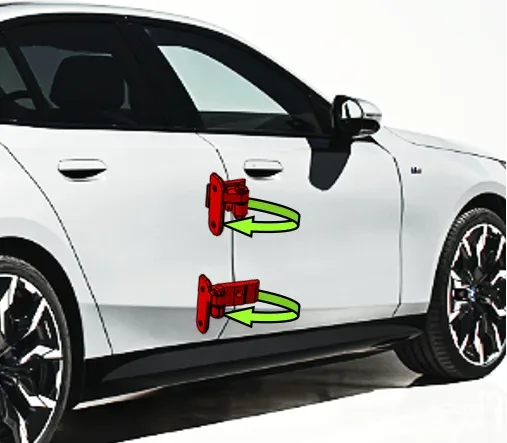

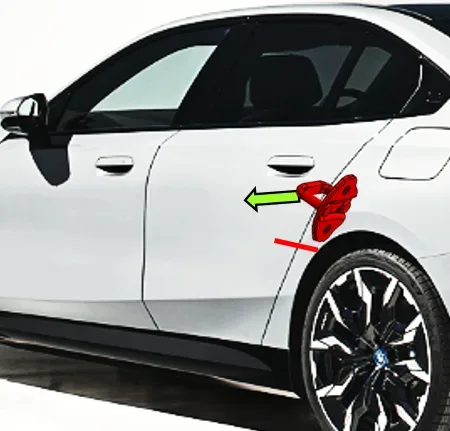

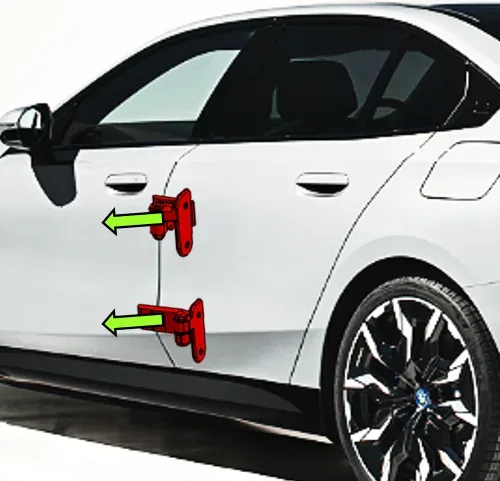

For the rear doors, the procedure begins with lubricating the upper and lower door hinges using a multifunction spray. The bulletin includes a diagram showing the precise points on the hinges where the lubricant should be applied. After applying the lubricant, the door(s) must be opened and closed multiple times to ensure the spray is thoroughly distributed around the hinge mechanisms. Next, the door striker is adjusted outward until the door gap measures a maximum of 1.5mm. Finally, the door hinges themselves are moved outward by 1.0mm to complete the alignment correction.

Required Parts

To perform the rear door lubrication, technicians will require:

• Part Number: 83 23 0 418 567
• Description: Multifunction spray (DN = 400ml)
• Quantity: Sublet as needed

Claim Information and Warranty Coverage

This repair, as detailed in BMW Service Information Bulletin SIB 51 03 25, is covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks. Owners should refer to their warranty documentation for specific details regarding coverage.

Diagnosis and Labor Operations

Diagnosis for this issue is typically claimed under Labor Operation 51 00 001*, described as "Localizing body complaint(s) (Work time)", with a Labor Allowance of WT FRU. The repair codes and associated labor operations are as follows:

• Repair Code: 5121014100 - Front door lock striker Poorly adapted/fitted

  • Repairing a Left or Right Front Door:
    • Labor Operation 51 21 004: Adjusting the lock striker, front left or right (Main work)
    • Labor Operation 51 21 504: Adjusting the lock striker, front left or right (Plusposition)
  • Repairing Both Front Doors:
    • Labor Operation 51 21 024: Adjusting both lock strikers, front (Main work)
    • Labor Operation 51 21 524: Adjusting both lock strikers, front (Plusposition)

• Repair Code: 4152014100 - Rear door hinge Poorly adapted/fitted

  • Repairing a Left or Right Rear Door:
    • Labor Operation 41 52 004: Adjusting rear left or right door (Main work) (Includes adjusting the lock striker)
    • Labor Operation 41 52 504: Adjusting rear left or right door (Plusposition) (Includes adjusting the lock striker)
  • Repairing Both Rear Doors:
    • Labor Operation 41 52 004: Adjusting rear left or right door (Main work) (Includes adjusting the lock striker)
    • Labor Operation 41 52 504: Adjusting rear left or right door (Plusposition) (Includes adjusting the lock striker)
    • Additional Work time for adjusting rear door (Other side): 41 99 000 (2 FRU)

Sublet Code 4 is used for reimbursement of repair-related bulk supply material. Technicians are advised to refer to SI B01 01 20 or B01 07 20 for detailed procedures on documenting and claiming diagnosis and repair work time.

Owner Action

If you are experiencing an increased door force when closing the doors on your 2023-2024 BMW 5 Series Sedan (G60), it is recommended to contact your authorized BMW dealer. They can diagnose the issue and perform the necessary adjustments and lubrication as outlined in SIB 51 03 25.

---

Source: NHTSA ID: 10257005
