2021-2024 Audi A3, S3, TT, Q3 Front Shock Absorber Noise TSB

Owners of certain 2021-2024 Audi models may notice an Audi front shock absorber noise described as "Cracking noises/spring jumps when steering or when maneuvering." This issue, detailed in Audi Technical Service Bulletin (TSB) 40 23 63 2047758/11, provides a specific repair procedure to eliminate these sounds.

This TSB, identified as 40 23 63 2047758/11, supersedes previous bulletin 40 23 59 dated June 6, 2023. The latest revision, dated June 29, 2023, includes updated model year information and revised parts and tools details.

Symptoms of Front Shock Absorber Noise

Owners typically report hearing "Cracking noises/spring jumps when steering or when maneuvering." This Audi front shock absorber noise can often be reproduced when at least two people are in the vehicle and the steering wheel is turned just before reaching the right or left stop. These sounds indicate an interaction issue within the front suspension system.

Technical Background

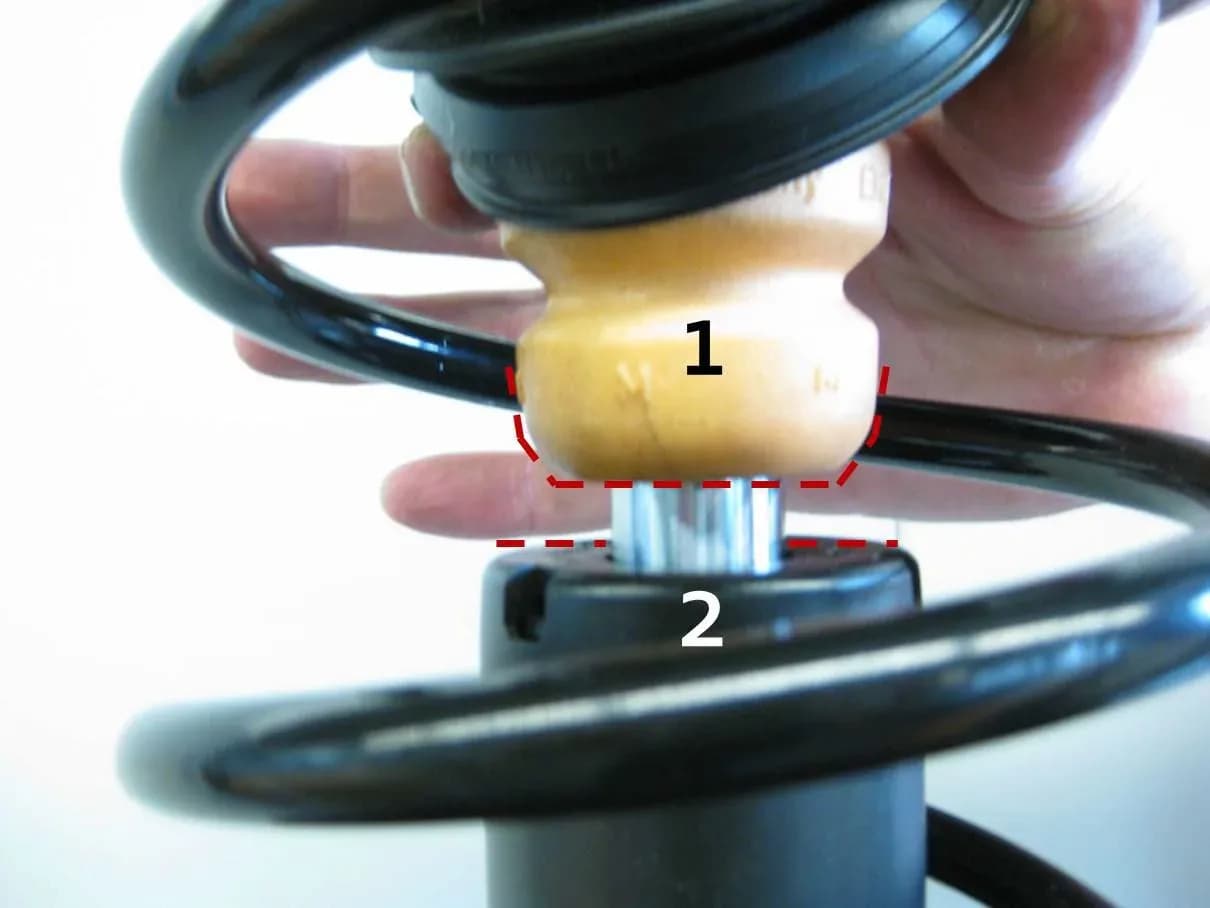

The root cause of the Audi front shock absorber noise is identified as the buffer stop for the shock absorber making contact with the front shock absorber cap. This friction between these two components during steering or maneuvering creates the audible cracking or jumping noises reported by customers.

Repair Procedure Summary

To address the Audi front shock absorber noise, technicians are instructed to lightly lubricate the contact surface between the buffer stop and the front shock absorber cap. This involves applying 5 grams of grease, specifically part number G 000 405 A2, to each side of the vehicle. During this process, it is also recommended to check the protective sleeve of the front shock absorber to ensure it is correctly fitted and can turn easily in the axial deep-groove ball bearing or sleeve bearing.

Required Parts

The primary part required for this repair is a specific type of grease:

• G 000 405 A2: Grease (Quantity: 1)
• G 000405S0: This part number is to be used exclusively for SAGA warranty claims.

Additionally, any necessary fasteners, bolts, nuts, and screws should be referenced and procured via ETKA/ELSA according to the repair manual.

Warranty Information

This repair for the Audi front shock absorber noise is covered under warranty for vehicles up to 48 months or 50,000 miles. If a vehicle falls outside of these warranty parameters, this Technical Service Bulletin serves as informational guidance only, meaning the repair cost would typically be borne by the owner. All warranty claims must adhere to the Audi Warranty Policies and Procedures Manual.

Specific warranty claim details are as follows:

• Claim Type: 110 up to 48 Months/50,000 Miles
• Service Number: 4098
• Damage Code: 0020
• Labor Operations: Lubricate both front rubber stops (Code: 4098 5099, 30 TU)
• Diagnostic Time: GFF (No allowance, 0 TU)
• Claim Comment: As per TSB 2047758/11

Road tests are also part of the warranty claim process, with specific codes for pre-service (0121 0002, 10 TU) and post-service (0121 0004, 10 TU) procedures.

Important Warning for Owners

"If the vehicle is outside any warranty, this Technical Service Bulletin is informational only." This means that if your vehicle is no longer under the specified warranty period, Audi will not cover the cost of this repair, and it will be at your expense.

Source: NHTSA ID: 10238315
