2021-2023 Audi Models Cracking Noise Steering TSB

Symptoms

Owners of affected 2021-2023 Audi models may experience specific noises when operating their vehicle. The primary symptom is "cracking noises/spring jumps when steering or when maneuvering." These noises are often noticeable during low-speed maneuvers or when turning the steering wheel to its limits.

Technicians can reproduce the noise by having at least two people in the vehicle and turning the steering wheel just before the right or left stop. If you notice an "Audi S3 cracking noise steering" or similar sounds in other models, this bulletin provides the solution.

Technical Background

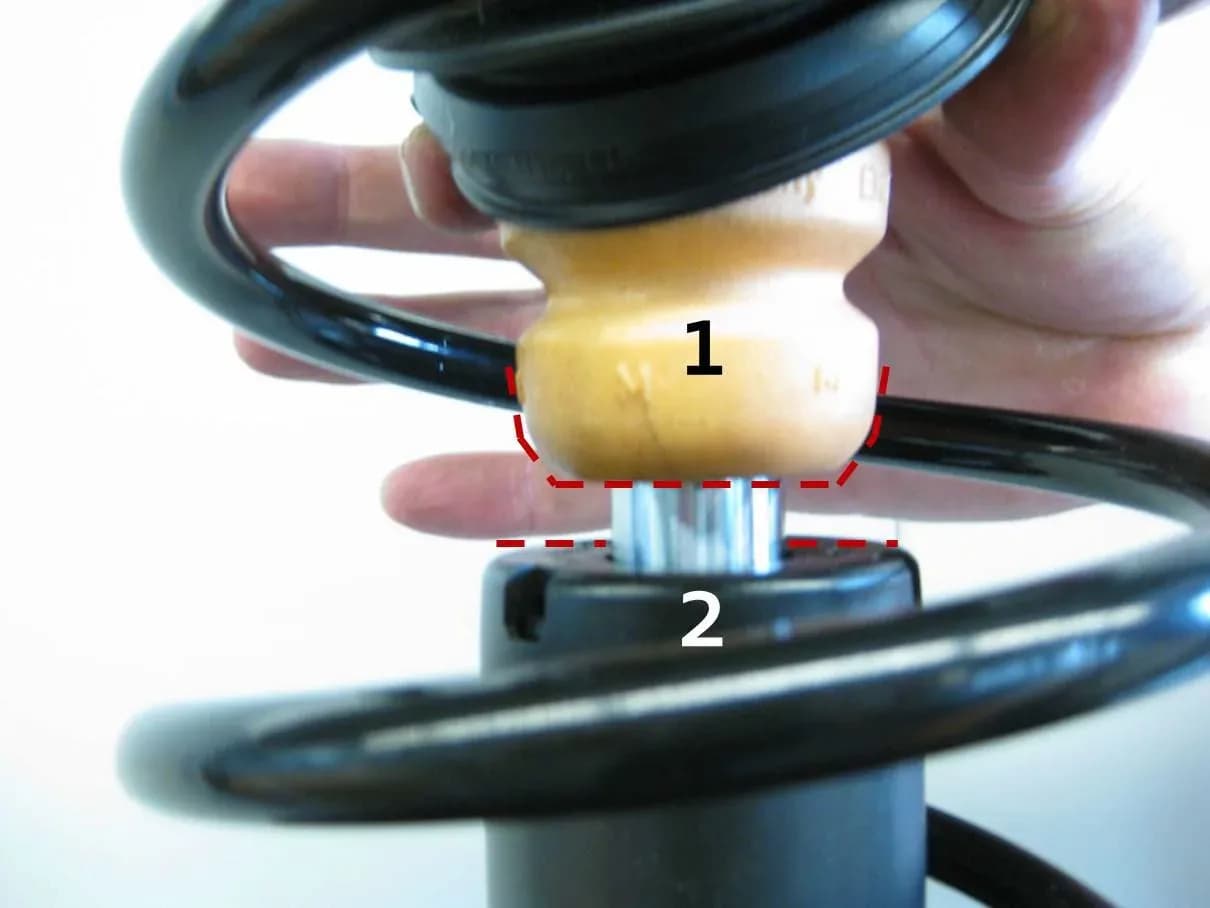

Audi Technical Service Bulletin 2047758/10 explains that the cracking noises originate from the front shock absorber assembly. Specifically, the buffer stop for the shock absorber can make contact with the front shock absorber cap, leading to the audible noises described by owners. This contact occurs during steering or maneuvering, causing the unwanted sounds.

Repair Procedure Summary

The repair for the "Audi S3 cracking noise steering" and similar issues across other models involves a straightforward lubrication process. Technicians will lightly lubricate the contact surface between the buffer stop for the shock absorber and the front shock absorber cap. Approximately 5 grams of grease, specifically part number G 000 405 A2, will be applied to each side of the vehicle.

Before applying the grease, it is important to check the protective sleeve of the front shock absorber to ensure it is correctly fitted. The sleeve should turn easily in the axial deep-groove ball bearing or sleeve bearing. This ensures proper function and prevents future issues.

Required Parts and Tools

To perform this repair, the following parts are specified:

• Grease: G 000 405 A2 (Quantity: 1)
• Grease (for SAGA warranty claims only): G 000 405 S0
• Fasteners, Bolts, Nuts, and Screws: As needed, referencing ETKA and the Repair Manual for specific requirements.

Warranty Information

This repair is covered under Audi's warranty for up to 48 months or 50,000 miles, whichever comes first. The claim type for this service is 110. The service number is 4098, and the damage code is 0020. The labor operation for lubricating both front rubber stops is 4098 5099, allocated 30 labor time units (TU). Road tests before and after the service procedure are also covered, with labor operations 0121 0002 (10 TU) and 0121 0004 (10 TU) respectively. Diagnostic time (GFF) has no allowance.

It is important to note that if your vehicle is outside this warranty period, this Technical Service Bulletin is informational only. All warranty claims must adhere to the Audi Warranty Policies and Procedures Manual.

Important Warnings and Revisions

This Technical Service Bulletin, 2047758/10, is a revised document. It supersedes Technical Service Bulletin Group 40 number 23-57, which was dated May 24, 2023. The revisions include updated required parts and tools, and earlier versions also revised the header to add more models and model years. Owners searching for information on the superseded TSB 23-57 should refer to this updated bulletin.

Owner Action

If you are experiencing "cracking noises/spring jumps when steering or when maneuvering" in your 2021-2023 Audi A3, S3, TT, RS 3, or Q3 model, especially if you hear an "Audi S3 cracking noise steering," it is recommended to contact an authorized Audi dealer. They can diagnose the issue and perform the lubrication procedure outlined in TSB 2047758/10. Ensure you mention the specific symptoms you are experiencing to help the technician identify the problem quickly.

Source: NHTSA ID 10238160
