2022-2026 Audi e-tron GT Front License Plate Installation TSB

Audi has released Technical Service Bulletin (TSB) 66 24 11 2064015/4, which outlines the correct procedure for installing a front license plate on 2022-2026 Audi e-tron GT, RS e-tron GT, and S e-tron GT models. This TSB, also identified as 2064015, supersedes previous bulletin 23-99 dated April 13, 2023, and addresses the aesthetic design of these vehicles that makes traditional license plate carrier installation challenging.

Why This TSB Was Issued

The design of the new Audi e-tron GT and RS e-tron GT models means the front bumper cover and fascia do not offer obvious mounting points for a front license plate. Instead of using a separate license plate carrier, the plate is designed to attach directly to the front bumper cover or grille assembly. This TSB provides a standardized method to ensure proper installation. It's important to note that this procedure is typically performed during Pre-Delivery Inspection (PDI) or other workshop activities, not in response to customer concerns.

Front License Plate Installation Procedure

The TSB details a precise method for installing the front license plate, ensuring correct placement and secure attachment. The process involves creating a template and carefully drilling mounting holes.

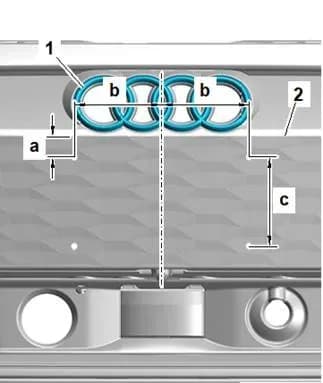

1. Determine Placement: Refer to the Elsa Repair Manual for specific dimensions for license plate mounting: Body >> Body Exterior >> 66 Exterior Equipment >> Radiator Grille/Front Trim >> License Plate, Mounting. Key dimensions are -a- 21.0 mm, -b- 89.0 mm, and -c- 120.5 mm.
2. Create a Template: Fashion a template from a manila folder or card stock using the specified dimensions. This ensures consistent and replicable placement without needing to measure each time.

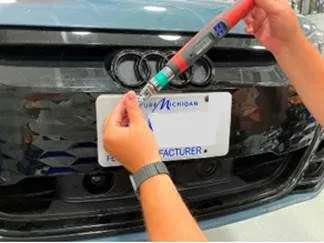

3. Mark Screw Locations: Use a hole-punch on the template to mark the exact locations where the screws will be attached. Align the template with the Audi Rings motif and mark the screw points through the template onto the bumper.

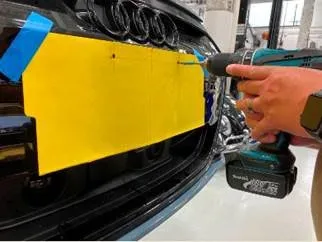

4. Drill Holes: Drill two 3mm (1/8 inch) diameter holes. It is crucial that these holes are no deeper than 15mm (19/32 inch). Technicians are advised to mark the 15mm depth on the drill bit with tape to prevent over-drilling.
5. Install Screws: Secure the front license plate using two self-tapping screws (part number N 909 747 01). Torque these screws to 2.0 Newton-meters (Nm).

This procedure ensures the Audi e-tron GT front license plate is mounted correctly and aesthetically.

Required Parts and Tools

For this installation, specific fasteners are required. Audi emphasizes using only the parts listed in this TSB, even if they differ from those in ETKA, as this includes superseding part numbers.

• Part Number: N 909 747 01
• Part Description: Hexagon socket head panel bolt
• Quantity: 02

Important Notes for Owners

Owners should be aware that TSB 66 24 11 2064015/4 is an informational bulletin. It provides guidance for technicians on how to properly install the front license plate. This procedure is not covered under any Audi Warranty. If you require a front license plate installation for your Audi e-tron GT front license plate, consult your authorized Audi service center.

NHTSA ID: 11007325
