2022-2024 Audi e-tron GT High-Voltage Battery Replacement TSB

Audi has released Technical Service Bulletin (TSB) 2077772/1, effective May 5, 2025, to provide detailed instructions for replacing the high-voltage battery in 2022-2024 Audi e-tron GT models. This TSB is crucial for technicians to ensure correct procedures are followed, especially since the original high-voltage battery part is no longer available.

This bulletin addresses potential issues related to the power, vehicle electrical system, and data transfer concerning the high-voltage battery, which can lead to an "error message" on the instrument cluster.

Symptoms and Complaint Type

Owners of 2022-2024 Audi e-tron GT vehicles may experience a complaint regarding the high-voltage battery assembly. This can manifest as an "error message" related to the vehicle's power supply, electrical system, or data transfer from the high-voltage battery.

Important Warnings for Owners and Technicians

Audi explicitly states that the previous high-voltage battery assembly for the e-tron GT, part number 9J1.915.100., is no longer available for delivery. If a replacement battery is required for your Audi e-tron GT high-voltage battery, the new part number 9J1.915.590. must be used.

It is critical to only use the parts listed in this TSB, as these include superseding part numbers. Using incorrect parts will not resolve the issue and may cause further complications.

Repair Procedure Summary

When replacing the Audi e-tron GT high-voltage battery, technicians must follow a precise procedure outlined in TSB 2077772/1. The process begins with removing the faulty high-voltage battery according to the ELSA (Electronic Service Information System) guidelines. This involves removing and installing the high-voltage battery, including the rear bracket (part numbers 9J1.804.695/.696) which must be set aside for later use. This step references the Workshop Manual section for "Electric drive motor 0EG, 0EM; Rep. gr. 93; High-voltage battery unit; Assembly overview – installed high-voltage battery."

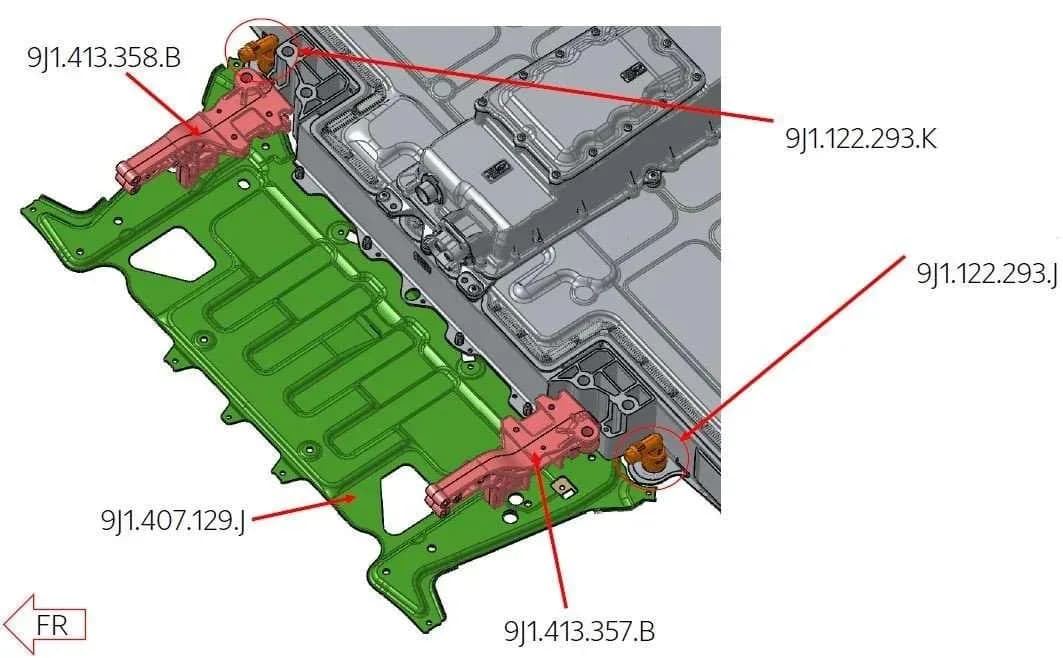

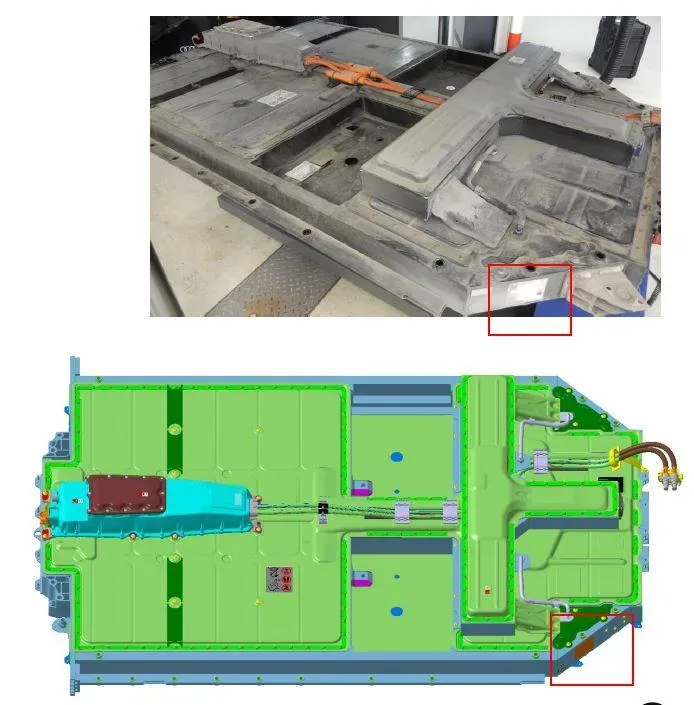

For the conversion to the new high-voltage battery 9J1.915.590.*, the new battery is placed on a scissor-type lifting table. This step also refers to the Workshop Manual section "Electric drive motor 0EG, 0EM; Rep. gr. 93; High-voltage battery unit; Lifting high-voltage battery 1 AX2." Attachments for the front coolant connections (9J1.122.293.J and 9J1.122.293.K) must then be fitted. Additionally, a specific notice, 9J1.010.003.B (E test mark), must be affixed next to the high-voltage battery type plate, as shown in Figure 2 of the TSB.

Vehicle changes during this process include replacing stabilizer links on both sides to match the geometry of the e-tron GT PU. Specifically, the left stabilizer link 9J1.413.357.A is replaced with 9J1.413.357.B, and the right stabilizer link 9J1.413.358.A is replaced with 9J1.413.358.B. This step references the Workshop Manual section "Running gear, axles, steering; Rep. gr. 40; Subframe; Removing and installing subframe bracket." Technicians must also replace stretch bolts and check rubber bushes for wear, replacing them if necessary (Figures 3 and 4).

Subsequently, the rear brackets 9J1.804.695/.696 (Figure 5) are fitted to the high-voltage battery and torqued to specification. The installation of the new high-voltage battery 9J1.915.590.* continues by performing work according to the Workshop Manual "Removing and installing high-voltage battery 1 AX2" up to the step for "Re-energizing high-voltage system." The high-voltage system is then re-energized by entering specific SVM codes.

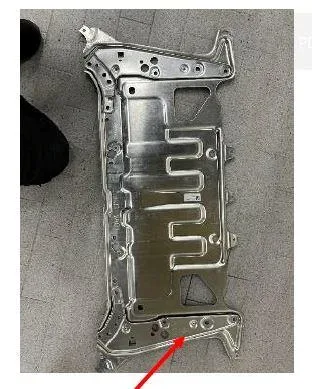

Finally, the reinforcement plate is renewed to the geometry of the e-tron GT PU. This involves replacing reinforcement plate 9J1.407.129.F with 9J1.407.129.J (Figure 6). This step refers to the Workshop Manual section "Running gear; Rep. gr. 40; Subframe; Assembly overview – Removing and installing subframe reinforcement."

Re-energizing and SVM Codes

After the physical replacement of the Audi e-tron GT high-voltage battery, the system must be re-energized. This is done via "Flash" mode and SVM (Software Version Management) - Authorized Multiple Code Entry. The specific SVM codes that must be entered are: XCHG1HVBGTPA, XCHG2HVBGTPA, and DUCHISRES008CEGT.

Required Parts and Tools

This TSB specifies that only the parts listed within this document should be used, as they include superseding part numbers. Technicians should not rely on other sources like ETKA for these specific part numbers. The required parts include:

Part number	Part Description	Quantity
9J1.122.293.K	Coolant connection (right side)	1
9J1.122.293.J	Coolant connection (left side)	1
9J1.413.357.B	Link for stabilizer (left side) (side panel)	1
9J1.413.358.B	Link for stabilizer (right side)	1
9J1.407.129.J	Reinforcement plate	1
N.108.317.01	Screw with int. serrations for front stabilizer link	2
N.104.355.06	Self-locking hexagon collar nut for stabilizer link bolts	2
N.107.822.01	Hexagon bolt for side panel ONLY RIGHT SIDE	1
N.912.443.01	Hexagon collared bolt with hexagon socket head (duo), bolt with washer for bottom of side panel	2
N.910.062.02	Hexagon bolt head (combi) for stabilizer clamp	4
N.106.645.03	Hex collared bolt Z for mounting bracket on front axle	4
971.411.313.K	Rubber bush	4
9J1.010.003.B	Notice (E test mark)	1
See ETKA	High-voltage battery	1

Warranty Information

Warranty claims for this Technical Service Bulletin (2077772/1) are handled according to the Audi Warranty Policies and Procedures Manual. If the vehicle is outside of any warranty, this TSB serves as informational guidance only.

Service Number: 9303 Damage Code: 00XX

Labor Operations and Time Units (TU):

Labor Operations	Code	Time Units
Drain and fill coolant	1938 1700	See SRT with associated operations
Remove and install high-voltage battery	9303 1950	See SRT with associated operations
Replace high-voltage battery	9303 5599	See SRT with associated operations
Remove and install 2 subframe brackets	4007 2099	80 TU
Rework high-voltage battery (Coolant connection both sides, affix label/type plate)	9303 4999	30 TU
Software update	0151 0060	Time stated on the diagnostic protocol

Claim Comment: As per TSB 2077772/1

All warranty claims are subject to review or audit by Audi Warranty.

NHTSA ID: 10258169
