2024-2025 Audi Q8 Starter Generator DTCs P0A1A00 P19F800

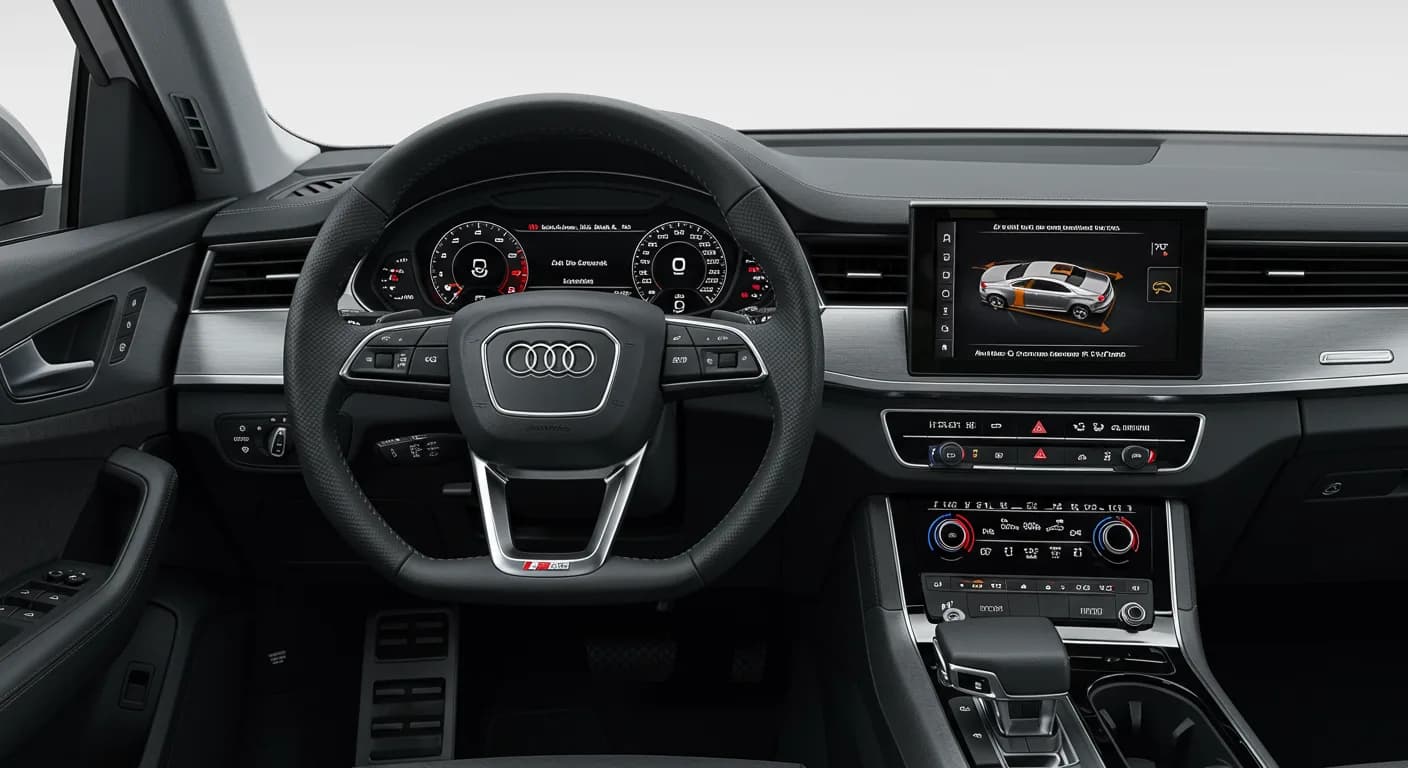

Audi has released Technical Service Bulletin (TSB) 2076994/4 to address various diagnostic trouble codes (DTCs) related to the Valeo 48V starter generator (BSG) system in certain 2024-2025 Audi Q8, Q7, A6, and A7 models. Owners may notice an illuminated engine warning lamp (MIL) on the instrument cluster, signaling a potential issue with the vehicle's electrical system or starter generator control module.

This TSB, identified as 2076994/4, provides a comprehensive solution involving a software update to the Starter Generator control unit, C29, to rectify these issues. It also supersedes previous guidance, closing PSS 2076029 related to similar DTCs.

Symptoms

Owners of affected 2024-2025 Audi vehicles may observe the following symptom:

• The engine warning lamp (MIL) is illuminated on the dashboard. This warning light indicates a fault within the engine or related systems, prompting the need for diagnostic investigation. When this occurs, a diagnostic scan may reveal an Audi Q8 starter generator DTC P0A1A00 or other related codes.

Fault Codes / DTCs

When the engine warning lamp is active, a scan tool may retrieve one or more of the following diagnostic trouble codes (DTCs) from the Engine Electronics (J623) or Starter Generator (C29) control modules:

Diagnostic Address	Diagnostic Trouble Code	Fault Symptom	Storage State
00CC - Starter generator	P056200	System Voltage Low Voltage	Intermittent
00CC - Starter generator	P19F800	48-volt vehicle electrical system not available	Intermittent
00CC - Starter generator	P065200	Sensor Reference Voltage "B" Circuit Low	Intermittent
00CC - Starter generator	P0A1E00	Starter/Generator Control Module	Intermittent
00CC - Starter generator	U300100	Control Module Improper Shutdown Performance	Intermittent
00CC - Starter generator	P10F300	Starter generator Release status implausible	Intermittent
00CC - Starter generator	P0A1A00	Generator Control Module	Intermittent
00CC - Starter generator	P056100	System Voltage Unstable	Intermittent
0001 - Engine electronics	U046900	Invalid Data Received From Starter / Generator Control Module	Static
00CC - Starter generator	P0A1E00	Starter/Generator Control Module	Static
00CC - Starter generator	U014600	Lost Communication With Serial Data Gateway Module "A"	Intermittent
00CC - Starter generator	P19F800	48-volt vehicle electrical system not available	Static
00CC - Starter generator	P069800	Sensor Reference Voltage "C" Circuit Low	Intermittent

Diagnosis / Trigger Conditions

The primary diagnostic step involves checking the Starter Generator, C29 (address word 00CC), for any logged diagnostic trouble codes. If any of the listed DTCs are present, this TSB applies, and a software update is recommended. The presence of an Audi Q8 starter generator DTC P0A1A00 or similar codes indicates the need for further action.

Technical Background

The root cause of these DTCs and the illuminated engine warning lamp is identified as outdated software within the Starter Generator control unit, C29. An update to this software is necessary to ensure proper function of the 48V mild-hybrid system.

Repair Procedure Summary

The repair involves updating the software for the Starter Generator, C29 control unit. Technicians must follow all instructions detailed in TSB 2011732, specifically the "00 Software Version Management (SVM), operating instructions." The update process utilizes a specific SVM action code to ensure the correct software version is installed.

Required Parts and Software

This repair primarily involves a software update. The following software and hardware details are relevant:

• Control Unit Diagnostic Address: 00CC - Starter generator
• Hardware Part Number: 4M0.903.028
• Old Software Version: 0606
• New Software Version: 0608
• SVM Code Input: CCA005

Important Warnings for Owners

Audi explicitly states that there is no reason to replace parts for this issue. Unjustified work or replacement parts will be charged back to the dealer, and invoicing under warranty for such actions is not permitted. This TSB 2076994/4 is informational only if the vehicle is outside of its warranty period.

Owners should also be aware that if they decline the recommended software update, it could lead to further issues or restrictions with the use of their vehicle or individual components. It is crucial to inform the service center if any third parties have modified the vehicle's software (e.g., chip tuning), as the update may neutralize previous modifications.

Owner Action

If your 2024-2025 Audi Q8, Q7, A6, or A7 is displaying an engine warning lamp or you suspect an issue with the 48V starter generator, it is recommended to schedule an appointment with an authorized Audi service center. Inform them about the illuminated MIL and mention the potential need for the software update outlined in TSB 2076994/4. The software update will be performed under warranty if your vehicle qualifies.

---

Source: NHTSA ID: 11021458
