2021 Audi MMI Software Update Error TSB 2062264/3

Owners of certain 2021 Audi models, including the Q8, A6, A7, A8, Q7, S6, S7, S8, SQ7, SQ8, RS Q8, RS 6 Avant, A7 e, and A8 L e, may encounter an infotainment system warning. This Technical Service Bulletin (TSB) 2062264/3 from Audi describes a specific software issue affecting the Rear MMI control panel (SCON) that causes an error message to appear on the screen. This bulletin outlines the necessary steps for technicians to perform a software update to correct the problem.

Symptoms

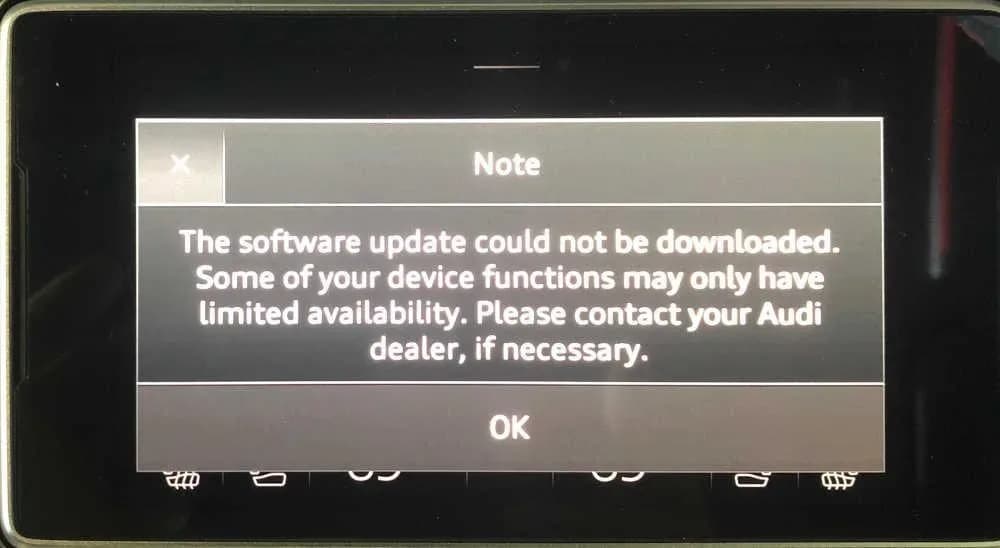

The primary symptom owners will notice is the message "The software update could not be downloaded..." displayed on the wireless control head of their vehicle's infotainment system. This message indicates a problem with the MMI's ability to perform a software update. When this message appears, some device functions may have limited availability, impacting various aspects of the infotainment, navigation, communication, and entertainment systems. Owners might experience issues with screen display, controlling infotainment with buttons, or even the ability to switch the MMI device on or off.

Technical Background

According to Audi, the root cause of the "The software update could not be downloaded..." message is a software malfunction within the MIB3 (Modular Infotainment Baukasten 3) system. This malfunction causes the message to be displayed erroneously, even if no actual download issue exists or if the system is not attempting an update. The TSB clarifies that this is a software-related problem, not a hardware failure, and can be resolved through a targeted software update.

Repair Procedure Summary

To address the 2021 Audi Q8 software update could not be downloaded issue, technicians will follow a specific software update procedure. This involves obtaining the necessary update files, preparing a USB flash drive, and then performing the update on the vehicle's MMI system. The steps are as follows:

1. Obtain Update Files: Technicians must log into Elsa2Go, Audi's service information system. From there, they can scan a provided QR code, use a direct link, or search for "Audi A8 MIB3 SCON Repair Script" within Elsa2Go's Infomedia section under Service References to download the required update files.
2. Prepare USB Flash Drive: The downloaded update files must be extracted onto a USB flash drive that has been formatted to FAT32.
3. Vehicle Preparation: The vehicle's ignition is turned on, and the MMI system is allowed to fully boot up.
4. Perform Update: The prepared USB flash drive is inserted into the vehicle's USB port. The update script should automatically begin running.
5. Completion and Removal: Once the script has finished executing, the USB flash drive is removed from the port.
6. Bus Sleep Cycle: The vehicle is then turned off, and a bus sleep cycle is allowed to complete.
7. SCON Restart (If Needed): In some instances, the SCON (Rear MMI control panel) may require a restart. This can be performed by pressing and holding the "Volume Down" button for at least 20 seconds.

Required Tools or Parts

The primary tool required for this repair is a standard USB flash drive. This flash drive must be formatted to FAT32 to ensure compatibility with the vehicle's MMI system for the software update process.

Warranty Information

For vehicles still under warranty, this Technical Service Bulletin 2062264/3 provides specific codes for claiming the repair. The Service Number is 9196, and the Damage Code is 0039. The Labor Operations code for updating the Information Electronics Control Module is 9196 2599, which is allocated 20 Time Units (TU). If the vehicle is outside of its warranty period, this bulletin serves as informational guidance only. All warranty claims must adhere to the Audi Warranty Policies and Procedures Manual.

Important Information for Owners

It is important for owners to note that this Technical Service Bulletin 2062264/3 is currently listed as "Released for publishing" with a release date of July 1, 2025. This indicates that while the resolution has been identified, the official bulletin may not yet be fully active or widely distributed to all service centers. This TSB supersedes a previous Pending Service Solution (PSS) TSB 2061670, which also addressed the "The software update could not be downloaded..." message. Owners experiencing the 2021 Audi Q8 software update could not be downloaded message should contact their authorized Audi dealer for the most current information regarding this service action.

NHTSA ID: 11021443
