2021-2022 Audi Virtual Cockpit White Sheen TSB

Symptoms

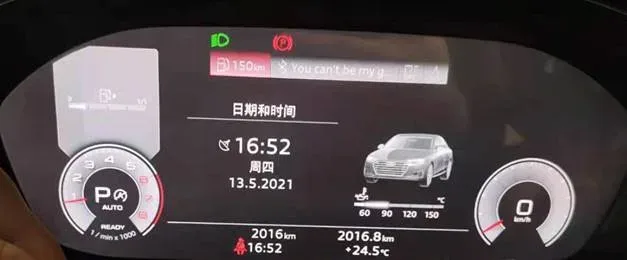

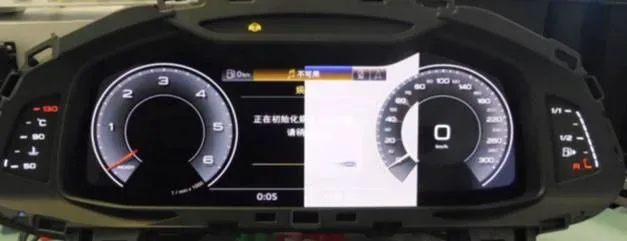

Owners of certain 2021-2022 Audi models may notice that their Audi Virtual Cockpit white sheen appears on the display. This can manifest as a white sheen covering the entire screen or only specific areas. Despite this visual anomaly, the display content remains visible and fully functional through the white sheen.

Technical Background

Audi has identified that the Audi Virtual Cockpit white sheen is caused by a hardware issue within the instrument cluster itself. This is not a software glitch but a physical defect. To address this, an optimized instrument cluster hardware design has been in production since January 1, 2022.

Important Warnings

When replacing the instrument cluster, Audi specifies an important detail:

• NOTICE: If the replacement cluster is produced BEFORE the 01/01/2022, it is still ok to use as a replacement.

This means that even if a replacement part was manufactured before the hardware optimization, it is considered acceptable for use in the repair.

Repair Procedure Summary

To resolve the Audi Virtual Cockpit white sheen issue, technicians will perform the following steps as outlined in TSB 90 24 77 2065932/2:

1. Document Production Date: The technician will use the ODIS diagnostic system to check and record the production date of the existing instrument cluster. This is done by navigating to diagnostic address 17, then selecting "Identification" and "Production date."
2. Instrument Cluster Replacement: The Audi Virtual Cockpit (control unit J285) will be replaced. This procedure must follow the detailed instructions provided in the ELSA repair manual.

The labor operation code for removing and installing or replacing the dash panel insert is 9025 XXXX, with a diagnostic time of GFF 0150 0000 (maximum 30 time units). Road tests before and after the service procedure are performed with no additional allowance.

Required Parts and Tools

For this repair, technicians will need:

• Instrument Cluster: Quantity 01
• Fasteners, Bolts, Nuts, and Screws: As needed, per the repair manual. These parts should be referenced via ETKA/ELSA.

Technicians should always consult their Parts Department and/or ETKA for the most current information and parts bulletins.

Warranty Information

Warranty claims for this issue are processed under specific claim types:

• Claim Type 110: Applicable for vehicles up to 48 months or 50,000 miles.
• Claim Type G10: For Audi Certified Pre-Owned (CPO) vehicles, requiring verification of owner eligibility.

All warranty claims must adhere to the Audi Warranty Policies and Procedures Manual and are subject to review or audit by Audi Warranty. The claim comment should reference TSB 2065932/1.

NHTSA ID

This information is based on NHTSA ID: 10250241.
