2021-2024 Audi Wheel Bearing Clicking Noise TSB

Audi has issued Technical Service Bulletin (TSB) 40 23 52 2024318/13 to address a common concern among owners of various 2021-2024 Audi models: an Audi wheel bearing clicking noise. This bulletin, dated March 23, 2023, supersedes an earlier TSB, 40 22-38, from April 14, 2022, and provides updated information regarding affected models, warranty details, and parts.

This TSB specifically targets a "clicking or clacking noise when maneuvering or parking" that owners might experience. The repair involves a straightforward procedure to eliminate the noise.

Symptoms

Owners experiencing this issue will typically notice a distinct "clicking or clacking noise when maneuvering or parking." This sound usually originates from the front left and/or front right wheel bearing area.

Technical Background and Cause

The root cause of the Audi wheel bearing clicking noise is identified as microscopic movements occurring between the wheel bearing and the wheel bearing housing. These minute shifts create the audible clicking or clacking sound that owners report.

Important Warnings

Owners should be aware of a critical warranty detail: "Wheel bearings replaced for this concern will not be reimbursed under warranty." The prescribed repair involves applying a paste, not replacing the bearing itself, under warranty.

Repair Procedure Summary

The repair procedure outlined in TSB 40 23 52 2024318/13 is relatively simple and focuses on eliminating the microscopic movements causing the noise. Technicians will perform the following steps:

1. Preparation: On the affected side(s), any corrosion and dirt must be thoroughly removed from both the wheel bearing housing and the wheel bearing itself.

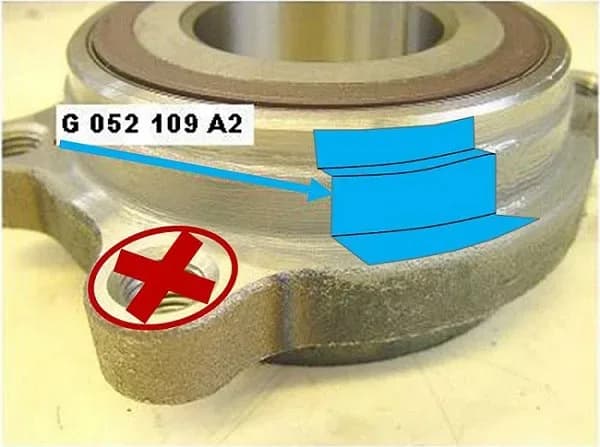

2. Paste Application: Using a brush, a thin coat of assembly paste, part number G 052109A2, is applied to the wheel bearing housing. Approximately 0.1 ounces or 6 grams of paste (roughly 1/20th of the tube) should be used. Care must be taken to avoid applying any paste onto the threads.

Required Parts and Tools

To perform this repair, the following specific part is required:

• Assembly paste: Part number G 052109A2 (Quantity: 0.1)

Additionally, any necessary fasteners, bolts, nuts, and screws should be referenced and obtained as needed from ETKA/ELSA per the Repair Manual.

Warranty Information

This Technical Service Bulletin (TSB 2024318) provides detailed warranty claim information for dealers:

• Coverage: The repair is covered under warranty for up to 48 months or 50,000 miles. For Audi Certified Pre-Owned (CPO) vehicles, the claim type is G10, subject to owner verification.
• Out-of-Warranty: If the vehicle is outside of its warranty period, this TSB serves as informational guidance only.
• Service Number: 4057
• Damage Code: 0010
• Labor Operations: Specific labor operations are provided for repairing one or two wheel hubs, including removal, reinstallation, cleaning, and greasing. Examples include 4067 19xx for one wheel hub removal/reinstall and 4067 2999 for cleaning and greasing one wheel bearing (10 TU).
• Diagnostic Time: Road tests before and after the service procedure are allocated 10 TU each (0121 0002 and 0121 0004, respectively).
• Claim Comment: All claims must reference TSB 2024318/13 and adhere to the Audi Warranty Policies and Procedures Manual.

Owner Action

If you are experiencing an Audi wheel bearing clicking noise when maneuvering or parking in your 2021-2024 Audi, it is recommended to schedule an appointment with an authorized Audi service center. Inform them of the specific symptoms you are experiencing. While the repair is generally covered under warranty for eligible vehicles, it's important to note that a full wheel bearing replacement for this specific concern will not be reimbursed under warranty, as the TSB outlines a different repair method.

---

Source: NHTSA ID: 10233696
