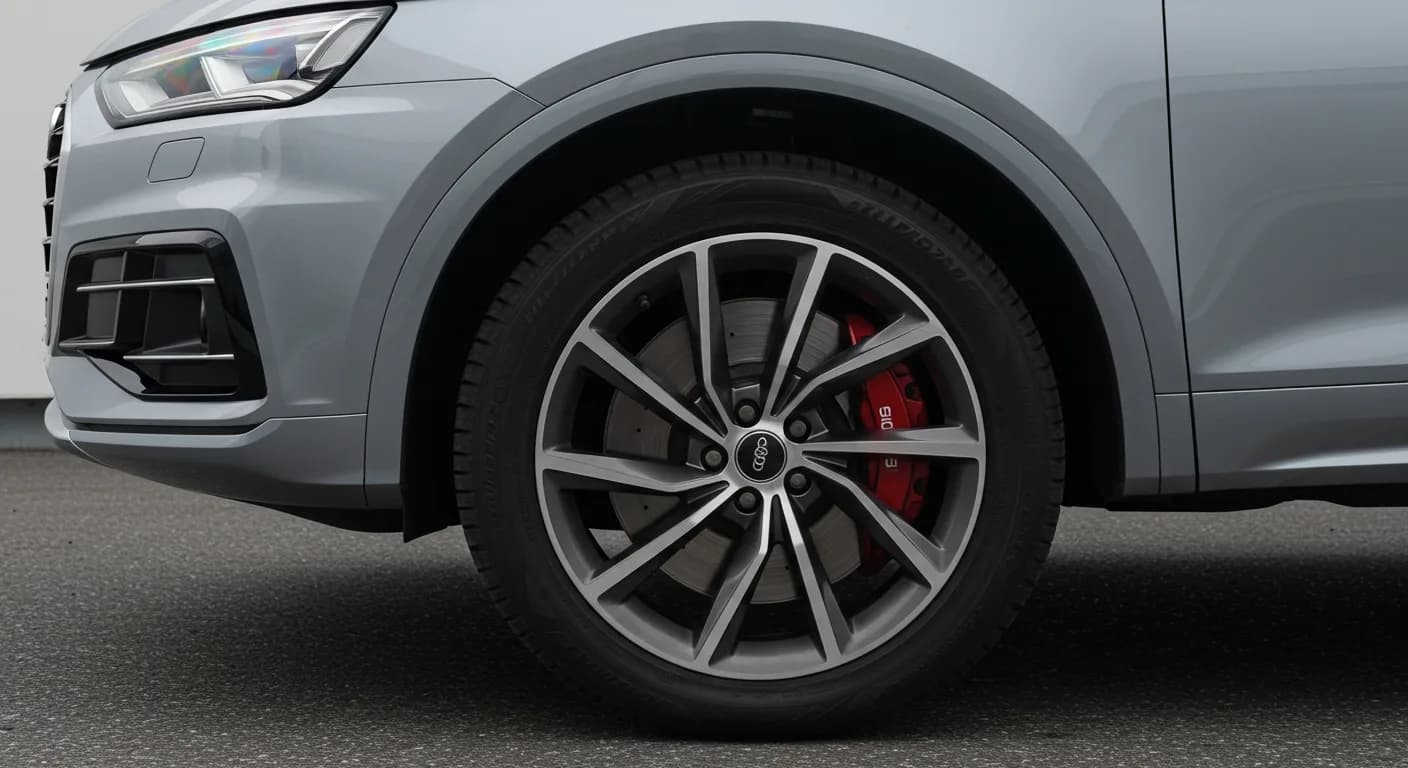

2021 Audi Q5 / SQ5 Brake Pedal Noise TSB

Audi has released Technical Service Bulletin (TSB) 47 22 14 2067321/2 to address customer complaints regarding a squeaking noise when pressing the brake pedal in certain Q5 and SQ5 models. This bulletin, dated July 27, 2022, supersedes an earlier TSB, Group 47 number 22-13, from June 14, 2022.

The TSB confirms that the noise originates from the brake servo unit, also known as the brake booster. An improved rubber boot for this component was gradually introduced in production during the first quarter of 2021.

Symptoms

Owners of affected vehicles may notice squeak noises can be heard when pressing the brake pedal. This noise can be consistently reproduced and is identified as coming from the Brake Servo Unit (Brake Booster).

Important Warnings

This Technical Service Bulletin specifically states that it does not include PHEV vehicles. Owners of Plug-in Hybrid Electric Vehicle (PHEV) models should be aware that this TSB does not apply to their vehicles.

For warranty claims, Audi emphasizes a critical requirement: Replaced Components without audio files uploaded to DOC-IT will be debited! This means that if you have this repair performed under warranty, your service center must upload an audio recording of the complaint to the DOC-IT database, including your vehicle's VIN, to avoid being charged for the replacement parts.

Diagnosis and Repair Procedure

If your vehicle exhibits the Audi Q5 brake pedal noise, the service procedure involves several steps. First, the technician must record an audio file of the complaint to document the specific squeaking noise.

This audio file, along with the vehicle's VIN, must then be attached to the DOC-IT database. Following this, the Brake Servo Unit will be replaced according to the detailed instructions found in the ELSA repair manual under ELSA>>Repair Manual>>Chassis>>Brake System>>47 Hydraulic Components>>Brake Booster/Brake Master Cylinder>>Brake Booster Removing/Installing.

Required Parts and Tools

The primary component for this repair is the Brake Servo Unit (Brake Booster). Technicians are instructed to consult ETKA for the latest information on the part number. Additionally, any necessary fasteners, bolts, nuts, and screws required for the replacement procedure should also be sourced via ETKA, as specified in the repair manual.

Warranty Information

This repair is covered under Audi's warranty program. The applicable Claim Type is 110 for vehicles up to 48 months or 50,000 miles. For Certified Pre-Owned (CPO) vehicles, Claim Type G10 applies, requiring verification of owner eligibility.

The Service Number associated with this bulletin is 4770, and the Damage Code is 0020. The labor operation for replacing the brake servo unit is 4770 1900. Diagnostic time, designated as GFF, is 0150 0000, with a maximum of 50 Technical Units (TU).

Road tests performed prior to the service procedure are allocated 0 TU, while road tests after the service procedure are allocated 10 TU (0121 0004). All warranty claims must adhere to the Audi Warranty Policies and Procedures Manual and are subject to audit. If the vehicle is outside of any Audi Warranty, this bulletin serves as informational guidance only.

NHTSA ID: 10216844
