2021-2022 Audi e-tron Low Energy Consumption Display TSB

Audi has released Technical Service Bulletin (TSB) 90 22 45 2065793/2, dated February 22, 2022, to address an issue with inaccurate energy consumption displays in the instrument cluster of certain e-tron models. This TSB supersedes an earlier bulletin, Group 90 number 22-37, dated January 21, 2022, and also replaces Pending Service Solution (PSS) TSB 2063789/1.

Symptoms

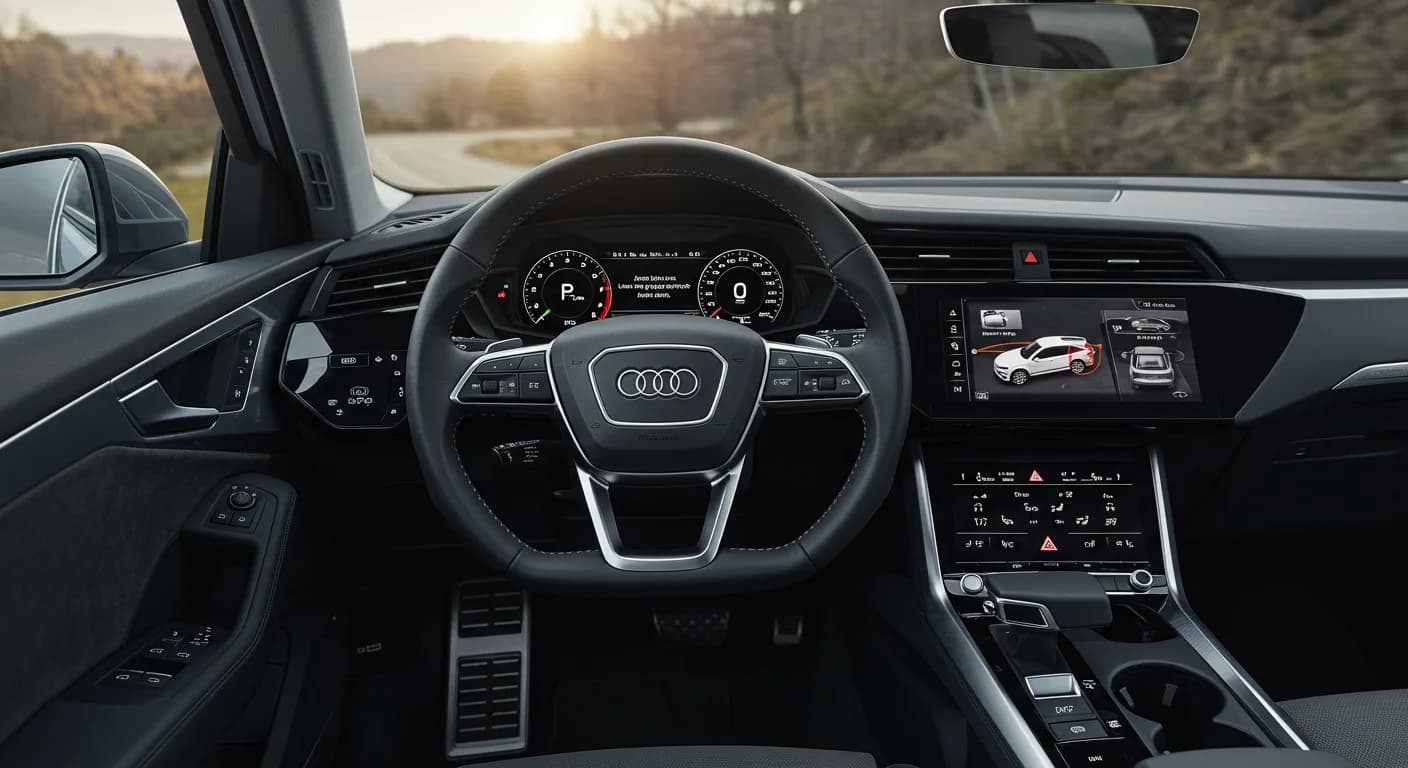

Owners may notice that the average long-term energy consumption displayed in the instrument cluster is "implausibly low." This issue typically begins to appear after the vehicle has been driven for approximately 3,000 miles. If the long-term memory for energy consumption is reset, the display will temporarily show correct values but will become inaccurate again after another 3,000 miles of driving. This is the core of the Audi e-tron low energy consumption problem.

Technical Background

According to Audi, the root cause of the inaccurate display is a software malfunction within the instrument cluster. This software error leads to incorrect calculation and presentation of the average long-term energy consumption values.

Repair Procedure Summary

To correct the Audi e-tron low energy consumption issue, a software update for the Audi Virtual Cockpit is required. This update can be performed using one of two methods:

1. Automated Update (Method 1): This method utilizes the ODIS Tester diagnostic system.
2. Manual Update (Method 2): This method is used if there are SVM code or server issues, requiring a manual update process.

Both methods involve updating the Audi Virtual Cockpit software. Technicians must follow the instructions provided in TSB 2060523: 91 MIB3 Software Update Instructions and use SVM code 17A040. It is crucial that the vehicle key is placed on the emergency key reader coil throughout the entire update process.

The total time required for this update is approximately 30-60 minutes. This includes 20-50 minutes for the software update itself and an additional 10 minutes for the SVM work.

Required Tools or Parts

Technicians will need specific equipment to perform this software update:

• An ODIS Tester.
• A valid SVM code.
• An Audi virtual cockpit software update on a USB Flash drive. The software can be downloaded from MirrorServer using the SD Creator Program. Specific USB Flash Drive part numbers vary by model year:

Model	USB Flash Drive Part Number	Quantity
e-tron MY2021	4N0 906 961 AQ	01
e-tron MY2022	4KE 906 961 A	01
e-tron GT MY2022	4KE 906 961	01

Warranty Information

This repair is covered under Audi's warranty program. The claim type is 110, applicable for vehicles up to 48 months or 50,000 miles. For Audi Certified Pre-Owned (CPO) vehicles, the claim type is G10. If the vehicle is outside of these warranty parameters, the Technical Service Bulletin serves as informational guidance only.

• Service Number: 9025
• Damage Code: 0039
• Labor Operations: Software Update (Includes checking for DTCs) - 0151 0000. Maximum 100 Technical Units (TU).
• Diagnostic Time: GFF (0 TU). No allowance is provided for road tests before or after the service procedure.
• Claim Comment: As per TSB 2065793/2.

All warranty claims must adhere to the Audi Warranty Policies and Procedures Manual.

Important Warnings

Owners and technicians should note that the warranty information provided in TSB 90 22 45 2065793/2 should be used for claims, and not the warranty information that may be stated in the referenced TSB 2060523.

Source: NHTSA ID 10208478
