2018-2022 Audi Wiring Harness Repair and Documentation TSB

Technical Background

Audi has issued Technical Service Bulletin (TSB) 2061976/1, dated February 18, 2021, to address the need for improved documentation of wiring harness repairs. This TSB applies to all 2018-2022 Audi models. Historically, when reviewing warranty claims, critical information describing the symptoms, findings, affected circuits, and location of damage was often unclear.

This bulletin aims to standardize the process for technicians when performing a 2018-2022 Audi wiring harness repair. By assisting in identifying and documenting wiring repairs, Audi can better understand common issues and improve future product designs, leading to more reliable vehicles.

Symptoms

Owners of affected 2018-2022 Audi vehicles may experience a general electrical issue. The primary symptom noted in the TSB is: "A warning or malfunction is present." This indicates an underlying electrical problem that technicians will need to diagnose as a wiring issue.

Repair Procedure Summary

When a wiring issue is identified as the root cause of a problem, technicians are required to cooperate in documenting their findings and taking photos of the damage found. These photos must be retained for at least one month after the claim is approved, in case they are needed during warranty review.

For issues related to pins or coaxial connector ends, technicians should retain approximately 10-20 mm of the original damaged wire where space allows. The repair connection must be made using the specialized tool VAS1978B.

If the root cause is high resistance or a short circuit in the wiring, overlays may be used for diagnosis. Technicians are instructed to retain the affected section of wire that was removed or found faulty. Repairs for these conditions also utilize the VAS1978B wiring harness repair set.

Detailed notes are crucial for every 2018-2022 Audi wiring harness repair. These notes should include:

• The specific circuit affected.
• Pin identification of the main circuit involved.
• Circuit checks performed, including any resistance and/or voltage values of the affected circuit.
• The exact location where the damaged pin or circuit was found.
• Any other relevant details that support and describe the findings.

An example provided in the TSB describes a FlexRay circuit that measured 0.6 ohm to ground with no components connected, indicating a short circuit. This short was present on the green FlexRay wire between the J743 Dual Clutch T23/1 and J533 Data Bus on Board Diagnostic Interface T54/27. The damaged wire section was located underneath the driver's seat along the frame rail.

Required Photos for Documentation

Accurate photographic evidence is essential for documenting wiring issues. Technicians must take three specific types of photos:

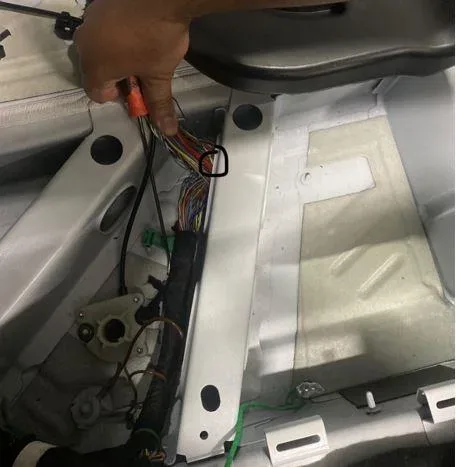

• Perspective view: This photo (referenced as Figure 1 in the TSB) should show the general area and provide a reference of the surrounding environment where the damage occurred.

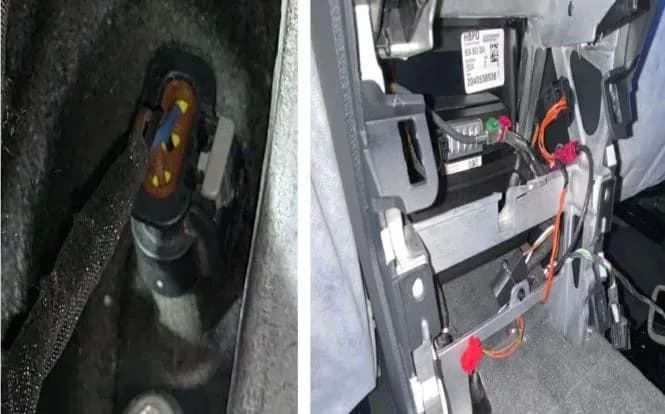

• Original routing: This photo (referenced as Figure 2 in the TSB) must be taken before the area of concern is disturbed, showing how the harness was originally routed. Examples include the G28 crank sensor harness and Q5 Wireless charging pad harness.

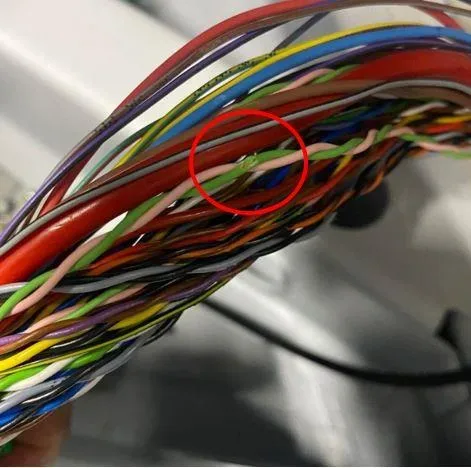

• Close-up: This photo (referenced as Figure 3 in the TSB) needs to be clearly focused and show the damaged circuit itself.

All photos should include a date stamp and VIN reference, and be taken in focus with sufficient lighting to clearly show the details.

Important Technician Advisories

Technicians are reminded that if no Technical Assistance Center (TAC) case is opened, they must still retain photos for at least one month after claim approval. This is to ensure they are available if requested during a claim review. If a TAC case is present, or is made before or after a wiring issue is identified, all information described in this bulletin must be updated within the TAC case.

Required Tools and Parts

Specialized tools are required to perform and document these wiring harness repairs effectively:

• VAS 1978B: This is the specific wiring harness repair set used for making connections.
• VAS 6160/VAS 6150: These are VAS testers that must be running the current version of ODIS (Windows 10) for diagnosis and testing.

Warranty Claim PIDs

When claiming wire repairs under warranty, using the correct Process Identification (PID) helps differentiate which harness is affected. While PID 9709 (Central Wiring Harness) is often used by default, specific PIDs should be used for more accurate claims. The following table provides examples of PIDs to help claim repairs in specific locations. For a comprehensive list, technicians should refer to the damage code catalog in Elsa under "Electrical >> 97 Wiring."
