2021-2023 Audi DL 382 Transmission Malfunction TSB
Audi TSB 2067653/6 addresses 'Gearbox Malfunction' and shifting issues in 2021-2023 Audi models with a DL 382 transmission. It covers DTCs P071800, P276800, P081100, and P081E00, guiding technicians to inspect transmission production dates and potentially replace the transmission control unit.
Marcus Weber2022 Audi A6
Also applies to
- Audi A4
- 2021–2023
- Audi A4 allroad
- 2021–2023
- Audi A5
- 2021–2023
- Audi A6
- 2021, 2023
- Audi A6 allroad
- 2021–2023
- Audi A7
- 2021–2023
- Audi A7 e
- 2021–2022
- Audi Q5
- 2021–2023
▸ Show 2 more▾ Show fewer
Audi Technical Service Bulletin (TSB) 2067653/6 provides guidance for diagnosing and repairing a specific Audi DL 382 transmission malfunction affecting various 2021-2023 Audi models. This bulletin, which supersedes TSB Group 34 number 23-66, details issues related to transmission function restriction, often indicated by specific diagnostic trouble codes (DTCs) and dashboard warnings.
Symptoms of a DL 382 Transmission Malfunction
Owners of affected Audi vehicles may experience several noticeable symptoms indicating an Audi DL 382 transmission malfunction. These include:
- "Gearbox Malfunction" displayed in the instrument cluster.
- The vehicle intermittently does not shift up or down.
- The vehicle enters limp home mode.
- "Reverse gear unavailable" displayed in the instrument cluster.
- "You can continue driving (functions limited)" displayed in the instrument cluster.
Associated Fault Codes (DTCs)
When these symptoms occur, technicians may find specific Diagnostic Trouble Codes (DTCs) stored in the transmission control module (TCM), J217. These codes help pinpoint the nature of the Audi DL 382 transmission malfunction:
| Code | Description | Symptom Code |
|---|---|---|
| P071800 | Input/Turbine Speed Sensor 'A' Circuit Intermittent | 20736 |
| P276800 | Input/Turbine Shaft Speed Sensor 'B' Circuit Intermittent | 20737 |
| P081100 | Excessive Clutch Slippage | 20870 |
| P081E00 | Clutch 2 excessive clutch slippage | 20872 |
Important Warnings for Owners and Technicians
It is crucial to note specific conditions under which this TSB applies:
- "This TSB only applies to a specific date range of the transmission. If the manufacturing date of the transmission is not within the affected range, this TSB does not apply."
- If the event memory entry for P071800 or P276800 is stored as
active/static, "the repair in this TSB does not apply to this case. Follow the ODIS test plan completely and accurately."
Diagnosis and Trigger Conditions
To properly diagnose the issue, technicians must first reproduce the customer's complaint. A key diagnostic step involves checking the transmission's production date. This TSB specifically applies to DL 382 transmissions manufactured between June 15, 2020, and April 30, 2023.

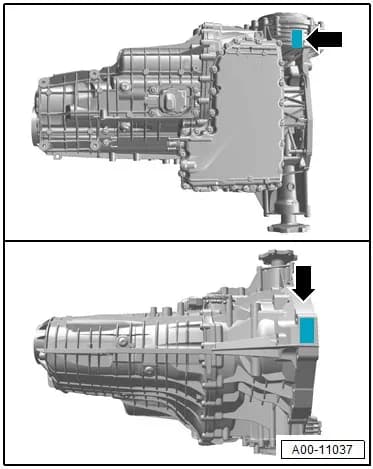

Technicians can locate the production date on data stamps found on the bottom of the front differential and the top of the bell housing. The repair outlined in TSB 2067653/6 is only applicable if DTC P071800 or P276800 is logged as passive/sporadic.
Repair Procedure Summary
If the diagnostic criteria are met, including the correct transmission production date and the presence of passive/sporadic DTCs P071800 or P276800, the primary repair involves replacing the transmission control unit, identified as J217. This procedure should be carried out according to the detailed instructions in the Workshop Manual.
Following the physical replacement, the
Frequently Asked Questions
- What does 'Gearbox Malfunction' mean in my Audi?
- A 'Gearbox Malfunction' message in your Audi's instrument cluster, especially in 2021-2023 models with a DL 382 transmission, indicates a problem with the transmission system. This can be accompanied by symptoms like difficulty shifting, the vehicle entering limp home mode, or a 'Reverse gear unavailable' message.
- Which Audi models are affected by TSB 2067653/6?
- Audi Technical Service Bulletin 2067653/6 applies to various 2021-2023 Audi models equipped with the DL 382 transmission, including the A4, A4 allroad, A5, A5 Cabriolet, A5 Sportback, A6, A6 allroad, A7, A7 e-quattro, Q5, and Q5 Sportback. The specific transmission must have been manufactured between June 15, 2020, and April 30, 2023.
- What are the DTCs associated with the Audi DL 382 transmission malfunction?
- The Audi DL 382 transmission malfunction is commonly associated with Diagnostic Trouble Codes (DTCs) such as P071800 ('Input/Turbine Speed Sensor 'A' Circuit Intermittent'), P276800 ('Input/Turbine Shaft Speed Sensor 'B' Circuit Intermittent'), P081100 ('Excessive Clutch Slippage'), and P081E00 ('Clutch 2 excessive clutch slippage').
- Will my Audi's DL 382 transmission repair be covered under warranty?
- Yes, repairs for this Audi DL 382 transmission malfunction are typically covered under warranty for up to 48 months or 50,000 miles. Certified Pre-Owned (CPO) vehicles may also be covered. If your vehicle is outside of warranty, the bulletin serves as informational guidance, and costs may apply.
- What is the Audi DL 382 transmission malfunction and how is it fixed?
- The Audi DL 382 transmission malfunction refers to issues causing 'Gearbox Malfunction' warnings and shifting problems, often linked to intermittent speed sensor or clutch slippage DTCs like P071800 or P276800. The fix, as per TSB 2067653/6, involves replacing the transmission control unit (J217) if the transmission's production date falls within a specific range and the DTCs are logged as 'passive/sporadic'.
