2024-2025 Audi A4/A5 Yellow Steering Warning Lamp TSB

Symptoms

Owners of affected 2024-2025 Audi models may notice a specific issue upon starting their vehicle. The primary symptom is the illumination of the yellow steering warning lamp on the instrument cluster.

Simultaneously, drivers will experience a reduction in power steering assistance. This can make the steering feel heavier and more difficult to operate than usual.

Fault Codes / DTCs

When diagnosing this condition, technicians may find specific Diagnostic Trouble Codes (DTCs) stored in the steering control unit (diagnostic address 0044), which is identified as J500. The relevant software version (SW) is 0172, and the part number is 8W0909144N.

The following DTCs are associated with the Audi yellow steering warning lamp B200000 issue:

• B200000 symptom 4176
• B200FF4 symptom 16712020
• B200000 symptom 4432

Technical Background

Audi has identified that the root cause of the yellow steering warning lamp and reduced power steering assistance is a software issue within the steering control unit (J500). This software anomaly leads to the incorrect storage of the aforementioned DTCs.

Important Warnings

Audi TSB 48 24 69 2074847/1 includes critical instructions for technicians to ensure the correct repair procedure is followed:

• "Please ensure that you do not confuse the SVM code with the login code when entering the code!"
• "Use the PR number to check whether the vehicle has a start/stop system."
• For vehicles with start/stop systems, when resetting the steering control unit to factory settings, "Only perform option -2- if you are instructed to do so by a TSB or Technical Assistance Center (TAC)."

Repair Procedure Summary

This TSB, dated August 9, 2024, supersedes the previous Pending Service Solution (PSS) TSB 2073087. The repair involves updating the software of the steering system (J500) using the Software Version Management (SVM) system.

For vehicles without a start/stop system:

1. Perform a software update of the steering system using SVM codes: first 44A041, then 44B041.
2. If the red steering warning lamp illuminates after the update, switch the ignition off and on again.
3. Erase all event memory entries.

For vehicles with a start/stop system:

1. Reset the steering control unit (J500, diagnostic address 0044) to factory settings via Guided Functions.

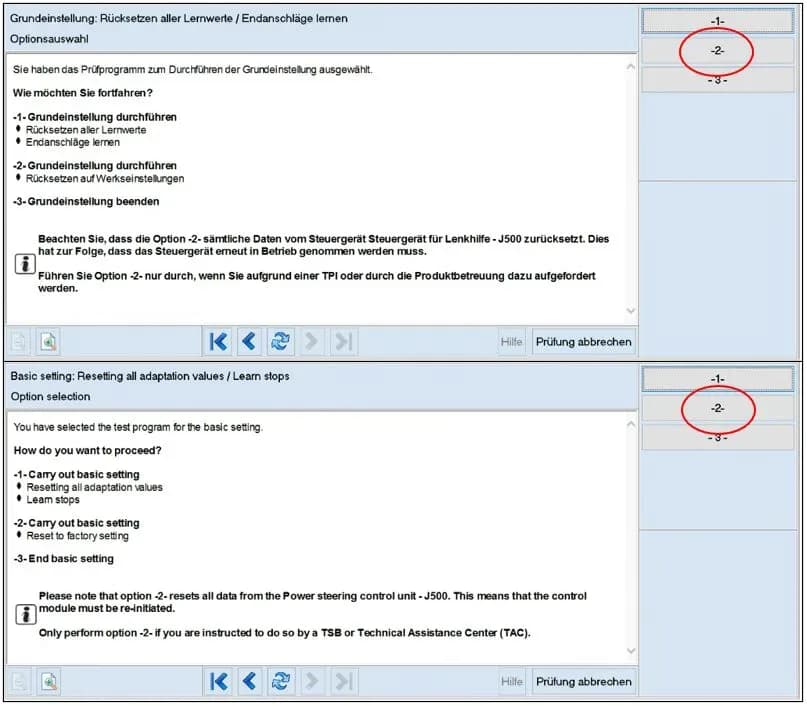

2. During the reset, select option "2" for "Reset to factory setting" using login code 1181 for the program "0044 - Reset all adaptation values / adapt end stops".
3. The tester may not automatically report completion; manually click "Done/Continue".
4. Verify that the coding in control unit J500 (address 0044) under Identification is set to "00000000000000".
5. If the coding is correct, proceed with the software update. If not, perform the factory reset again.
6. Perform the software update of the steering system using SVM codes: first 44A041, then 44B041.
7. If the red steering warning lamp illuminates after the update, switch the ignition off and on again.
8. Erase all DTCs.

The new software version will be 1181, replacing the old software version 0172. The new software part number is 8W0909144P.

Warranty Information

Warranty claims for this repair should be submitted in accordance with the Audi Warranty Policies and Procedures Manual. The Service Number is 4835, and the Damage Code is 0040. The Claim Comment should specify "As per TSB 2074847/1".

Required Tools or Parts

This repair primarily involves a software update. No specific physical parts are listed as required for replacement. The process requires access to the Audi diagnostic system for SVM code input and software flashing.

Owner Action

If you own a 2024-2025 Audi A4, A5, S4, S5, or RS 5 and experience the Audi yellow steering warning lamp B200000 or reduced power steering assistance, contact your authorized Audi dealership. Inform them of the symptoms and mention TSB 48 24 69 2074847/1. The software update will resolve the underlying issue.

NHTSA ID: 11007235
