2022 Audi A3 Blank Instrument Cluster TSB 2066854/1

Symptoms

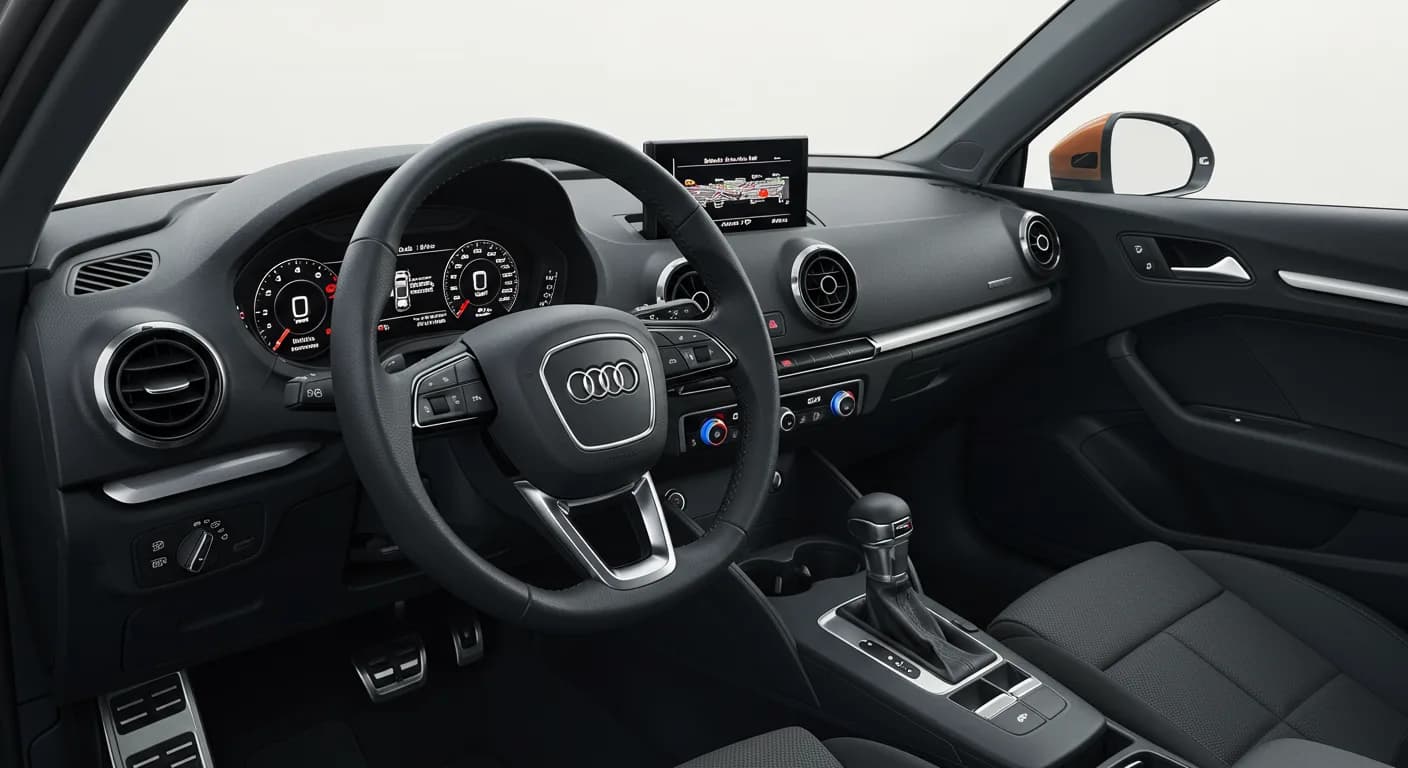

Owners of the 2022 Audi A3 may experience a condition where the digital instrument cluster display is blank at vehicle start-up. This means the screen that typically shows speed, RPM, fuel level, and other critical driving information remains dark, preventing the driver from accessing essential vehicle data. This issue directly impacts the functionality of the "Audi virtual cockpit displays" which are central to the driving experience.

Fault Codes / DTCs

When the 2022 Audi A3 blank instrument cluster issue occurs, technicians may find a specific Diagnostic Trouble Code (DTC) stored in the Instrument Cluster control unit (J285, diagnostic address 0017). The relevant fault code is:

This DTC B200FF0 specifically points to an internal problem within the instrument cluster itself.

Technical Background

Audi has identified that the 2022 Audi A3 blank instrument cluster concern is caused by an intermittent hardware issue within certain Audi virtual cockpit displays. This hardware defect can lead to the display failing to illuminate or function correctly, particularly at vehicle start-up. To address this, optimized parts were implemented in production for instrument clusters manufactured on or after March 31, 2022.

Repair Procedure Summary

Technical Service Bulletin 2066854/1 outlines a straightforward repair process for the 2022 Audi A3 blank instrument cluster. The primary step involves replacing the existing instrument cluster with a new unit. It is crucial that the replacement instrument cluster was produced on or after March 31, 2022, to ensure it contains the updated, optimized hardware. During the repair, technicians are instructed to note the production date of the old instrument cluster in the claim comments for warranty purposes. The labor operation for removing and installing the instrument cluster is identified as 9025 1900, with a diagnostic time of 0150 0000 GFF.

Required Parts and Tools

For this repair, the main component required is a new instrument cluster. Additionally, fasteners, bolts, nuts, and screws may be needed as per the vehicle's repair manual. Technicians should consult their Parts Department and/or ETKA (Electronic Parts Catalog) for the latest information and part bulletins to ensure the correct parts are ordered. The instrument cluster part number will be determined via ETKA, along with any necessary associated hardware.

Important Warnings

Owners should be aware of specific conditions regarding this Technical Service Bulletin 2066854/1:

• "If the vehicle is outside of any warranty, this Technical Service Bulletin is informational only."
• "All part and service references provided in this TSB (2066854) are subject to change and/or removal. Always check with your Parts Department and/or ETKA for the latest information and parts bulletins."

Warranty Information

This repair is covered under Audi's warranty program. The applicable Claim Type is 110, covering vehicles up to 48 months or 50,000 miles, whichever comes first. All warranty claims must adhere to the Audi Warranty Policies and Procedures Manual and are subject to review or audit by Audi Warranty.

Source: NHTSA ID: 10211734, TSB ID: 2066854/1
