Alfa Romeo has released Technical Service Bulletin (TSB) 23-020-25, also known as Rapid Service Update (RSU) 25-071, to address a concern with deformed front door weatherstrip door belt moldings on certain 2023-2024 Alfa Romeo Stelvio vehicles. This bulletin, issued on April 23, 2025, provides guidance for technicians to inspect and potentially replace these components.

The issue stems from a supplier manufacturing problem, leading to the deformation of the weatherstrip door belt moldings. Owners of affected vehicles may notice that "one or both front door weatherstrip door belt moldings are deformed."

Symptoms

The primary symptom owners will observe is a visible deformation of the front door weatherstrip door belt moldings. This can affect either the left or right front door, or both. If you notice your Alfa Romeo Stelvio door weatherstrip deformed, it aligns with the condition described in this bulletin.

Diagnosis

For technicians, the diagnostic process involves checking the vehicle's VIN against the VIP system or the RSU VIN list to confirm applicability. If the VIN is listed, the repair procedure should be performed. Even if a vehicle's VIN is not on the list but exhibits the described symptom of a deformed Alfa Romeo Stelvio door weatherstrip, the repair procedure should still be followed.

Repair Procedure Summary

The repair outlined in TSB 23-020-25 involves a straightforward inspection and potential replacement process:

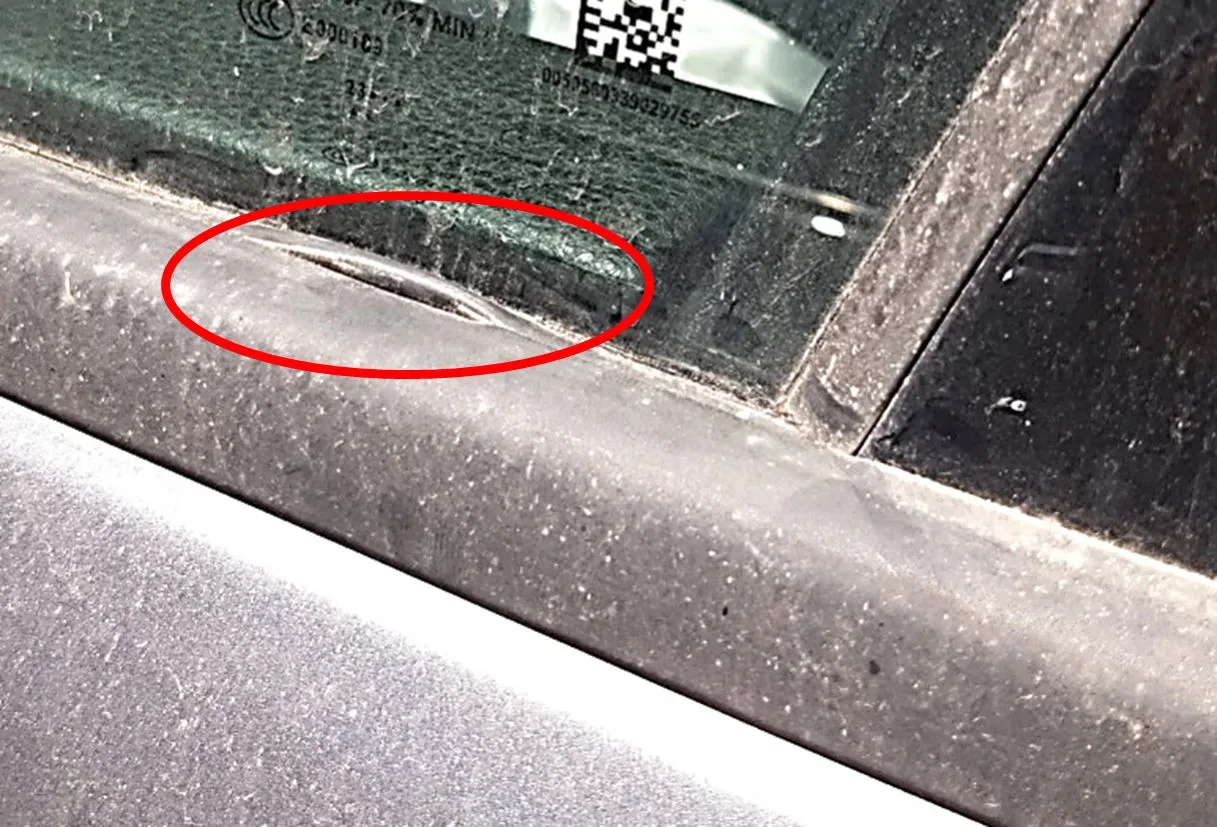

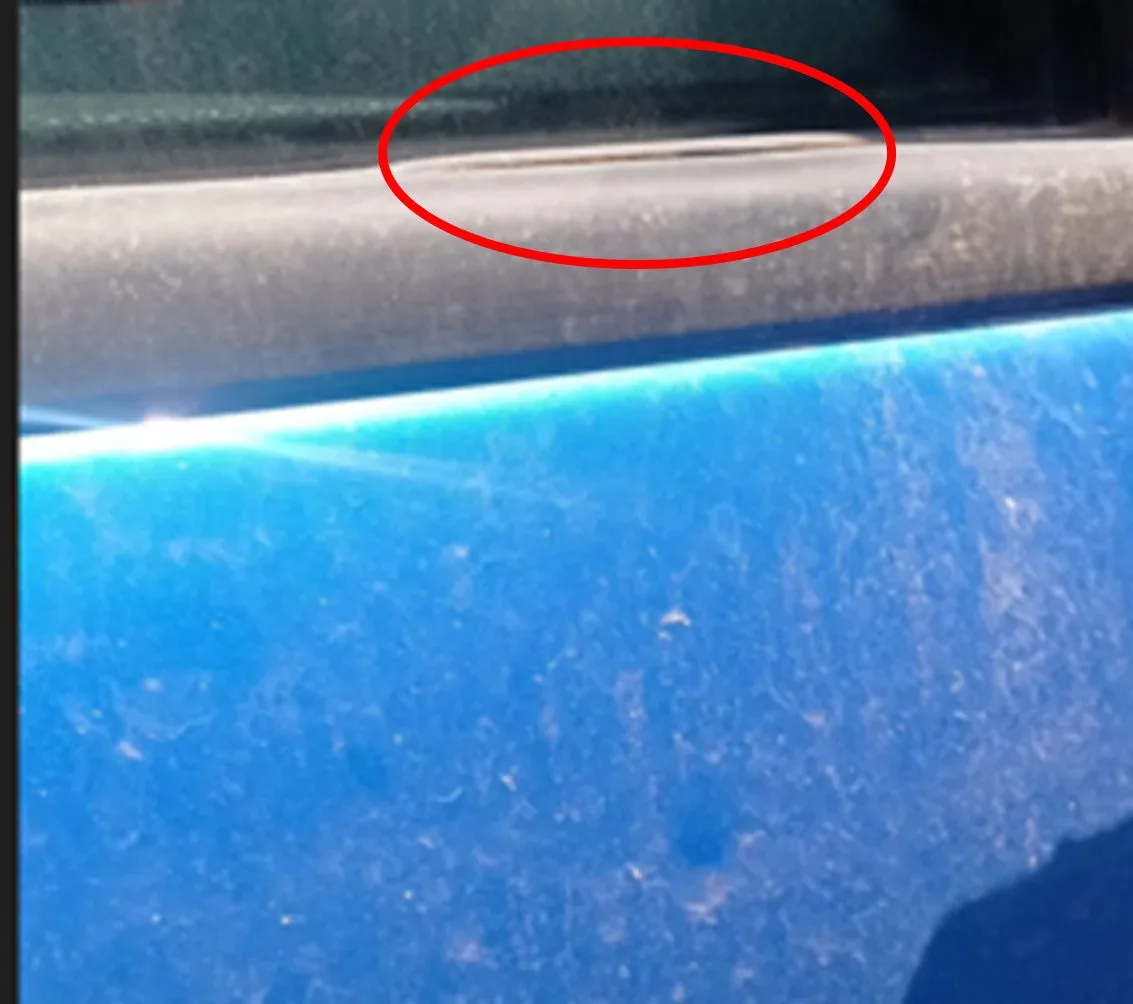

1. Initial Inspection: Technicians must inspect both the left and right front weatherstrip door belt moldings for any signs of deformation. Visual aids (Fig. 1 and Fig. 2 in the original document) help identify the specific type of deformation.
2. Assessment: If no deformation is found, the bulletin is considered complete, and the inspection labor operation (23-51-16-9M) is used to close the service action.
3. Replacement: If deformation is confirmed, the affected weatherstrip door belt moldings must be replaced. Detailed service procedures for removal and installation are available in the DealerCONNECT/Service Library under the path: Service Info > 23 - Body / Doors - Front / Molding, Door Belt, Outer / Removal and Installation.

Required Parts

Should replacement be necessary, the following parts may be required:

• Right Front Weatherstrip, Front Door Belt Outer:
  • Mopar Part No.: 68356933AA
  • EMEA Part No.: 050535372
• Left Front Weatherstrip, Front Door Belt Outer:
  • Mopar Part No.: 68356936AA
  • EMEA Part No.: 050535387

Labor Operations and Failure Code

Dealers will use specific labor operation numbers for claims:

• 23-51-16-9M: Inspect Left and Right Front Door Belt Moldings (0.2 hours)
• 23-51-16-9N: Inspect Left and Right Front Door Belt Moldings and Replace One Side (0.6 hours)
• 23-51-16-9P: Inspect Left and Right Front Door Belt Moldings and Replace Both Sides (1.1 hours)

The associated Failure Code for this service action is ZY.

Owner Action

If you own a 2023-2024 Alfa Romeo Stelvio and notice that your front door weatherstrip door belt moldings appear deformed, it is recommended to contact your authorized Alfa Romeo dealer. They can check your vehicle's VIN to determine if it falls within the affected range for TSB 23-020-25 and perform the necessary inspection and repair. All applicable repairs are reimbursable under the provisions of your vehicle's warranty.

---

Source: NHTSA ID: 11017362
