2021 Nissan Rogue P0780 Shift Error TSB

Symptoms

Owners of a 2021 Nissan Rogue may experience the diagnostic trouble code (DTC) P0780, indicating a "SHIFT ERROR," stored in the Transmission Control Module (TCM). This DTC can be present in either a past or current status.

Fault Codes / DTCs

This technical service bulletin specifically addresses the following diagnostic trouble code:

Code	Description
P0780	SHIFT ERROR

Additionally, DTC U0101 may appear after the TCM reprogramming process. This code can typically be erased after confirming the P0780 does not return.

Diagnosis / Trigger Conditions

The primary condition for this bulletin is the presence of DTC P0780 (SHIFT ERROR) within the vehicle's Transmission Control Module (TCM).

Repair Procedure Summary

To resolve the Nissan Rogue P0780 shift error, technicians will follow a detailed procedure involving the Nissan CONSULT-III plus diagnostic system:

1. Confirm TCM Part Number: The current Transmission Control Module part number is identified.
2. System Preparation: Before reprogramming, ensure the ASIST system on the CONSULT PC is updated, and all C-III plus software updates are installed. Connect a battery maintainer/smart charger to the vehicle, set to reflash mode, and connect an AC adapter to the CONSULT PC. All vehicle electrical loads and external Bluetooth devices within range must be turned off to prevent interruption or damage during reprogramming.

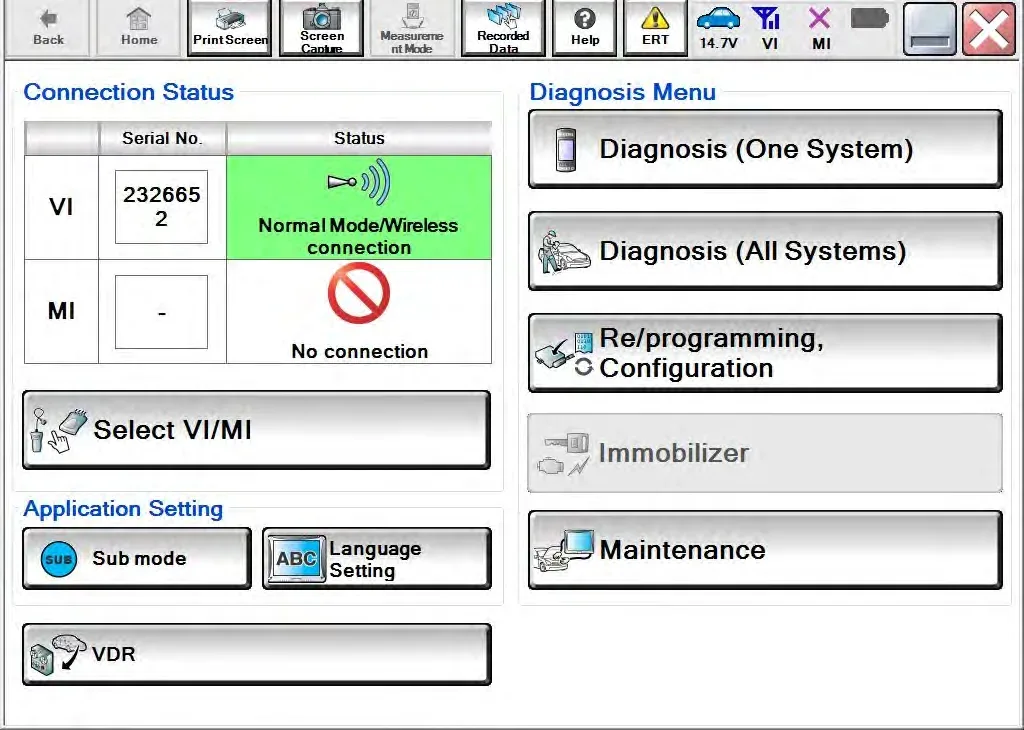

3. CONSULT-III Plus Operation: Connect the Vehicle Interface (VI) to the vehicle and start the C-III plus software. Confirm the VI is recognized.

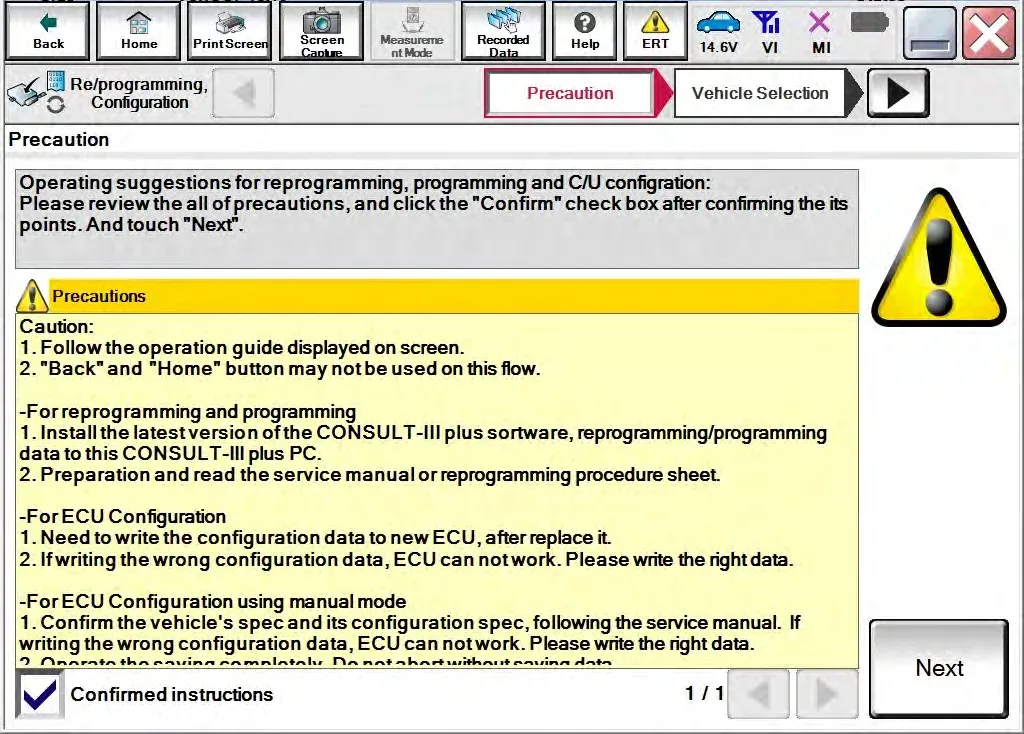

4. Software Navigation: Select "Re/programming, Configuration" from the diagnosis menu and confirm all precaution instructions have been read.

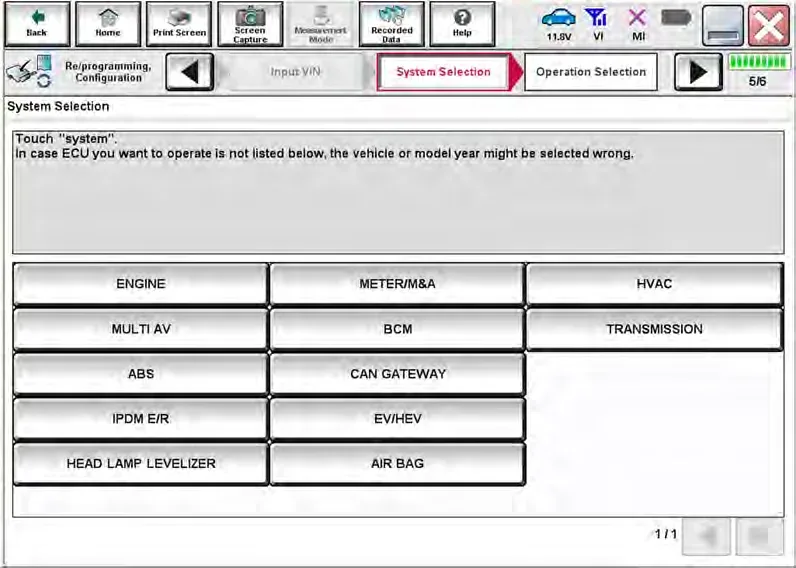

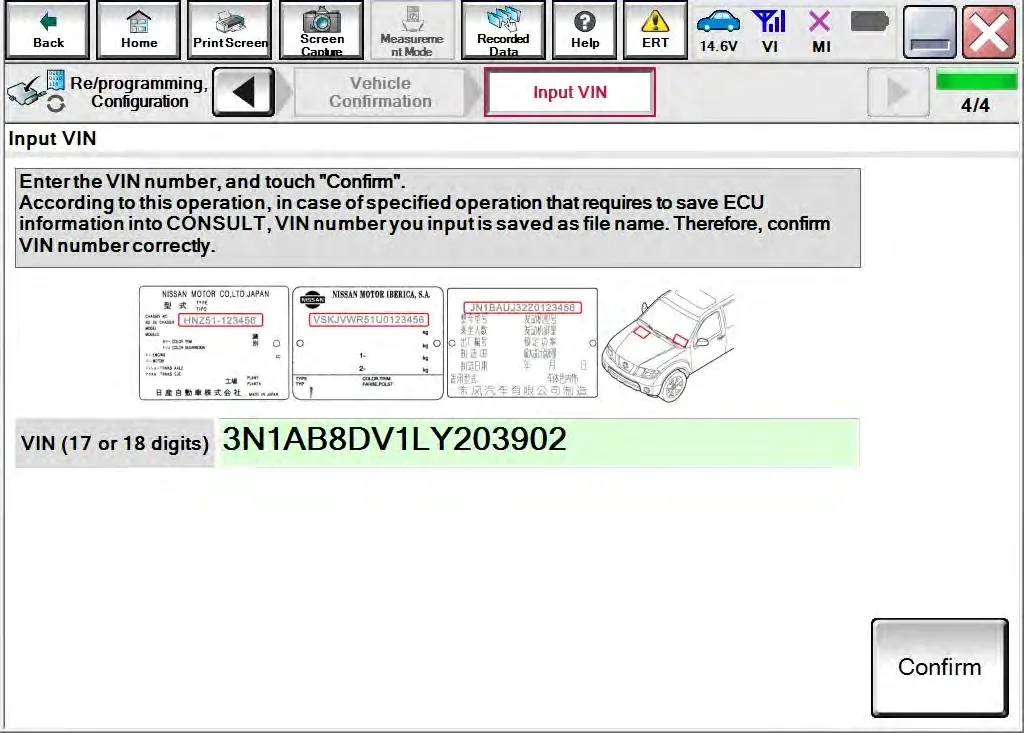

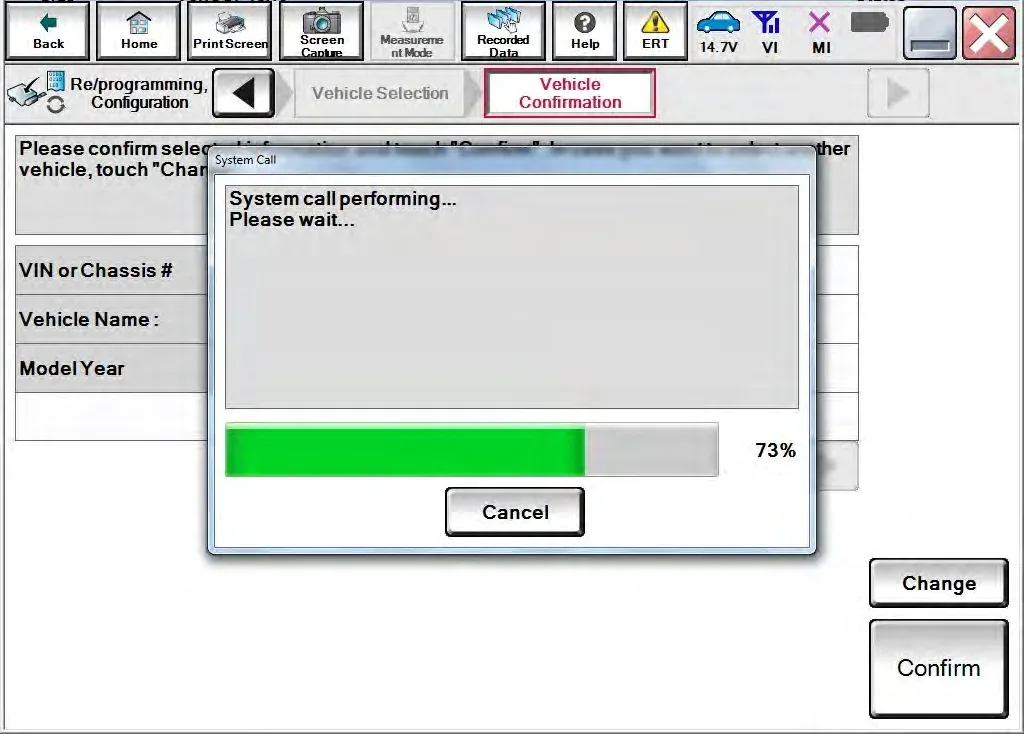

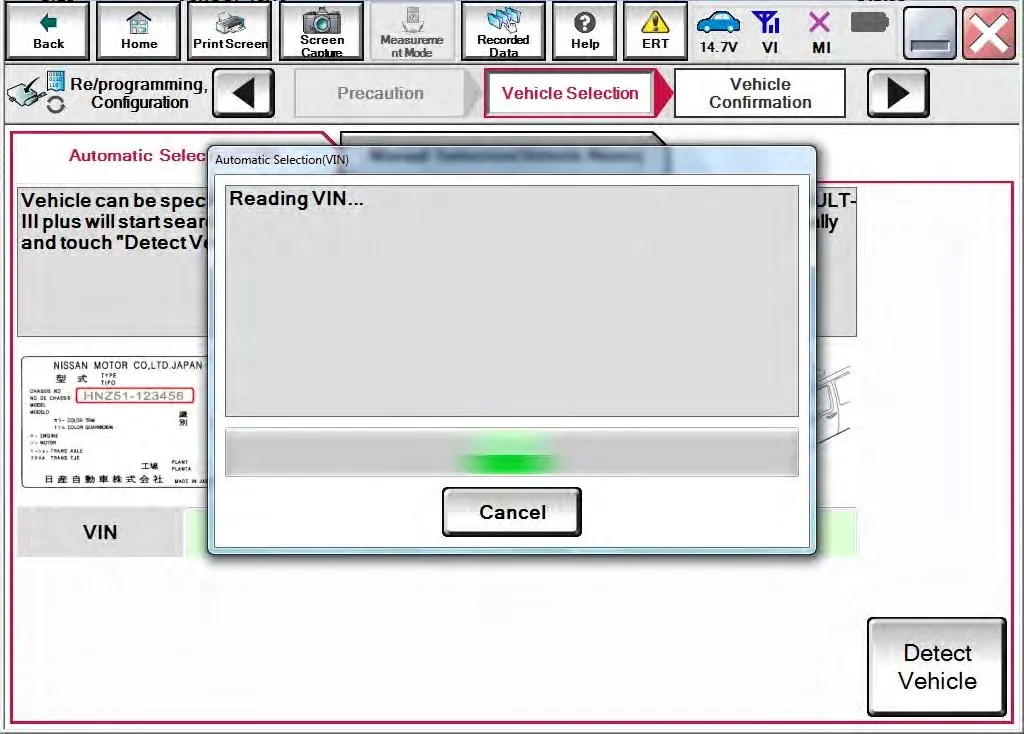

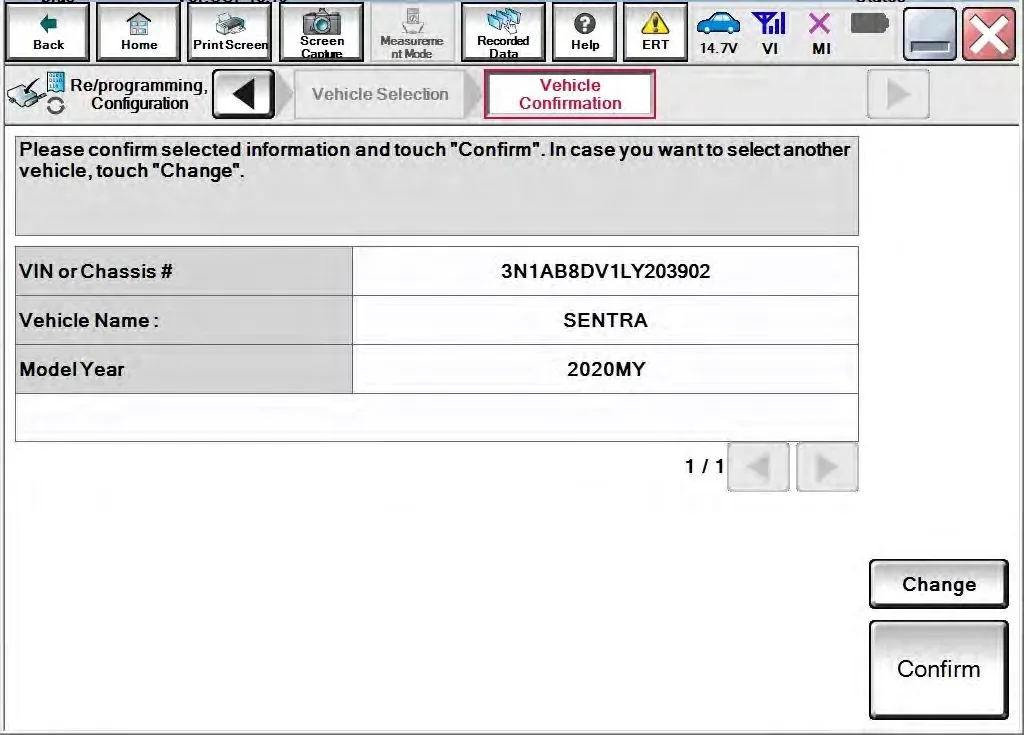

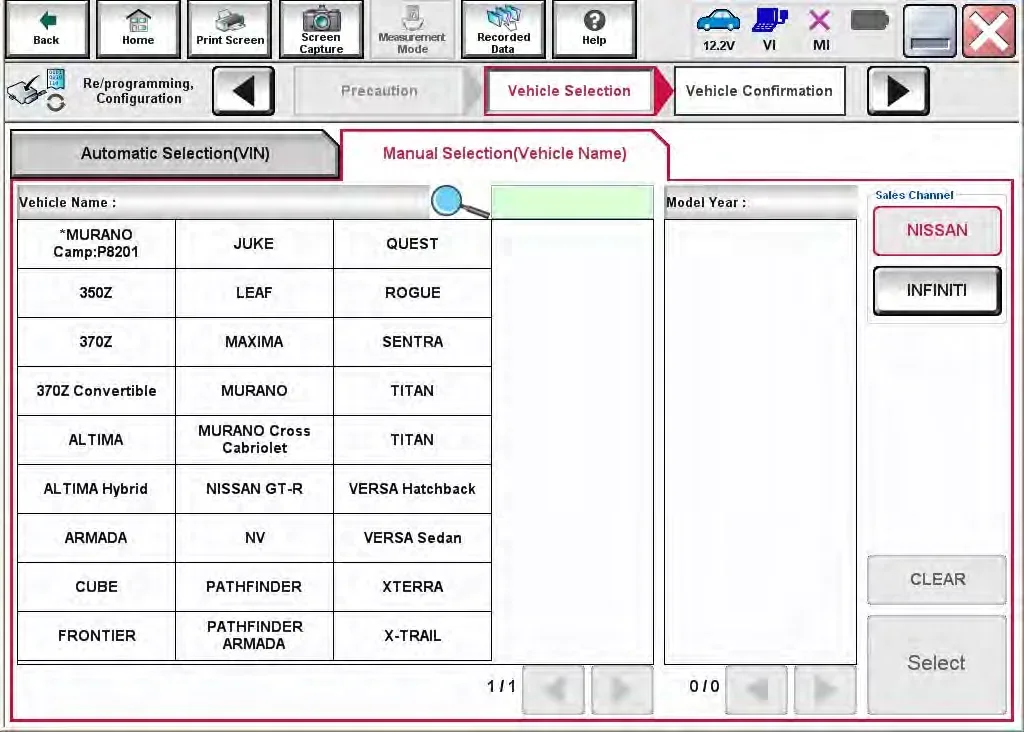

5. VIN and System Selection: Use the automatic VIN selection feature within C-III plus. Once the VIN is confirmed, proceed to select the "TRANSMISSION" system for operation.

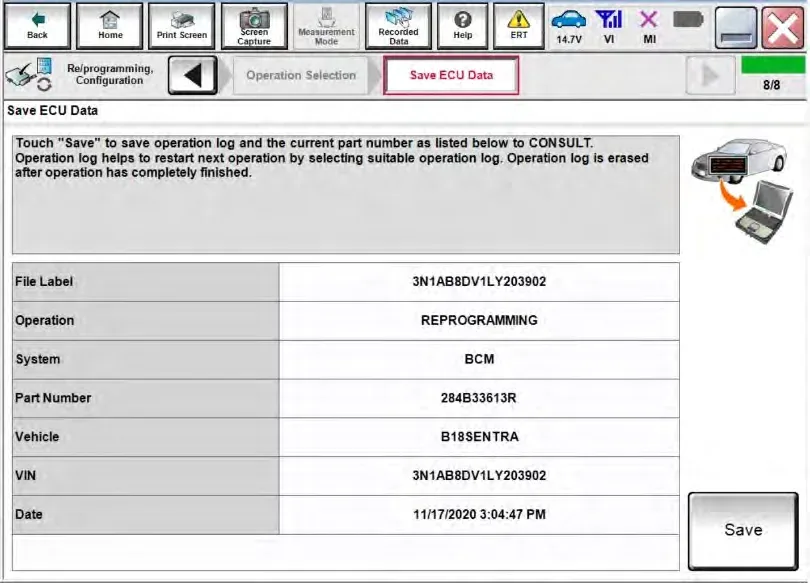

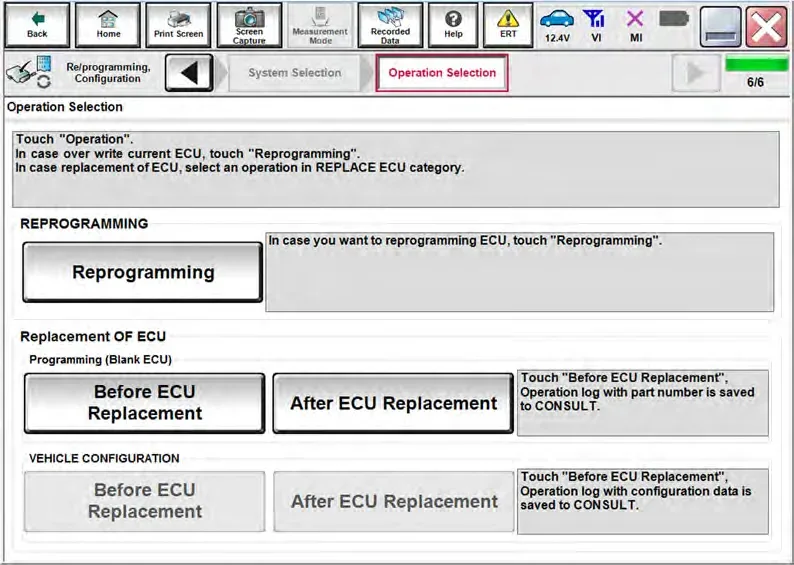

6. Reprogramming Initiation: Select the "Reprogramming" option. The current TCM part number is recorded for reference.

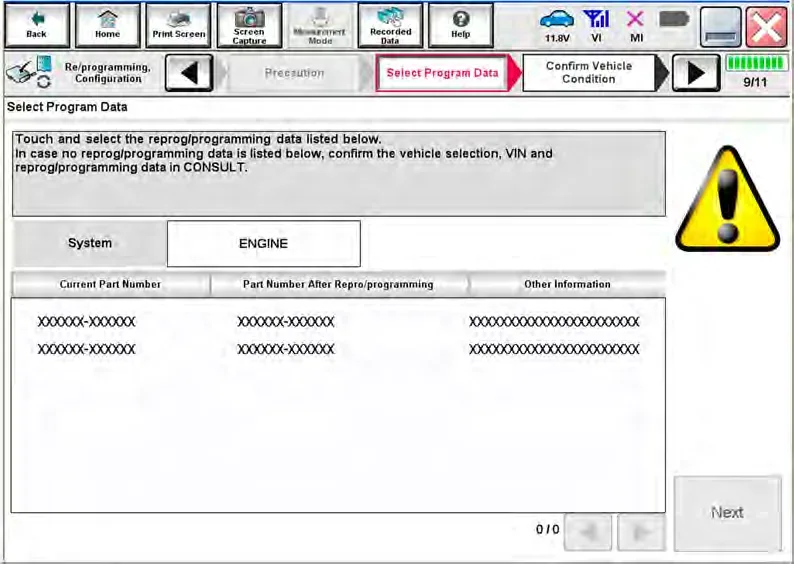

7. Part Number Verification: Compare the recorded TCM part number against a provided list (Table A in the bulletin). If the part number matches, proceed with the reprogramming. If it does not match, reprogramming is not necessary, and the technician will proceed directly to the DTC Confirmation Procedure.

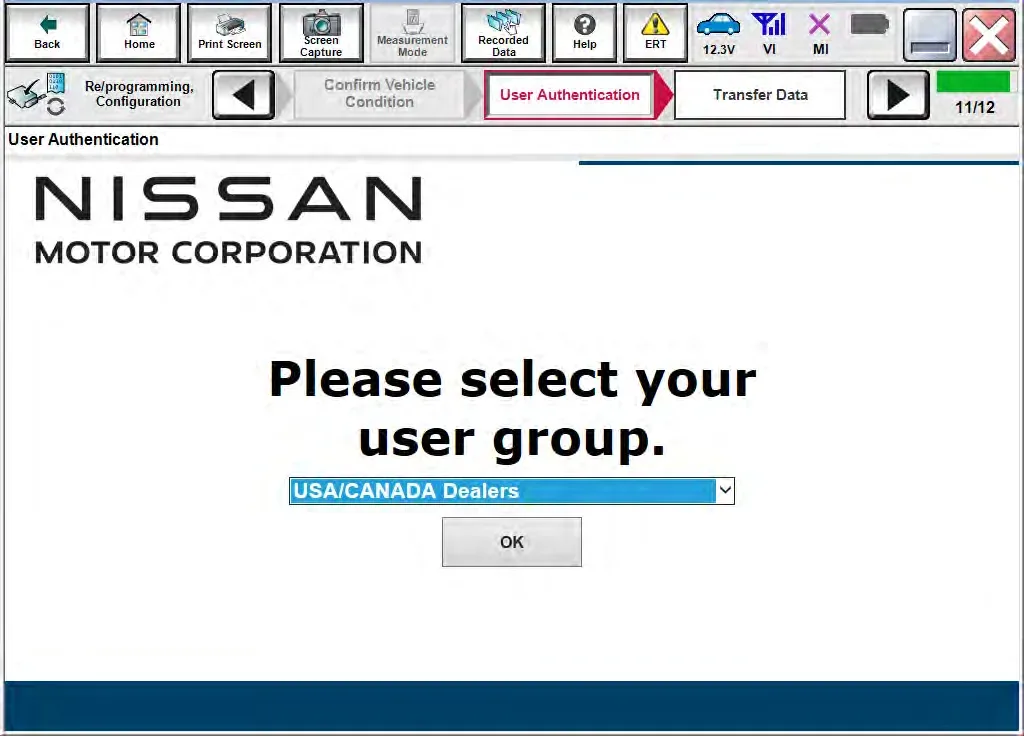

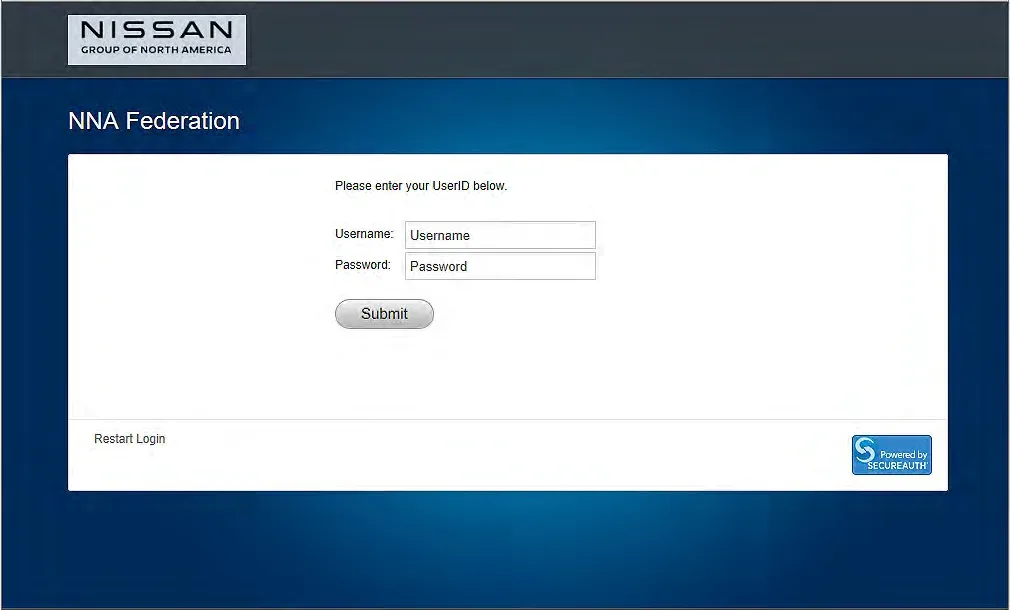

8. TCM Reprogramming: Follow the on-screen instructions to reprogram the TCM. If multiple new part numbers are available, select the option that does not have a specific cautionary message. Login using NNAnet credentials to complete the process.

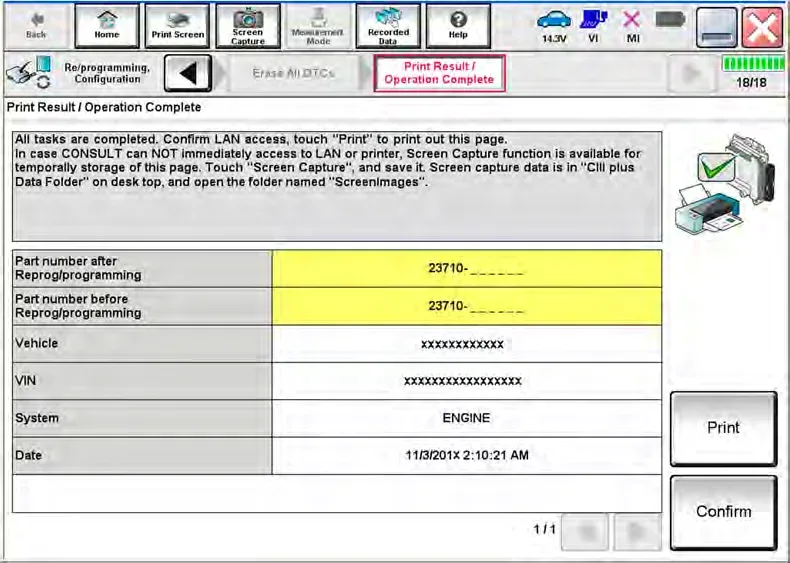

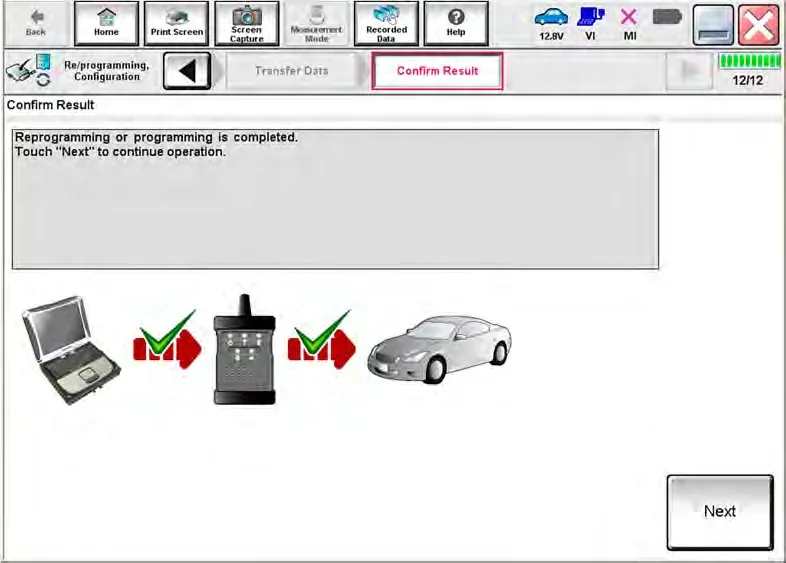

9. DTC Erase and Verification: After successful reprogramming, erase all stored DTCs by holding the ignition button for 5 seconds to turn the ignition OFF. Verify that the before and after part numbers are different, and print the confirmation screen for warranty documentation.
10. DTC Confirmation Procedure: Disconnect the battery maintainer/smart charger. Start the engine, depress the brake pedal, and cycle the gear selector lever through "R" (5 seconds), "N" (5 seconds), "D/M" (10 seconds), and "P" (10 seconds). Finally, check for any stored DTCs. If the Nissan Rogue P0780 shift error does not return, the repair is complete. If it does return, further diagnosis using the ESM procedure is required.

Required Tools or Parts

Technicians will need specific tools and software to perform this repair:

• CONSULT PC: A diagnostic computer with the latest ASIST synchronization and C-III plus software updates.
• Vehicle Interface (VI): To connect the CONSULT PC to the vehicle.
• Battery Maintainer/Smart Charger: Essential to maintain stable battery voltage during reprogramming.
• AC Adapter: For the CONSULT PC to prevent power loss.
• Transmission Control Unit (TCM) Part Numbers: The bulletin references current TCM part numbers 31039-6RA8B, 31039-6RA8C, 31039-6RA8D, 31039-6RA8E, and 31039-6RA9E. The Primary Failed Part (PFP) for claims is the Transmission Control Unit (310F6-*****).

Important Warnings

Owners and technicians should be aware of several critical warnings related to this procedure:

• Professional Service Only: "Nissan Bulletins are intended for use by qualified technicians, not 'do-it-yourselfers'. Qualified technicians are properly trained individuals who have the equipment, tools, safety instruction, and know-how to do a job properly and safely."
• Dealer Consultation: "If you believe that a described condition may apply to a particular vehicle, DO NOT assume that it does. See your Nissan dealer to determine if this applies to your vehicle."
• Battery Voltage Criticality: "If the vehicle battery voltage drops below 12.0V or rises above 15.5V during reprogramming, the TCM may be damaged."
• Electrical Load Management: "Be sure to turn OFF all vehicle electrical loads. If a vehicle electrical load remains ON, the TCM may be damaged."
• CONSULT PC Power: "If the CONSULT PC battery voltage drops during reprogramming, the process will be interrupted and the TCM may be damaged."
• Bluetooth Interference: "Turn OFF all external Bluetooth® devices (e.g., cell phones, printers, etc.) within range of the CONSULT PC and the VI. If Bluetooth® signal waves are within range of the CONSULT PC or VI during reprogramming, reprogramming may be interrupted and the TCM may be damaged."

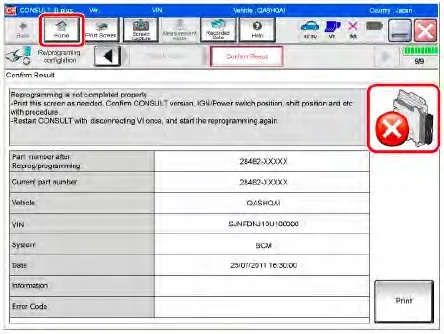

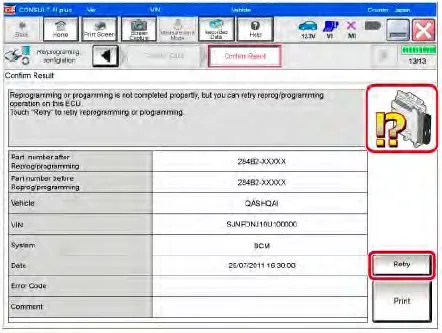

• Reprogramming Interruption: "Do not disconnect the VI or shut down C-III plus if reprogramming does not complete."

Amendment History

This bulletin has undergone several revisions:

• March 16, 2021 (NTB21-023): Original bulletin published.
• March 19, 2021 (NTB21-023A): Table A on page 8 revised.
• August 30, 2022 (NTB21-023B): Table A on page 8 revised.

---

Source: NHTSA ID 10219076
