2022-2023 Kia Sorento Sportage Loose Trim Service Action

Why this matters

Kia has initiated Service Action SA516 to address potential issues with exterior trim components on certain 2022-2023 Kia Sorento and 2023 Kia Sportage vehicles. The components in question include the Multi-Sensor Cover, Door Belt Outside Weatherstrip, and Windshield Garnish. These parts are crucial for vehicle aesthetics, sealing, and the proper function of integrated sensors.

Loose or damaged trim can lead to various problems, such as increased wind noise, water intrusion into the cabin, or even interference with the multi-sensor system's operation. Ensuring these components are properly secured and undamaged is important for vehicle integrity and owner satisfaction.

Symptoms

Owners might notice the following symptoms related to this service action:

• Loose Multi-Sensor Cover: The cover located on the windshield may not be flush or securely mounted.
• Loose Door Belt Outside Weatherstrip: Visible gaps or movement in the weatherstrips along the top edge of the doors.
• Loose Windshield Garnish: The molding along the sides of the windshield may not be flush or securely attached.

These issues are typically identified through visual inspection or by applying light pressure to the trim components.

Diagnosis / trigger conditions

Technicians will perform a multi-point inspection to determine if the trim components are loose or damaged. For the Multi-Sensor Cover, the inspection involves checking if it's flush against the windshield. If it's loose, further inspection for broken clips or deformation is required.

For the Door Belt Outside Weatherstrip, an upward pressure test is used to confirm secure fitment. Visible gaps indicate a problem. Similarly, the Windshield Garnish moldings are checked for looseness and visible gaps.

Repair procedure summary

The service action involves a detailed inspection and, if necessary, resecuring or replacing the affected trim components. The procedure is broken down by component:

Multi-Sensor Cover (Sportage NQ5a, Sorento MQ4a)

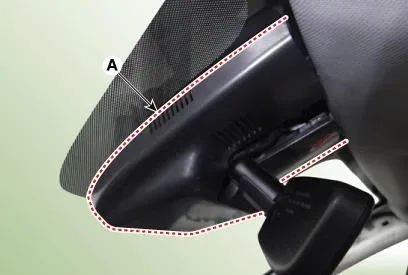

1. Inspect the multi-sensor cover for looseness and ensure it's flush with the windshield. If it's secure, no further action is needed.
2. If the cover is loose, remove the center multi-sensor blanking cover and then slide the multi-sensor cover downwards to remove it.
3. Inspect the removed cover for broken clips or deformation. If no damage is found, reinstall the cover. If damage is present, replace the multi-sensor cover with a new part. If the reinstalled cover remains loose, it must be replaced.

Door Belt Outside Weatherstrip (Sorento MQ4a)

1. Inspect all four door belt outside weatherstrips for loose fitment.
2. Apply upward pressure to each weatherstrip to confirm it's securely attached. If secure, no further action is needed.
3. If a weatherstrip is loose, attempt to clip it down onto the door. If it still does not secure, the weatherstrip must be replaced. Replacement involves referring to specific repair procedures in the Kia Global Information System (KGIS) shop manual for front or rear door weatherstrips.

Windshield Garnish (Sorento MQ4a)

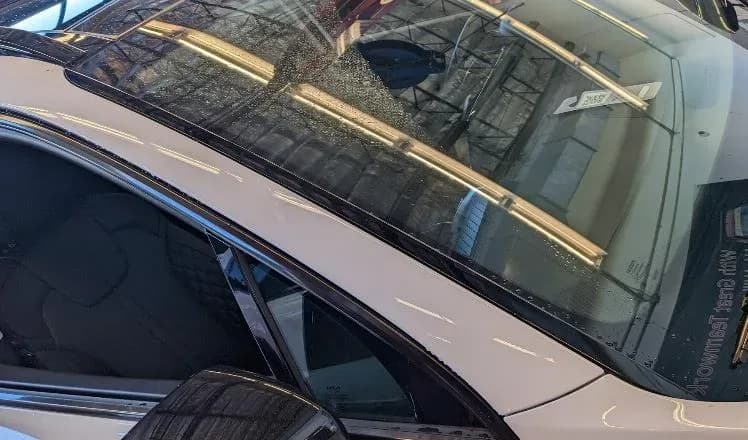

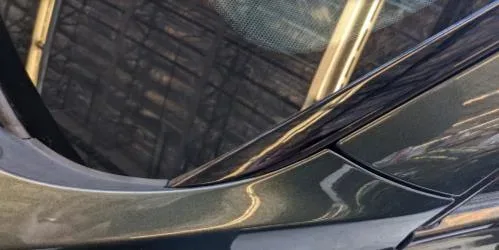

1. Inspect both front windshield garnish moldings (left and right) for loose fitment. If secure, no further action is needed.
2. If a molding is loose, attempt to secure it by hitting it down with a closed fist. If it still does not secure, the molding must be replaced. Replacement requires using a trim tool to remove the old molding.
3. Install the new windshield garnish trim by first inserting the bottom section, then clipping the top trim clips using a closed fist, working from top to bottom to secure all clips.

For any part replacement, technicians are required to attach photos of the old (NG) part(s) to the warranty claim.

Required parts

Replacement parts for this service action include specific Multi-Sensor Covers, Door Belt Outside Weatherstrips, and Windshield Garnish Assemblies. Kia notes that the total number of affected vehicles is expected to be very low, and dealers should not order these parts for stocking purposes. Parts should only be ordered after the required inspection confirms they are needed.

Some of the part numbers that may be required are:

• Multi-Sensor Cover: 96030 DW010 (Sportage), 96030 R5000 (Sorento)
• Belt Outside Door Weatherstrip, Front LH: 82210 R5001, 82210 R5011
• Belt Outside Door Weatherstrip, Rear LH: 83210 R5001, 83210 R5011
• Belt Outside Door Weatherstrip, Front RH: 82220 R5001, 82220 R5011
• Belt Outside Door Weatherstrip, Rear RH: 83220 R5001, 83220 R5011
• Windshield Garnish Assy, LH: 86130 R5000
• Windshield Garnish Assy, RH: 86140 R5000

Important warnings

• Kia is requesting the completion of this Service Action on all affected vehicles in dealer stock, prior to delivery. Vehicles cannot be delivered until this update is completed.
• This Service Action is a repair program without customer notification that is performed during the warranty period. Owners will NOT receive a notification letter for this action.
• The total number of affected vehicles is expected to be very low; DO NOT order this part for stocking purposes. Complete the required inspection, and confirm parts are required before ordering any parts.
• For all part replacements, a photo for each of the old (NG) part(s) must be attached using the KVID app and photo must be attached to claim using Warranty Claim Attachment type 'XX - Other'. Claims will be subject to chargeback if photos are not submitted.

Owner action

If you own a 2022-2023 Kia Sorento or a 2023 Kia Sportage and are concerned about a potential Kia Sorento loose trim issue, you should contact your authorized Kia dealer. While Kia is not notifying consumers for this service action, dealers are instructed to perform the inspection and any necessary repairs on vehicles in their inventory prior to sale. If you notice any of the described symptoms, such as loose or damaged trim, your dealer can check your vehicle's VIN to determine if it is covered under Service Action SA516. Repairs performed under a service action during the warranty period are typically free of charge.

NHTSA ID: 10226553
