2024 Jeep Wrangler PCM Update for MIL and DTCs

Owners of 2024 Jeep Wrangler vehicles equipped with the 2.0L I4 DOHC DI Turbo Engine W/ESS (Sales Code EC1) may experience a Malfunction Indicator Lamp (MIL) illumination or a "no crank/no start condition." This is addressed by Technical Service Bulletin (TSB) 18-011-25 REV. A, issued on July 25, 2025. This TSB supersedes the previous TSB 18-011-25 dated March 8, 2025, and provides an updated repair strategy for these conditions. The primary cause for these issues is identified as the Powertrain Control Module (PCM) software.

This bulletin applies to vehicles in North and South America, India & Asia Pacific, Middle East and Africa, and China markets. The 2024 Jeep Wrangler PCM update aims to resolve these performance concerns.

Symptoms

Owners may observe the Malfunction Indicator Lamp (MIL) illuminated on their dashboard. In addition to the MIL, a "no crank/no start condition" may occur. These symptoms are often accompanied by specific Diagnostic Trouble Codes (DTCs) stored in the vehicle's system.

Fault Codes / DTCs

The following Diagnostic Trouble Codes (DTCs) may be present, indicating issues with various engine components:

Code	Description
P0133	O2 Sensor 1/1 Slow response
P2453	Particulate Filter Pressure Sensor “A” Circuit Range/Performance
P245F	Particulate Filter Pressure Sensor “B” Circuit Range/Performance
P0420	Catalyst System Efficiency Below Threshold Bank 1
P0017	Crankshaft/camshaft Timing Misalignment - Bank 1 Sensor 2
P000A	Bank 1 Camshaft 1 Position Slow Response
P219A	Bank 1 Air-fuel Ratio Imbalance

This TSB also includes a software enhancement for "Smart Charge change: Battery life improvements."

Important Warnings

• Battery Charger Requirement: During the PCM reprogramming process, it is critical to install a battery charger to maintain voltage between 13.2 and 13.5 volts. Do not allow the charging voltage to drop below 13.2 volts or climb above 13.5 volts.
• Interrupted Flash Process: If the flash process is interrupted or aborted, it must be restarted immediately.
• SA Market Notification: For the SA market only, after applying this TSB, it is not necessary to send DID-I or DID-A.

Diagnosis

Diagnosis involves using a wiTECH scan tool to check for Diagnostic Trouble Codes (DTCs). Technicians will also consult DealerCONNECT/Service Library for appropriate diagnostic procedures. If other DTCs or symptoms are present beyond those listed in this bulletin, they must be addressed first.

Repair Procedure Summary

The 2024 Jeep Wrangler PCM update and related repairs involve a multi-step process:

1. DTC Scan: Scan the Powertrain Control Module (PCM) for DTCs. Specific DTCs (P0017/P000A, P219A, P0420) direct the technician to different starting points in the repair procedure.
2. Engine Oil Inspection: Check if the engine oil is contaminated with metallic debris. If contamination is found, the engine oil and filter must be replaced.

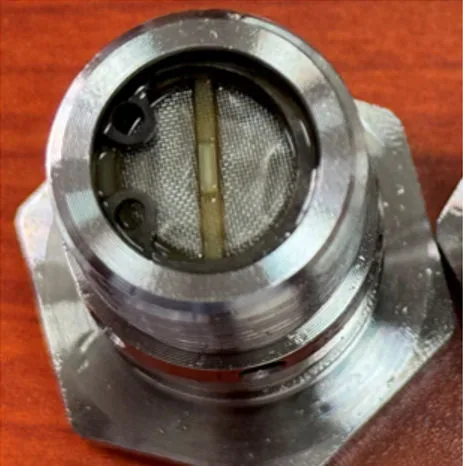

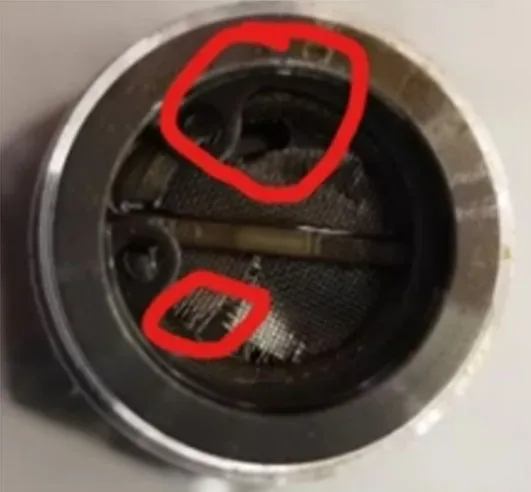

3. OCV Inspection: Remove and inspect both Oil Control Valves (OCVs) for torn screens, as illustrated in Fig. 1 ("OCV Filter OK") and Fig. 2 ("OCV Filter Torn"). If screens are torn, the OCVs, engine oil, and filter are replaced.
4. PCM Software Level Check: Verify if the PCM has the latest software level. If not, the PCM will be reprogrammed.

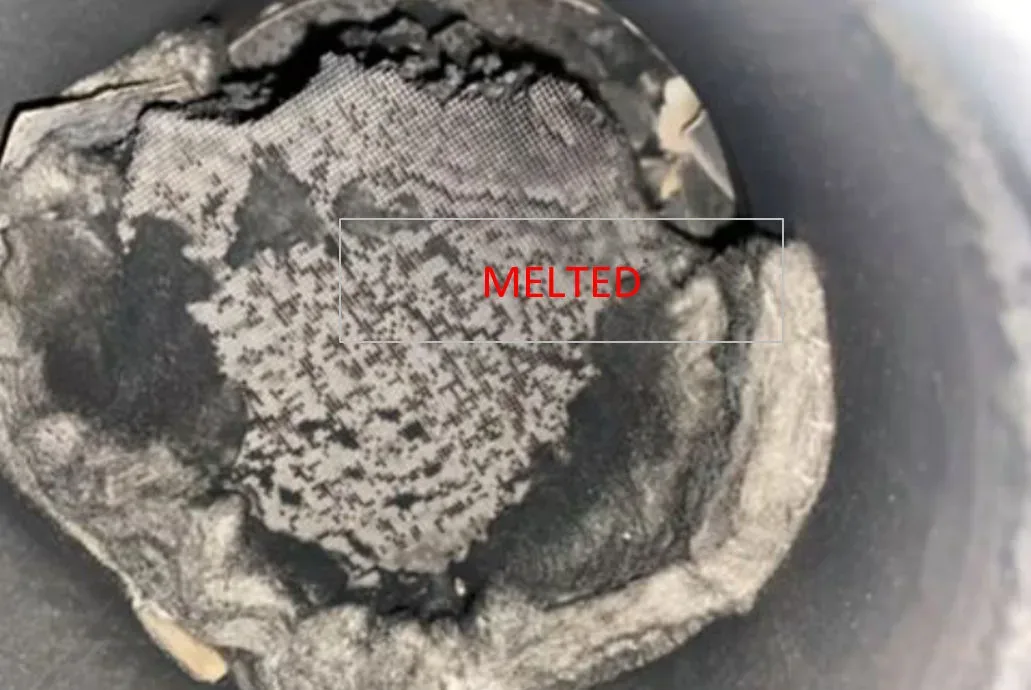

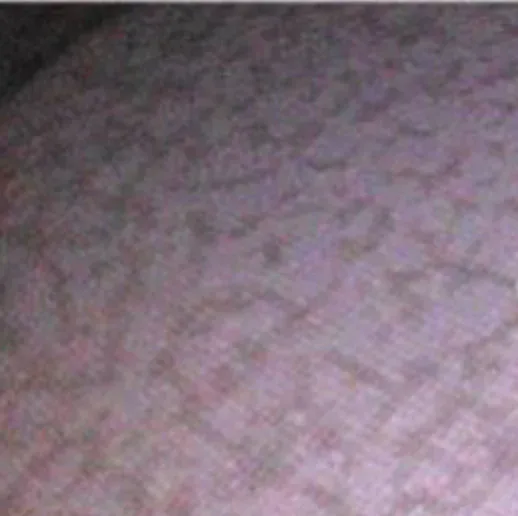

5. Oxygen Sensor & Catalytic Converter Inspection: If O2 sensor-related DTCs (P0133, P219A, P0420) are present, the upstream oxygen sensor is removed, and a borescope is used to inspect the catalytic converter for internal melting, cracking, or a "brain pattern" (Fig. 3 "Melted Catalyst" and Fig. 4 "Brain Pattern"). If damage is found, the catalytic converter is replaced.
6. PCM Reprogramming: Reprogram the PCM with the latest available software. A battery charger must be connected during this process to maintain stable voltage.
7. DTC Clearance & Test Drive: Clear all DTCs from all modules. The vehicle is then test-driven to ensure that the DTCs do not reset.

Required Tools and Parts

Special Tools/Equipment:

• wiTECH or Equivalent diagnostic tool
• Borescope
• Wrench, Camshaft Holding (Reference No. 2050800090)

Possible Replacement Parts:

Qty	Part No.	Description	Notes
2	05048148AE	Valve, Oil Control	Intake/Exhaust
1	68629623AA	Converter, Catalytic - Front
1	68381406AC	Gasket, Turbocharger To Catalytic Converter	Mica Ring Gasket
1	04892339BE	Filter, Engine Oil
5	05166241PA	Oil, Engine
1	05048234AB	Gasket - Cylinder Head Cover
1	68153921AA	Coolant
1	68377814AA	Sealer-RTV Gray	25KG RTV Container
1	68409465AA	Sealer-RTV Gray	310ML RTV Container

Warranty Information

This repair is reimbursable within the provisions of the warranty. Dealers must use failure code 'CC' (Customer Concern) when processing claims related to this Technical Service Bulletin. The following labor operations are specified:

Labor Operation No:	Labor Description	Skill Category	Labor Time
09-05-37-91	Inspect and Replace Both OCVs (Oil Control Valves)	1 - Engine Repair and Performance	2.7 Hrs.
11-50-01-90	Inspect Catalytic Convertor	1 - Engine Repair and Performance	0.3 Hrs.
11-50-01-91	Inspect Catalytic Convertor And Replace	1 - Engine Repair and Performance	1.7 Hrs.
26-99-00-10	Perform oil and filter change	1 - Engine Repair and Performance	0.4 Hrs.
18-19-06-BN	Module, Powertrain Control (PCM) - Inspect Software Level and Reprogram	1 - Engine Repair and Performance	0.3 Hrs.

Owner Action

If your 2024 Jeep Wrangler is experiencing a Malfunction Indicator Lamp illumination, a "no crank/no start condition," or any of the listed DTCs, you should schedule an appointment with an authorized Jeep dealer. They will perform the necessary diagnostic and repair procedures outlined in TSB 18-011-25 REV. A.

---

Source: NHTSA ID: 10260273
