2023-2024 Jeep MGU Replacement TSB P1B0F-00

Owners of 2023-2024 Jeep Wrangler and Grand Cherokee models equipped with the 2.0L I4 DOHC DI Turbo PHEV (Sales Code ECX) engine may experience issues related to the Motor Generator Unit (MGU). This can manifest as a "Malfunction Indicator Lamp (MIL) illumination" on the dashboard, accompanied by specific diagnostic trouble codes.

This bulletin, TSB 08-178-25, outlines the diagnostic and repair procedures for technicians to address these concerns, focusing on the inspection and potential replacement of the MGU. It supersedes an earlier bulletin, 08-144-24, issued on June 22, 2024, and includes updated symptom statements and market applicability.

Symptoms You Might Notice

If your 2023-2024 Jeep Wrangler or Grand Cherokee is affected by this issue, you will primarily notice a "Malfunction Indicator Lamp (MIL) illumination". Beyond the warning light, owners might also experience other significant operational problems:

• The vehicle may enter "limp home mode", which restricts performance to prevent further damage.
• The vehicle may not start at all, rendering it inoperable.

Diagnostic Trouble Code (DTC)

For this bulletin to apply, a technician must confirm the presence of a specific Diagnostic Trouble Code (DTC):

• P1B0F-00 - Drive Motor A Position Sensor Offset Incorrect

This code indicates an issue with the position sensor of the drive motor, which is part of the Motor Generator Unit (MGU).

Understanding the Cause

The root cause of the issues described in TSB 08-178-25 is identified as a manufacturing issue within the Motor Generator Unit (MGU). This defect can lead to incorrect sensor readings, triggering the "Malfunction Indicator Lamp (MIL) illumination" and potentially affecting vehicle drivability and starting capabilities.

The Repair Process Summary

Technicians will follow a specific procedure to diagnose and resolve the issue. The process begins by confirming the presence of the Jeep MGU P1B0F-00 DTC using a scan tool. If the DTC is present, the technician will then:

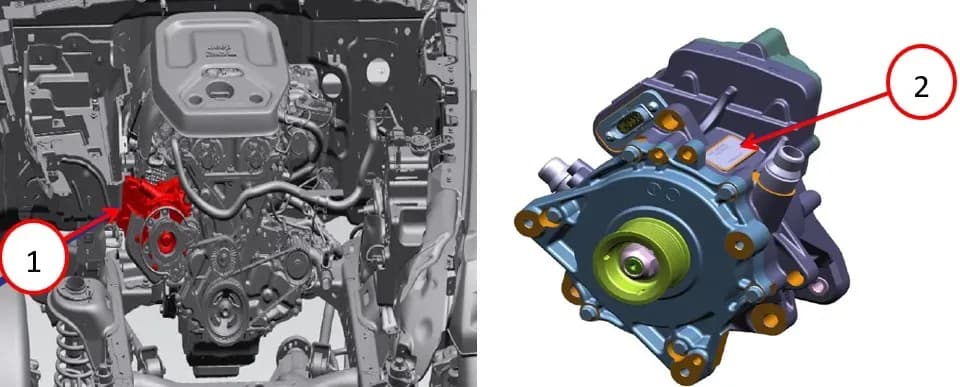

1. Locate the MGU: The Motor Generator Unit has a label that contains critical identification information.

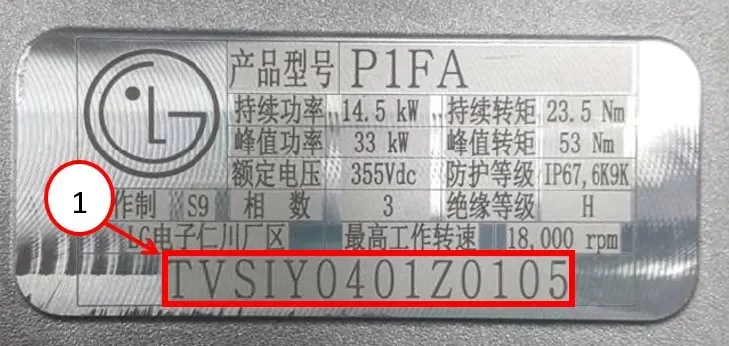

2. Read the MGU Serial Number: The serial number from the MGU label will be recorded.
3. Check Serial Number Range: The technician will verify if the MGU serial number falls within specific ranges. For JL (Wrangler) models, the serial numbers are TVSIY0813Z0241 - TVSIY2413Z0005. For WL (Grand Cherokee) models, the ranges are TVSIY0903Z0714 - TVSIY2383Z0673.
4. MGU Replacement: If the serial number is within the specified ranges, the MGU will be replaced. If not, this bulletin does not apply, and the technician will follow standard diagnostic procedures for the P1B0F-00 DTC.
5. Clear DTCs: After replacement, all diagnostic trouble codes will be cleared.
6. Verify Repair: The technician will confirm that the Jeep MGU P1B0F-00 DTC does not return after the MGU replacement.

Required Parts and Tools

To perform this repair, technicians will utilize a diagnostic scan tool such as wiTECH or an equivalent system. Specific Motor Generator Unit (MGU) part numbers are required for replacement, depending on the vehicle model:

• 05190161AM: Motor, Electric (for JL MGU - Jeep Wrangler)
• 05190309AF: Motor, Electric (for WL MGU - Jeep Grand Cherokee)

Important Information for Owners

This Technical Service Bulletin (TSB) 08-178-25 is a manufacturer communication providing guidance to dealerships for specific repair procedures. It is important to note that this repair is reimbursable within the provisions of the vehicle's warranty. If your 2023-2024 Jeep Wrangler or Grand Cherokee is experiencing a "Malfunction Indicator Lamp (MIL) illumination" and you suspect the Jeep MGU P1B0F-00 issue, you should schedule an appointment with an authorized Jeep dealership for diagnosis and repair.

---

Source: NHTSA ID: 11018867
