2021-2024 Stellantis Uconnect Box Error TSB S228A000005

Symptoms

Owners of affected 2021-2024 Stellantis vehicles, including the Jeep Wrangler Uconnect Box Error models, may observe a "Uconnect Box Requires Service" message appearing on the radio screen when the vehicle starts. This message, sometimes displayed as "Uconnect Box Error" or "Uconnect Box requires service. Please visit an authorized dealer.", will remain on the screen until the ignition is turned off or the customer manually closes the popup. Technicians using wiTECH diagnostic tools may find one or more active or stored Diagnostic Trouble Codes (DTCs) related to the cellular antenna or USB communication.

Fault Codes / DTCs

This manufacturer communication, S228A000005, identifies the following Diagnostic Trouble Codes (DTCs) that may be present:

Diagnosis and Trigger Conditions

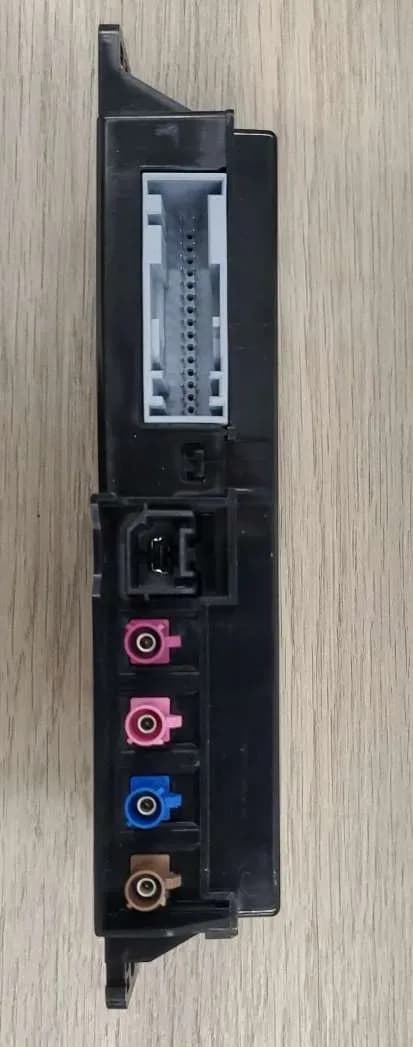

The "Uconnect Box Error" message typically appears every time an antenna open or short DTC is set. The message will persist until the ignition is cycled off or the customer dismisses it. Diagnosis involves checking for software updates, inspecting physical connections, and testing antenna integrity. The document includes figures illustrating FAKRA connector locations (Figure 2), examples of damaged connector housings (Figure 3), and antenna wiring diagrams (Figure 4) to aid technicians in diagnosis.

Repair Procedure Summary

To address the "Jeep Wrangler Uconnect Box Error" and associated DTCs, technicians should follow these steps:

1. Software Verification: Ensure that both the Telematics Box Module (TBM) software and the Radio software are up to date.
2. Antenna Location: Identify the location of Cellular Antenna 1 (roof antenna) and Cellular Antenna 2 (IP antenna).
3. Connection Inspection: Before considering antenna replacement, unplug and replug each antenna connection one at a time. Exercise caution to avoid damaging connectors.
4. Harness and Cable Check: Inspect the wiring harness for continuity, pinches, or damage. Verify proper installation, connector integrity, and correct coax cable lengths. Ensure there is no tension, the center stack is approximately 3 inches from the IP, and no bent or pushed-out terminals.
5. System Reset: After re-plugging all vehicle connections, perform an ECU reset and clear all Diagnostic Trouble Codes (DTCs).
6. DTC Status Check: Turn the ignition off for at least 10 seconds, then back on. Wait a minimum of 6 minutes to see if the DTC changes from "Active" to "Stored."
7. Further Diagnostics:
   • If an "Active" cellular DTC returns, refer to the Service Library for specific diagnostic procedures for that DTC.
   • If a "Stored" cellular DTC returns, the issue is likely due to intermittent harness connections, not the antenna itself.
   • If the "Uconnect Box Error" message returns with no antenna DTCs, drive the vehicle outside for 5-6 minutes to ensure proper cellular coverage. If the message persists, follow the service procedure for TBM diagnostics. This also indicates the issue is not antenna-related.

The document notes that if the customer's concerns could not be duplicated and the DTC becomes stored, it most likely points to an intermittent harness connection problem.

Required Tools or Parts

For specific diagnostic scenarios involving active cellular DTCs, the following tools may be required:

• 9977-6-CELL-LTE Cell Antenna Test Kit
• 9977-6-9 RG-58 Coax Cable
• 977-6-13 RG-58 Coax Cable (longer length)

Important Warnings

This document explicitly states: "This document does not authorize warranty repairs." It serves as a record of past experiences and does not provide conclusions about vehicle faults. Technicians are responsible for determining the appropriate course of action.

Source: NHTSA ID: 11001756
