2025-2026 Jeep Compass / Renegade Brake Warning Lamp TSB

Important Warnings

Owners of affected vehicles should be aware of the following critical information:

• This bulletin is not applicable to vehicles built for the US market. It specifically applies to the South America market.
• During the repair procedure, technicians are advised: "Do not move the brake pedal at any time due to the risk of breaking the piece."

Symptoms

Owners of 2025-2026 Jeep Compass and Renegade vehicles may experience a "Brake Warning Lamp On" or a Malfunction Indicator Lamp (MIL) illumination. This issue is often accompanied by specific symptoms that indicate a problem with the brake pedal switch. The Jeep Compass brake warning lamp C1215-86 is a key indicator of this problem.

Reported symptoms include:

• "ABS" warning displays on the Instrument Panel Cluster (IPC).
• "Excessive force required when depressing the brake pedal when trying to start the engine."

Fault Codes / DTCs

The primary Diagnostic Trouble Code (DTC) associated with this issue is:

Code	Description
C1215-86	Brake Light Switch - Signal Invalid

Diagnosis / Trigger Conditions

This issue stems from a manufacturing defect in the brake pedal switch. To diagnose the problem, a technician will use a scan tool like wiTECH to verify system functionality. If other DTCs or symptoms are present, they should be addressed first. The diagnostic process involves checking if the vehicle is on the Rapid Service Update (RSU) VIN list and then monitoring the brake pedal switch pressure using the scan tool's data and graphics functions. The expected pressure readings when activating the first stage of the switch should be up to 4 Bar (for H1/M1/N4 models) and 6 Bar (for B1 models).

Repair Procedure Summary

Technical Service Bulletin (TSB) 08-275-25 REV. A, which supersedes TSB 08-275-25 dated August 21, 2025, outlines the steps for addressing the Jeep Compass brake warning lamp C1215-86 issue. The repair primarily involves inspecting and potentially reseating the brake pedal switch.

1. Initial Check: Verify the vehicle's VIN is on the RSU list. If not, the bulletin does not apply.
2. Tool Connection: Connect a wiTECH scan tool to the vehicle.

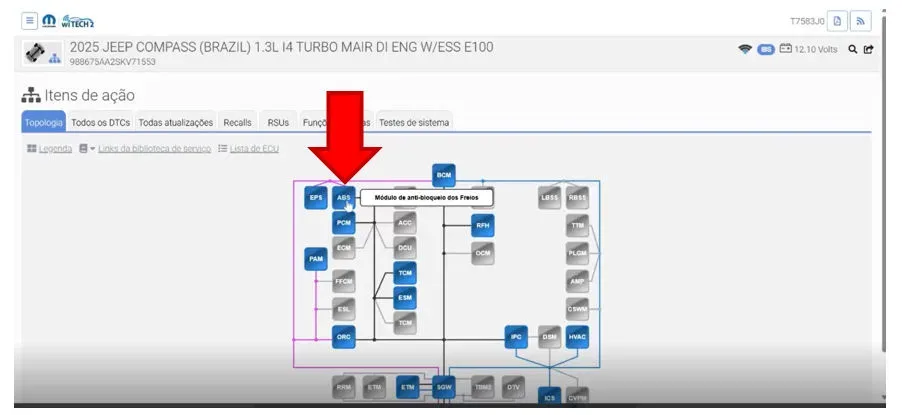

3. Module Selection: Select the vehicle's VIN and model, navigate to the topology, and select the ABS module (as shown in Fig. 1 of the TSB).

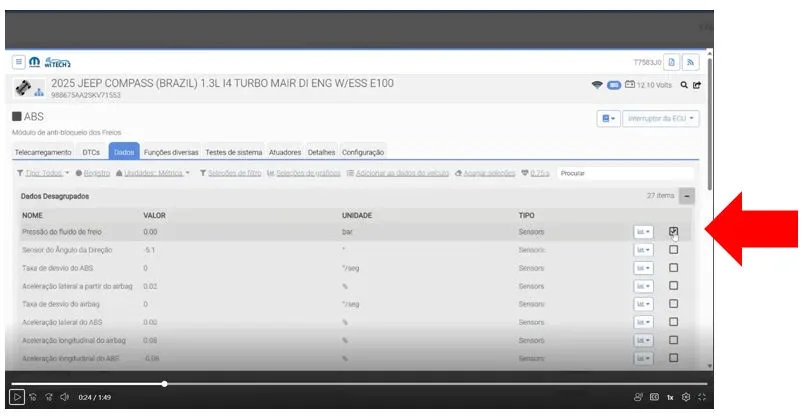

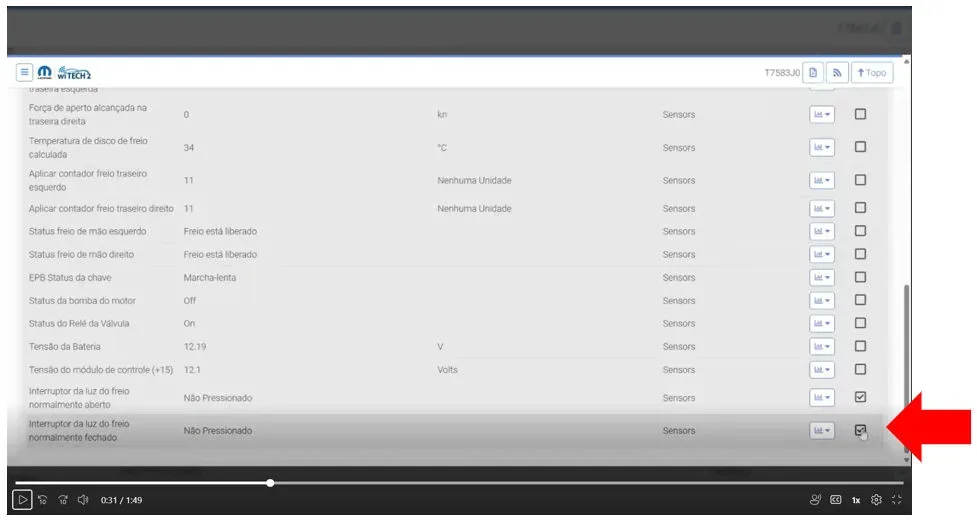

4. Data Monitoring: Access the DATA function (Fig. 2) to monitor the pressure of the brake fluid (Fig. 3) and the brake light switch status (normal open and normal closed options, Fig. 4).

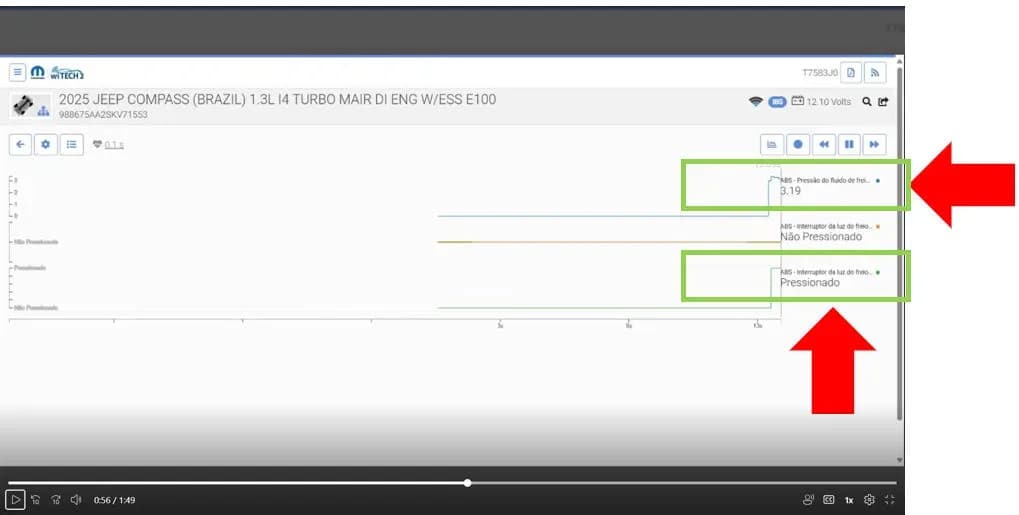

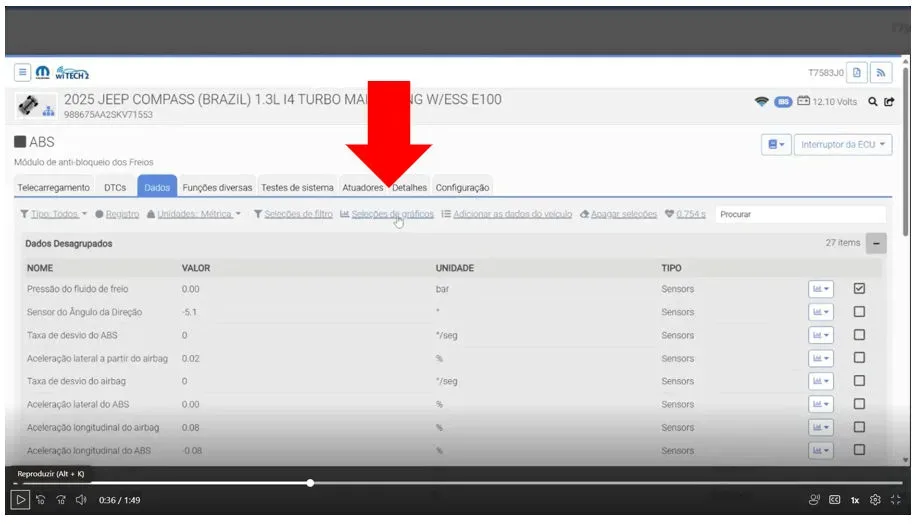

5. Graphical Analysis: Use the graphics function (Fig. 5) to monitor pressure readings while slowly depressing the brake pedal. The pressure should reach up to 4 Bar (H1/M1/N4) or 6 Bar (B1) (Fig. 6).
6. Switch Reseating (if necessary): If the pressure readings are incorrect (greater than 4 Bar or 6 Bar), the technician will disconnect the negative battery terminal, wait two minutes for the airbag system capacitor to discharge, then remove the brake pedal switch by turning it counterclockwise. The switch is then repositioned and turned clockwise until it clicks into place.
7. Final Steps: Reconnect the battery, clear any stored DTCs, and perform a final check of the residual brake pressure with the engine running and transmission in Park (Fig. 7). The pressure should now be less than or equal to the specified values.

After applying this TSB, it is not necessary to send DID-I or DID-A.

Required Tools or Parts

The primary tool required for this repair is a wiTECH scan tool or an equivalent diagnostic system.

Owner Action

If you experience a "Brake Warning Lamp On" or any of the described symptoms in your 2025-2026 Jeep Compass or Renegade, especially if you are in the South America market, it is recommended to visit an authorized dealership. The repair, identified by TSB 08-275-25 REV. A and Rapid Service Update (RSU) 25-172, is reimbursable within the provisions of warranty. The labor operations associated with this repair are 08-80-84-90 (Brake Pedal Switch Pressure - Inspection, 0.2 Hrs) and 08-80-84-91 (Brake Pedal Switch - Inspection and Reseating, 0.8 Hrs), with a failure code of ZY.

---

Source: NHTSA ID: 11024302
