2022-2023 Jeep Compass Radio USB Update TSB 08-337-25

Owners of 2022-2023 Jeep Compass vehicles may experience a variety of issues with their Uconnect radio system, often indicated by a Malfunction Indicator Lamp (MIL) illumination. This Technical Service Bulletin (TSB) 08-337-25 provides a software update to resolve these concerns, ensuring proper functionality of the infotainment system.

Symptoms

Customers might notice one or more of the following symptoms with their Uconnect system, in addition to a MIL illumination:

• "Tune knob does not move the scroll bar in Device Manager's phone setting menu."
• "Tune knob does not move the scroll bar in the Apps Drawer."
• "Rejected incoming phone call using the radio screen but cluster continued to display incoming call message."
• "Head Unit (HU) switches from SXM® to wireless without user's input."
• "Home screen Loading Data indefinitely after profile switch."
• "Device List shows empty although there are devices connected."
• "Unable to pair phone."
• "Fuel consumption menu in radio not available."
• Radio and / or SXM® presets being lost.
• Auto button on climate control screen not present.
• "When Voice Recognition button is pressed on radio, wrong message is displayed."
• "Bluetooth Pairings instead of connect Apple Carplay® or Android Auto® device."
• "Wifi hotspot password always shows "null". Can't use feature."
• "Wifi hotspot name not recognized on customers cellular device."
• "Language selection on radio can't be saved after selecting."
• "Wrong date format displayed using Korean language."
• "Radio display is blank (rear view camera still operable)."
• "Radio touchscreen inoperative."
• "Zoom In/Out button inoperative for rear view camera (rear view camera still operable)."
• "Rear Cross Path Mode and Blind Spot chime keeps playing when object is no longer present."
• Irregular chime frequency.
• "Time format does not change from military to 12-hour format."
• "ABC Jump Keyboard will not display."
• "FOTA unable to receive software update due to head unit not checking into the server although it is being driven everyday."
• "Pressing mute hard key while on phone call does not mute microphone."
• "Adjust clock settings shortcut in home screen does not navigate you to the right screen."
• "SXM® radio stuck on current channel, no audio and cannot navigate to other channels using soft keys or knob."

Fault Codes / DTCs

Upon further investigation, technicians may find one or more of the following Diagnostic Trouble Codes (DTCs) set in the system:

Code	Description
B15A1-00	Media Port 1 Connection
B15A2-00	Media Port 2 Connection
B15A3-00	Media Port 3 Connection
B15A4-00	Media Port 4 Connection

Important Warnings and Notes for the 2023 Jeep Compass Radio Update

Several critical advisories are provided to ensure a successful software update and prevent further issues:

• Software Level Caution: "Do not attempt to update a radio with a lower software level than R41.00.56 straight to R47.03.26." Radios with software between R34.00.49 and R41.00.56 require a two-step update process, first to R41.00.56, then to R47.03.26.
• Battery Voltage: "Install a battery charger to ensure battery voltage does not drop below 13.2 volts. Do not allow the charging voltage to climb above 13.5 volts during the flash process."
• Interruption: "If this flash process is interrupted/aborted, the flash should be restarted."
• USB Drive Requirements: A 4 GB USB flash drive is required. "It is also recommended to use a quality, name brand (Kingston®) flash drive over a generic USB flash drive." Also, "A blank USB flash drive will be needed for each radio update; additional updates cannot be on the same USB flash drive."
• Fuel Level: "Verify the vehicle fuel level is at least 1/8 of a tank. If not, add fuel as required."
• Engine and Radio State: "The engine must be running and radio powered on during the update. Failure to do so may result in the radio not being updated and create connectivity issues. DO NOT remove the USB flash drive during the update."

Repair Procedure Summary

The repair for the 2023 Jeep Compass radio update involves inspecting the current software level and updating it to R47.03.26. The process is performed using a USB flash drive prepared with the necessary software files.

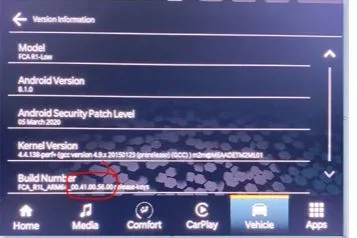

1. Verify Current Software Version: Access the radio's System Information menu to check the current "Build Number" (e.g., 00.41.00.56.00).
2. Determine Update Path: If the radio software is R41.00.56 or higher, one USB flash drive with R47.03.26 software is needed. If the software is between R34.00.49 and R41.00.56, two USB flash drives are required for a two-step update (first to R41.00.56, then to R47.03.26).

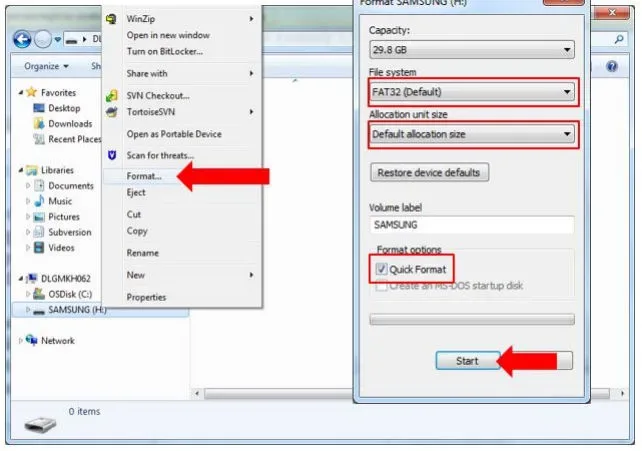

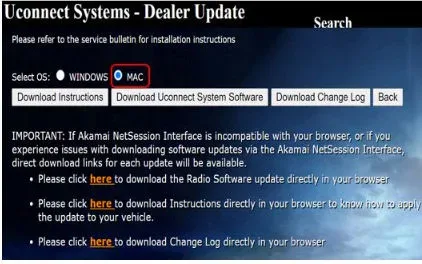

3. Prepare USB Flash Drive: Format a 4GB USB flash drive to "FAT32" with "Default allocation size" and "Quick Format." Download the appropriate software files from DealerCONNECT and extract them to the root folder of the USB drive.
4. Vehicle Preparation: Ensure the vehicle has at least 1/8 tank of fuel, the engine is running, and a battery charger is connected to maintain voltage between 13.2 and 13.5 volts. All other accessories should be off.

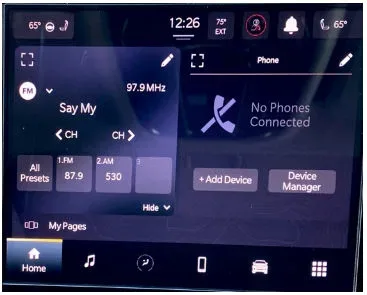

5. Perform Software Update: Insert the prepared USB flash drive into the vehicle's USB port. The radio will prompt, "New software and feature are ready for you Uconnect system." Select "Update Now" and then "Continue" to begin the update. The process takes approximately 15-20 minutes, during which the backup camera, radio, SOS, and other driving assistance features will be temporarily unavailable. Do not remove the USB drive during this time.
6. Completion: Once the update is successful, the radio will display "Your Uconnect System has been updated with the Latest Software." Remove the USB drive, cycle the ignition off for two minutes, and clear any set DTCs.

Required Tools or Parts

• wiTECH: A diagnostic scan tool for verifying system function and clearing DTCs.
• USB Flash Drive: At least one 4 GB USB flash drive (Kingston® brand recommended).

Owner Action

If your 2022-2023 Jeep Compass is experiencing any of the described radio symptoms or has a Malfunction Indicator Lamp (MIL) illuminated, contact your authorized Stellantis dealer. Reference Technical Service Bulletin (TSB) 08-337-25. The repair is reimbursable under the provisions of warranty.

NHTSA ID: 11024299
