2022-2025 Jeep Compass ACC/FCW Unavailable TSB 08-200-25

Symptoms of ACC/FCW Unavailable

Owners of affected 2022-2025 Jeep Compass vehicles may experience a Malfunction Indicator Lamp (MIL) illumination on their dashboard. This is typically accompanied by a specific Diagnostic Trouble Code (DTC) being set in the vehicle's system.

Additionally, drivers might see the message "ACC/FCW Unavailable, Service Required" displayed in the Instrument Panel Cluster (IPC). This particular message is often observed under specific conditions, such as extreme windy weather, while driving at speeds between 60 mph (97 kph) and 70 mph (113 kph). If your Jeep Compass ACC FCW Unavailable warning appears under these conditions, it's likely related to this TSB.

Fault Codes (DTCs)

The primary Diagnostic Trouble Code (DTC) associated with the "ACC/FCW Unavailable, Service Required" message is:

Code	Description
C14A4-00	Sensor Adjustment Required

This DTC indicates that the vehicle's sensor for the Adaptive Cruise Control (ACC) and Forward Collision Warning (FCW) systems requires adjustment, which is addressed by the repair procedure outlined in TSB 08-200-25.

Diagnosis

To accurately diagnose the issue, a technician will use a wiTECH scan tool. This tool helps verify that all related systems are functioning as intended. If any DTCs or other symptom conditions are present beyond those specified in TSB 08-200-25, they must be recorded and addressed before proceeding with the bulletin's repair.

If the customer's reported symptoms, such as the "ACC/FCW Unavailable, Service Required" message or DTC C14A4-00, match those described in the bulletin, the repair procedure should be performed.

Repair Procedure Summary

The repair outlined in Technical Service Bulletin 08-200-25 involves applying dampening material to the front fascia crossbar to resolve the ACC/FCW system issue. This process typically takes approximately 2.1 hours of labor.

Here is a summary of the steps involved:

1. Fascia Removal: The front fascia of the vehicle must be removed. Technicians will refer to detailed service procedures in DealerCONNECT/Service Library under "Service Info>13 - Frame and Bumpers / Bumpers / Fascia, Front / Removal and Installation" for this step.
2. Surface Preparation: Once the fascia is removed, the impact beam area needs to be thoroughly cleaned. Any dirt, grease, or wax must be removed using mild soap and water, followed by a wax and grease remover.

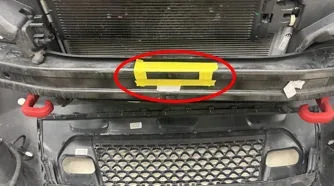

3. Masking: Masking tape is applied to the top/front portion of the impact beam to define an area of 25 mm (1 inch) by 125 mm (6 inches) where the dampening material will be applied. This ensures precise application as shown in Figure 1 of the bulletin.

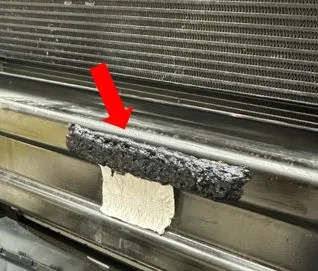

4. Dampening Material Application: 3M 04274 Dampening Material is then applied to the masked area. This is done using a 3M 08571 Manual Cartridge Applicator and an 08193 Mixing Tip, building up the material to a thickness of 0.28 inches (7mm). The material can be force-dried to speed up the process, as illustrated in Figure 2.
5. Fascia Installation: After the dampening material has dried, the front fascia is reinstalled following the same DealerCONNECT/Service Library procedures used for removal.
6. ACC Calibration: A crucial step is to perform the Adaptive Cruise Control (ACC) Driver Assistance System Module (DASM) Calibration. This procedure ensures the ACC system functions correctly after the physical modifications. Detailed instructions are found in DealerCONNECT/Service Library under "Service Info> 08 - Electrical / 8E - Electronic Control Modules / Module, Adaptive Cruise Control (ACC) / Module Programming."
7. DTC Clearance: Finally, any Diagnostic Trouble Codes (DTCs) that may have been set in any modules during the reprogramming or repair process are cleared.

Required Tools and Parts

To perform the repair described in TSB 08-200-25, specific materials and tools are necessary:

• 3M 04274 Dampening Material: The primary material used to address the manufacturing issue.
• 3M 08571 Manual Cartridge Applicator: Used for precise application of the dampening material.
• 08193 Mixing Tip: Essential for preparing and applying the dampening material.
• Masking Tape: Specifically, 1 inch (25mm) x 6 inches (125mm) masking tape is used to define the application area.
• wiTECH or Equivalent Scan Tool: Required for initial diagnosis, system verification, and clearing DTCs after the repair.

What Owners Should Do

If you own a 2022-2025 Jeep Compass and are experiencing a Malfunction Indicator Lamp (MIL) illumination, the "ACC/FCW Unavailable, Service Required" message, or have had Diagnostic Trouble Code C14A4-00 diagnosed, you should contact your authorized Jeep dealership. This issue, which causes the Jeep Compass ACC FCW Unavailable warning, is covered under warranty provisions. The dealership will perform the necessary inspection and apply the dampening material to the front fascia, followed by an ACC system calibration, as outlined in TSB 08-200-25.

---

Source: NHTSA ID: 11020105
