2024-2026 Jeep Renegade/Compass Thermostatic Valve Gasket Leak TSB

This Technical Service Bulletin (TSB) 07-002-25 REV. B, issued by Stellantis on June 7, 2025, addresses a specific coolant leak issue affecting certain 2024-2026 Jeep Renegade and Compass vehicles. The bulletin details the symptoms, cause, and repair procedure for a leaking thermostatic valve gasket. It's important to note that despite being linked to US vehicles by NHTSA, the TSB itself states it is "Not for US and Canada" for market applicability.

Important Warning: Market Applicability

This TSB 07-002-25 REV. B explicitly states under "MARKET APPLICABILITY" that it is "Not for US and Canada." While this document may appear in NHTSA databases linked to US models, the manufacturer's communication indicates it is intended for other markets such as SA (South Africa), MEA (Middle East & Africa), EE (Eastern Europe), IAP (India-Asia Pacific), and CH (China). Owners in the US and Canada should be aware that this specific bulletin does not apply to their vehicles.

Symptoms

Owners of affected vehicles may experience the following symptom:

• "Coolant is leaking at the thermostatic valve."

This condition indicates a potential issue with the thermostatic valve gasket, leading to a 2025 Jeep Compass coolant leak or similar issues in other models.

Cause

The root cause identified for the coolant leak is a leaking thermostatic valve gasket.

Diagnosis

To diagnose the issue, technicians should first verify the vehicle's VIN against the Rapid Service Update (RSU) VIN list. If a coolant leak from the thermostatic valve is confirmed, the following diagnostic steps are performed:

1. If equipped, remove the under engine protection cover. Refer to detailed service procedures in DealerCONNECT/Service Library under "Service Info > 7055B54 - Under Engine Protection - Removal/Replacement."
2. Start the vehicle and allow the coolant temperature to reach 90 °C (194 °F).

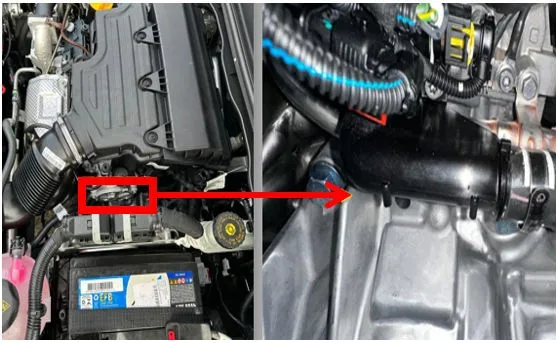

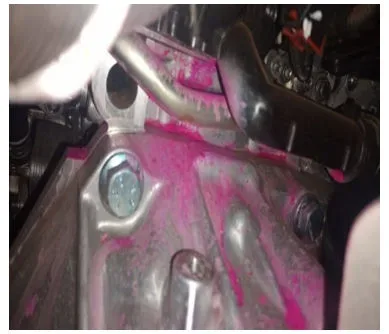

3. Inspect the thermostatic valve and its surrounding area for evidence of leaking coolant, as shown in Figure 1 (Inspection Area) and Figure 2 (Coolant Leak).
4. If a coolant leak is found, proceed to the repair procedure. If no leak is detected, use Inspection Labor Operation (LOP) 07-40-10-91 to close the active RSU.

Repair Procedure Summary

The repair procedure outlined in TSB 07-002-25 REV. B involves inspecting and, if necessary, replacing the thermostatic valve gasket. The high-level steps are:

1. Remove the thermostatic valve. Detailed procedures can be found in DealerCONNECT/Service Library under "Service Info > 1088C40 - Thermostatic Valve - Removal/Replacement."

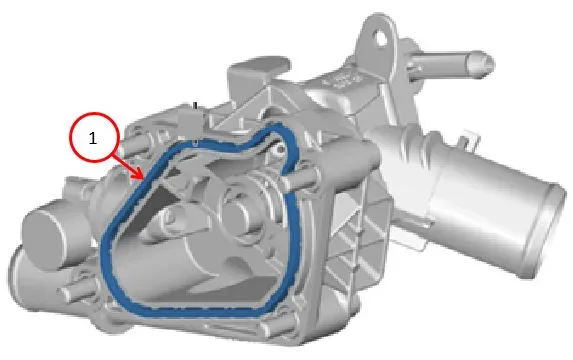

2. Replace the thermostatic valve gasket (Figure 3 shows the thermostatic valve with the gasket).
3. Reinstall the thermostatic valve and any removed components, such as the under engine protection cover.

Required Parts

To perform this repair, the following parts may be required:

• Radiator Hose Clamp: Part No. 68217783AA (NA) / 10860470 (SA)
• Hose Clamp: Part No. 68092543AA (NA) / 10861170 (SA)
• Thermostatic Valve Gasket: Part No. 68741584AA (NA) / 7098217 (SA)
• Antifreeze, Coolant, Gallon: Part No. 68163849AB

Warranty Information

All repairs performed under this Technical Service Bulletin 07-002-25 REV. B are reimbursable within the provisions of warranty. The labor operations are 07-40-10-91 for inspection (0.2 hours) and 07-40-10-92 for inspection and replacement (1.3 hours), with a Failure Code of ZY.

Superseded Bulletin and Rapid Service Update

This TSB 07-002-25 REV. B supersedes Technical Service Bulletin 07-002-25 REV. A, which was issued on May 02, 2025. All revisions are highlighted with asterisks and include new sales codes and an updated repair procedure note. This bulletin has also been released as a Rapid Service Update (RSU) 25-063, dated April 15, 2025. Applicable RSU VINs are loaded, and technicians can verify applicability using VIP or DealerCONNECT/Service Library.

Note for SA Market: For the SA market only, after applying this TSB, it is not necessary to send DID-I or DID-A.

NHTSA ID: 11019417
