2025 Jeep Compass / Renegade AC Not Blowing Cold TSB

Owners of certain 2025 Jeep Compass and Renegade vehicles may experience issues with their air conditioning system, ranging from insufficient cabin cooling to the system being completely inoperative. This problem is addressed by Technical Service Bulletin (TSB) 24-001-25, which identifies the root cause as an air conditioning refrigerant leak.

This bulletin, also released as Rapid Service Update (RSU) 25-032, provides technicians with a detailed procedure to inspect and repair the affected vehicles. If you notice your 2025 Jeep Compass AC not blowing cold, this information will help you understand the potential cause and the recommended fix.

Symptoms

Owners or technicians may observe one or more of the following symptoms related to this issue:

• "Air conditioning provides insufficient cabin cooling."
• "Air conditioning is inoperative."

If your 2025 Jeep Compass AC not blowing cold, these are the primary indicators that your vehicle may be affected by this TSB.

Cause

The underlying cause for the air conditioning system's malfunction is identified as an air conditioning refrigerant leak. This leak typically occurs in the piping connecting the expansion valve to the compressor.

Important Warnings

Technicians are advised to NOTE: Only replace the components where a leak is detected. This prevents unnecessary part replacements and ensures the repair is targeted to the actual source of the leak.

Diagnosis

To diagnose the issue, a technician will perform the following steps:

1. The vehicle is started, and the air conditioning system is activated. It will be set to minimum temperature and maximum fan speed to ensure the system is fully engaged.

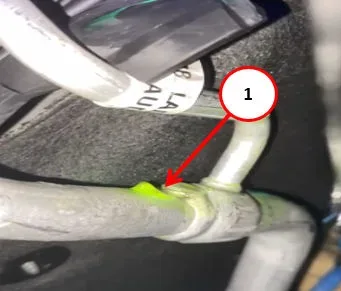

2. An inspection will be conducted on the piping located between the expansion valve and the connection to the compressor. This inspection uses a specialized leak detector and an Ultraviolet (UV) lamp to identify any air conditioning refrigerant leaks.
3. If a leak is detected during this process, the repair procedure will proceed. If no leak is found, the bulletin is considered complete, and Inspection Labor Operation (LOP) 24-45-20-91 is used to close the active RSU.

Repair Procedure Summary

If an air conditioning refrigerant leak is confirmed, the repair involves replacing the faulty piping. The detailed service procedures for this replacement are available in DealerCONNECT/Service Library under the reference "Service Info> 5040A84 - Tubulação entre válvula de expansão e conexão para tubulação do compressor."

Required Tools or Parts

To perform this repair, technicians will need specific tools and parts:

• Leak Detector: Reference Number EQ-10353143
• Ultraviolet (UV) Light: No specific reference number provided (NPN)
• Air Conditioning Pipe: Part numbers EMEA - 7095117 or MOPAR - 68657569AA
• R-134a Refrigerant: Part numbers EMEA - 7079358, MOPAR - 68447954AA, or Argentina - 50035697 (0.1L, reimbursement only)

Warranty Information

All repairs performed under TSB 24-001-25 are reimbursable within the provisions of your vehicle's warranty. Owners should contact their authorized Jeep dealership to schedule an inspection and repair if they are experiencing the symptoms described, such as their 2025 Jeep Compass AC not blowing cold.

---

Source: NHTSA ID: 11015691
