2024-2025 Jeep Compass/Renegade Engine Oil Leak TSB

Technical Service Bulletin (TSB) 09-019-24, also released as Rapid Service Update (RSU) 24-125 and identified as M09 FSAR-RSU-4518, addresses engine oil leaks in certain 2024-2025 Jeep Compass and Renegade vehicles. This specific 2024 Jeep Compass manufacturer_communication details the inspection and replacement of the rear main crankshaft oil seal.

This bulletin applies to 2024-2025 Jeep Renegade (B1), 2025 Jeep Commander (H1), and 2024-2025 Jeep Compass (M1) vehicles. Specifically, it covers vehicles built on or after April 4, 2024 (MDH 0404XX) and on or before July 31, 2024 (MDH 0731XX). All affected vehicles are equipped with the 1.3L I4 Turbo Mair DI Engine, which includes Sales Codes EYF, EYH, and EYJ.

Symptoms

Owners of affected vehicles, including the 2024 Jeep Compass, may comment on experiencing an "Engine oil leak." This leak typically originates from the rear main crankshaft oil seal, often appearing between the transmission and the engine.

Diagnosis

To determine if TSB 09-019-24 applies, technicians will first check the vehicle's VIN against the Rapid Service Update (RSU) VIN list or use the VIP system in DealerCONNECT/Service Library. If the VIN is listed, the repair procedure should be performed. If the vehicle is not on the VIN list but exhibits an engine oil leak symptom, the repair procedure should still be followed.

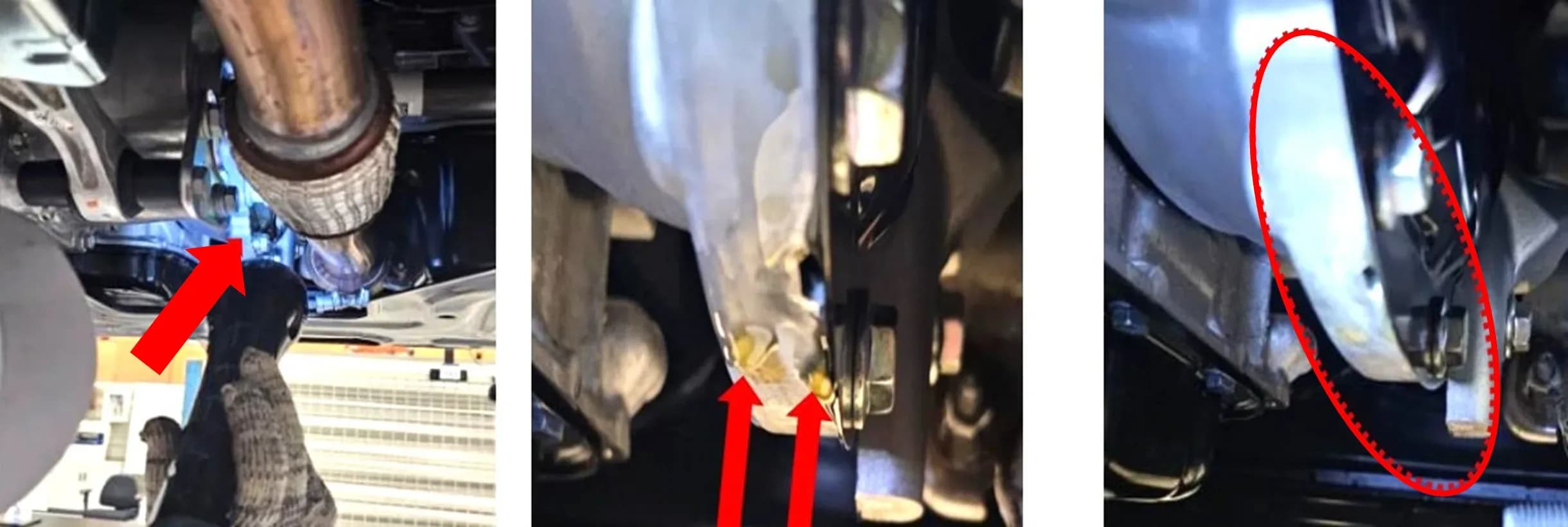

The diagnostic process involves starting the engine and using the wiTECH diagnostic tool to ensure the engine temperature reaches at least 100 °C (212 °F). The vehicle is then raised and supported according to detailed service procedures available in DealerCONNECT/Service Library under 'Service Info > 04 - Vehicle Quick Reference/Hoisting/Standard Procedure'. A visual inspection is performed using a suitable light source to check for an oil leak between the transmission and the engine's rear main crankshaft seal, as illustrated in Figure 1 of the bulletin.

Repair Procedure

If an oil leak is confirmed during the inspection, the rear main crankshaft oil seal will be replaced. If no leak is found, the inspection labor operation (09-25-75-93) is used to close the active RSU, and no further action is needed.

For confirmed leaks, the replacement procedure for the crankshaft oil seal requires referring to detailed service procedures available in DealerCONNECT/Service Library. Technicians will follow the steps outlined under '1020D39 - Retentor Traseiro - Lado Volante - Remoção/Recolocação e Substituição' for vehicles with automatic transmissions. After the repair, it is crucial to check and top off the engine oil and refill all the coolant.

Required Parts and Tools

Special tools required for this procedure include wiTECH or Equivalent diagnostic equipment. The following parts may be needed for the repair:

• Crankshaft, Oil Seal (rear main): TBD - Mopar, Part No. 7096888 (South America), 68608372AA (Mopar), 7092779 (South America), 50035647 (Argentina).
• Oil 0W-30: Part No. 68608372AA (Mopar), 7092779 (South America), 50035647 (Argentina) - 100 ml.
• Antifreeze, Coolant: Part No. 68626281AA (Mopar), 7092803 (South America), 50040500 (Argentina) - 100 ml.

Warranty Information

All repairs related to this 2024 Jeep Compass manufacturer_communication are reimbursable within the provisions of warranty. The following labor operations and times are specified:

• 09-25-75-93: Seal, Engine Oil Crankshaft - Inspect (1 - Introduction) - 0.3 Hours.
• 09-25-75-94: Seal, Engine Oil Crankshaft - Inspect and Replace (1 - Introduction) - 5.6 Hours.

The failure code associated with this service action is ZZ.

Important Notes for Owners

Customers will not be individually notified by Stellantis for this Rapid Service Update (RSU) 24-125. Owners should check with their dealership or use the VIP system to confirm if their specific VIN is affected. Repairs are covered under warranty.

NHTSA ID: M09 FSAR-RSU-4518
