2021-2023 Hyundai DCT Electric Oil Pump DTCs

Hyundai has issued Technical Service Bulletin (TSB) 22-AT-009H to address diagnostic trouble codes (DTCs) related to the 8-speed Dual-Clutch Transmission (DCT) electric oil pump (EOP) in several models. Owners may experience a "Check Engine" light illuminating on the dashboard. This TSB provides detailed diagnostic and repair procedures for technicians to resolve these issues, ensuring proper transmission function.

Symptoms

The primary symptom indicating an issue with the electric oil pump is the illumination of the "Check Engine" light on the instrument cluster. This light signals that the vehicle's onboard diagnostic system has detected a fault within the powertrain, specifically related to the DCT's oil pump system.

Fault Codes / DTCs

Technicians will use a diagnostic scan tool to identify specific DTCs. These codes indicate whether the issue lies with the High Flow EOP or the High Pressure EOP. If you are experiencing a "Check Engine" light on your Hyundai Elantra EOP DTC related to these components, the following codes may be present:

High Flow EOP (HF EOP) DTCs

DTC	Description
P193D4B	HF EOP System Fault - Over temperature
P193D19	HF EOP System Fault - Over current
P193E71	HF EOP Performance – EOP stuck
P193D96	HF EOP System Fault - Internal fault
P193D13	HF EOP System Fault – Open circuit
P193D1D	HF EOP System Fault - Current sensor failure
P193D29	HF EOP System Fault - Hall sensor failure
U111788	CAN2 BUS OFF + CAN3 BUS OFF together
U004688	CAN2 BUS OFF + CAN3 BUS OFF together
U113508	CAN communication error between the TCU and HF EOP

High Pressure EOP (HP EOP) DTCs

DTC	Description
P193B79	HP EOP low hydraulic pressure
P1C2D03	HP EOP motor position sensor range
P1C2D1C	HP EOP motor position sensor voltage
P1C2E4B	HP EOP motor control current
P1C2E92	HP EOP motor control temperature

Diagnosis / Trigger Conditions

Diagnosis begins with connecting a Global Diagnostic System (GDS) tool to the vehicle. Technicians will perform a DTC Analysis and check the A/T menu. After recording and deleting any DTCs, they will use the Data Analysis function to monitor sensor outputs. If the sensors show continuous and changing output while driving, the wiring is likely fine. However, if there's no continuous output, it suggests a fault in the EOP or its harness.

Further diagnosis involves visually inspecting the wiring harness between the Transmission Control Unit (TCU) and the transmission for any damage, open circuits, or improperly seated pins. Any identified damage must be repaired before proceeding.

Repair Procedure Summary

The repair procedure varies depending on whether the DTCs point to a High Flow EOP (HF EOP) or High Pressure EOP (HP EOP) issue. If HF EOP DTCs are present, the HF EOP will be replaced. If HP EOP DTCs are found, the entire Dual Clutch Transmission (DCT) assembly will be replaced.

For High Flow EOP (HF EOP) replacement:

1. Record radio presets and disconnect the negative battery terminal.
2. Remove the air cleaner assembly.

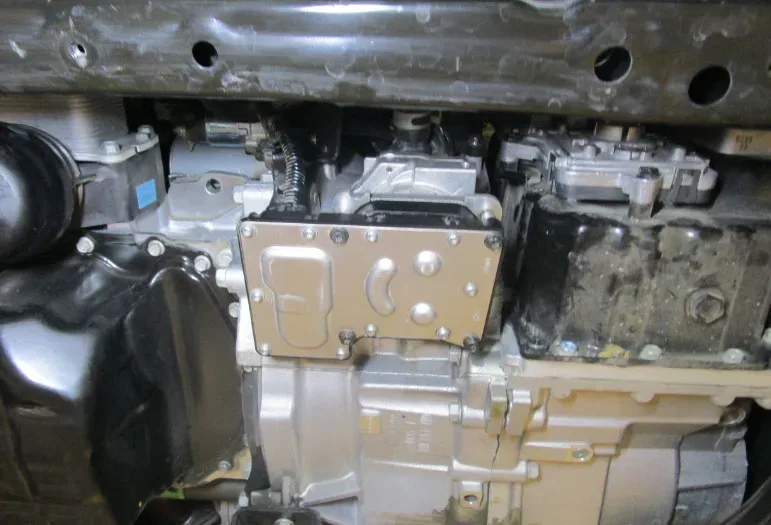

3. Raise the vehicle and locate the HF EOP on the lower left side of the DCT, facing the radiator.

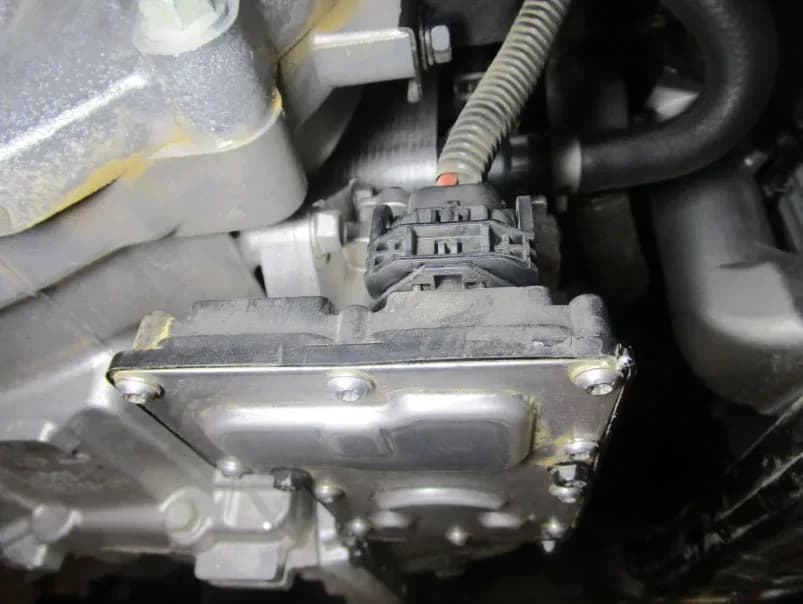

4. Disconnect the harness connector and remove the four bolts securing the HF EOP, then remove the pump.

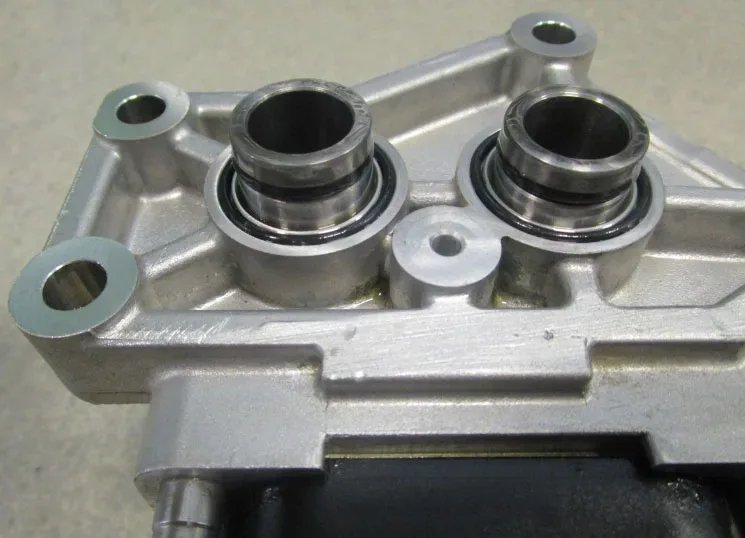

5. Confirm the O-ring is properly inserted in the transmission case.

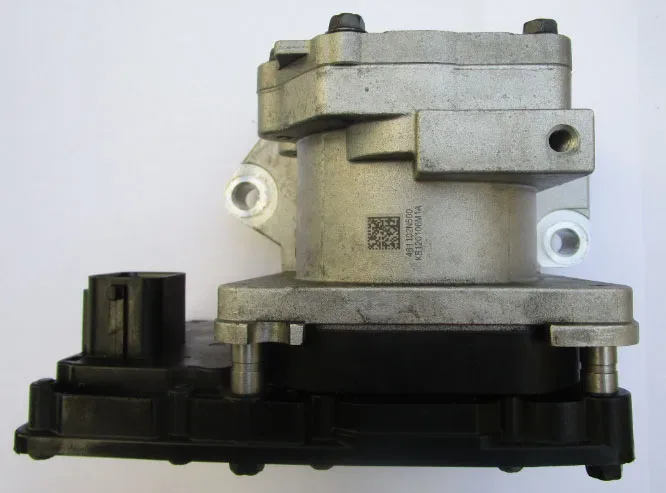

6. Install the new HF EOP with four new O-rings and torque the bolts to 15-19 lb-ft (2-3 kg.m, 21-26 N.m).

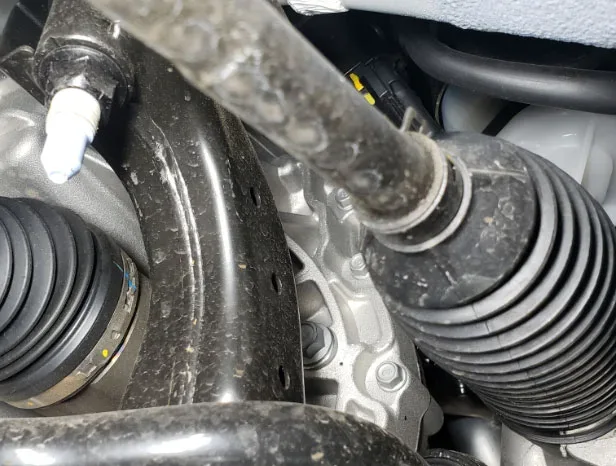

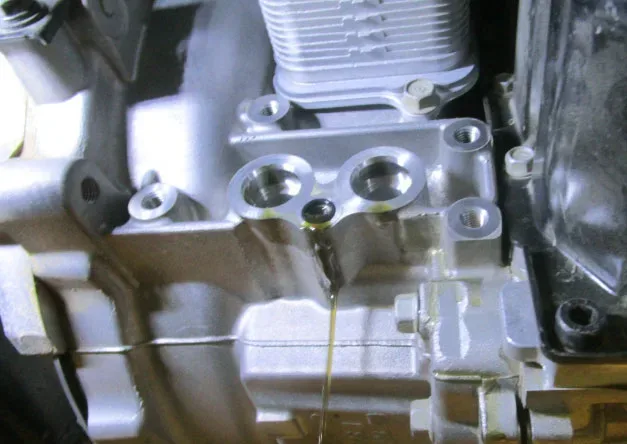

7. Check and adjust the gear oil level by removing the filler plug on the driver's side of the DCT. Add gear oil, part number 00232-19100, until it overflows in a steady stream.
8. Reinstall the air cleaner, reconnect the battery, and reprogram the radio preset stations.

For High Pressure EOP (HP EOP) replacement (requires DCT replacement):

1. The Dual Clutch Transmission (DCT) assembly will be replaced. This is a more extensive repair.
2. After DCT replacement, perform the control oil level checking procedure. Use a suitable tool at least 5.5 inches (140mm) long.
3. Add control oil, part number 00232-19101, as needed to reach the specified level of 4.3-4.7 inches (110-120 mm) from the top of the DCT case.

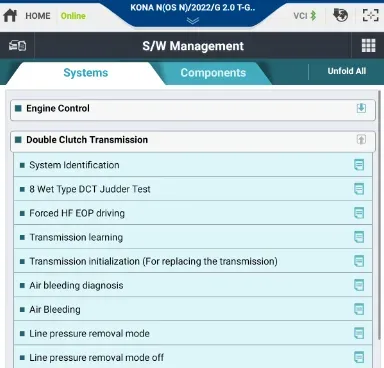

Following either repair, a GDS S/W Update and specific Double Clutch Transmission procedures must be performed. These include system identification, an 8 Wet Type DCT Judder Test, forced HF EOP driving, transmission learning, transmission initialization, and air bleeding diagnosis. Finally, the vehicle will be driven to confirm proper transmission shifting.

Required Tools or Parts

• High Flow Electric Oil Pump (HF EOP): Part No. 46110-2N5**
• O-ring: Part No. 46131-2N500
• Gear oil: Part No. 00232-19100
• Transmission Assembly DCT (for HP EOP issues): Part No. 430F0-2N0**
• Control oil (for HP EOP issues): Part No. 00232-19101
• Global Diagnostic System (GDS) tool
• Torque wrench
• Suitable tool for measuring control oil level (at least 5.5 inches / 140mm long)

Owner Action

If your Hyundai Elantra EOP DTC is illuminated, or you suspect an issue with your DCT's electric oil pump, it is recommended to schedule an appointment with an authorized Hyundai service center. Technicians will perform the necessary diagnostics and repairs as outlined in TSB 22-AT-009H. This repair is covered under normal warranty conditions.

---

Source: NHTSA ID: 10217250
