2022-2025 Honda Civic Loose Door Weatherstripping TSB 25-008

Owners of 2022-2025 Honda Civic models may encounter an issue where the door weatherstripping becomes loose or is not properly set at the top of the door frame. This condition is addressed by Honda Service Bulletin 25-008, issued on January 24, 2025.

Symptoms

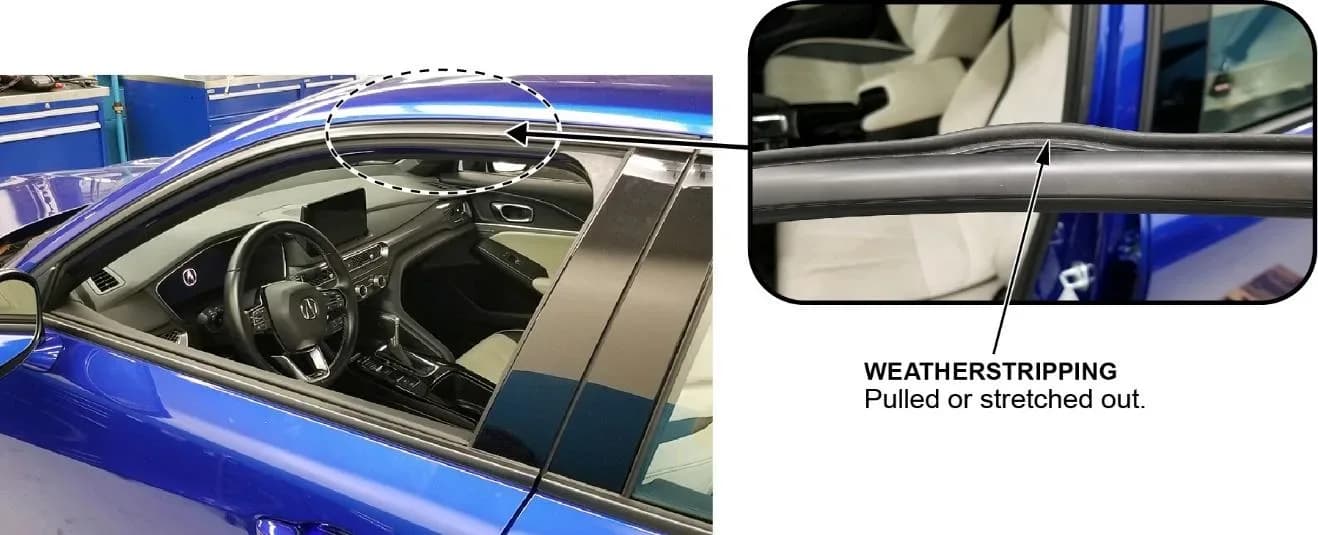

The primary symptom of this issue is the door weatherstripping being loose or not correctly seated along the top of the door frame. This can lead to various problems, including increased wind noise, water leaks, or an unsightly appearance.

Diagnosis / Trigger Conditions

Honda has identified a common cause for this problem: customers may inadvertently grab the top of the door sash when entering or exiting the vehicle. This action can dislodge the weatherstripping seal from its proper position. If you notice your Honda Civic loose weatherstripping, this could be the reason.

Important Warnings

Before attempting any repair, it is crucial to note specific conditions outlined in Service Bulletin 25-008. If the existing weatherstripping is damaged (torn, ripped, or otherwise compromised), the repair procedure detailed in this bulletin does not apply. Additionally, during the repair process, if the door-checker bolt is removed, exercise extreme care. The door can overextend and sustain damage if not handled cautiously until the new door-checker bolt is installed.

Repair Procedure Summary

For the Honda Civic loose weatherstripping issue, the repair involves replacing the weatherstripping on all affected doors with improved parts. The process begins by carefully pulling the edges of the existing weatherstripping from the door frame channel and releasing the clips that secure it. Any broken clips must be removed.

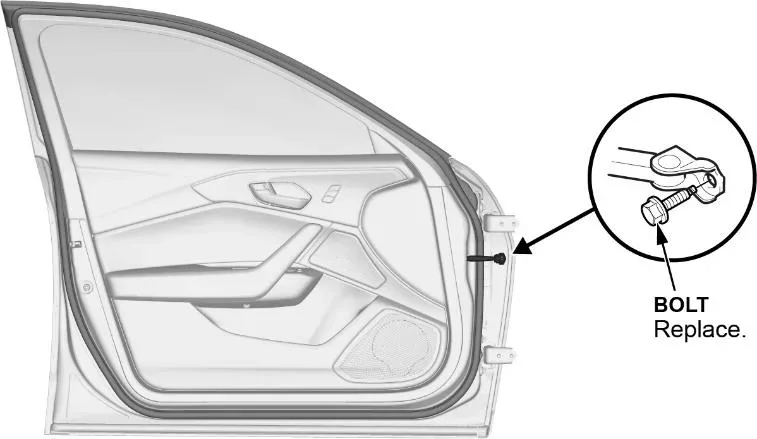

Next, the bolt securing the door checker is removed and discarded. Technicians then remove the old weatherstripping entirely. Installation of the new weatherstripping starts at the front of the door, reversing the removal steps. A new door-checker bolt is installed and tightened to a specification of 29 N·m (21 lb-ft). To facilitate installation, a soap and water solution is applied to the door frame channel and the new weatherstripping. The weatherstripping is then carefully pressed into place, ensuring both upper and lower edges are firmly seated in the channel and that it is straight once installed. Finally, any excess soap solution is cleaned from the door.

Required Parts

To perform this repair, specific parts are required, as detailed in TSB 25-008:

• Weatherstripping, Front Right (ALL): Part Number 72310-T56-A11 (Quantity: 1)
• Weatherstripping, Front Left (ALL): Part Number 72350-T56-A11 (Quantity: 1)
• Weatherstripping, Rear Right (4-door): Part Number 72810-T56-A11 (Quantity: 1)
• Weatherstripping, Rear Left (4-door): Part Number 72850-T56-A11 (Quantity: 1)
• Weatherstripping, Rear Right (5-door): Part Number 72810-T64-A11 (Quantity: 1)
• Weatherstripping, Rear Left (5-door): Part Number 72850-T64-A11 (Quantity: 1)
• Bolt, Flange (8x22): Part Number 90141-S04-000 (Quantity: 4)

Owner Action

If you own a 2022-2025 Honda Civic and observe that your Honda Civic loose weatherstripping, it is recommended to contact an authorized Honda automobile dealer. They can inspect your vehicle and perform the necessary repairs according to Service Bulletin 25-008. This ensures the correct parts are used and the repair is carried out by skilled technicians.

---

Source: NHTSA ID: 11013335
