2024 BMW X Series Front Axle Rattling Noise SIB 31 03 26

Symptoms

Owners of 2024 BMW X5, X6, and X7 models may experience a distinct “rattling” type of noise originating from the front axle. This noise is typically noticeable during slow-speed driving, specifically between 15 and 25 mph, when the vehicle travels over rough or uneven road surfaces. If you hear a rattling noise from your BMW X5 front axle under these conditions, it's important to have it inspected.

Cause of the Noise

BMW Service Information Bulletin (SIB) 31 03 26 identifies the root cause of the front axle rattling noise. The issue stems from the premature aging of the tension strut hydro-mount elastomer. Over time, various external factors can cause this material to degrade, leading to the formation of cracks and subsequent leakage. This degradation compromises the integrity of the hydro-mount, resulting in the audible rattling noise.

Important Warnings

BMW explicitly states that a mixed installation of different tension strut variants is not permitted. When performing this repair, both the left and right tension struts must be replaced with the improved conventional rubber mounts to ensure proper function and prevent further issues.

Repair Procedure Summary

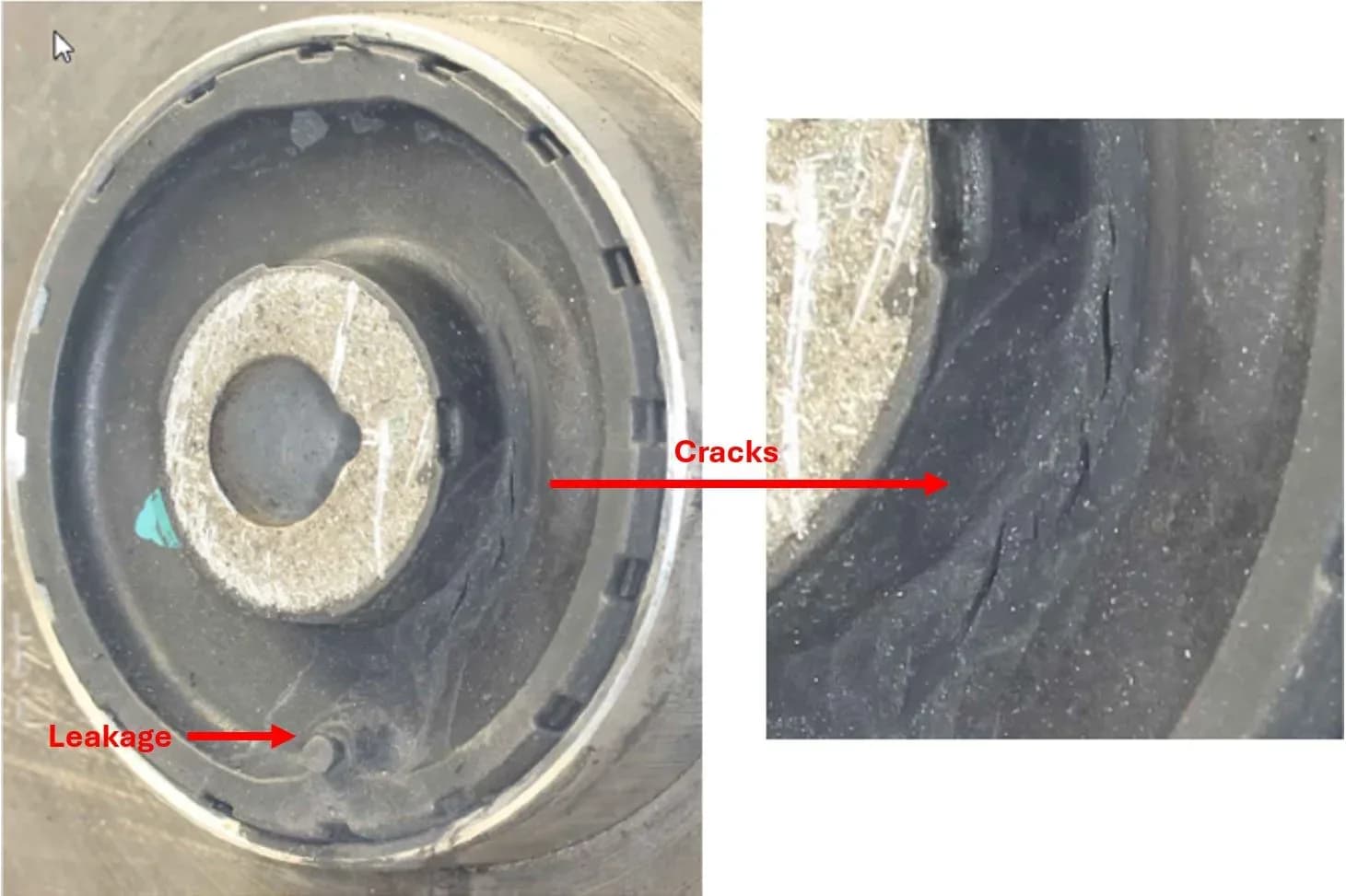

The repair outlined in SIB 31 03 26 involves inspecting the tension strut hydro-mount for damage, specifically looking for cracks and leakage. If a defective hydro-mount bushing is found, photographic documentation is required to be uploaded to the WarrantyApp under the identifier "SI B31 03 26 Tension Struts Hydro Bushings".

Once damage is confirmed, both the left and right tension struts are to be replaced with improved conventional rubber mounts. The procedure references REP31 12 050 for the detailed replacement steps. This ensures that the rattling noise from the BMW X5 front axle is resolved and the vehicle's suspension performance is restored.

Required Parts

To perform this repair, the following part numbers are specified:

• 31 10 8 864 693: Tension strut with rubber mounting, left (Quantity: 1)
• 31 10 8 864 694: Tension strut with rubber mounting, right (Quantity: 1)
• 07 14 6 885 389: Star-socket screw (M14x1.5x119) (Quantity: 2)
• 07 14 6 885 653: Locking nut (M14x1.5-10 ZNS3) (Quantity: 2)
• 07 14 6 875 114: Hexagon nut with collar (M16X1.5 ZNNIV) (Quantity: 2)
• 07 11 9 908 596: Screw (M12x1.5x48) (Quantity: 8)
• 31 20 6 795 249: Collar screw with spring (M16x1.5x72-8.8) (Quantity: 2)

Additional materials and small parts, such as fluids, lubricants, one-time use screws, nuts, and seals, must be selected from the Electronic Parts Catalog (ETK) or other approved BMW Group resources according to the specific vehicle type.

Warranty Information

This repair is covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks. The repair code associated with this service is 3112074800, which describes "Rubber/hydraulic mount, tension strut/compression strut (inner) Leaking." Labor operations include verifying the rattling noise (31 99 000*), diagnosis worktime (00 58 500*), photo documentation (00 58 999), and removing/installing/replacing both tension struts (31 12 080 or 31 12 627).

Owner Action

If you own a 2024 BMW X5, X6, or X7 and notice a rattling noise from the front axle, especially when driving slowly over rough road surfaces, it is recommended to schedule an appointment with your authorized BMW service center. Be sure to mention the symptoms you are experiencing. The service center will diagnose the issue and perform the necessary repairs as outlined in BMW SIB 31 03 26.

---

Source: NHTSA ID: 11029047
