2024 BMW Door Seal Detachment SIB 51 22 24

Symptoms of BMW Door Seal Detachment

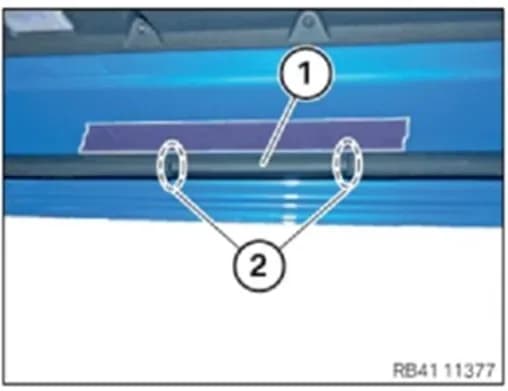

Owners of various 2024 BMW models may notice that the main door seal is detaching, particularly in the sealing joint area. This issue often begins subtly but can worsen over time. As the sealing material continues to detach, it may become visible to the customer and even dangle from the door.

This BMW door seal detachment can affect the aesthetic appearance of the vehicle and potentially lead to increased wind noise or water ingress if left unaddressed.

Cause of the Detachment

According to BMW Service Information Bulletin (SIB) 51 22 24, the primary cause of the main door seal detachment is contamination of the surface onto which the door seal bonds or adheres. This contamination prevents the seal from properly securing to the vehicle's body, leading to its eventual detachment.

Important Warning for Owners

BMW has issued a specific instruction regarding the repair of this issue. "The complete replacement of the main door seal(s) is not permitted for the issue described in this Service Information Bulletin." This means that technicians should focus on repairing only the detached portion of the seal, rather than replacing the entire seal assembly.

Identifying the Issue for Repair

To properly address the BMW door seal detachment, technicians use specific repair codes to categorize the type of detachment observed. These codes help in documenting the issue and ensuring the correct repair procedure is followed:

• 5171000100: "Front door sealing Cracked / broken / torn off" (applies to front only, or both front and rear door seals affected).
• 5171003700: "Front door sealing Loose" (applies to front only, or both front and rear door seals affected).
• 5171010100: "Rear door sealing Cracked / broken / torn off" (applies only when the rear door seals are affected).
• 5171013700: "Rear door sealing Loose" (applies only when the rear door seals are affected).

Repair Procedure Summary

The recommended correction for the BMW door seal detachment involves partially replacing the affected main door seal. The procedure outlined in SIB 51 22 24 directs technicians to:

1. Verify the customer's concern matches the described issue of door seal detachment.
2. For cases where the main door seal detaches in areas not visible to the customer, the detached portion is repaired by replacing the specific section. This repair must follow the detailed instructions provided in ISTA/AIR document 51 71 003.
3. After the repair is completed, the technician must validate that the issue has been resolved.

This targeted approach ensures that only the necessary portion of the seal is replaced, adhering to BMW's specific repair guidelines.

Required Parts and Materials

To perform the partial door seal replacement, specific parts and materials are required. Technicians will need to confirm the exact part numbers for the vehicle using its chassis number in the Electronic Parts Catalog (ETK) or AIR system.

Key components include:

• 51 76 5 B68 FC5: Partial replacement, door seal (up to 4 units may be needed depending on the number of affected seals).
• 83 19 0030155: Activator 205 (DN = 250 ML), used for proper adhesion.

Additionally, other general materials such as fluids, lubricants, one-time use screws, nuts, and seals, as specified in the ISTA repair instructions or ETK/AIR, must be selected and used according to the vehicle type.

Warranty Coverage

This repair for the BMW door seal detachment is covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks. Owners should contact their authorized BMW service center for diagnosis and repair.

Next Steps for Owners

If you observe signs of BMW door seal detachment on your 2024 BMW, it is recommended to schedule an appointment with an authorized BMW dealership. They will be able to diagnose the issue using the guidelines in SIB 51 22 24 and perform the necessary partial seal replacement under warranty.

---

Source: NHTSA ID: 11013119
