2022-2024 BMW Tailgate/Trunk Not Opening SIB 51 15 23

Owners of certain 2022-2024 BMW models, including the X5, 530i, X1, and XM, may encounter a problem where the tailgate or trunk fails to unlatch or open. This can occur when attempting to open it using either the interior button located on the driver's door panel or the key fob. This specific issue, where the BMW X5 tailgate not opening is a common complaint, is addressed by BMW Technical Service Bulletin (TSB) SIB 51 15 23.

Symptoms

The primary symptom is the inability to open the tailgate or trunk. When you press the interior release button or the key fob, the mechanism will not unlatch, preventing access to the cargo area. This directly impacts the functionality of your vehicle, making it difficult to load or unload items.

Fault Codes / DTCs

When this issue occurs, technicians will typically find a specific fault code stored in the Basic Central Platform (BCP) module. The relevant diagnostic trouble code (DTC) is:

• 80413F - CACL tailgate lock: Short circuit to ground

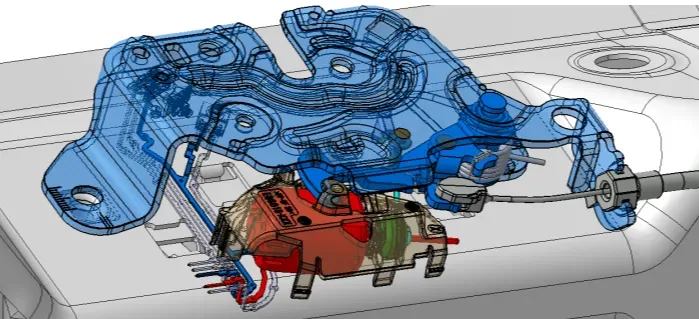

This code indicates that the tailgate/trunk latch has an internal short circuit, which is the root cause of the opening malfunction.

Diagnosis / Trigger Conditions

The cause of the BMW X5 tailgate not opening is an internally short-circuited tailgate/trunk latch. The fault code 80413F is stored in the BCP (Basic Central Platform) when this short circuit is detected. Diagnosis involves connecting the vehicle to BMW's diagnostic system, ISTA, to read fault codes and determine if the tailgate/trunk can still be opened manually or with some effort. The repair procedure varies slightly depending on whether the tailgate/trunk can be opened despite the fault code.

Repair Procedure Summary

BMW TSB SIB 51 15 23 outlines a specific procedure for addressing the short-circuited tailgate/trunk latch:

1. A BMW-approved battery charger is connected, and fault codes are read using the ISTA diagnostic system.
2. If fault code 80413F is present and the tailgate/trunk can be opened, the technician proceeds to replace the tailgate/trunk latch according to repair instructions 51 24 100 in ISTA/AIR. Fault codes are then cleared.
3. If fault code 80413F is present but the tailgate/trunk cannot be opened, a different path is followed.
4. The technician performs a BCP (Basic Central Platform) control module reset via ISTA and allows the vehicle to enter a full sleep cycle.
5. The vehicle is then driven over rough roads to induce vibrations, which may help free the latch mechanism.
6. Once the tailgate/trunk can be opened, the latch is replaced following the same repair instructions (51 24 100) in ISTA/AIR, and fault codes are cleared.
7. Finally, the vehicle is reassessed to ensure the repair is successful.

Required Tools or Parts

Specific part numbers for the tailgate/trunk latch are not provided directly in the bulletin. Technicians are instructed to determine the correct part number by entering the vehicle's VIN or chassis number into BMW's Electronic Parts Catalog (ETK) or AIR system. This ensures the correct component is ordered based on the vehicle's specific equipment and options.

Important Warnings

If the tailgate/trunk still does not open after following all the steps outlined in TSB SIB 51 15 23, technicians are advised to submit a TSARA (Technical Service and Repair Assistance) reply-requested case for further assistance from BMW.

Owner Action

If you experience your tailgate or trunk not unlatching or opening, especially if you drive a 2022-2024 BMW X5, 530i, X1, or XM, it is recommended to schedule an appointment with an authorized BMW service center. This repair is covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks, or the BMW Certified Pre-Owned Program.

NHTSA ID: 10242881
