2025 BMW X3 HVAC Flap Linkage Not Fully Connected TSB

BMW has issued Service Information Bulletin (SIB) SIB 64 05 25 for the 2025 BMW X3 Sports Activity Vehicle (G45 E-Series) to address issues related to inconsistent air temperature output from the vehicle's heating, ventilation, and air conditioning (HVAC) system. This bulletin, which is Revision 4 and replaces SI B64 05 25 dated May 2025, provides detailed diagnostic and repair procedures for technicians. This repair is both mobile-friendly and remote software upgrade (RSU) friendly.

Symptoms of HVAC Flap Linkage Issues

Owners of affected 2025 BMW X3 vehicles may experience the following symptoms:

• "Customer states that the output air from one of the vehicle vent assemblies doesn't match the desired temperature, will change temperature opposite of climate settings."
• "Customer states that the output air from one of the vehicle vent assemblies doesn't match the desired temperature, nor change from Hot/Cold."

These issues indicate a problem with the precise control of airflow and temperature within the HVAC system, directly impacting passenger comfort. Addressing the 2025 BMW X3 HVAC flap linkage is crucial for proper climate control.

Identified Causes

BMW has identified two primary causes for the 2025 BMW X3 HVAC flap linkage issues:

1. Incorrect Wiring: The wiring harness for the center vent temperature sensor may be incorrectly pinned.
2. Loose Flap Linkage: The air flap linkage might not be fully locked into the air mixing flap, allowing it to come loose.

Repair Procedure Summary

To correct the 2025 BMW X3 HVAC flap linkage and wiring issues, technicians are instructed to perform the following checks and adjustments as outlined in SIB 64 05 25:

1. Wiring Inspection and Correction

Technicians must check the wiring connections between the Body Domain Controller (BCP) and the center driver and passenger vent temperature sensors. Specific connections to inspect include:

• Module A528 BCP A5287B pin 12 to B151 Vent Temp Sensor Left Front pin 3 B1511B
• Module A528 BCP A5287B pin 10 to B151 Vent Temp Sensor Left Front pin 1 B1511B
• Module A528 BCP A5287B pin 10 to B152 Vent Temp Sensor Right Front pin 1 B1511B
• Module A528 BCP A5287B pin 13 to B152 Vent Temp Sensor Right Front pin 3 B1511B

It is possible that the wiring could be swapped at connector x1559*1B, which is in line between the BCP and the vent temperature sensors. Technicians should refer to wiring diagram SSP-SP0000074179 for detailed information and correct pinning.

2. Air Flap Linkage Inspection and Correction

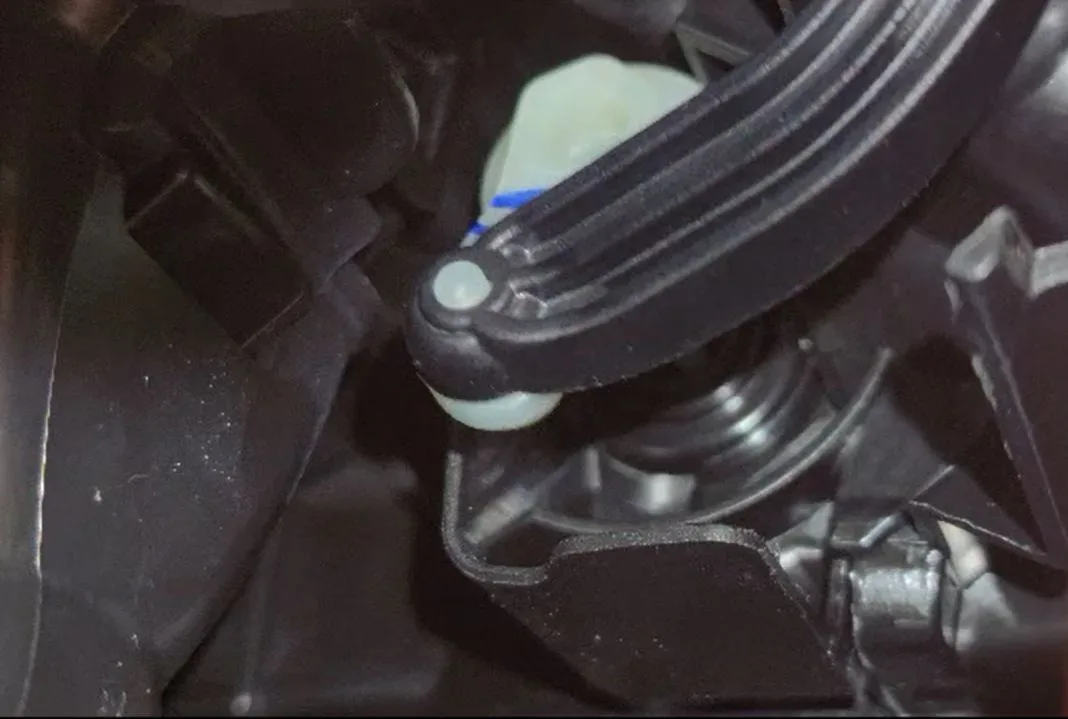

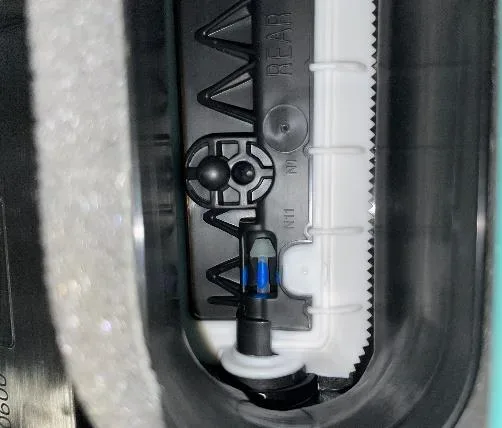

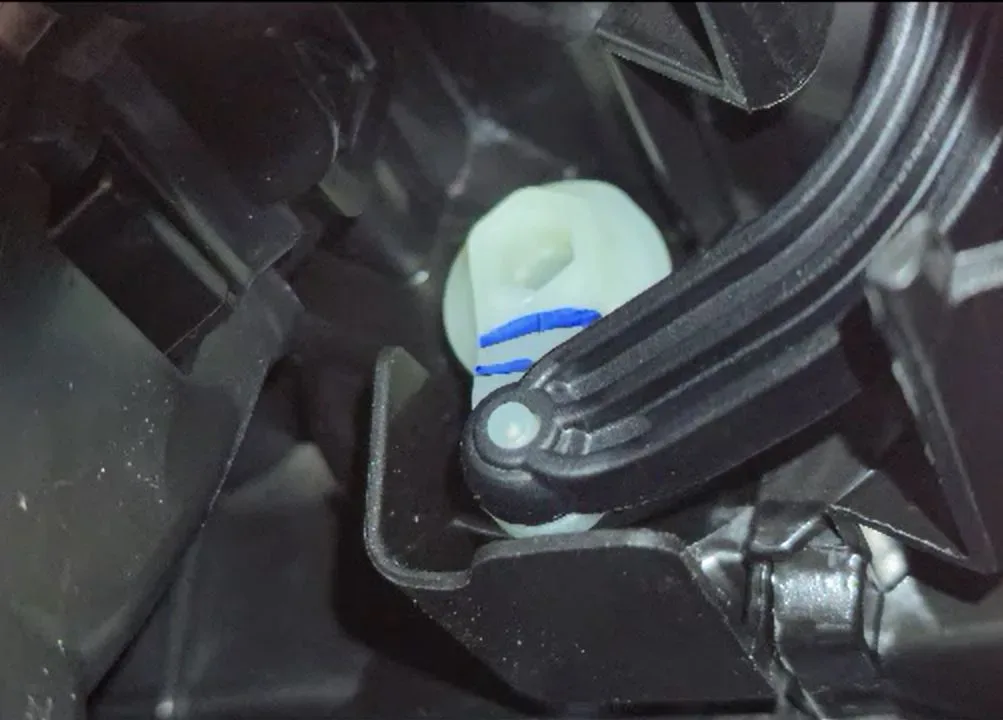

The linkage connection to the HVAC flap must be checked to ensure it has not come loose. This issue can affect any of the flaps within the HVAC system. A white plastic mechanism connects the black linkage arms and the HVAC flap assembly.

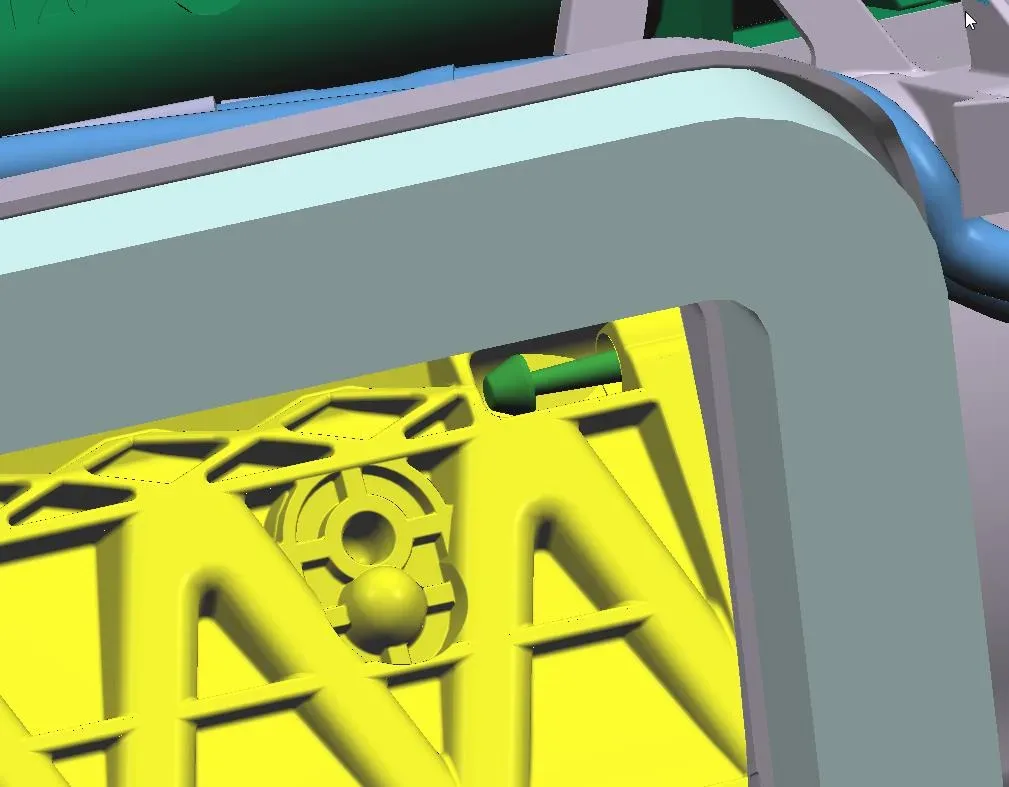

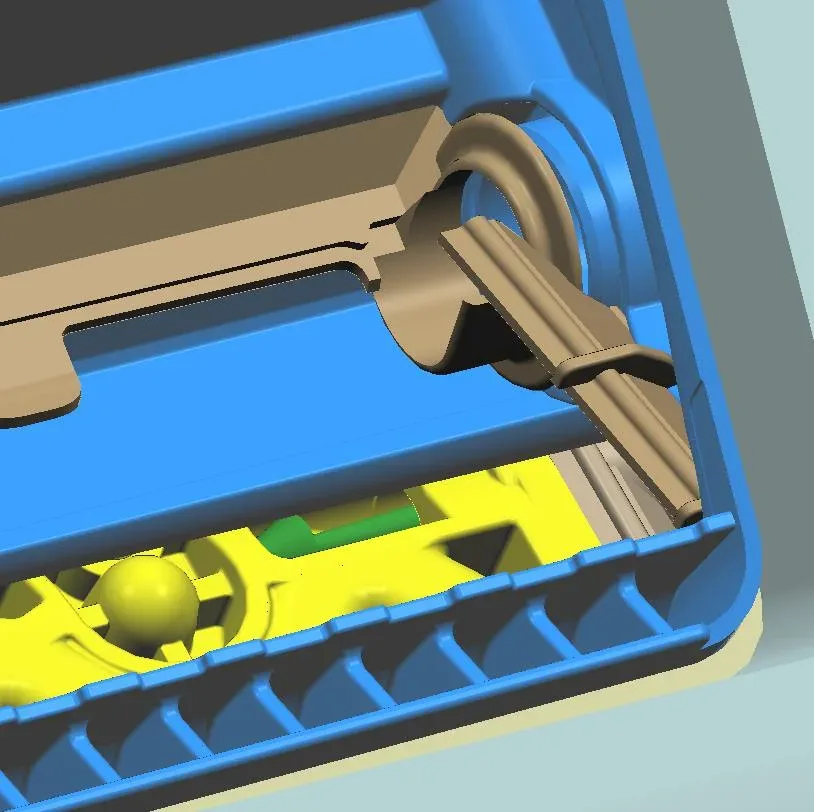

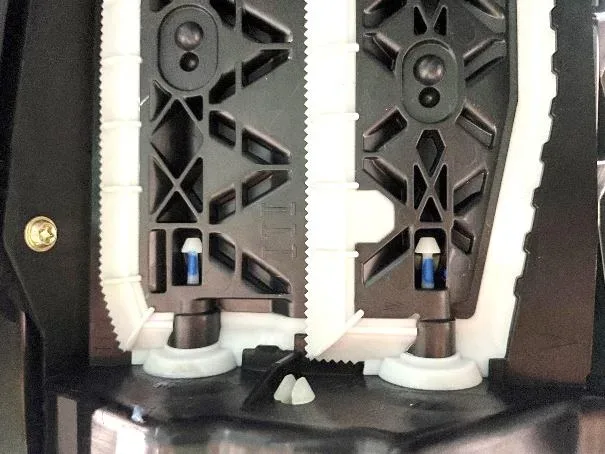

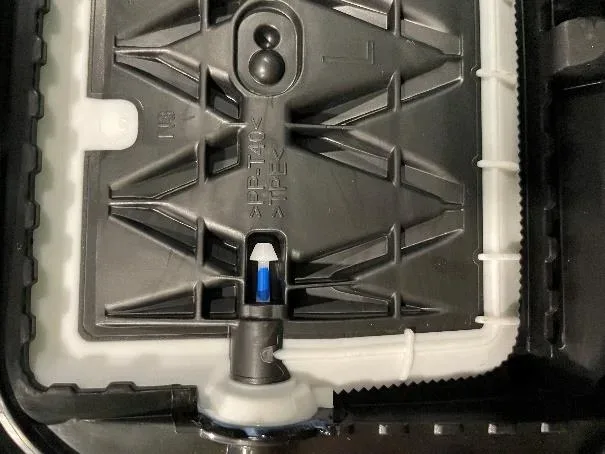

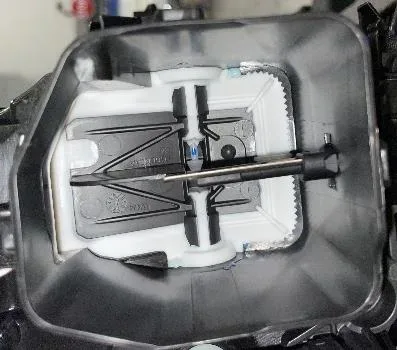

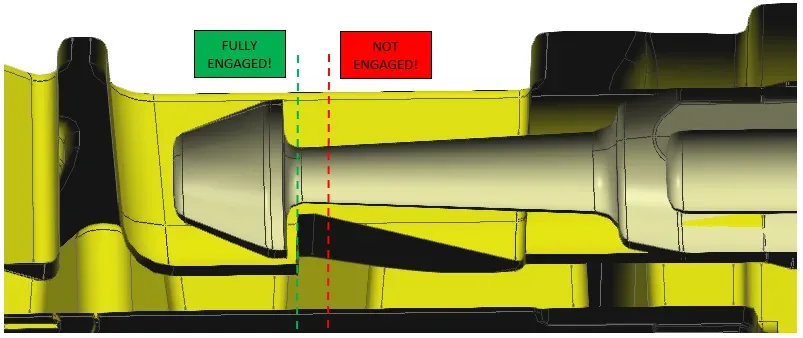

To test if the mechanism is fully seated into the HVAC flap assembly, technicians should perform a wiggle test of the white plastic (in/out). The goal is to ensure the white plastic mechanism push pin mushroom-shaped end engages into the flap ramp and is fully seated. Technicians must push in until they can feel the engagement.

If the flap and linkage are out of time, they may only snap in one way. Technicians can move the flap or use the BCP_SP21 test plan to align the linkage. The relevant test plans are found under Heating and air conditioning functions:

• Move flap motors to installation position: ABL-DIT-AS6450_SP21_KLAP_MOTOR_MONTAGEPO (sets the middle of travel flap setting).
• Flap motors, calibration run: ABL-DIT-AS6450_SP21_KLAP_MOTOR_EICHLAUF.

For a visual guide on this procedure, refer to the attached video example, BV64 02 25 G45 Flap Linkage.

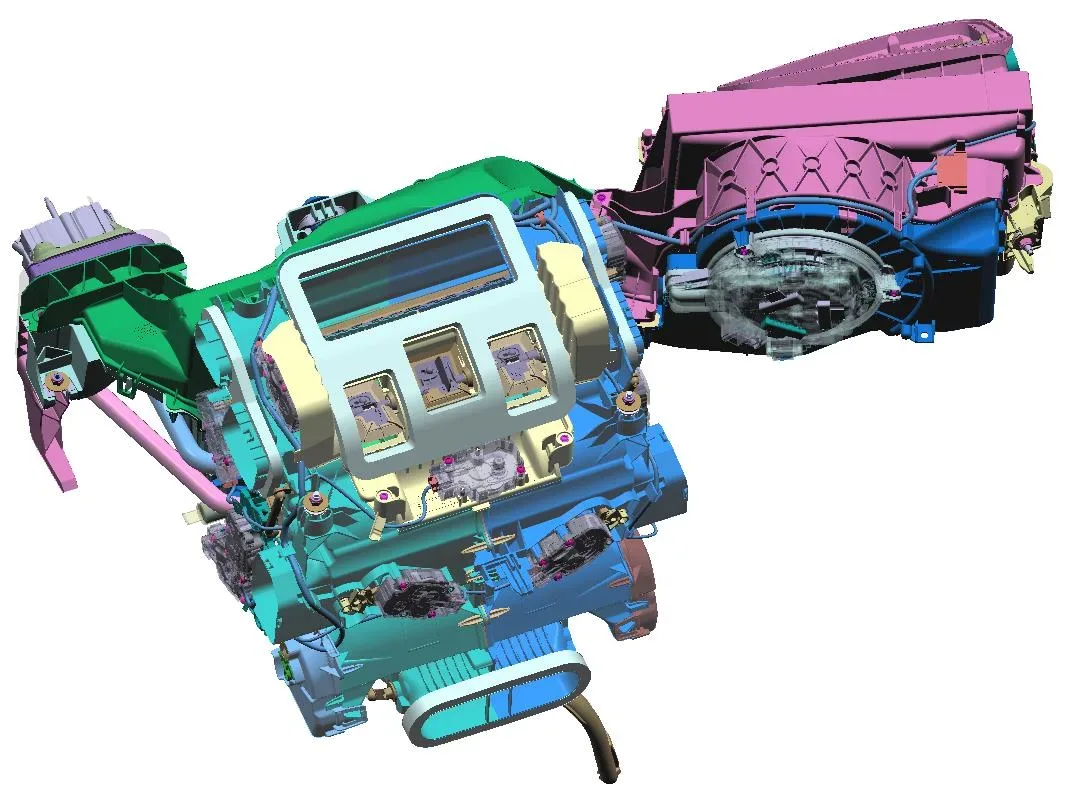

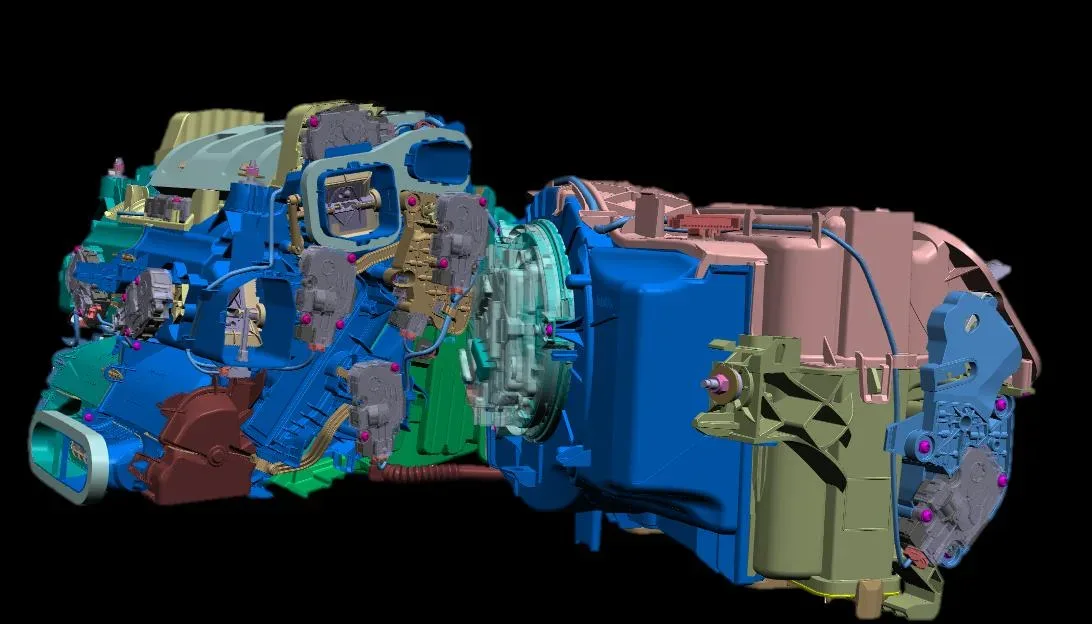

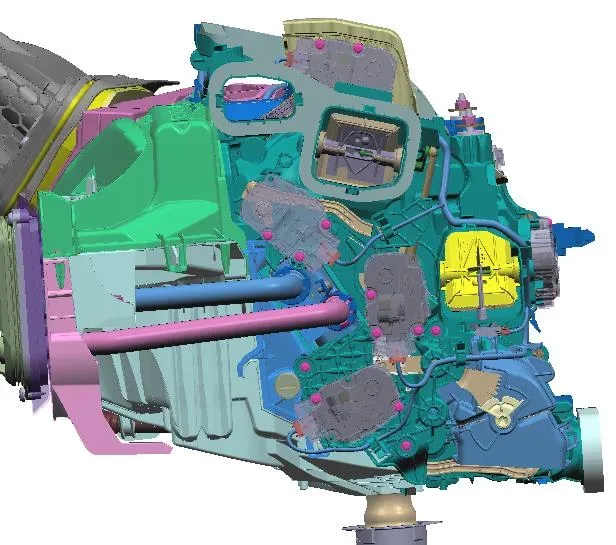

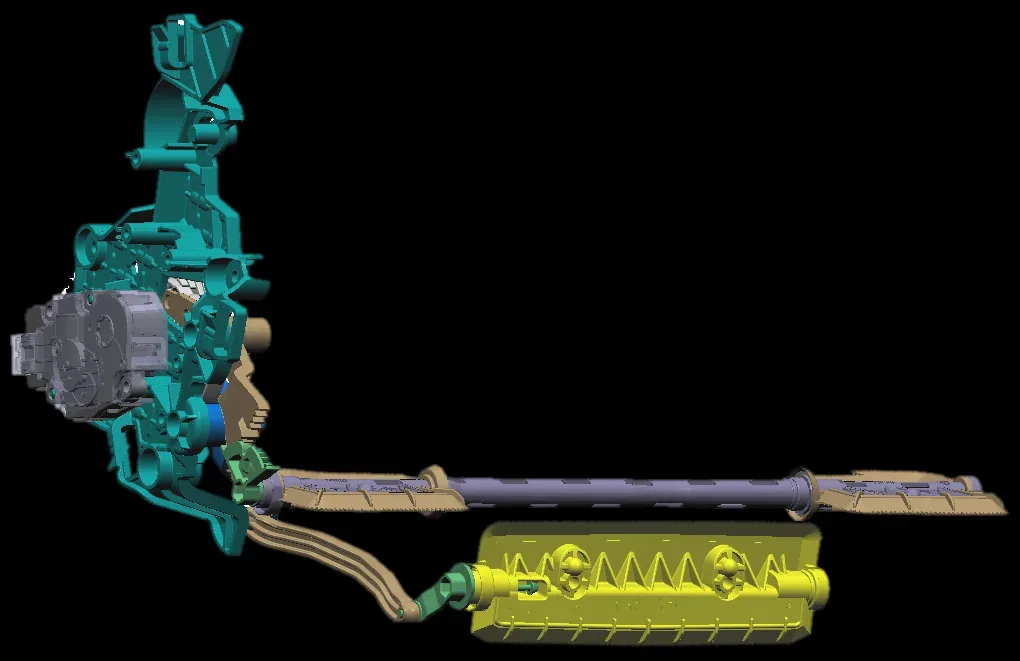

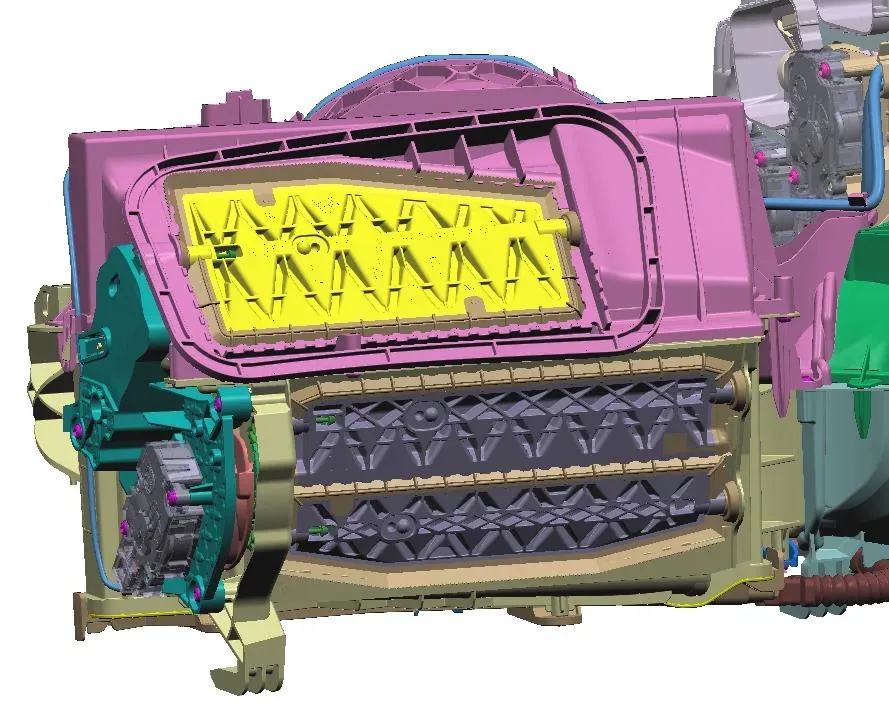

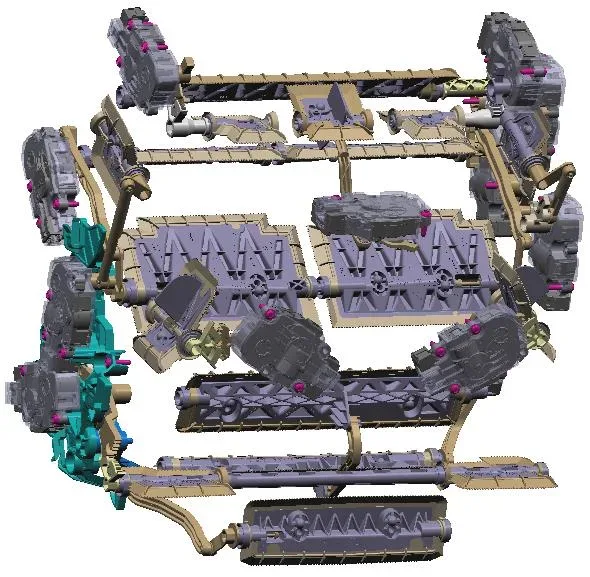

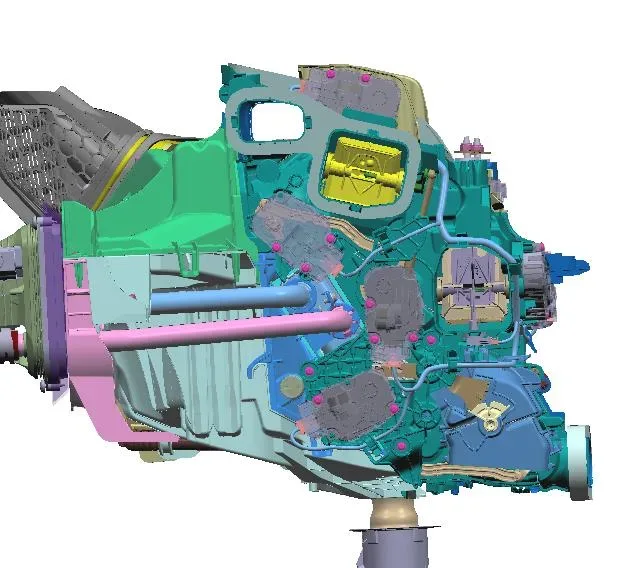

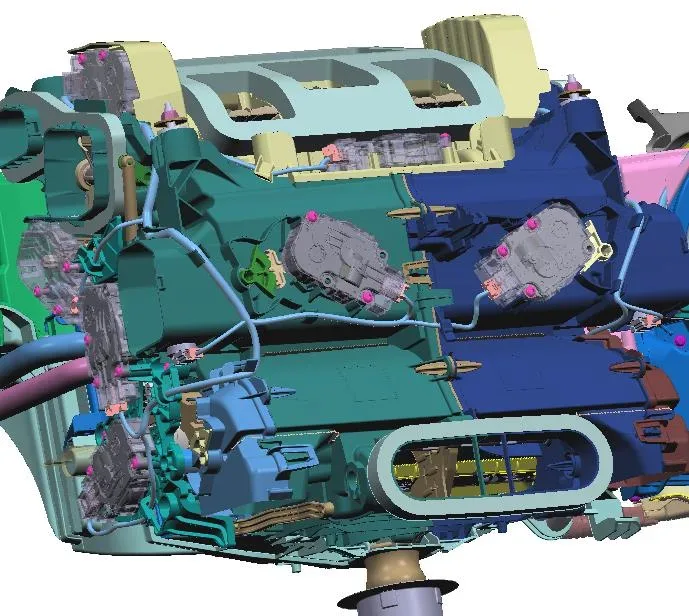

HVAC Flap and Stepper Motor Overview

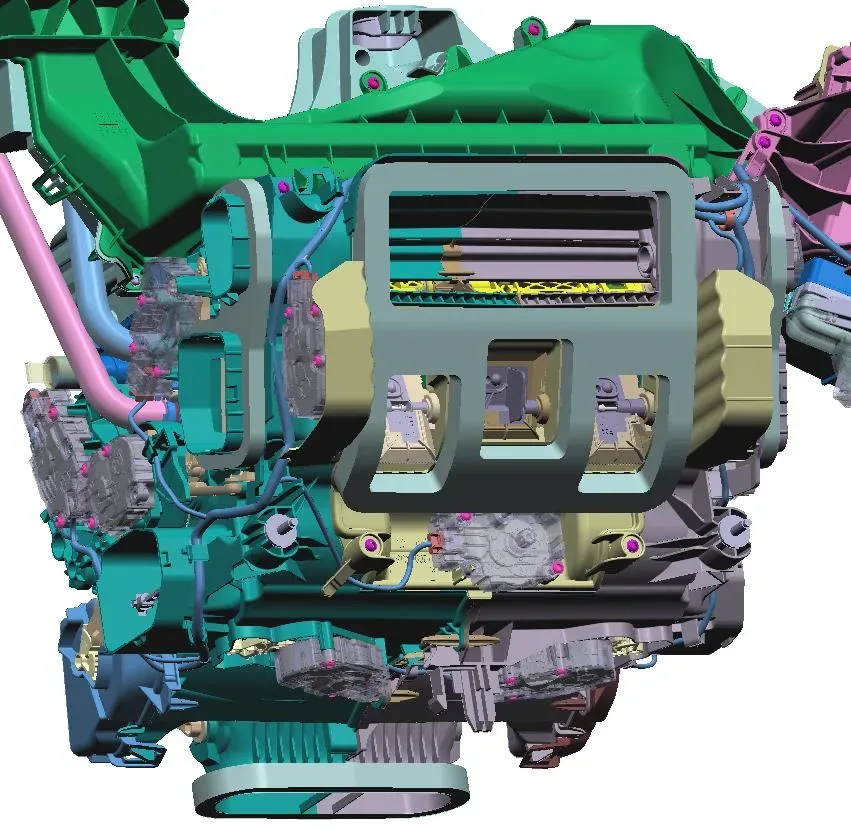

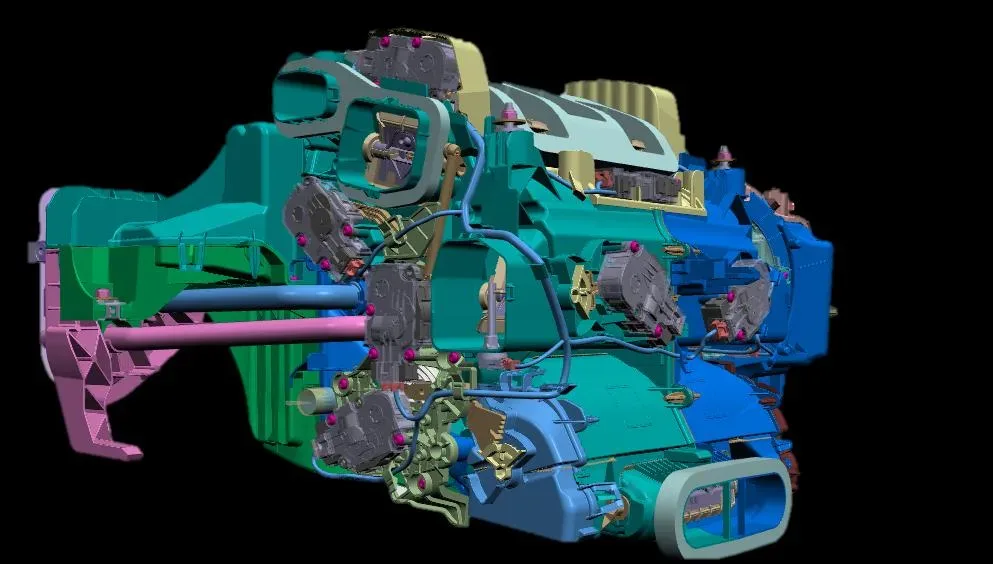

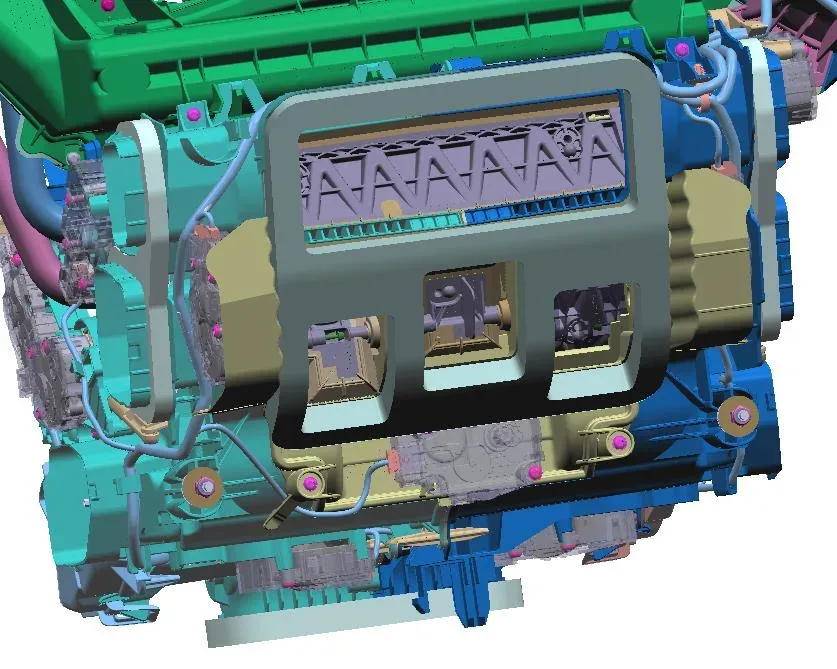

The HVAC system in the G45 X3 contains multiple air flaps, each controlled by a stepper motor. The following table provides an overview of these components:

Vent Flap #	Vent Flap Description	Vent Flap Visibility (for push pin)	Motor Position #	Electrical ID	Motor Control Desc
1	Fresh Air Flap	Easily Visible: Just inside of HVAC	13	M 16 (Shared)	Fresh Air / Recirculated Air Distribution
2	Recirculated Air Flaps x2 (connected)	Easily Visible: Just inside of HVAC	13	M 16 (Shared)	Fresh Air / Recirculated Air Distribution
3	Defrost Air Flap	Easily Visible: Just inside of HVAC	10	M 61	Defrost Air Distribution
4A	Front Cold Temp. Mixing Flap LEFT	Difficult: Borescope through open Flap #3	2	M 23 (Shared)	Front Temperature Mixing LEFT
4B	Front Cold Temp. Mixing Flap RIGHT	Difficult: Borescope through open Flap #3	9	M 83 (Shared)	Front Temperature Mixing RIGHT
5A	Front Warm Temp. Mixing Flap LEFT	Difficult: Borescope through open Flaps #7	2	M 23 (Shared)	Front Temperature Mixing LEFT
5B	Front Warm Temp. Mixing Flap RIGHT	Difficult: Borescope through open Flaps #7	9	M 83 (Shared)	Front Temperature Mixing RIGHT
6A	Front Footwell Air Flap LEFT	Easily Visible: Just inside of HVAC	5	M 21	Front Footwell Air Distribution LEFT
6B	Front Footwell Air Flap RIGHT	Easily Visible: Just inside of HVAC	4	M7	Front Footwell Air Distribution RIGHT
7A	Front Center Vent Air Flap LEFT	Easily Visible: Just inside of HVAC	7	M 20	Front Center Vent Air Distribution LEFT
7B	Front Center Vent Air Flap RIGHT	Easily Visible: Just inside of HVAC	12	M 22	Front Center Vent Air Distribution RIGHT
8A	Front Side Vent Air Flap LEFT	Easily Visible: Just inside of HVAC	3	M 020	Front Side Vent Air Distribution LEFT
8B	Front Side Vent Air Flap RIGHT	Easily Visible: Just inside of HVAC	11	M 022	Front Side Vent Air Distribution RIGHT
9	Rear Upper Vent Flap (Center Console)	Easily Visible: Just inside of HVAC	1	M 084 (Shared)	REAR Air Distribution
10	Rear Cold Temp. Mixing Flap	Difficult: Borescope through open Flap #9	8	M 024 (Shared)	REAR Temperature Mixing
11	Rear Warm Temp. Mixing Flap	Other: No direct push pin (tied to Flap #10)	8	M 024 (Shared)	REAR Temperature Mixing
12	Rear Footwell Air Flaps L/R x2 (connected)	Easily Visible: Just inside of HVAC (D.S)	1	M 084 (Shared)	REAR Air Distribution
13	Indirect Air Flap	N/A: Different connection type (no push pin)	6	M 197	Indirect Air Distribution

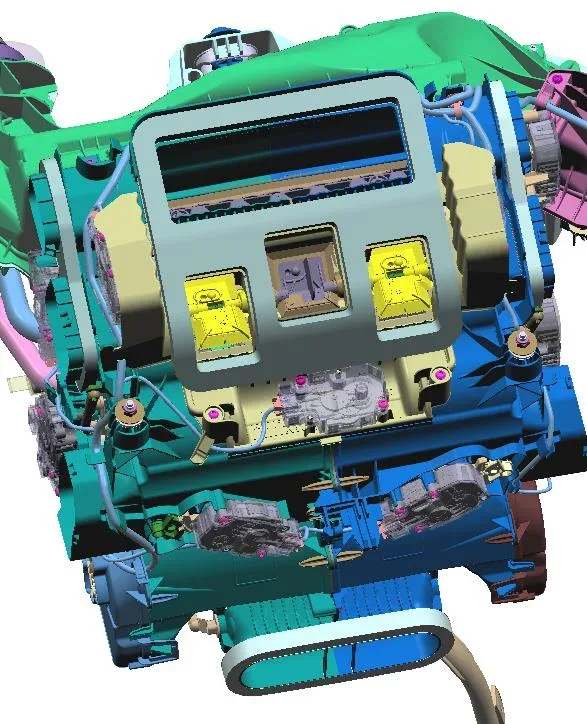

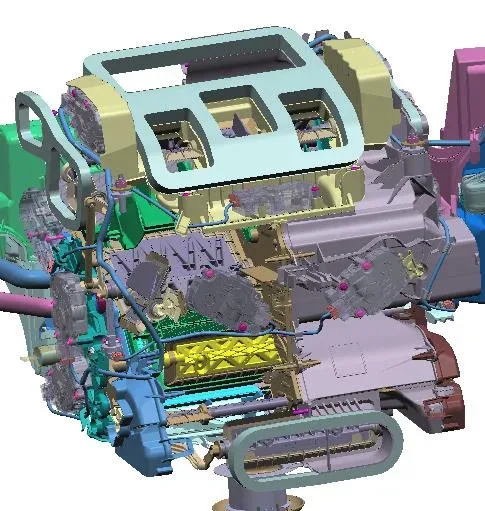

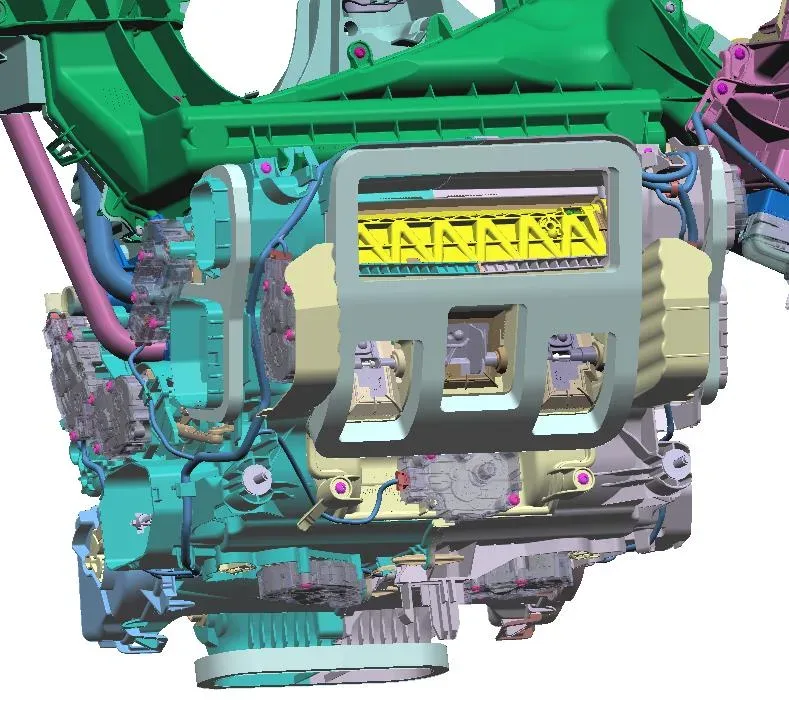

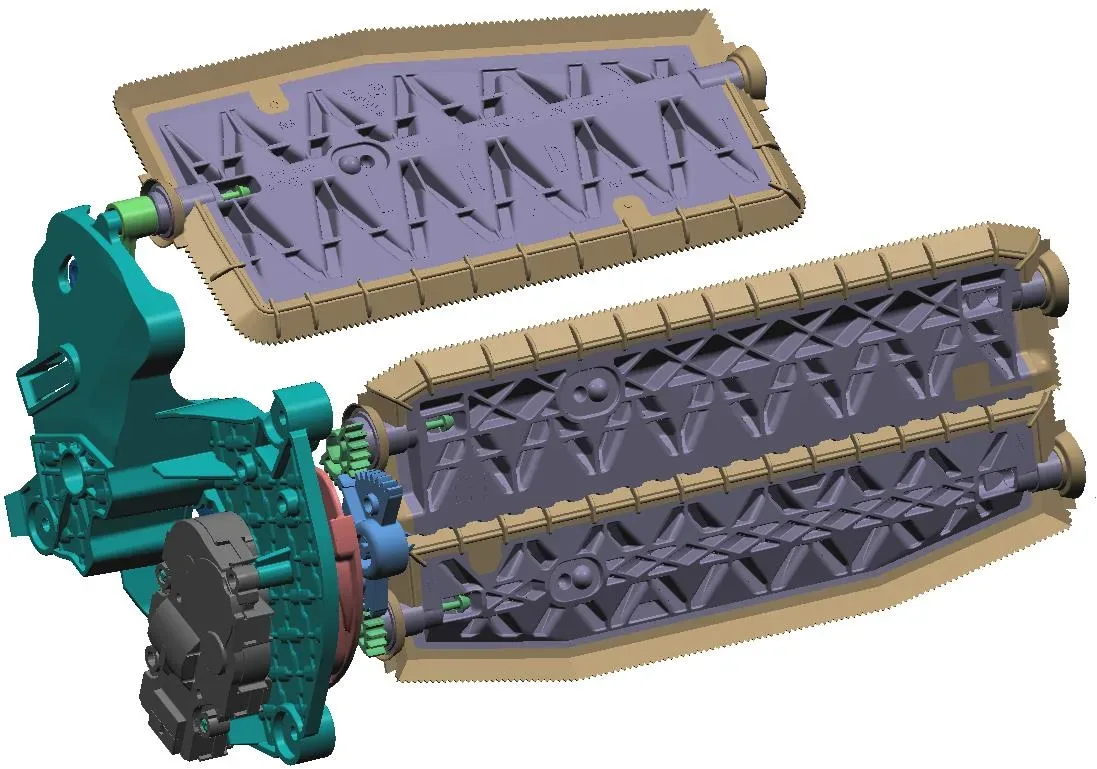

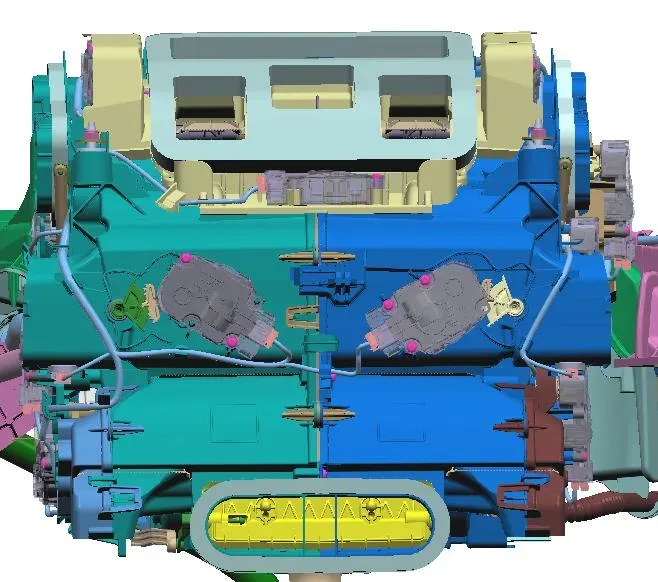

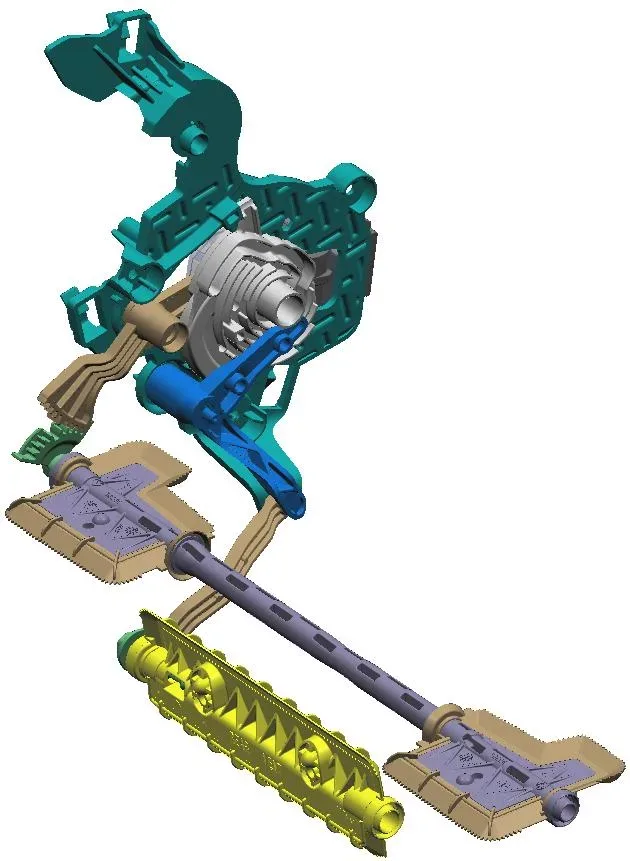

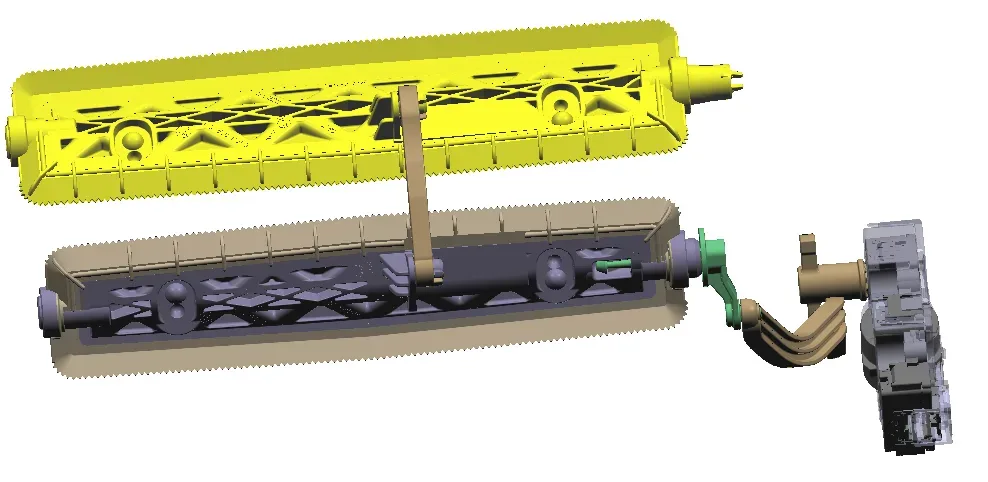

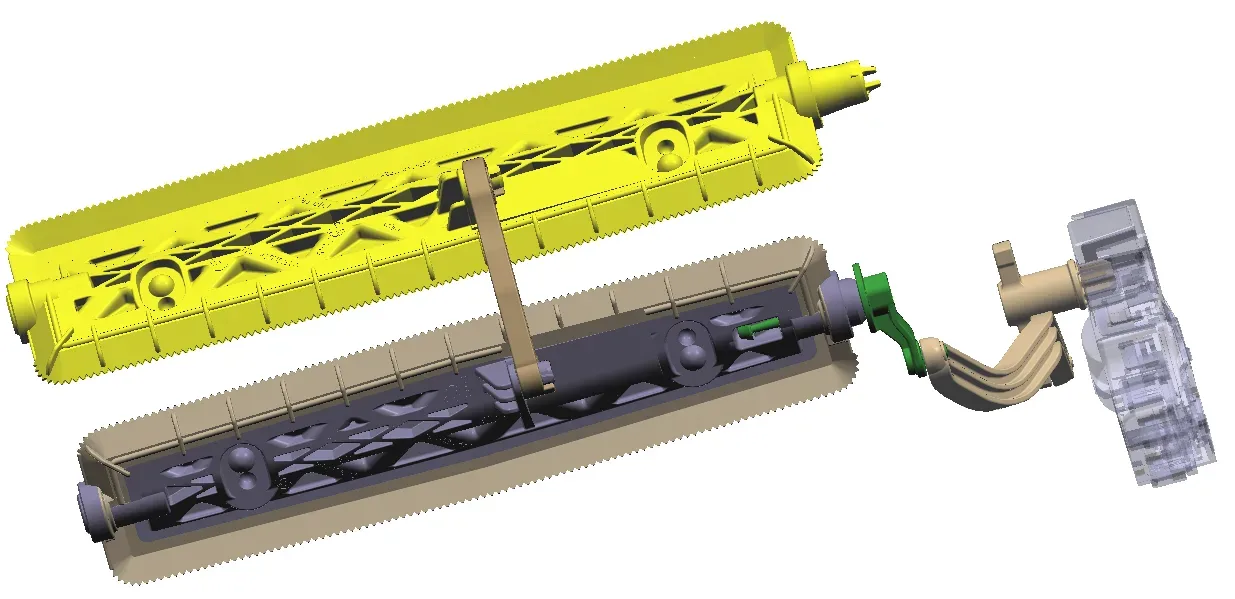

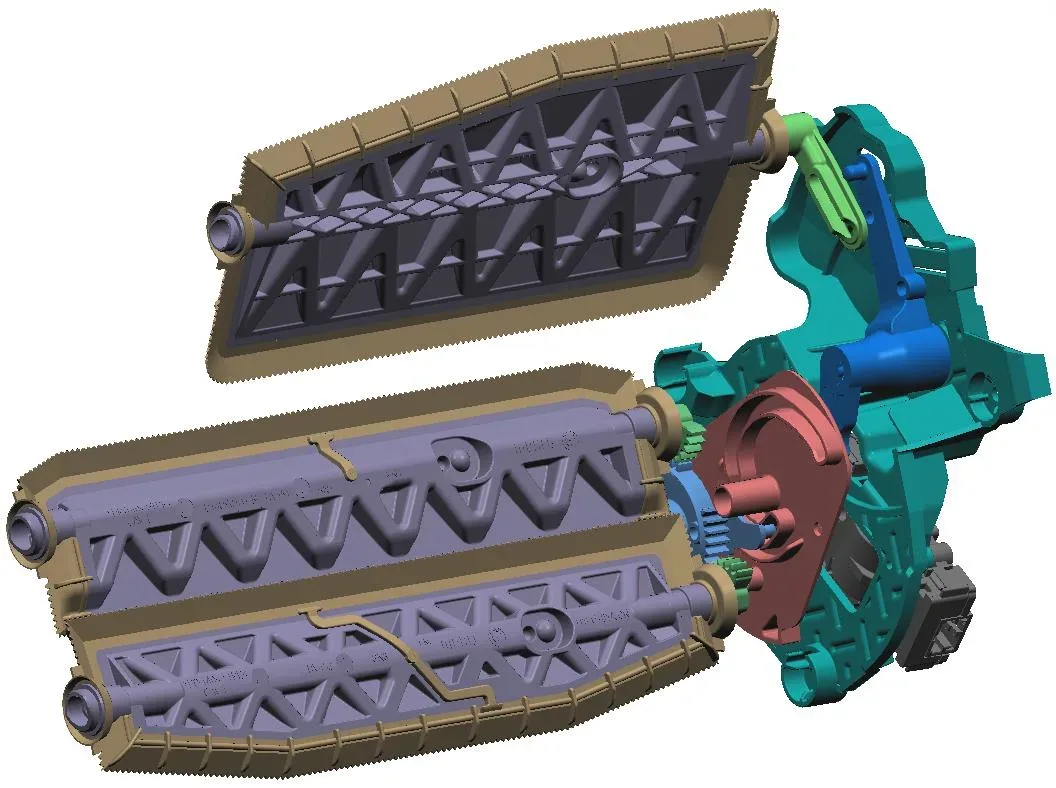

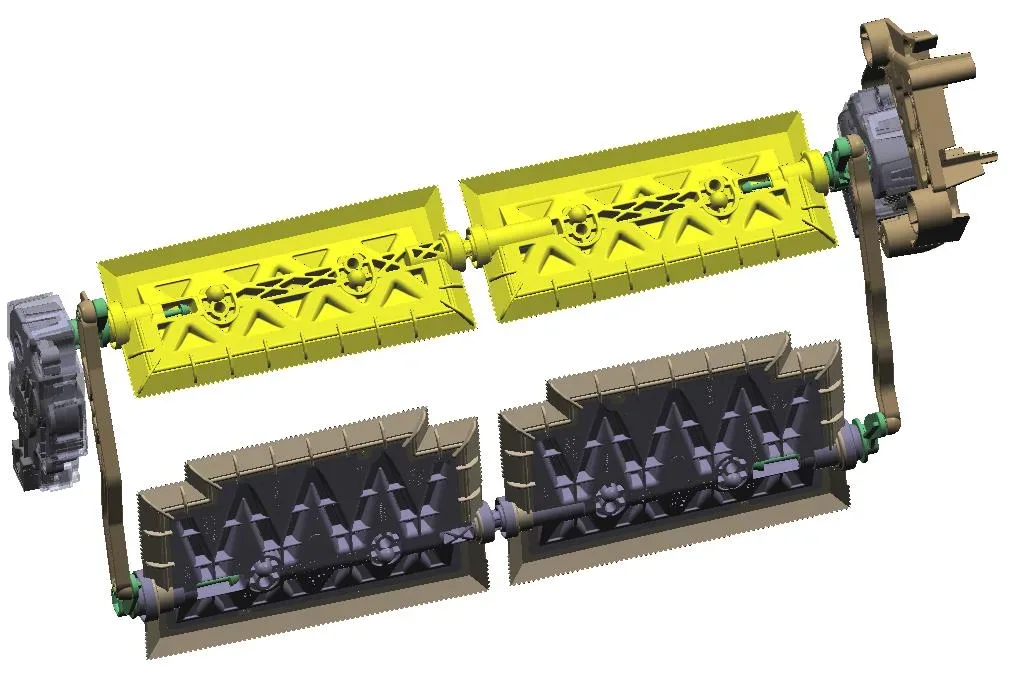

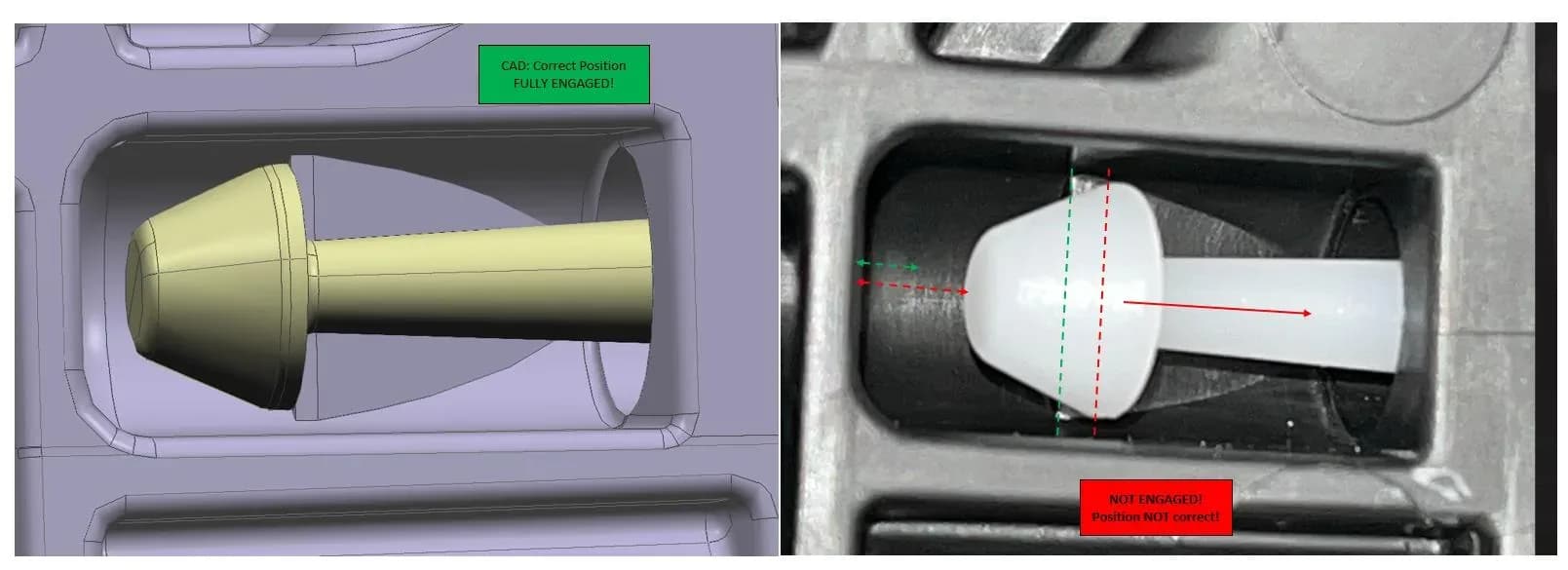

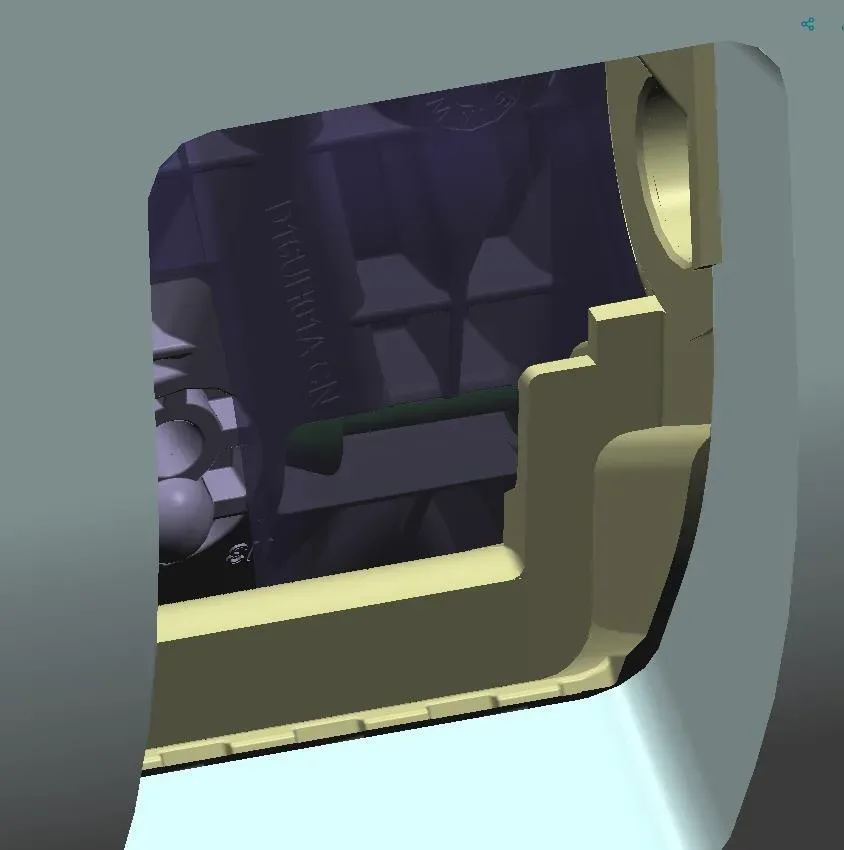

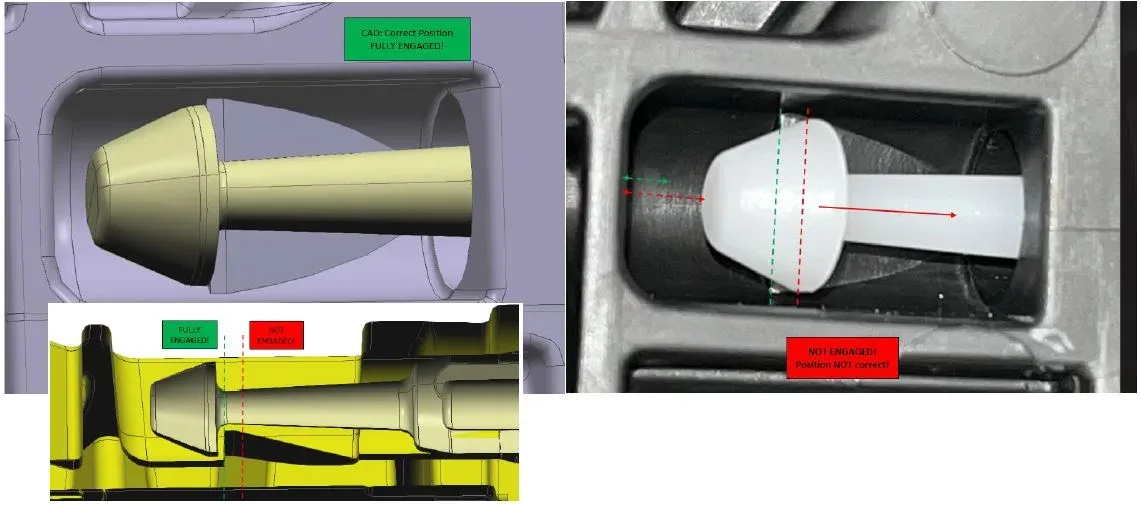

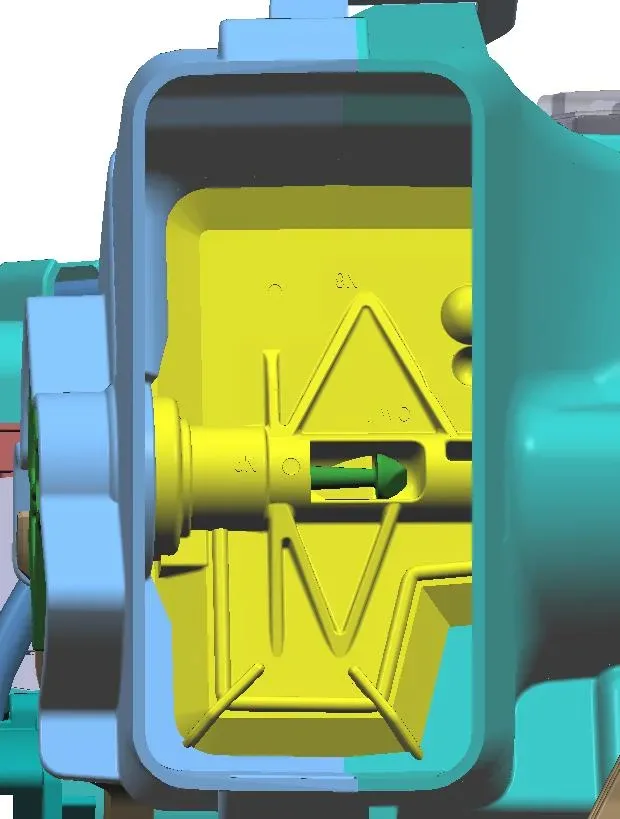

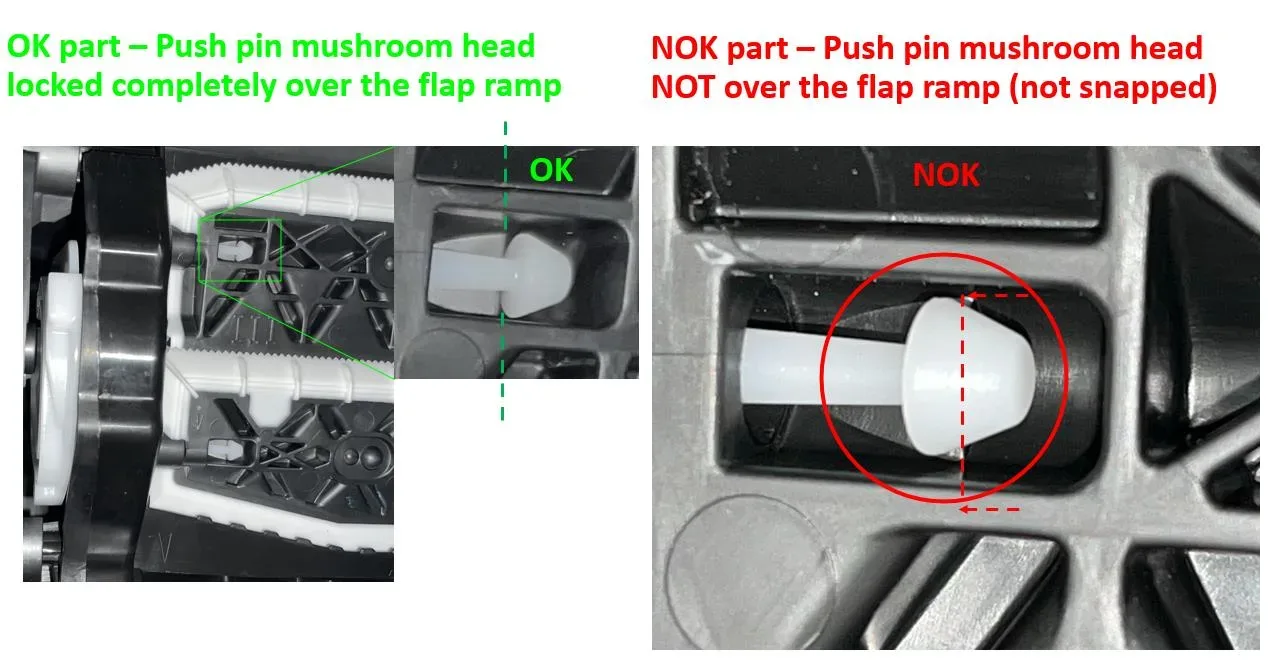

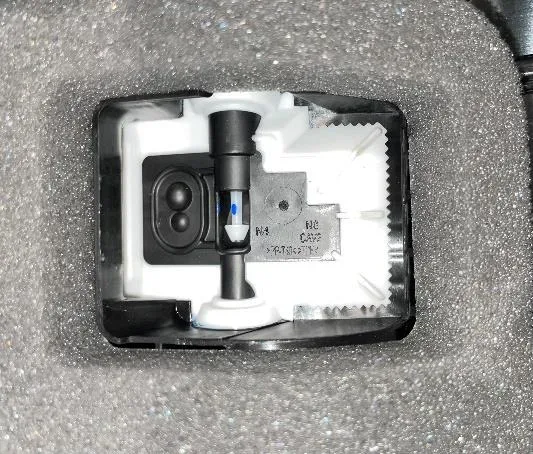

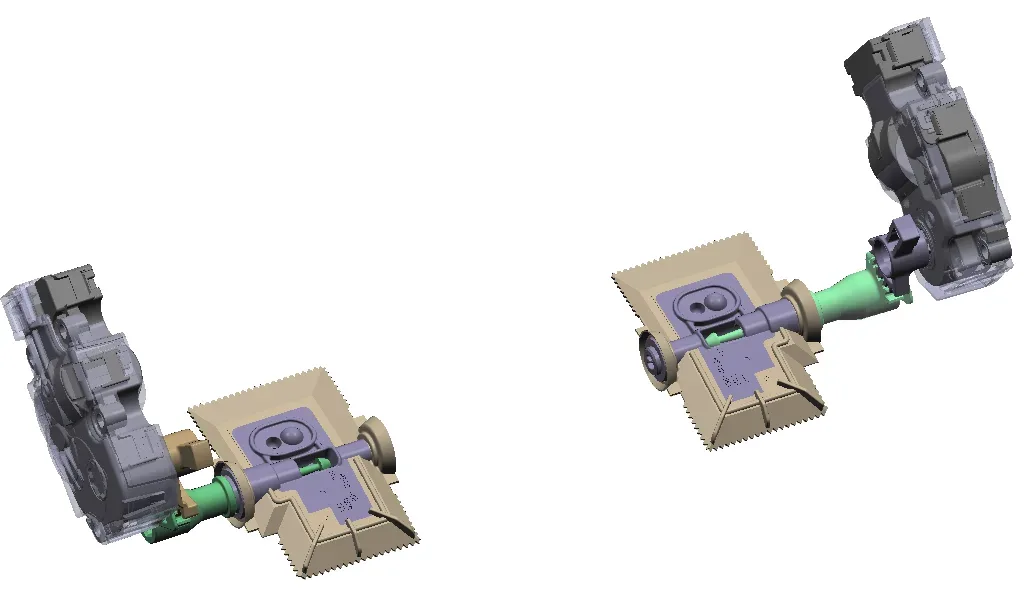

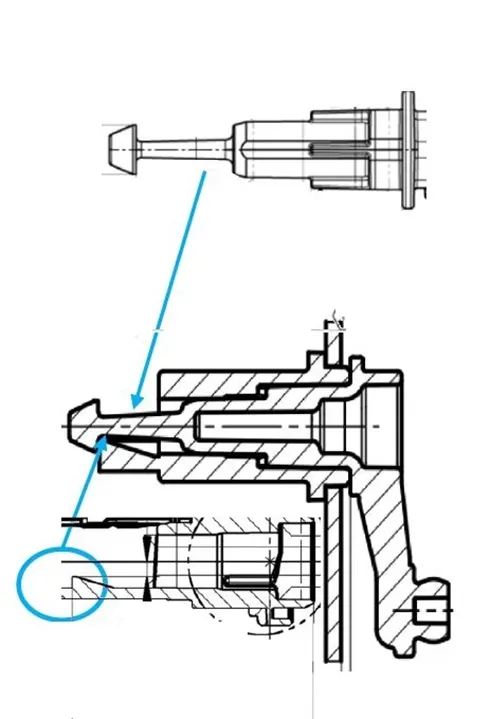

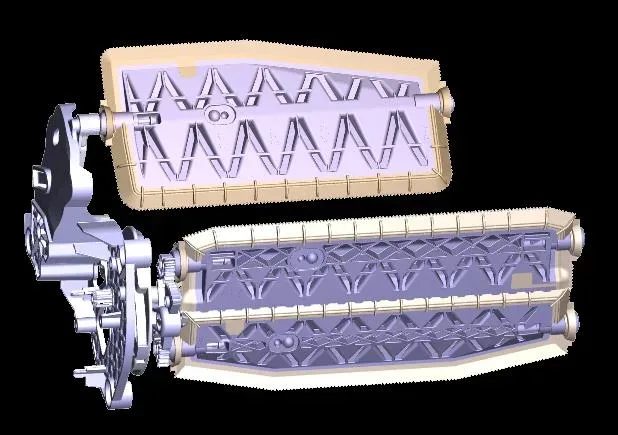

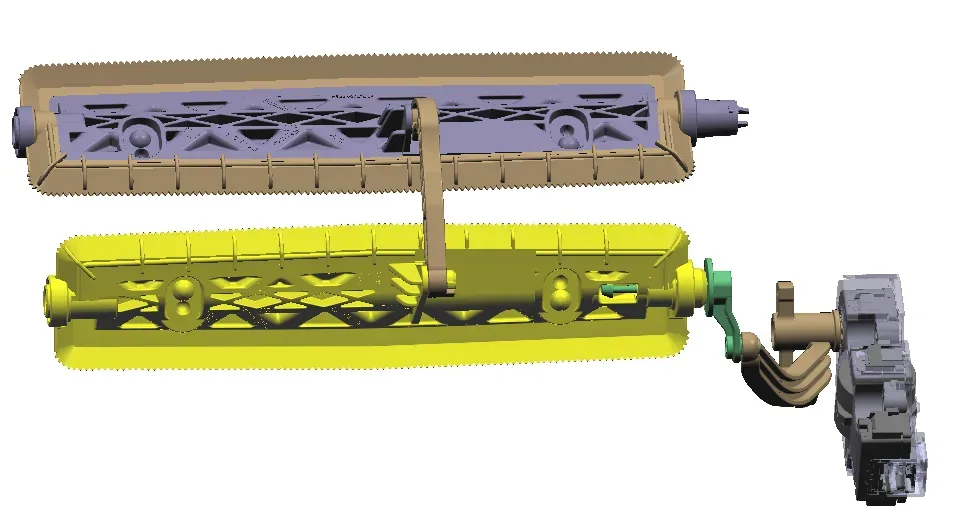

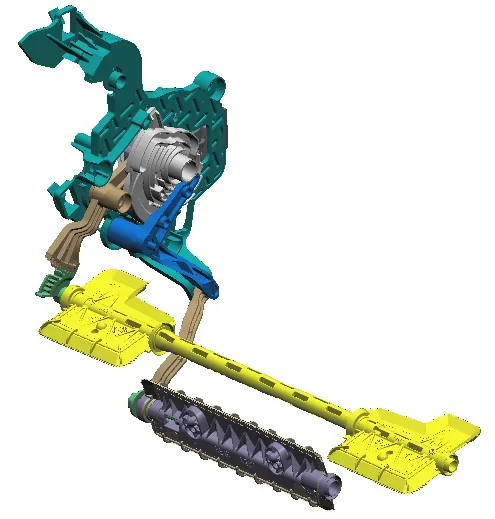

Visual Inspection of Flap Linkages

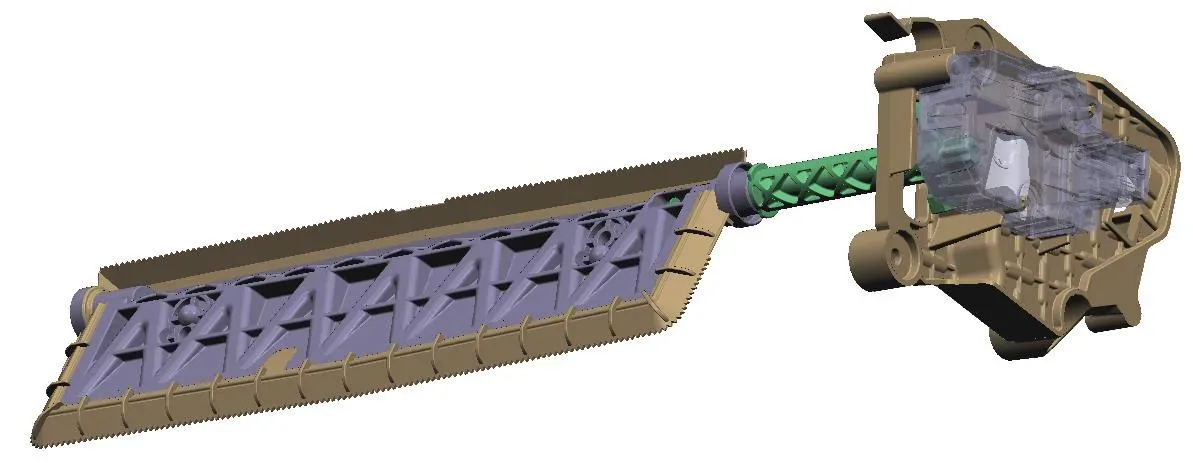

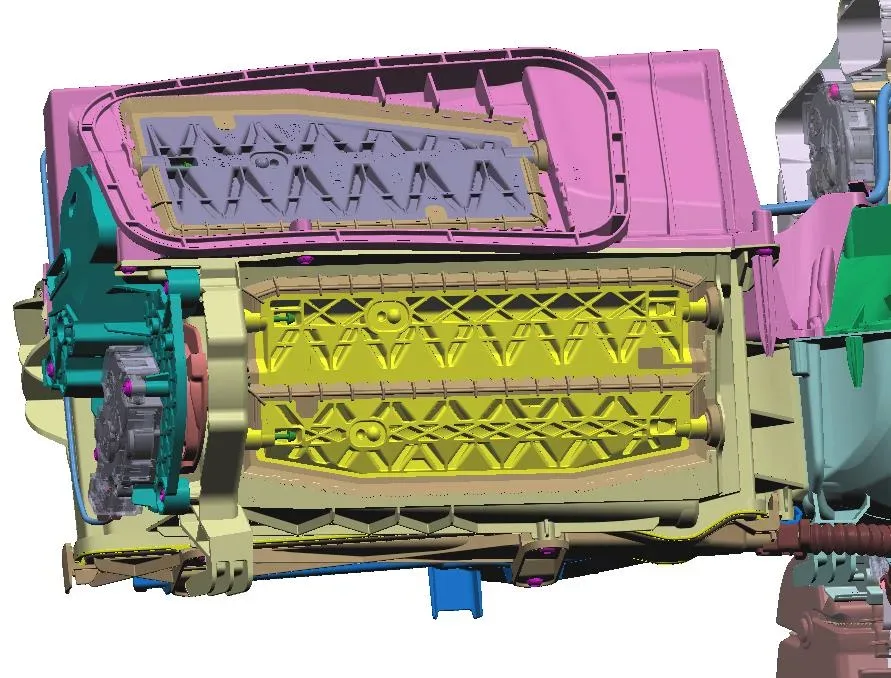

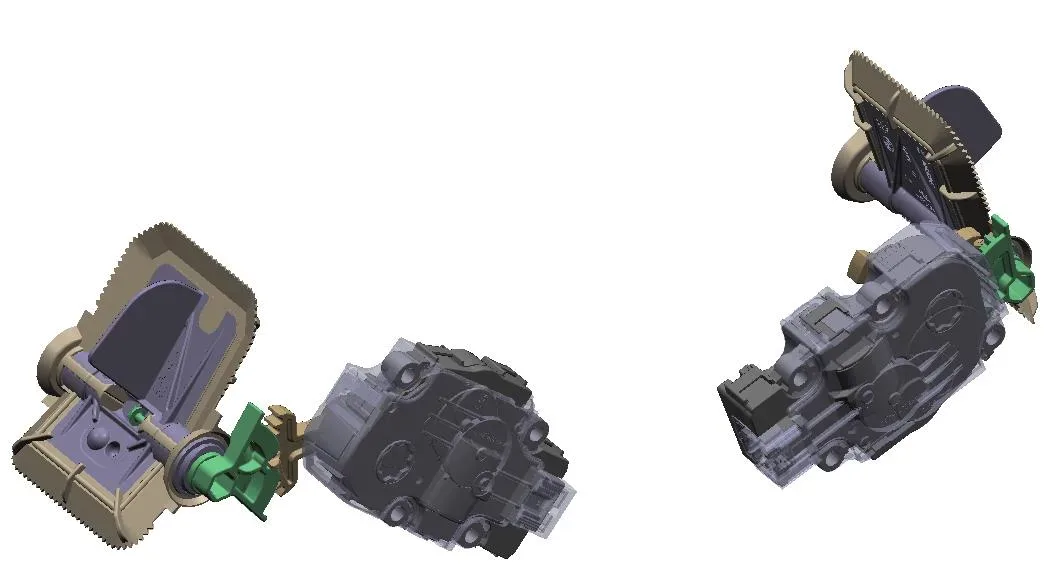

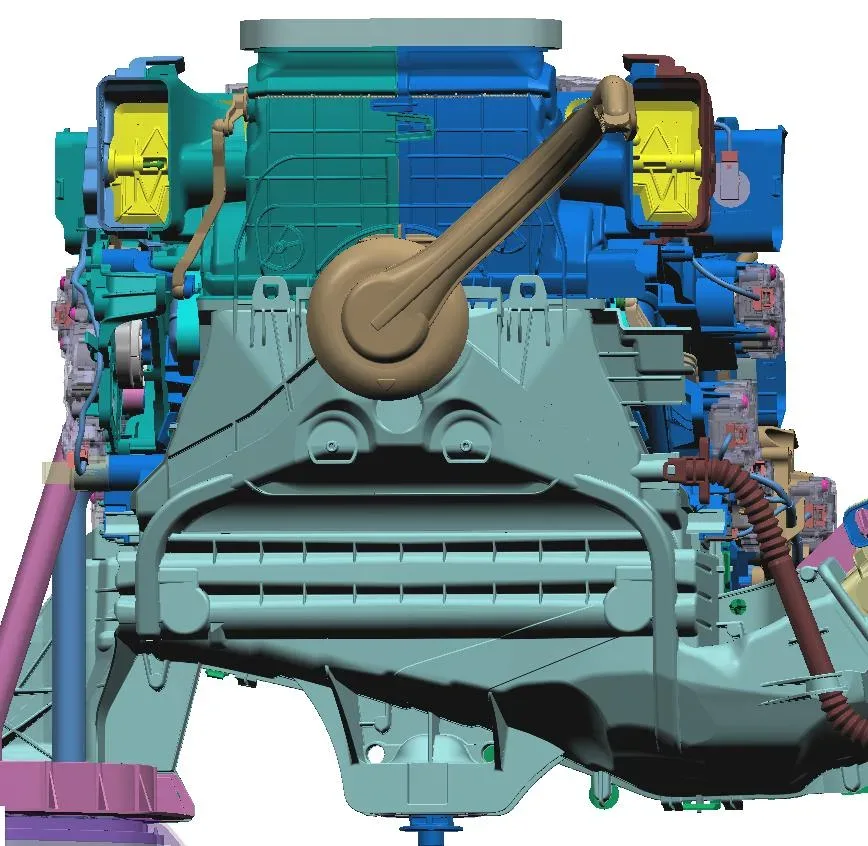

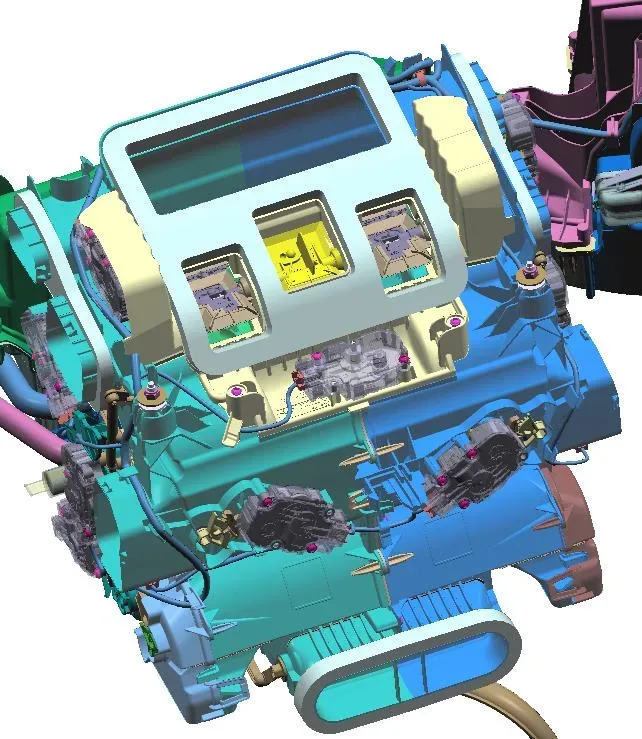

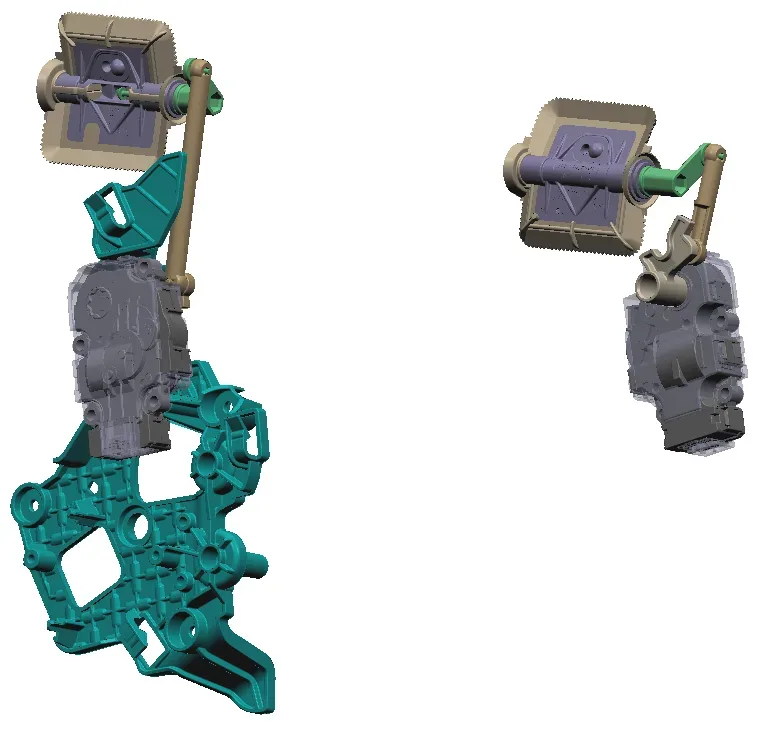

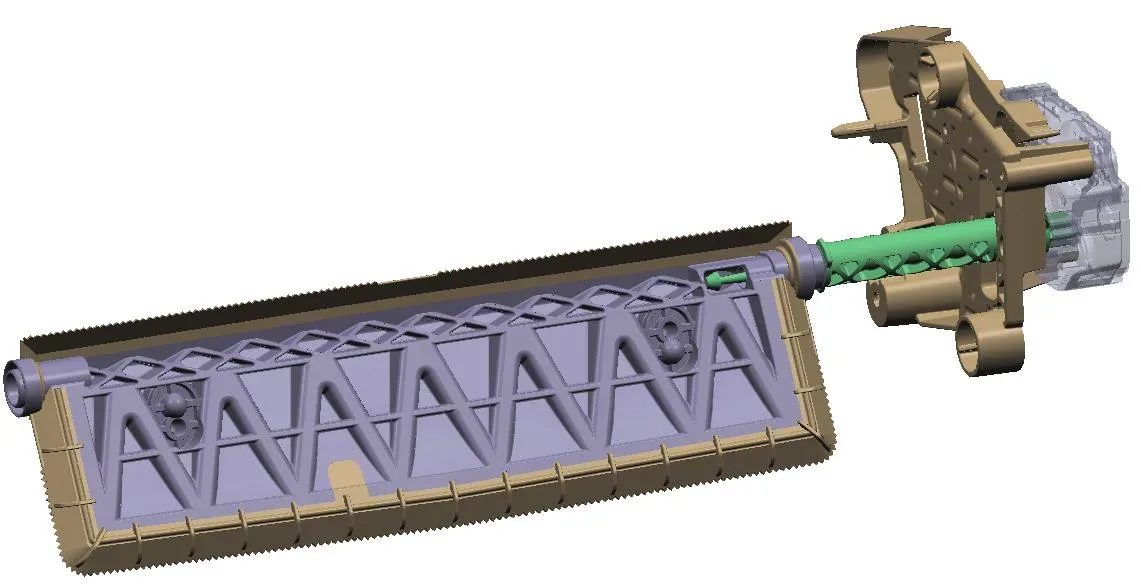

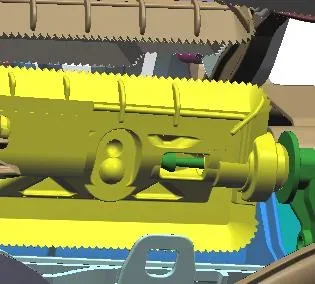

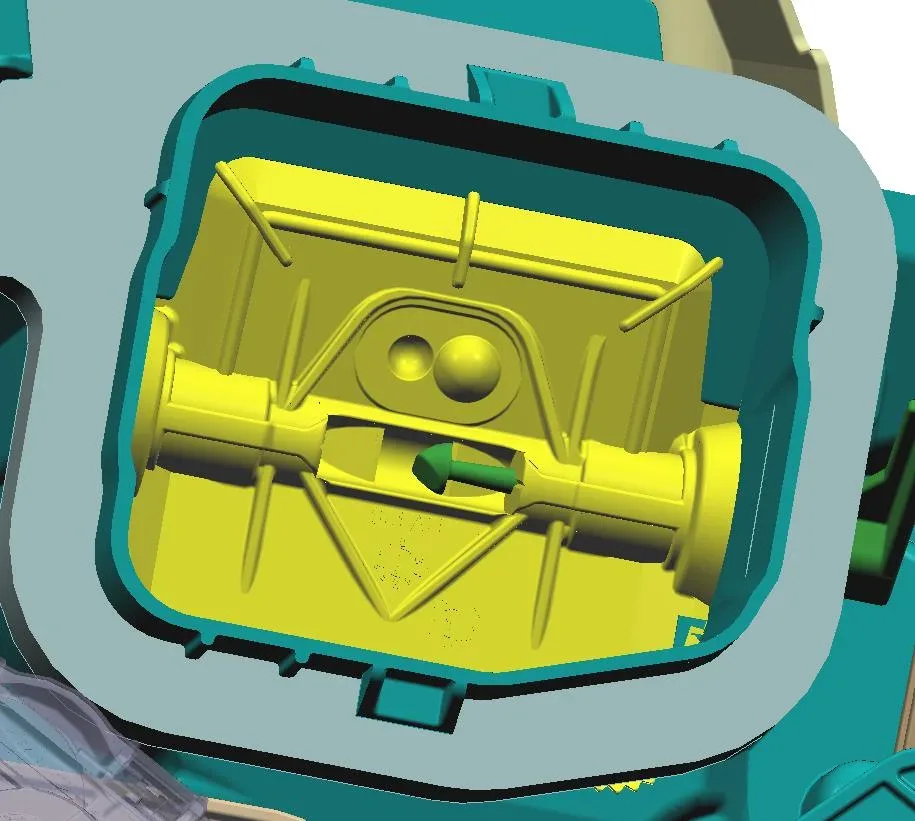

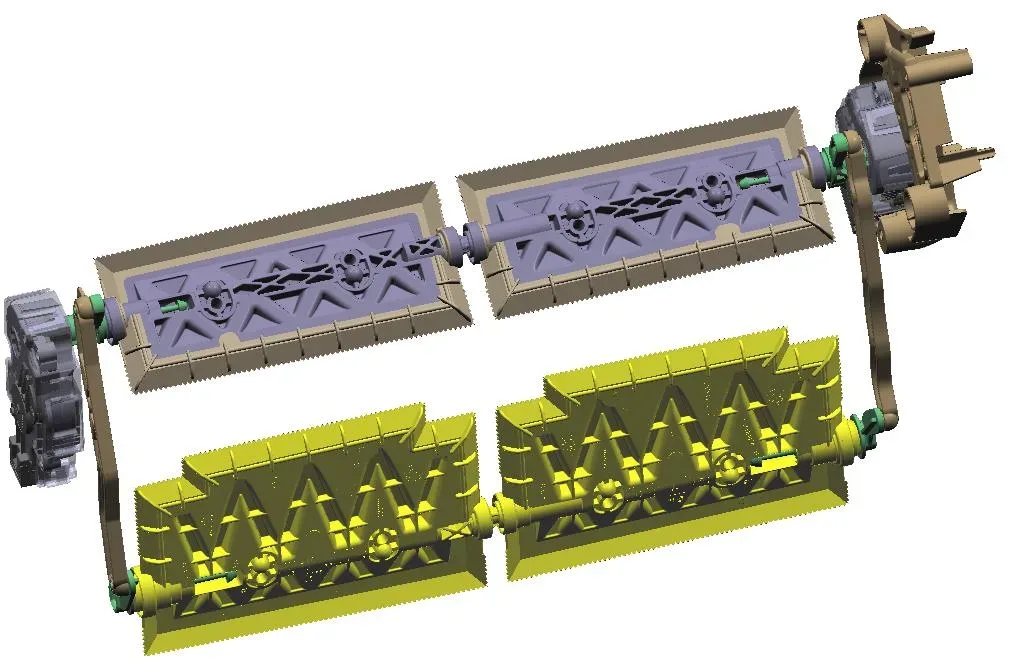

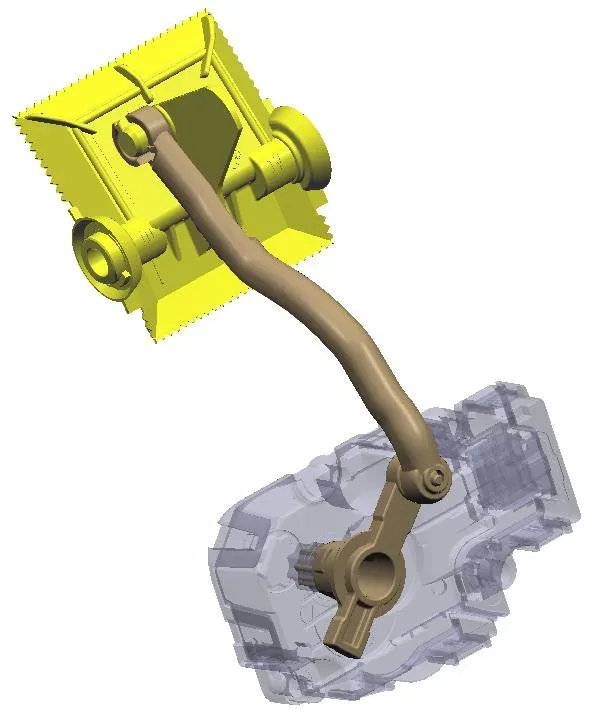

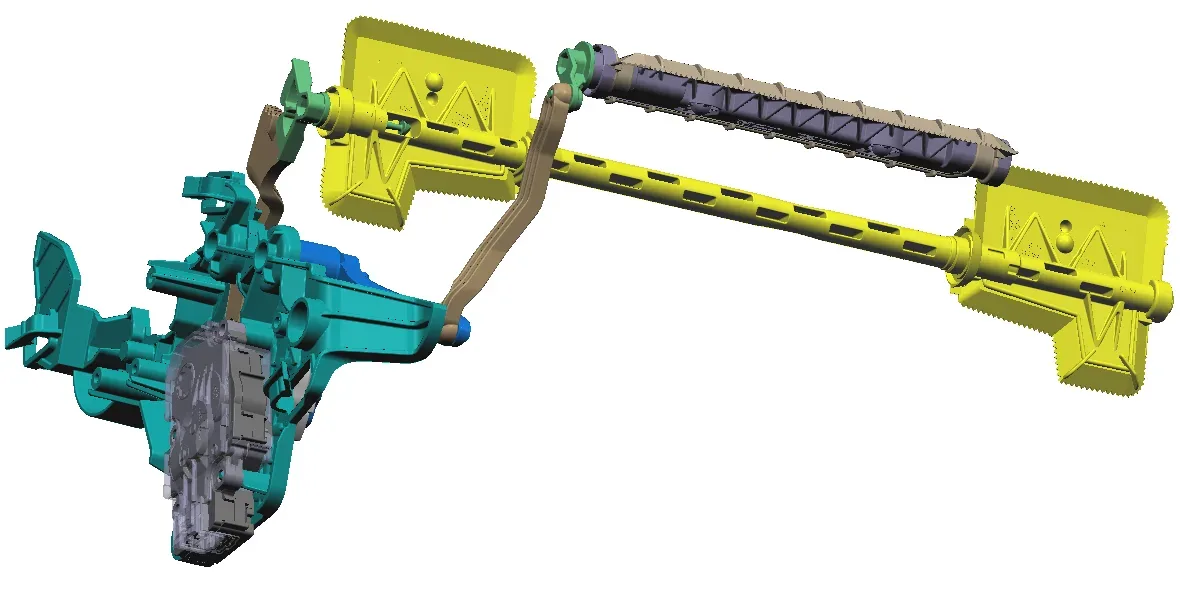

Detailed diagrams illustrate the push-in end of the linkage and how it should properly engage with the flap. Technicians are shown examples of a
