2025 BMW X3 HVAC Flap Linkage Not Fully Connected TSB

BMW has released Service Information Bulletin SIB 64 05 25 to address a common complaint in the 2025 BMW X3 (G45 X3 Sports Activity Vehicle) regarding inconsistent air temperature from the vehicle's vents. This bulletin, dated April 9, 2025, provides guidance for technicians to diagnose and correct the underlying cause of the problem, ensuring proper function of the heating, ventilation, and air conditioning (HVAC) system. This issue specifically relates to the BMW X3 HVAC flap linkage.

Symptoms of HVAC Flap Linkage Issue

Owners of affected 2025 BMW X3 vehicles may notice that the "output air from one of the vehicle vent assemblies doesn't match the desired temperature, nor change from Hot/Cold." This means that even if the climate control is set to a specific temperature, the air coming from certain vents might be too hot, too cold, or simply not change as expected when adjustments are made. This symptom points to a problem with the BMW X3 HVAC flap linkage.

Understanding the Cause

The root cause of this temperature discrepancy is typically an air flap linkage that is not fully locked into the air mixing flap. Within the complex HVAC system, various flaps control the flow and temperature of air. If the linkage connecting these flaps becomes loose or disengaged, the flap cannot move correctly, leading to improper air mixing and temperature control. The bulletin specifically mentions that the air flap linkage may not be fully locked into the air mixing flap.

Diagnosis and Inspection

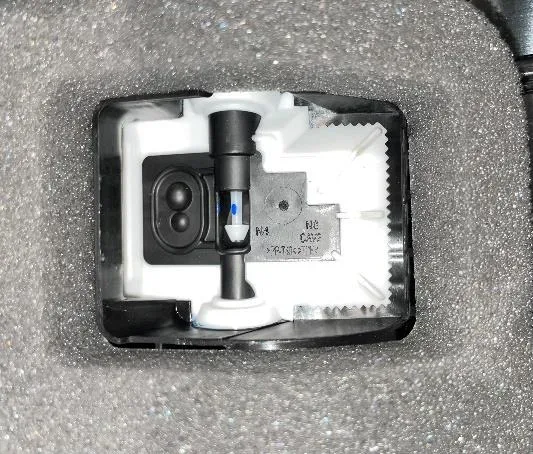

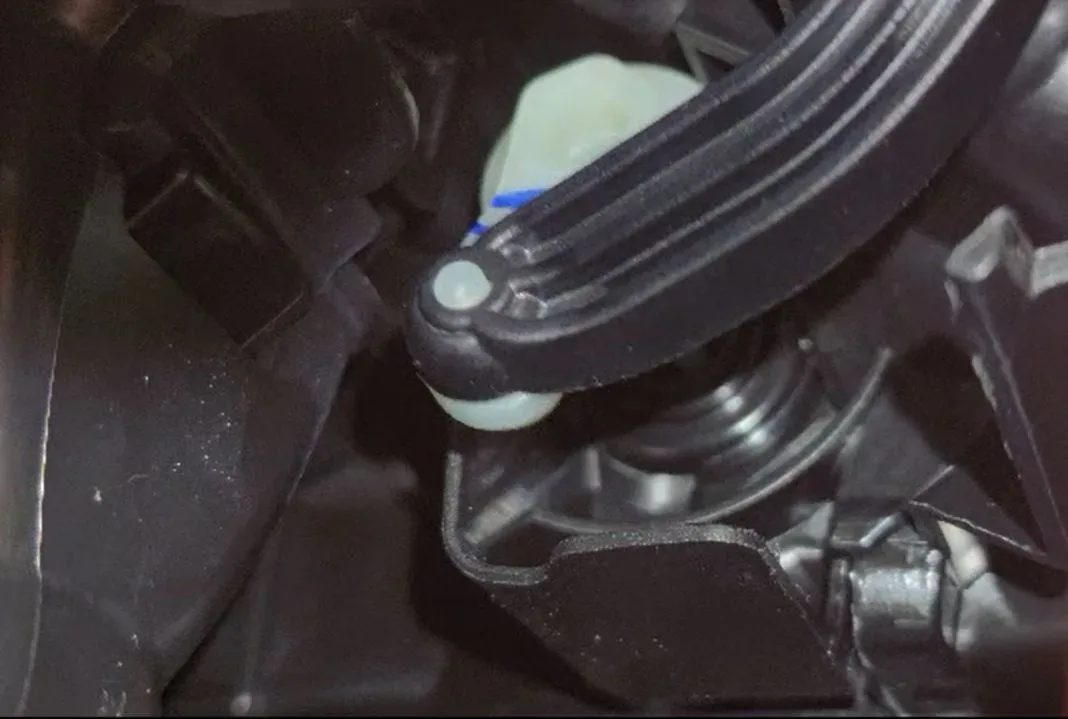

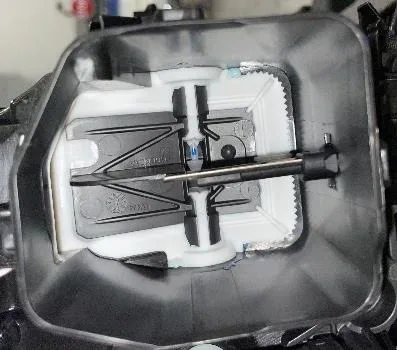

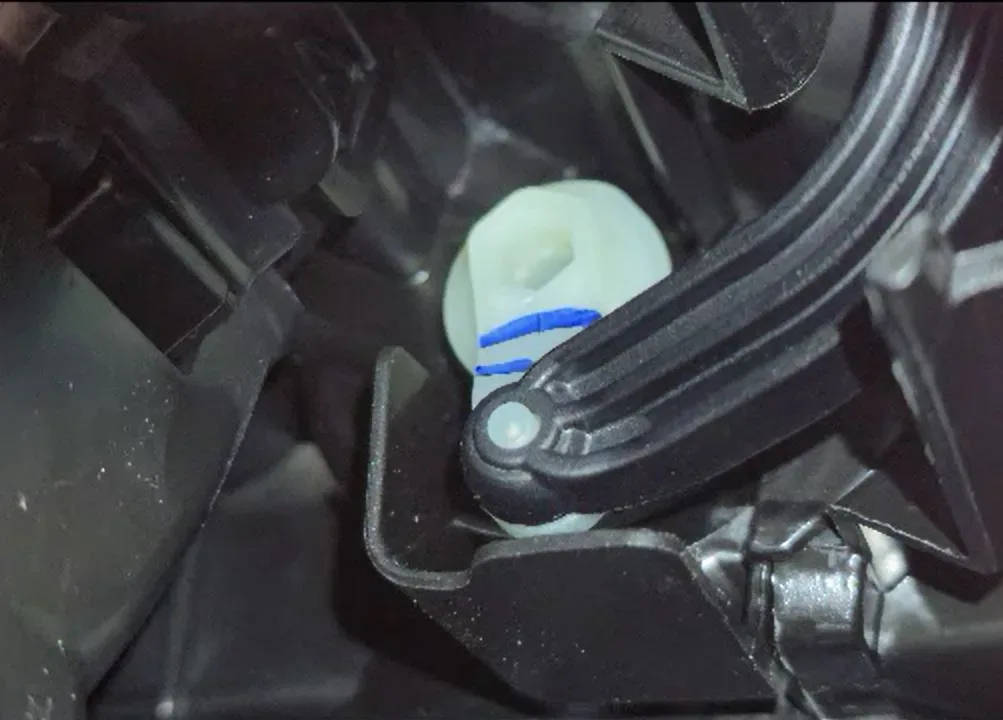

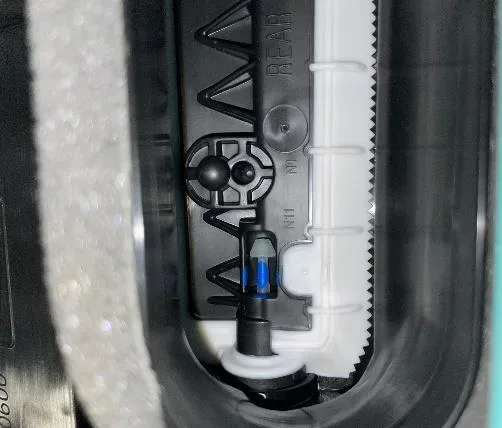

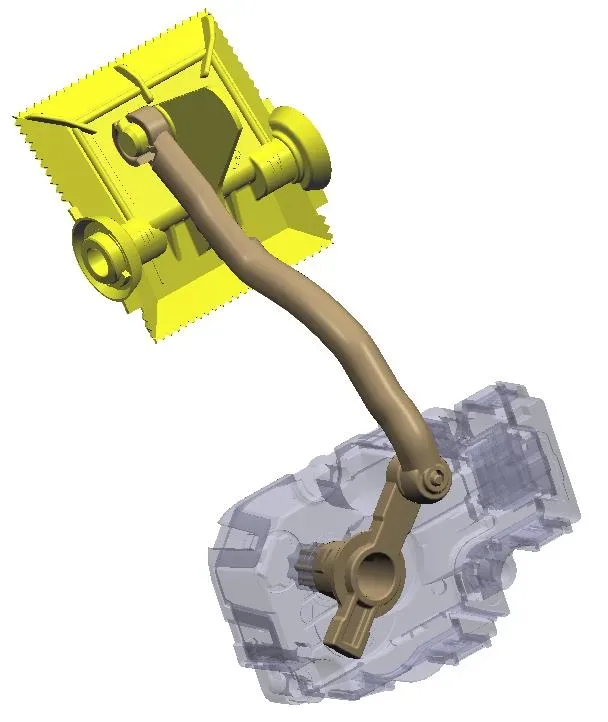

To diagnose this issue, technicians are instructed to check the HVAC system for any loose linkages. The bulletin highlights a specific "white plastic mechanism" that connects the black linkage arm and the HVAC flap assembly. To test if this mechanism is fully seated, a wiggle test of the white plastic (in/out) should be performed. If the mechanism has backed out of the HVAC case, it will not be locked into the flap.

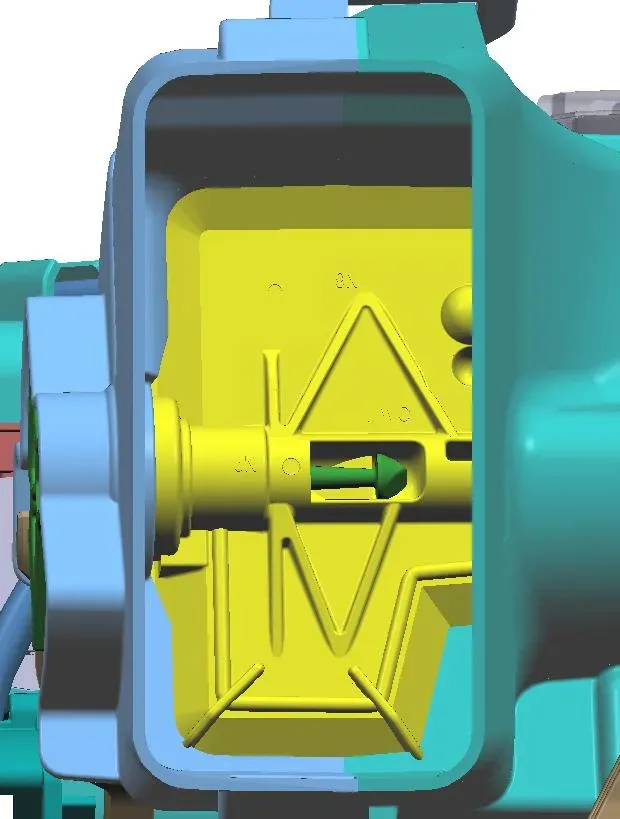

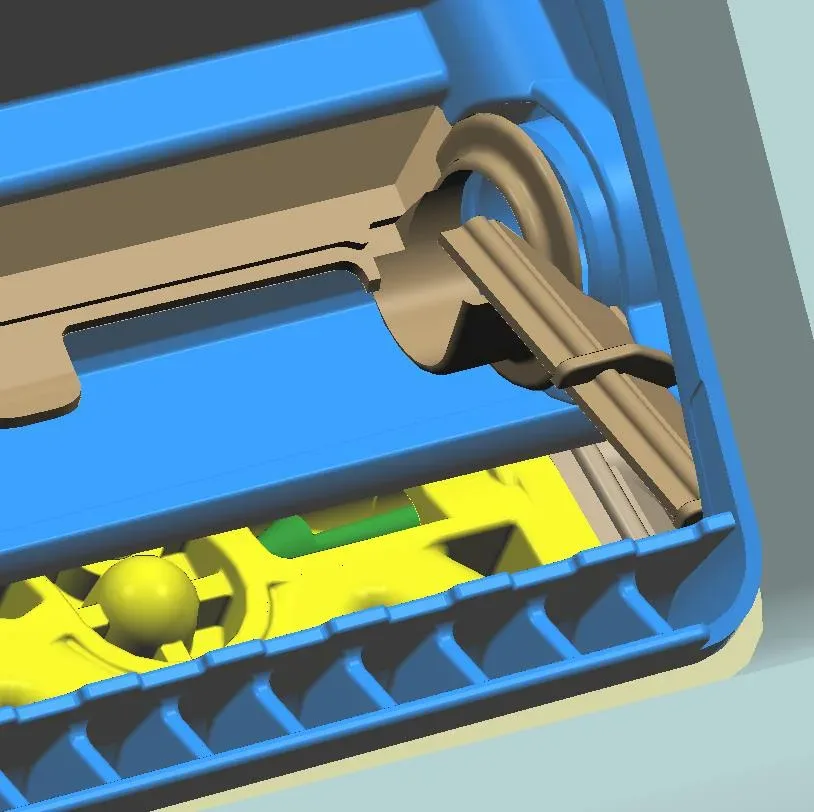

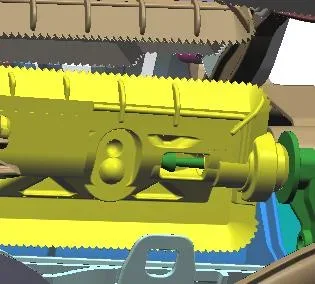

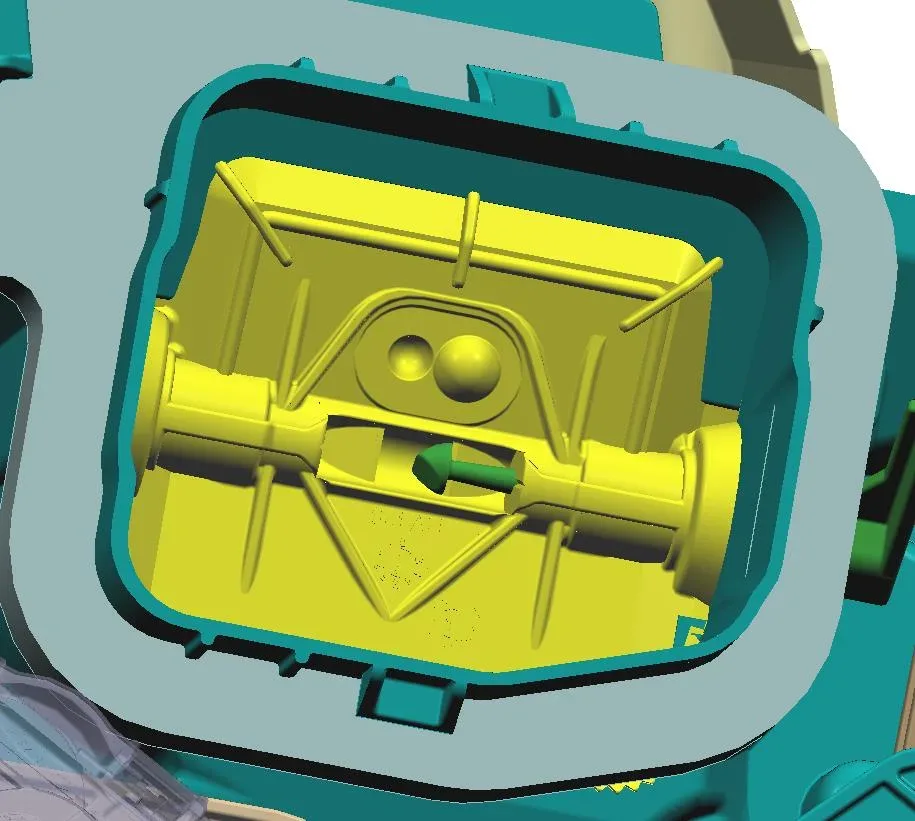

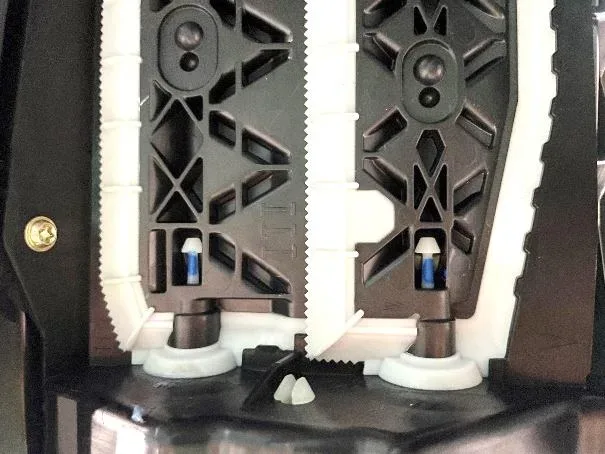

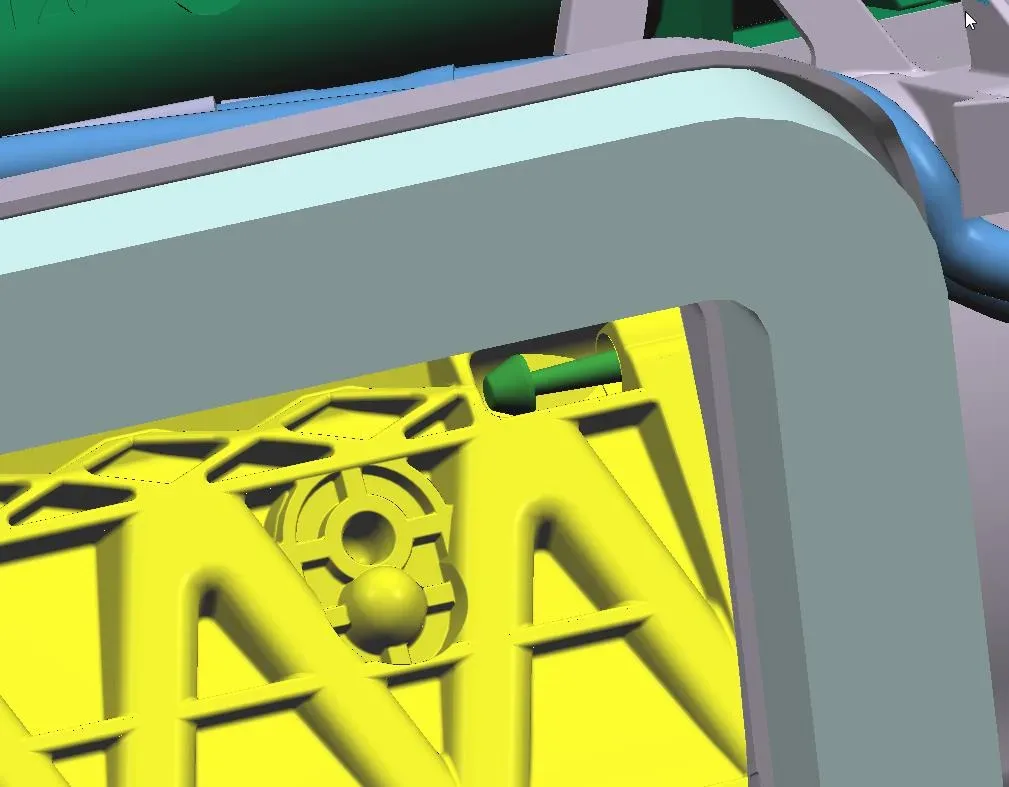

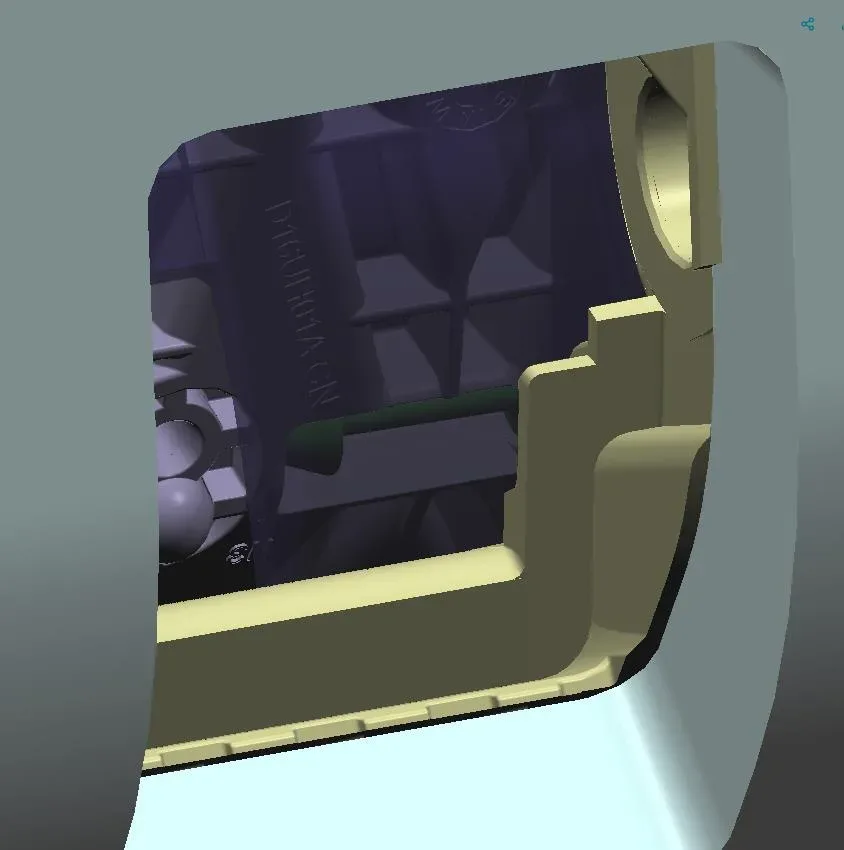

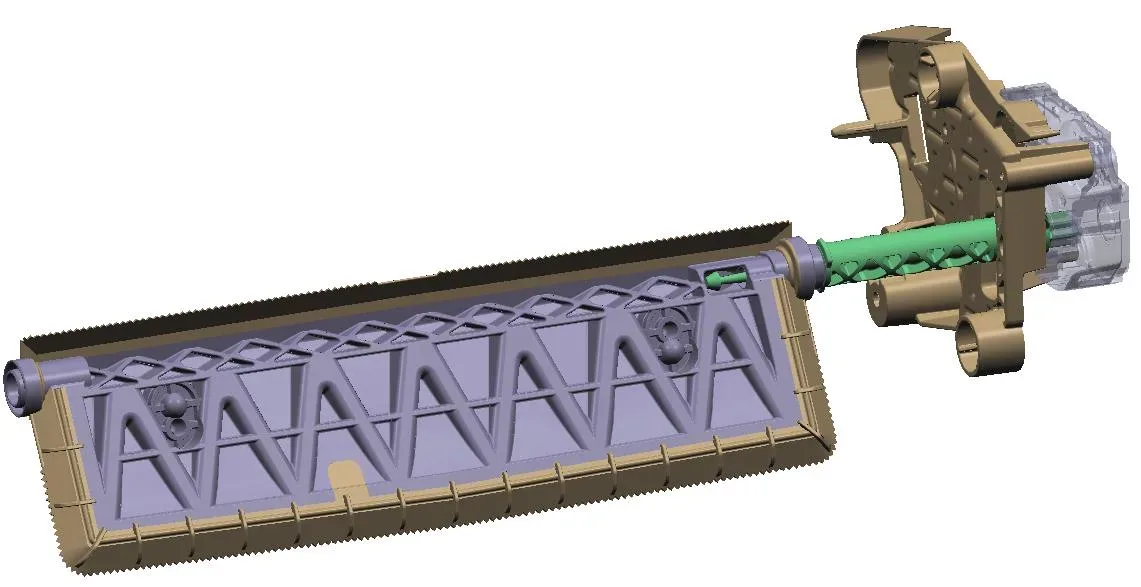

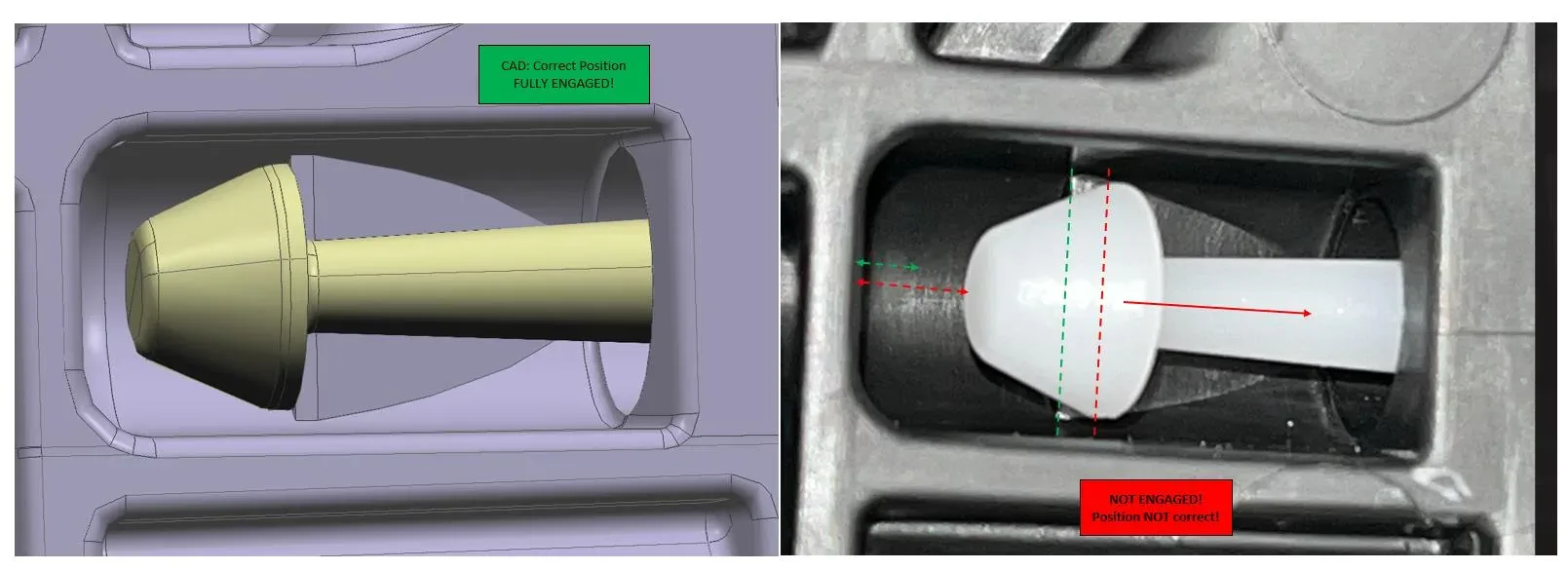

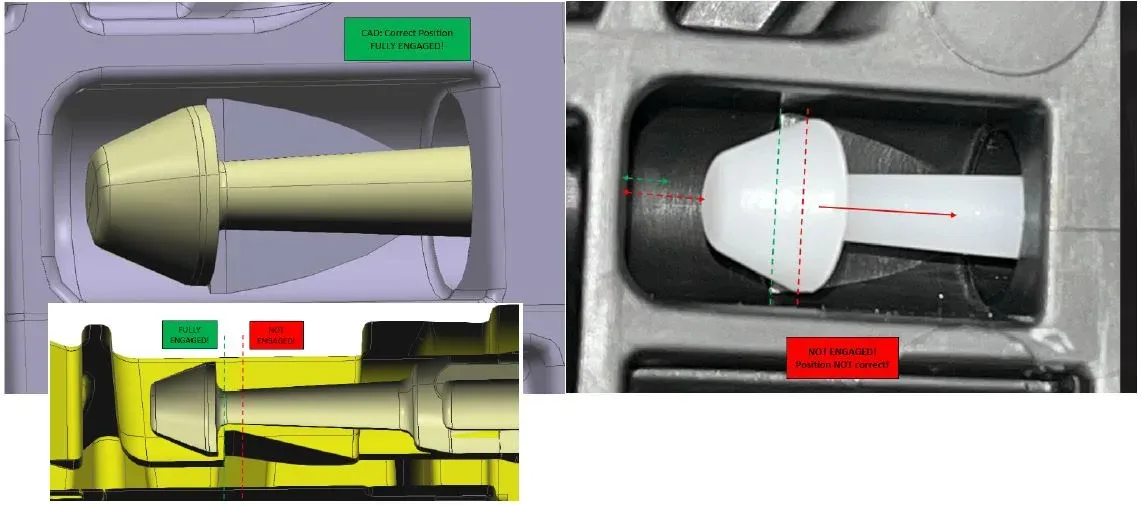

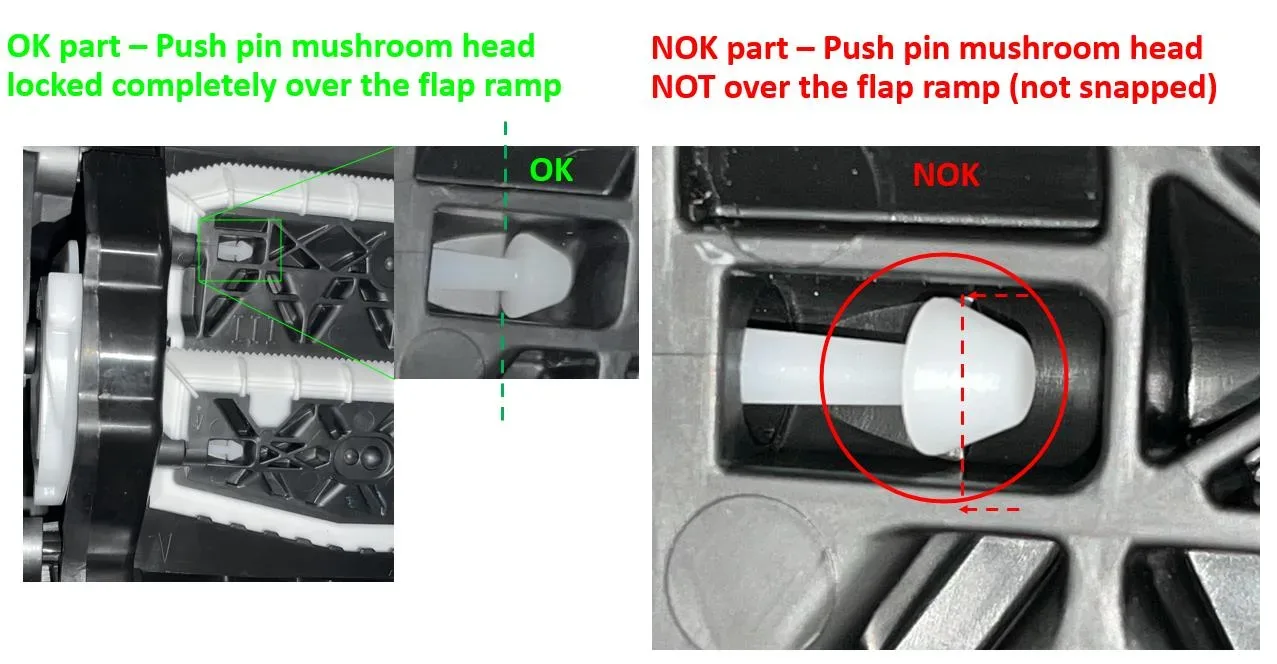

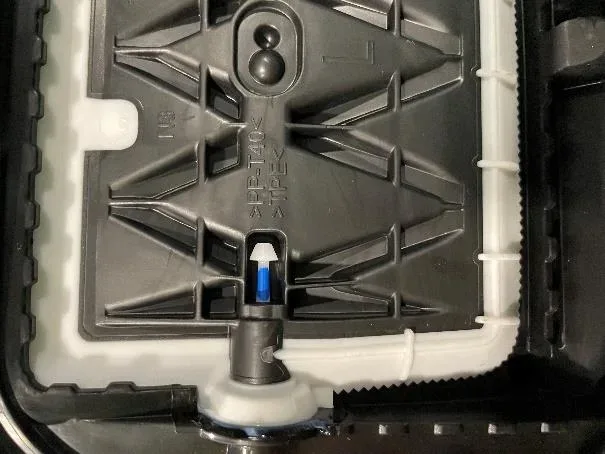

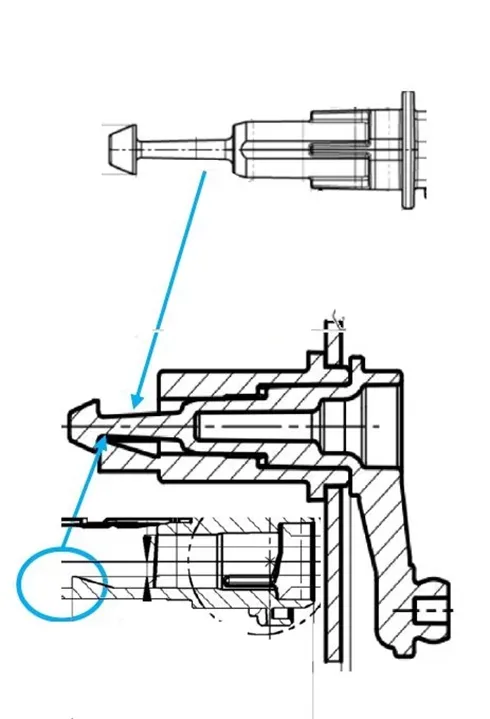

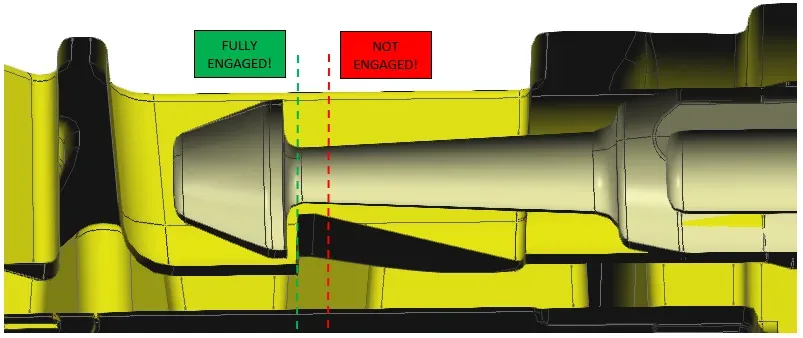

For a more detailed inspection, especially for difficult-to-access flaps, a borescope can be used. The "push pin mushroom head" of the white plastic mechanism must engage into the flap by being pushed in until it fully goes past the plastic flap ramp. The bulletin provides visual examples of a "FULLY ENGAGED" position versus a "NOT ENGAGED" position, emphasizing that the "CAD: Correct Position FULLY ENGAGED!" is crucial, and a "Position NOT correct!" indicates the problem. Specifically, an "OK part - Push pin mushroom head locked completely over the flap ramp" is desired, while a "NOK part - Push pin mushroom head NOT over the flap ramp (not snapped)" signifies the fault.

Repair Procedure Summary

The primary correction involves re-seating the loose air flap linkage. The bulletin states that there is a push-in end on the linkage that can be reinserted into the flap and fully seated. Technicians are advised to refer to the attached video, BV64 02 25 G45 Flap Linkage, for a visual guide on the procedure. The goal is to ensure the linkage is fully locked into the air mixing flap, resolving the BMW X3 HVAC flap linkage issue.

Important Notes for Owners and Technicians

This repair is classified as "MOBILE FRIENDLY," meaning it can potentially be performed outside of a traditional service bay. It is also designated as "REMOTE SOFTWARE UPGRADE (RSU) FRIENDLY," indicating compatibility with remote software updates. Owners should be aware that "Damage and/or issues caused by outside influences are not covered under the BMW Limited Warranties."

HVAC System Components Overview

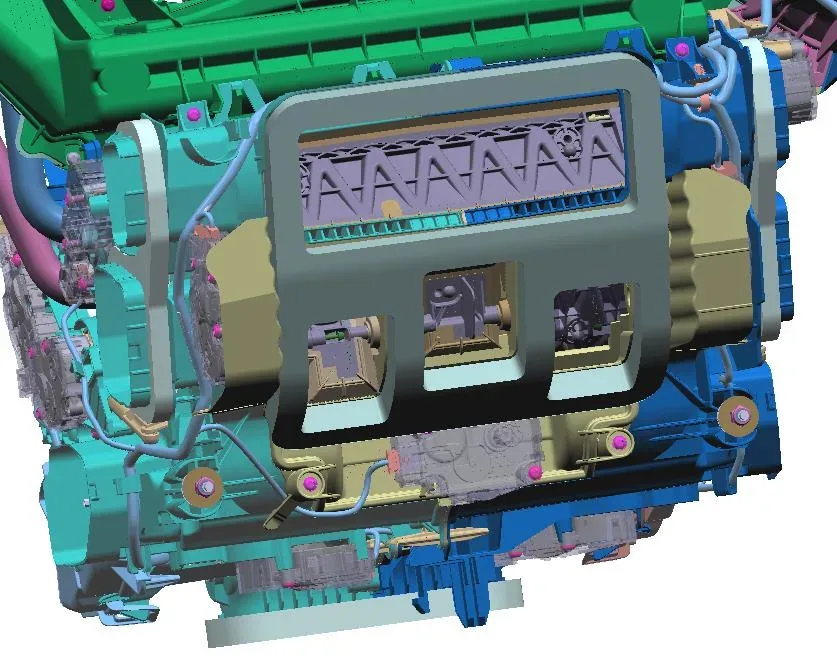

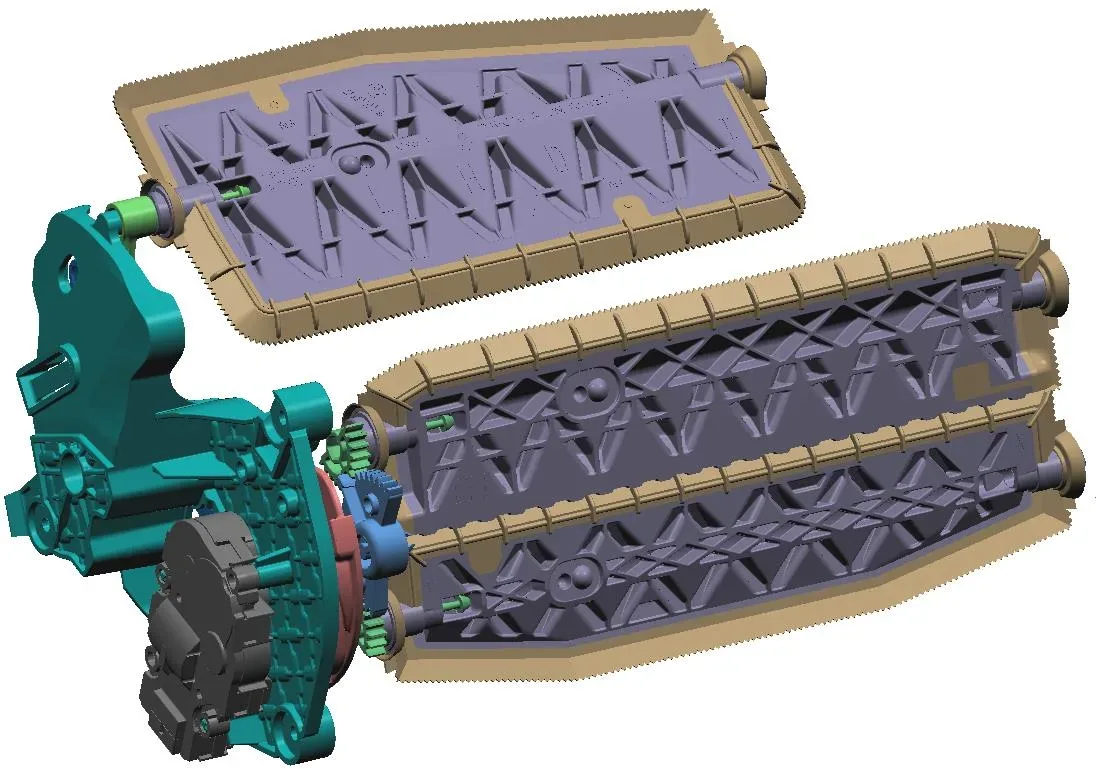

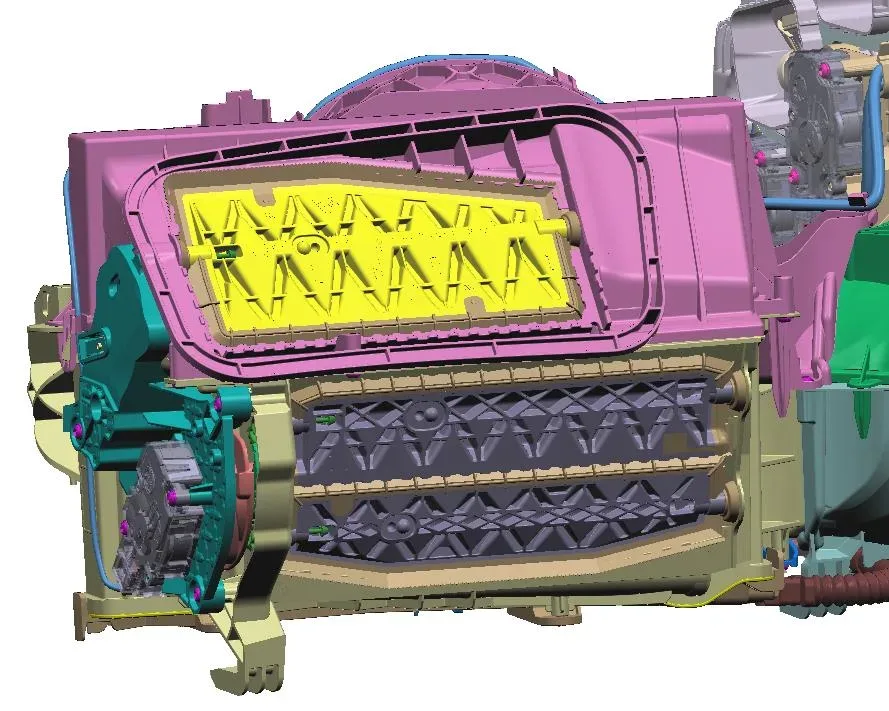

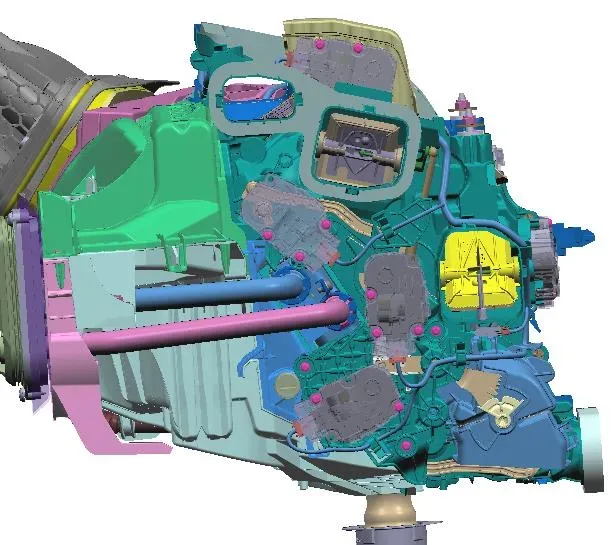

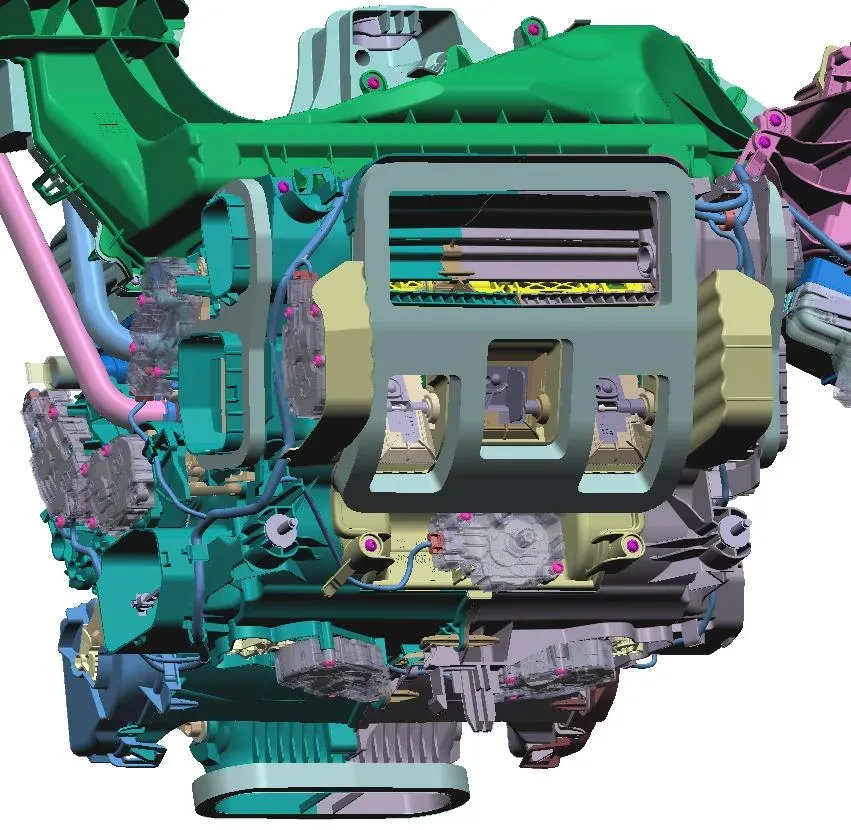

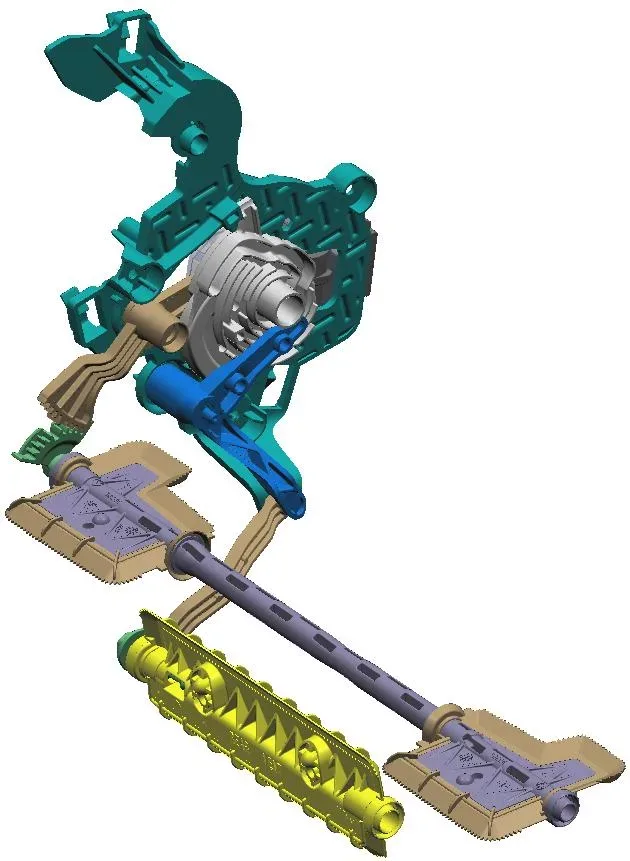

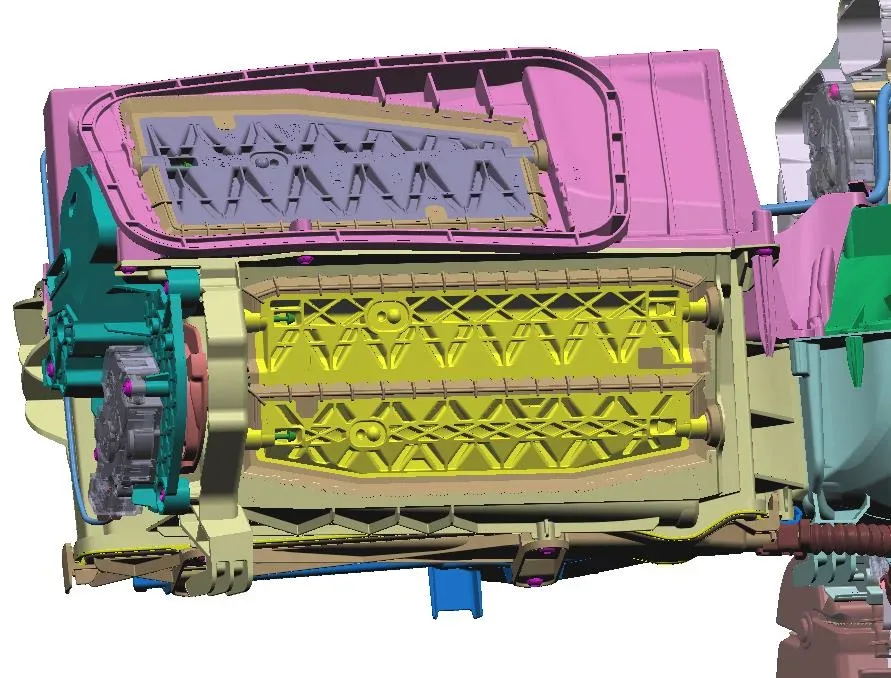

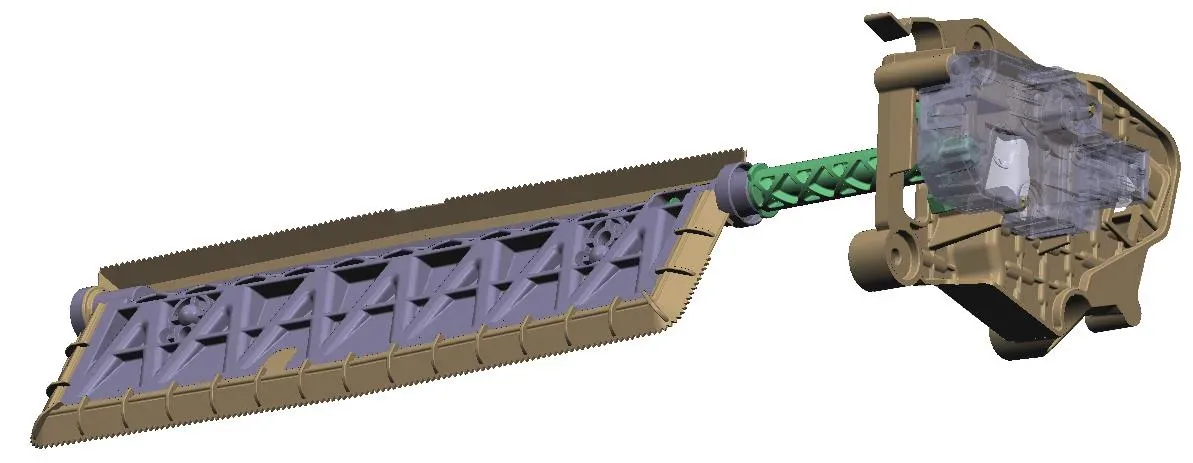

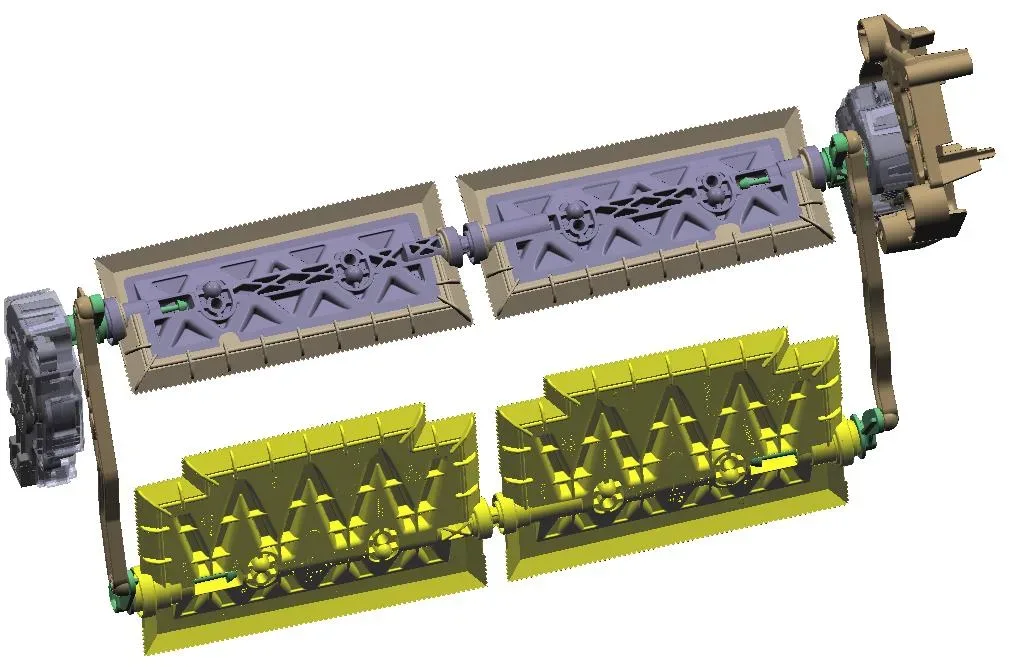

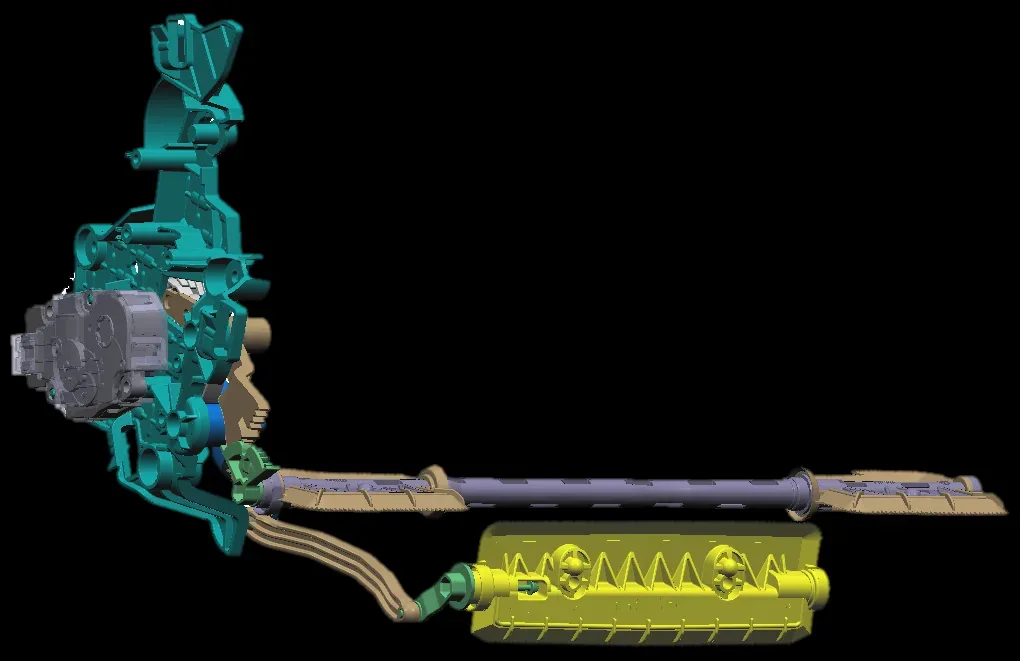

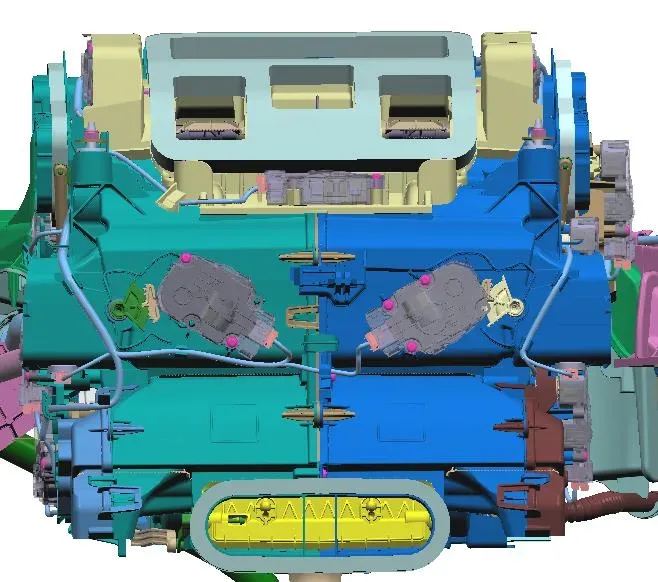

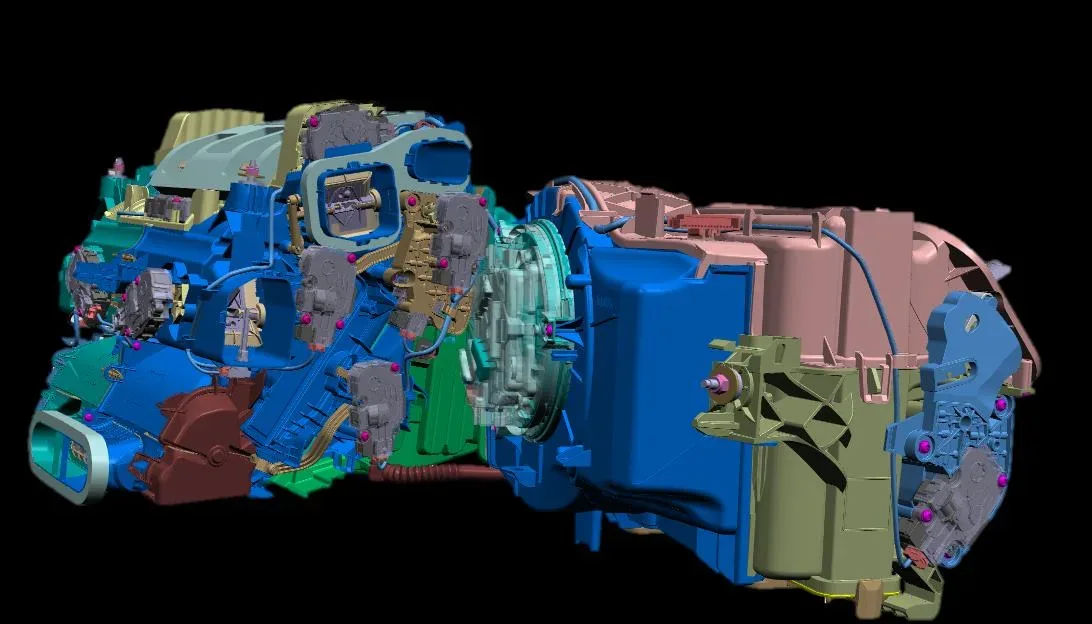

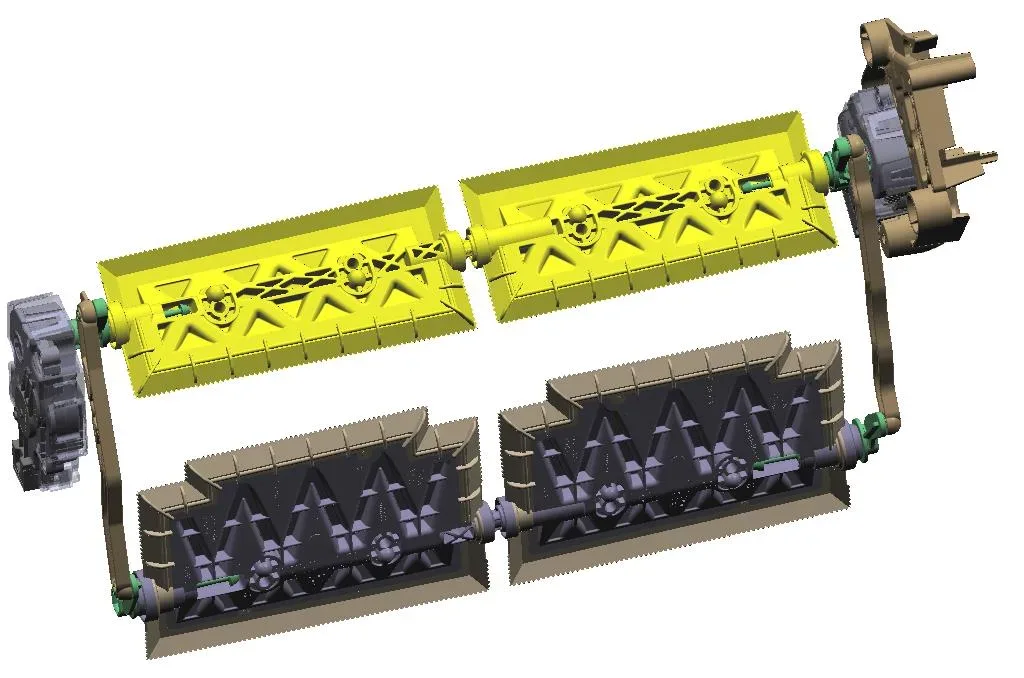

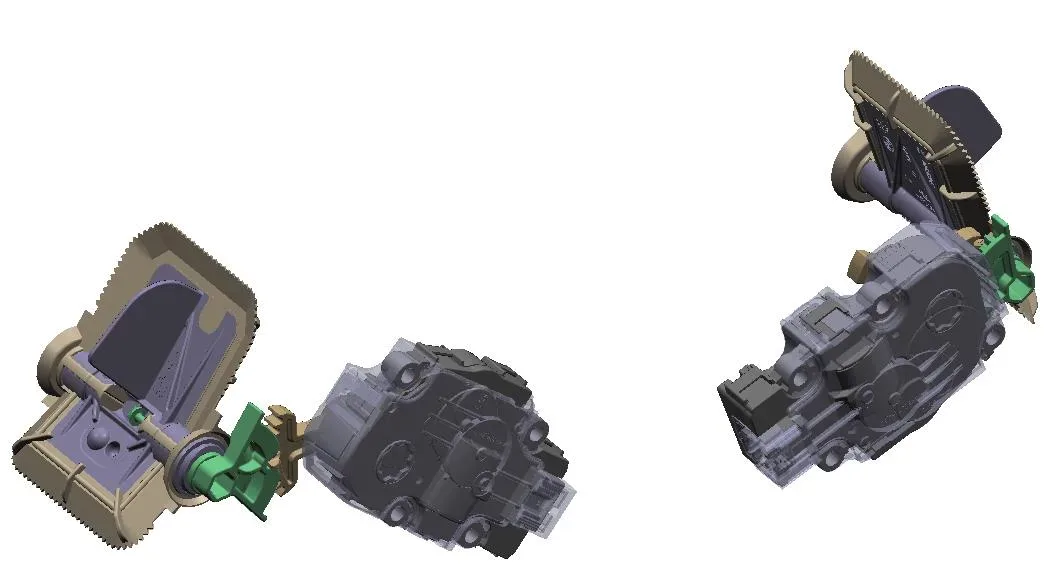

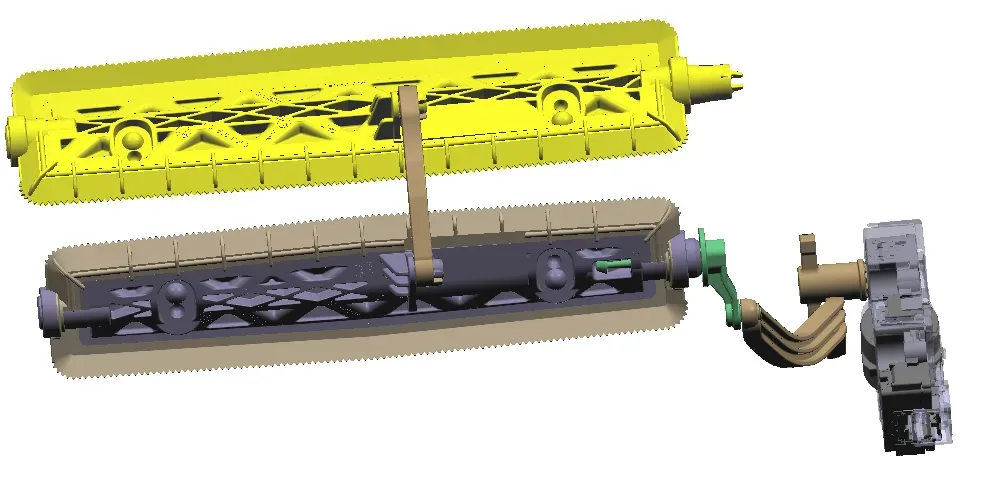

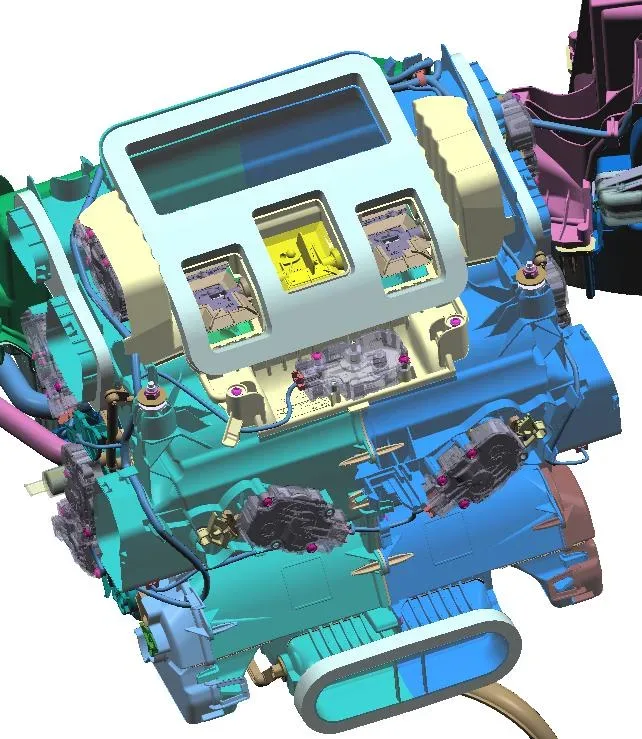

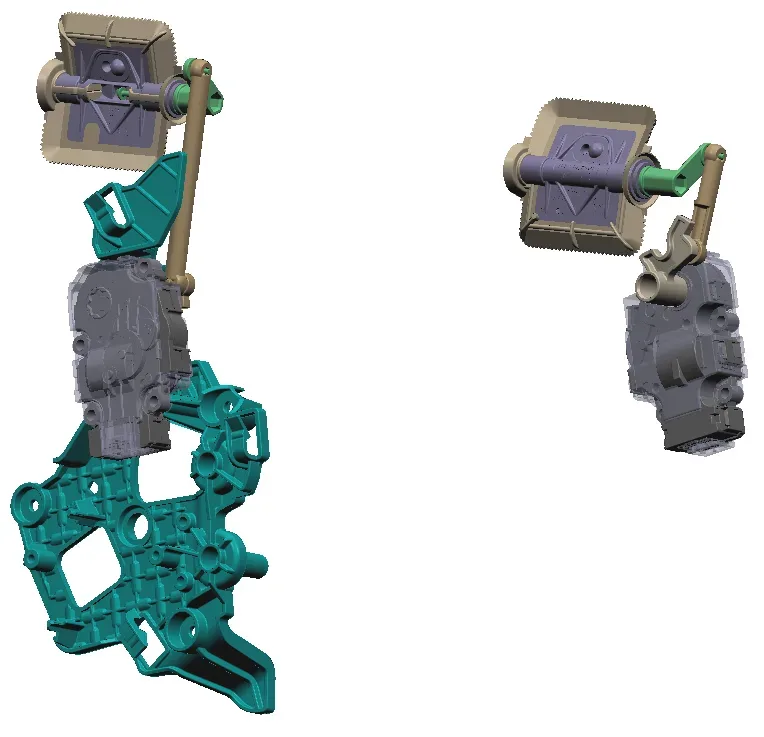

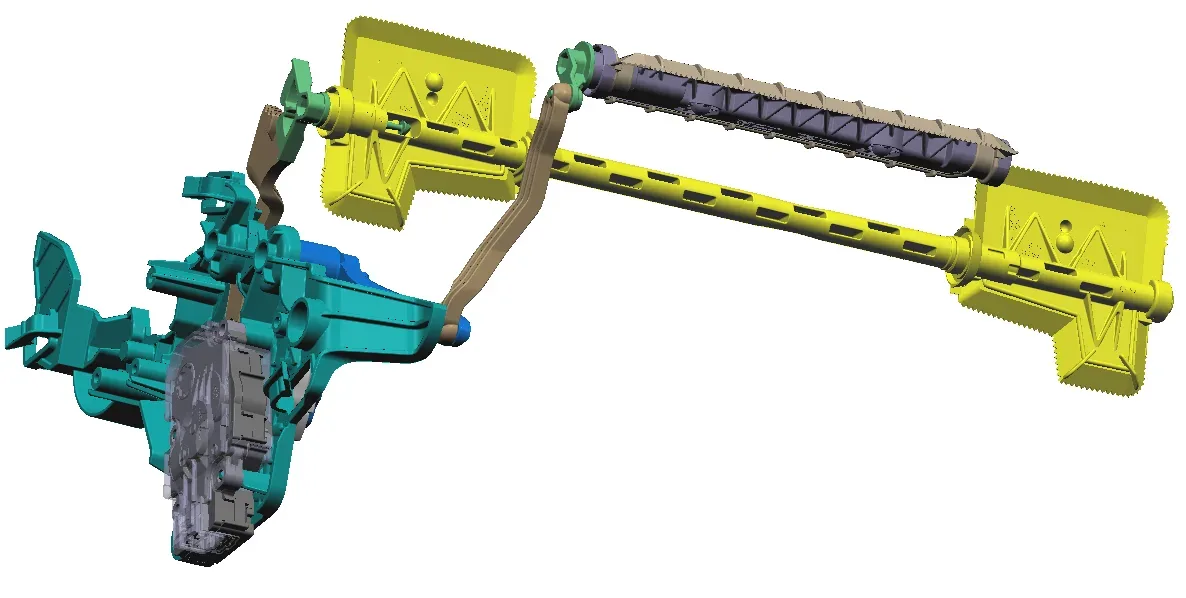

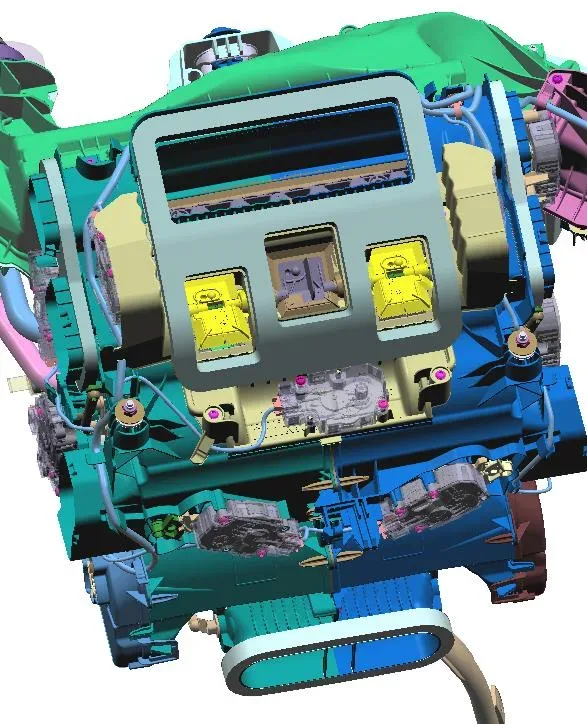

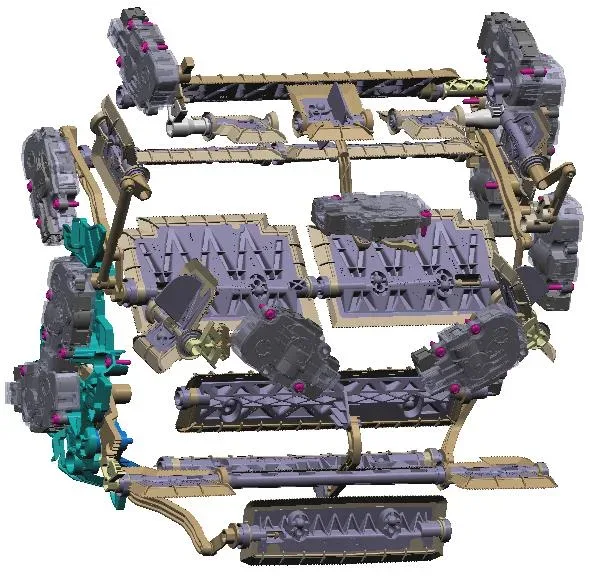

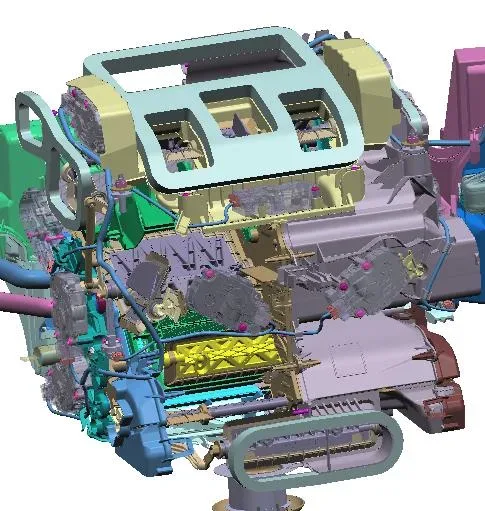

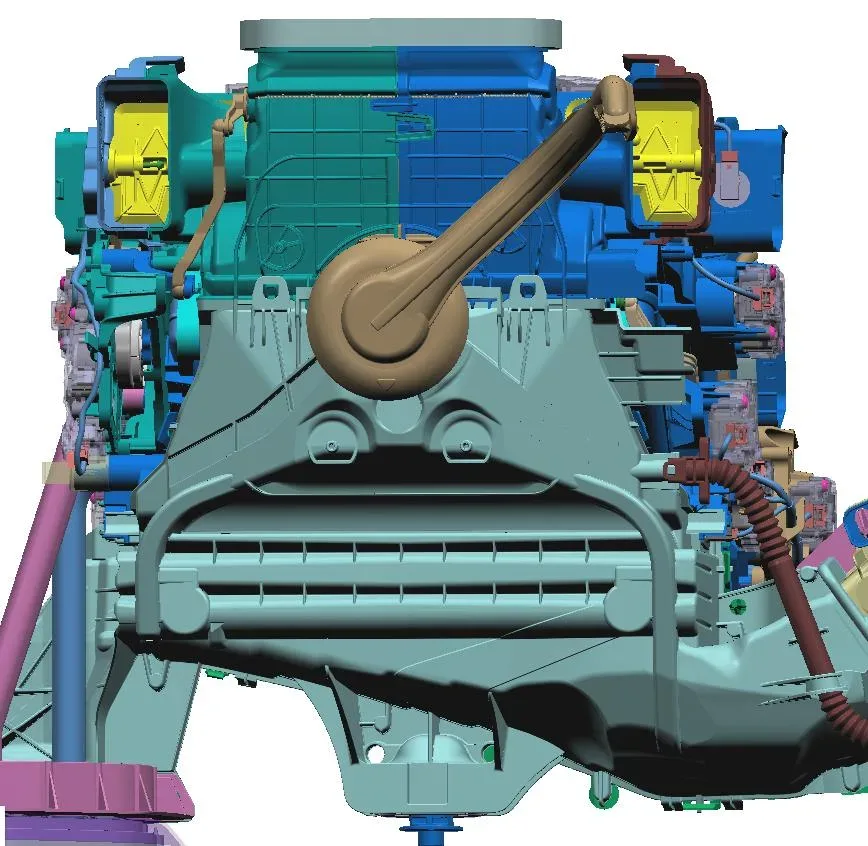

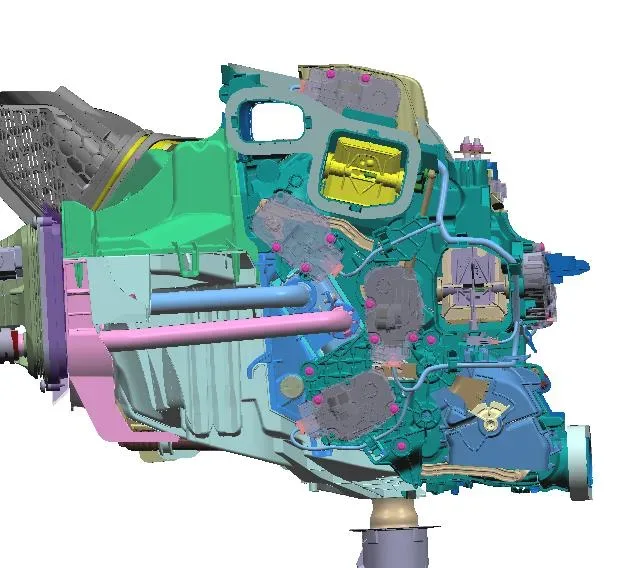

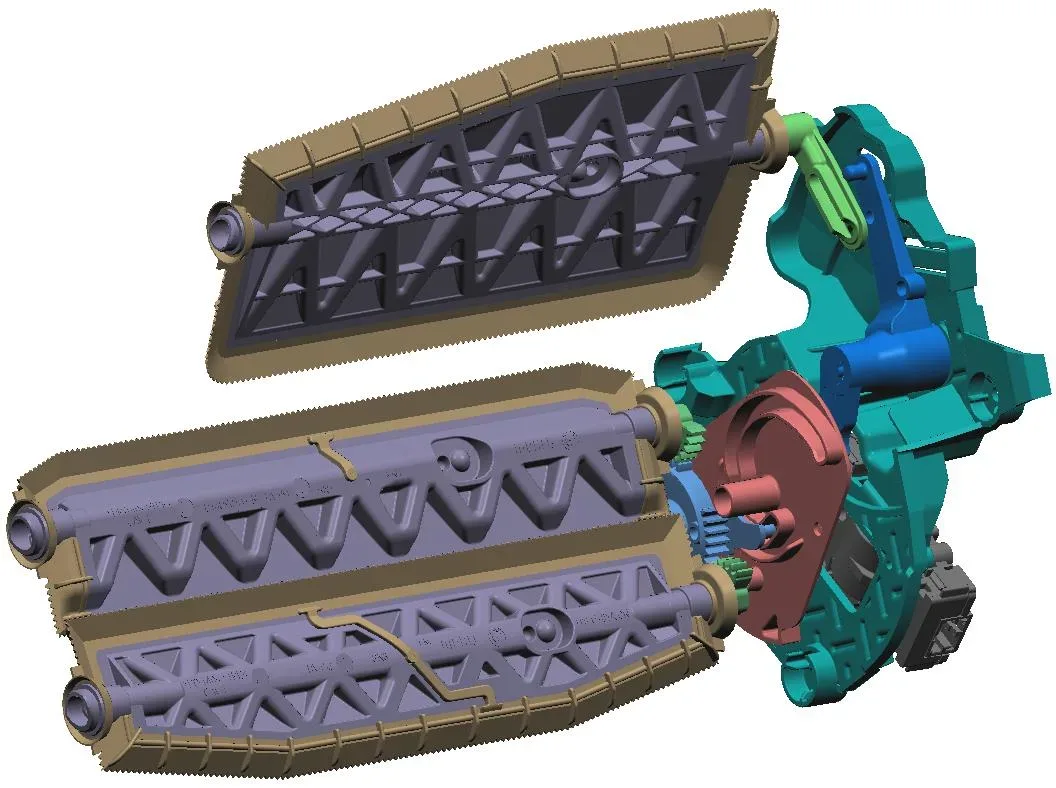

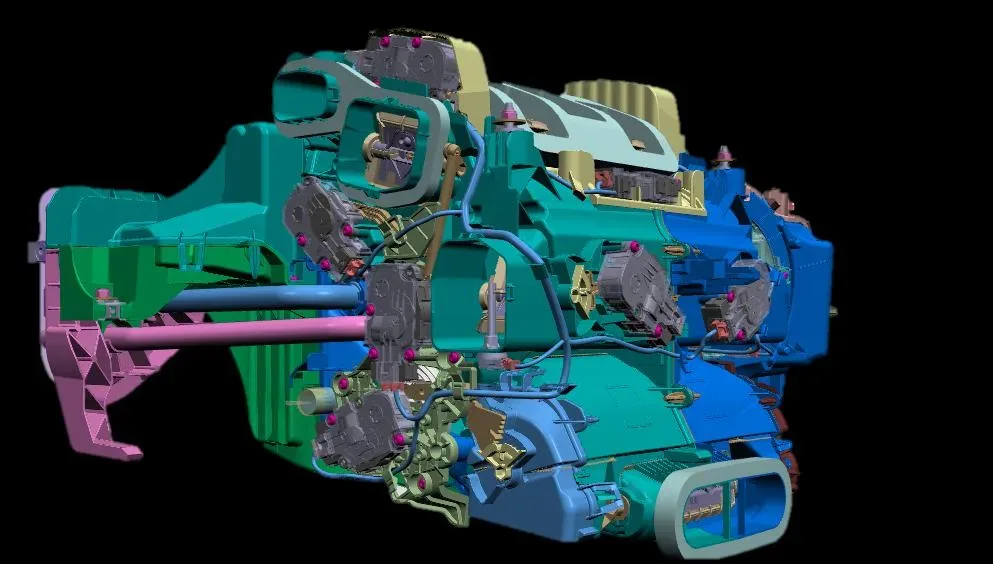

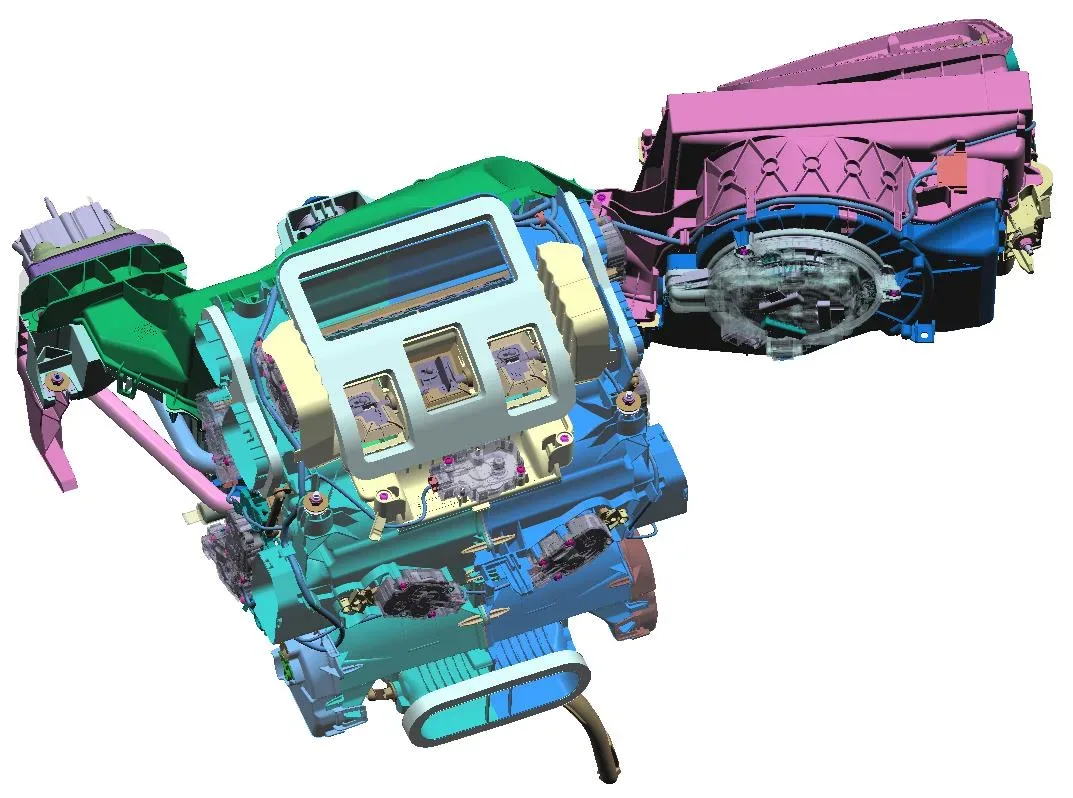

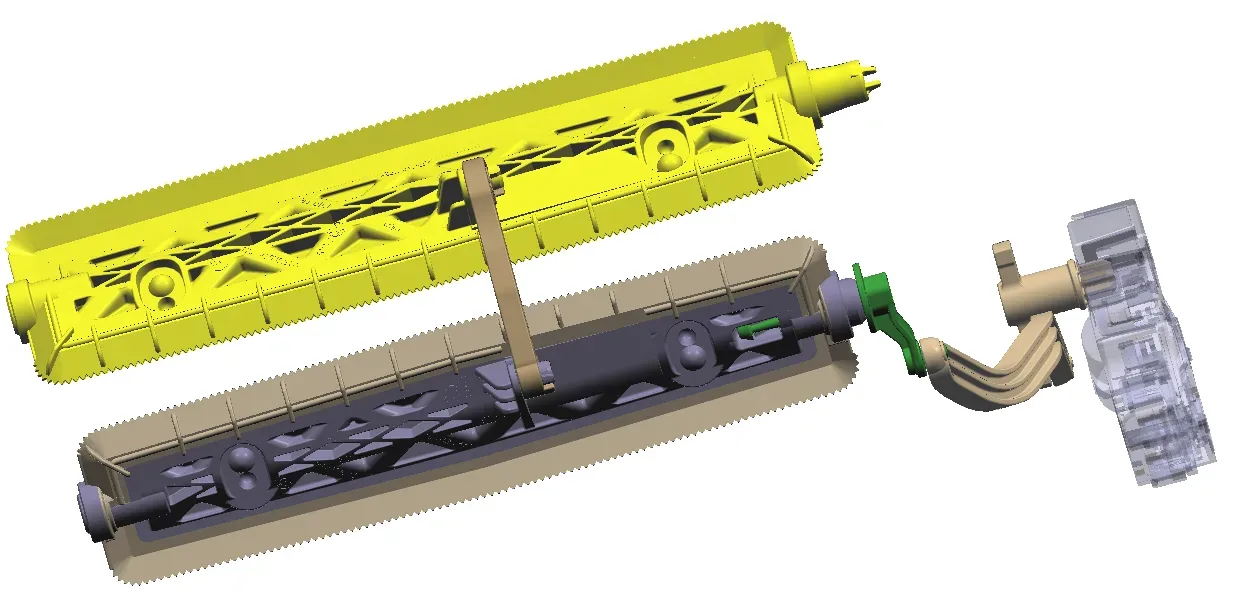

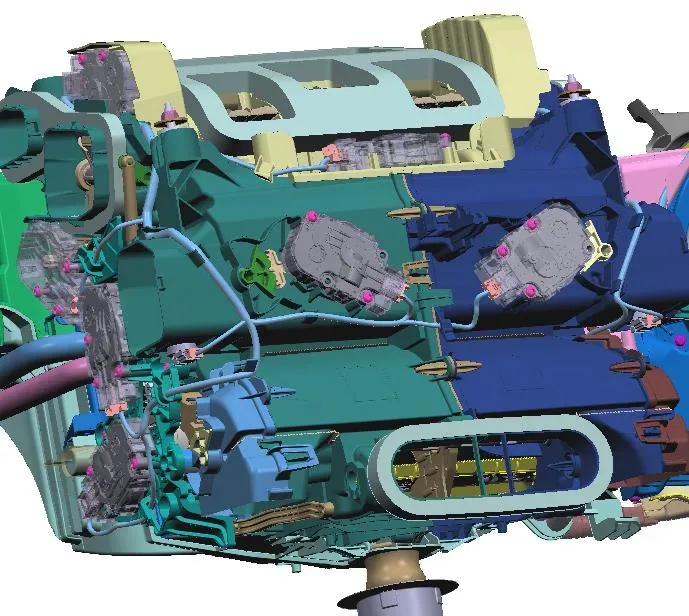

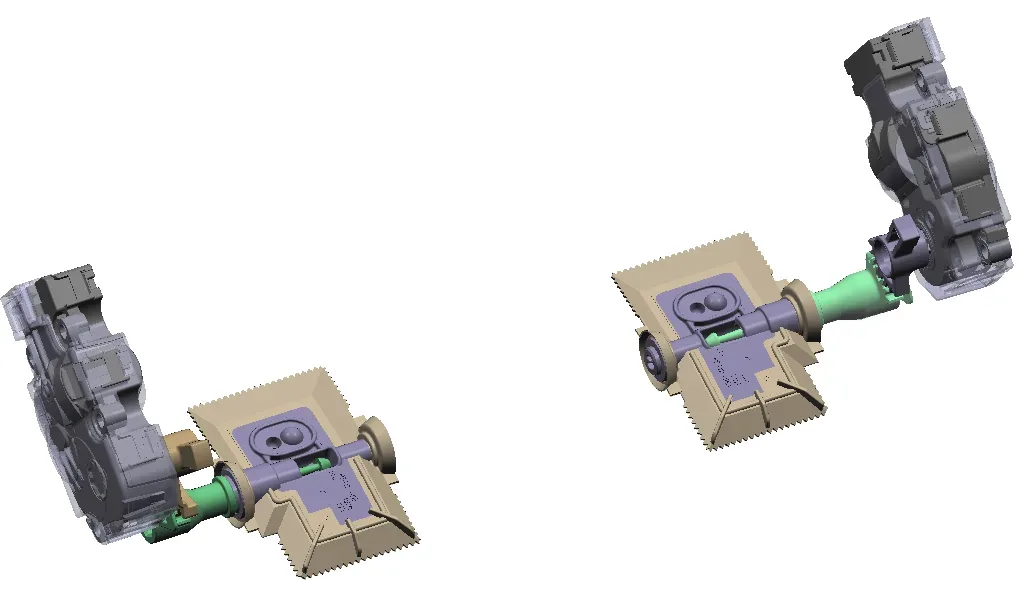

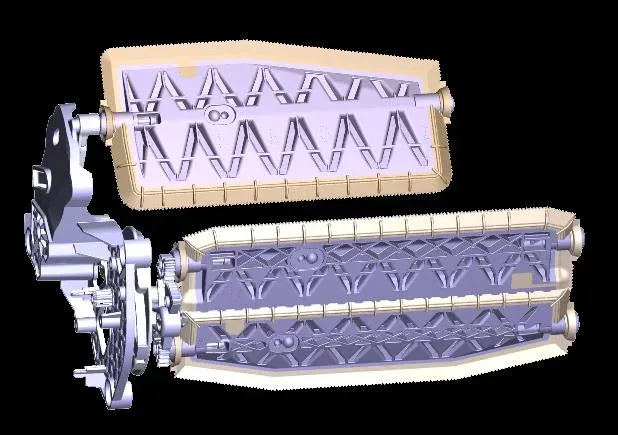

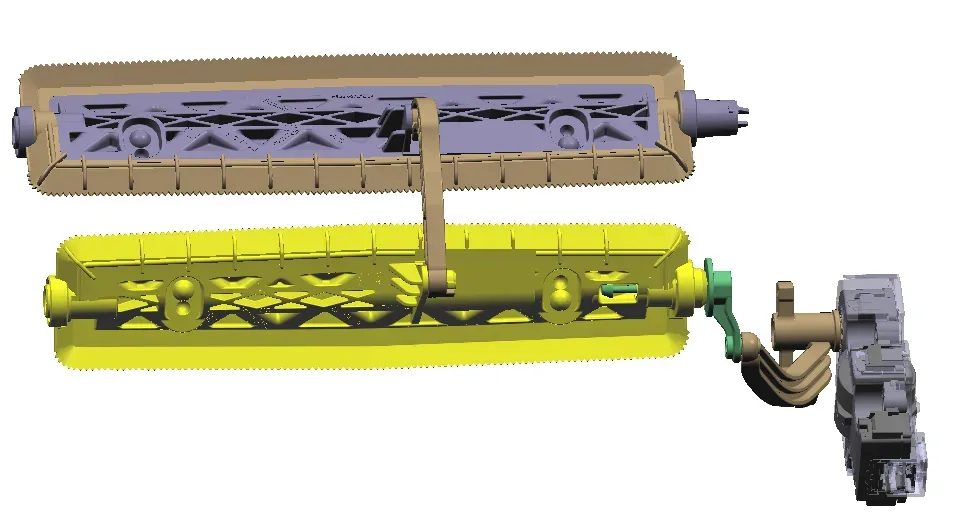

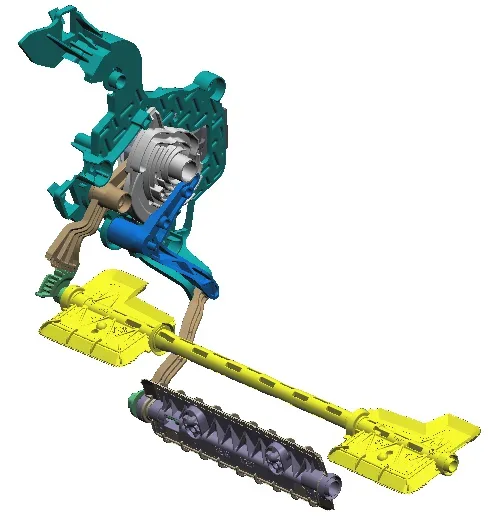

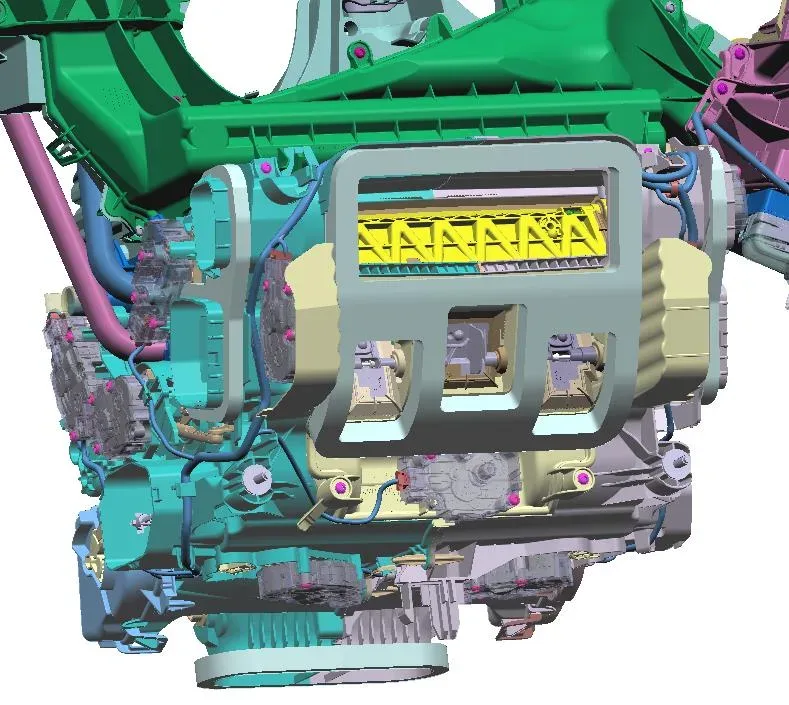

The HVAC system in the BMW X3 (G45) utilizes numerous air flaps, each controlled by specific stepper motors, to manage air distribution and temperature. The bulletin provides a detailed overview of 13 different flap types, including Fresh Air Flaps (Flap #1), Recirculated Air Flaps (Flap #2), Defrost Air Flaps (Flap #3), Front Cold and Warm Temperature Mixing Flaps (Flaps #4A/4B and #5A/5B), Front Footwell Air Flaps (Flaps #6A/6B), Front Center Vent Air Flaps (Flaps #7A/7B), Front Side Vent Air Flaps (Flaps #8A/8B), Rear Upper Vent Flaps (Flap #9), Rear Cold and Warm Temperature Mixing Flaps (Flaps #10 and #11), Rear Footwell Air Flaps (Flap #12), and an Indirect Air Flap (Flap #13). Each flap is associated with a specific stepper motor, identified by electrical IDs such as M 16, M 61, M 23, M 83, M 21, M 7, M 20, M 22, M 020, M 022, M 084, M 024, and M 197. The bulletin includes detailed diagrams and visibility notes for each flap, guiding technicians in identifying and accessing the specific linkage that may be loose.

Warranty and Claim Information

Repairs addressing verified defects in materials and/or workmanship are covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks. To submit a claim, technicians must follow established warranty policies and procedures, including Labor/Part/Sublet guidelines. Flat rate unit (FRU) allowances and corresponding labor operation codes should be obtained from the BMW Group's AIR Application Resource. Technicians should refer to SI B01 01 20 or B01 07 20 for proper documentation, claiming, and explanation of diagnosis and repair work time.

NHTSA ID: 10255474
