2024 BMW X3 B-Pillar Cracking Sound TSB

Symptoms

Owners of 2024 BMW X3 (F97 and G01 models) may experience a distinct "cracking sound from the top of the B-pillar(s)" when driving. This noise typically occurs on normal roads at speeds of 10 mph and above. BMW has also provided a video (V41 02 22) to help technicians identify the specific sound.

Cause of the Cracking Sound

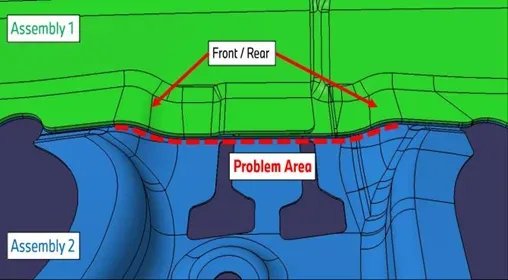

The root cause of the BMW X3 B-pillar cracking sound has been identified as movement between the sheet metal layers within the B-pillar assembly. This friction creates the audible cracking noise that owners hear while driving.

Fault Codes and OEM Labels

While there isn't a specific diagnostic trouble code (DTC) associated with this mechanical issue, BMW has assigned a Defect Code for warranty claims: 4121003900. This code is internally labeled as "B-pillar Unpleasant noises," clearly indicating the nature of the problem.

Important Warnings for Repair

BMW has issued specific warnings regarding the repair procedure to ensure effectiveness and structural integrity:

• "The rework might not be effective if the bore hole is not deep enough." Technicians must accurately measure the drill depth to ensure all three specified sheet metal layers are penetrated.
• "Drilling the bore hole to deep might weaken the structure excessively (should be avoided)." Over-drilling can compromise the vehicle's structural integrity, so precision is critical.
• "Make sure that all four sheet metal layers are completely connected before welding." This ensures a secure and lasting repair.
• "The paint protection applied to this area does not have to be an exterior quality finish." The final paint finish on the repaired area does not need to meet exterior aesthetic standards, as it is an internal structural repair.

Repair Procedure Summary

Service Information Bulletin SIB 41 07 22 outlines a detailed, mobile-friendly repair process to eliminate the BMW X3 B-pillar cracking sound. The procedure involves several steps:

1. Preparation: The headliner and B-pillar trim panels are removed following specific repair instructions (51 44 001 and 51 43 148) found in AIR/ISTA (Aftersales Information Research / Integrated Service Technical Application).

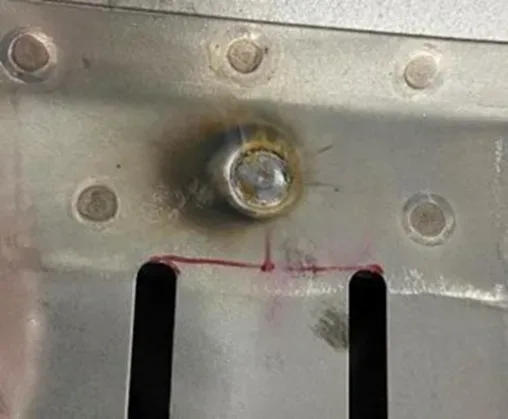

2. Marking: Technicians mark a precise drilling location on the B-pillar structure, starting from the highest point of two keyholes and drawing a 17 mm vertical line.
3. Drilling: A 6-8 mm hole is drilled through the first three sheet metal layers using a weld spot drill bit. The depth is then measured (approximately 3.4 mm) to confirm correct penetration.
4. Welding Preparation: The paint and corrosion protection around the drilled hole are carefully sanded off.
5. Welding: The hole is sealed using a MIG/MAG (metal inert gas/metal active gas) welding process. Technicians must ensure all four sheet metal layers are completely connected.
6. Sheet Metal Alignment: A prying tool is used to spread the sheets apart, forcing them together around the weld spot area, followed by the application of cavity spray.
7. Finishing: The welding surface is cleaned, ground smooth, and then sealed with corrosion protection and paint.
8. Reassembly: The vehicle is reassembled, and the repair is verified.

Required Tools and Materials

For this repair, technicians will utilize standard workshop tools, including a weld spot drill bit. Specific materials like fluids, lubricants, one-time use screws, nuts, and seals are to be selected from the Electronic Parts Catalog (ETK) or other approved BMW resources, as detailed in the ISTA repair instructions. The bulletin also references general service information bulletins SI B01 01 20 or B01 07 20 for documentation and claiming procedures.

Warranty and Claim Information

This repair for the BMW X3 B-pillar cracking sound is covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks. Dealerships will process claims using the defect code 4121003900. Specific labor operations, such as 51 44 001, 41 00 009, 00 58 500, and 41 99 000, are provided for technicians to properly document their work time. Reimbursement for bulk materials and third-party welding services (if applicable) is also outlined within the bulletin.

---

Source: NHTSA ID: 11006729
