2022-2024 BMW iX Tailgate Rattling Noise TSB

Symptoms

Owners of 2022-2024 BMW iX Sports Activity Vehicles may notice a distinct rattling noise emanating from the tailgate area. This BMW iX tailgate rattling noise typically occurs when driving over rough or uneven road surfaces.

Cause

According to BMW Technical Service Bulletin SIB 61 15 24, the root cause of the BMW iX tailgate rattling noise is often a rear washer fluid hose that is not securely fitted. This allows the hose to vibrate and create the noise.

Repair Procedure Summary

To address the rattling noise, BMW outlines a specific repair procedure in SIB 61 15 24. The process involves:

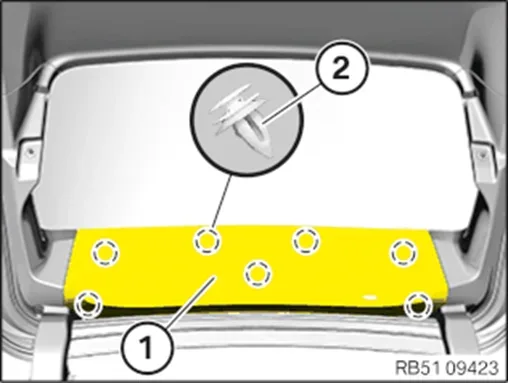

1. Accessing the Tailgate Trim: Technicians must first remove the rear deck and specific trim panels for the top rear window frame and the driver's side rear window frame. This step follows repair instruction "Removing and installing/replacing the tailgate trim panel 51 49 000 | REP-REP-P-5149000-120 - V.1".

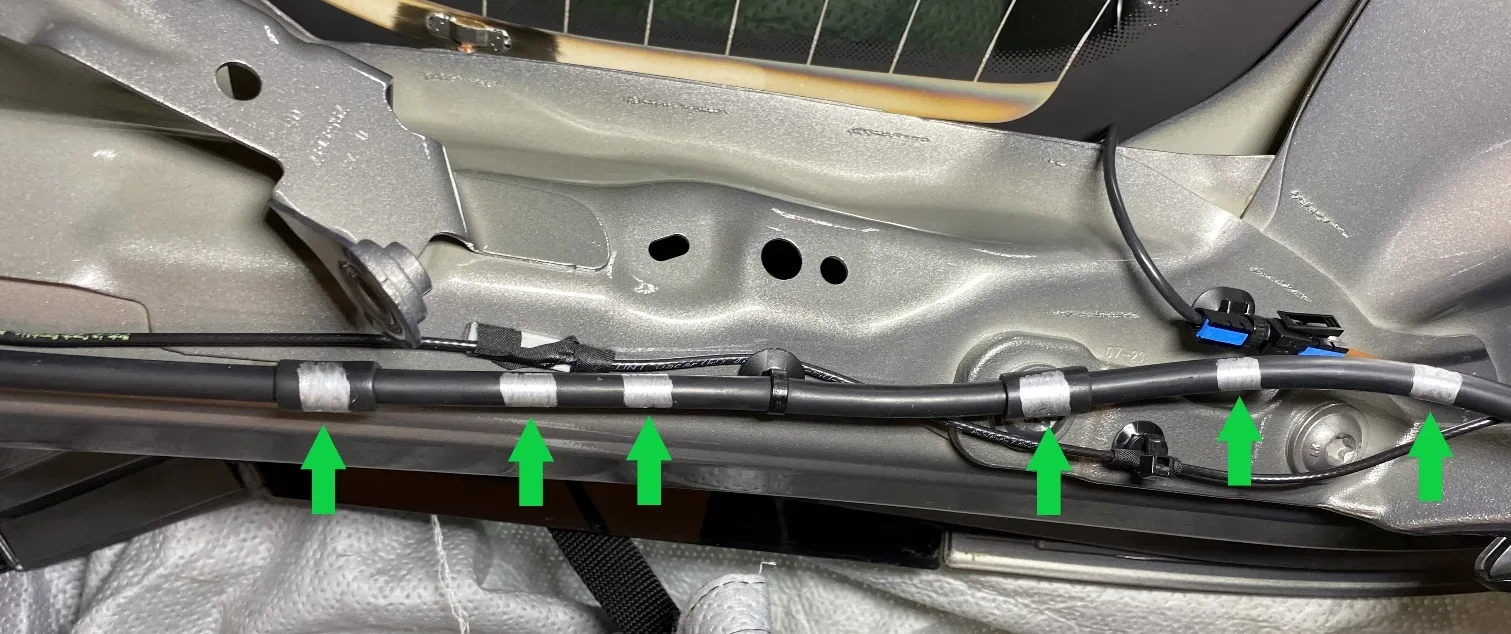

2. Securing the Washer Fluid Hose: The rear washer fluid hose is then located. Self-adhesive felt strips are attached at six specific locations along the hose to secure it and prevent rattling.
3. Reassembly: Finally, the tailgate trim panels are reassembled, ensuring proper tightening torques are applied to fasteners (1.2 Nm for 4.2 x 16 bolts, 9 Nm for ball pins).
4. Verification: The vehicle is then reassessed to confirm that the rattling noise has been eliminated.

Required Parts

The primary part required for this repair is a set of self-adhesive felt strips.

• Felt strips, self-adhesive (6 pieces): Part Number 51 45 2 353 024
• Clips: As needed, refer to ETK/AIR for specific part numbers.

Claim Information

This repair is covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks. The defect code associated with this issue is 6168023700, described as 'Lines/valves/connectors, rear window washer system Loose'.

Dealers will use specific labor operations for claiming the repair, including:

• 51 49 000: Removing and installing/replacing the tailgate trim panel (Main work)
• 51 49 500: Removing and installing/replacing the tailgate trim panel (Plusposition)
• 51 00 001*: Localizing body complaint(s) (Work time)
• 00 58 500*: Diagnosis Worktime Flat Rate
• 51 99 000: Work time size and attach self-adhesive felt strips

Technicians can refer to SI B01 01 20 or B01 07 20 for detailed procedures on documenting and claiming work time.

Important Warnings

This repair is designated as Mobile Friendly, meaning it can potentially be performed by mobile service technicians, offering convenience to owners.

Source: NHTSA ID: 11006738
