2025 BMW 530i / X3 Squeaking Exterior Mirror TSB

BMW has issued Service Information Bulletin (SIB) SIB 51 02 24 to address a common complaint among owners of certain 2025 BMW models. This bulletin, a revision dated April 22, 2025, supersedes the previous SI B51 02 24 dated February 2025. It specifically targets a BMW squeaking exterior mirror problem.

The issue affects various models, including the 2025 BMW 530i (G60 5 Series Sedan) and 2025 BMW X3 (G45 X3 Sports Activity Vehicle). Other affected models include the G90 M5 Sedan and G99 M5 Touring.

Symptoms

Owners of affected vehicles may notice a specific symptom: "A squeaking sound is heard when folding either of the exterior mirrors assemblies in or out." This BMW squeaking exterior mirror noise occurs during the automatic or manual folding operation of the side mirrors.

Cause

The root cause of the squeaking sound has been identified as "Unfavorable tolerance positions within the exterior mirror assembly." These minor manufacturing variations can lead to friction and noise as the mirror components move.

Repair Code

For diagnostic and repair purposes, technicians will refer to repair code 6713053900, labeled as "Exterior mirror flap motor Unpleasant noises."

Repair Procedure Summary

The primary correction for the BMW squeaking exterior mirror involves cleaning and lubricating the sliding surface of the exterior mirror assembly. The procedure outlines the following steps:

1. Verify the customer's complaint regarding the squeaking sound.

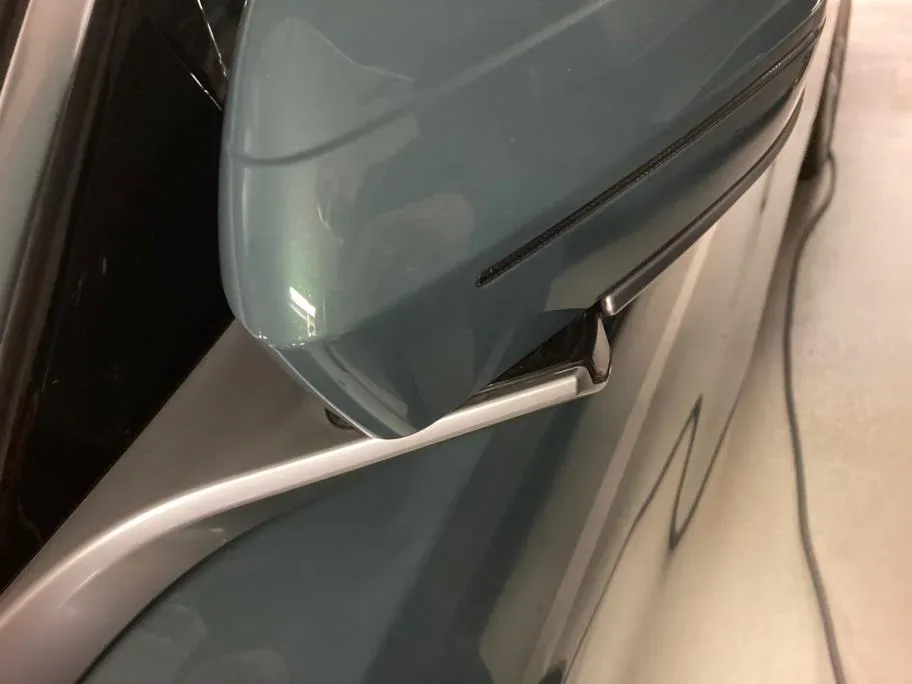

2. Manually fold the exterior mirror assembly inwards.

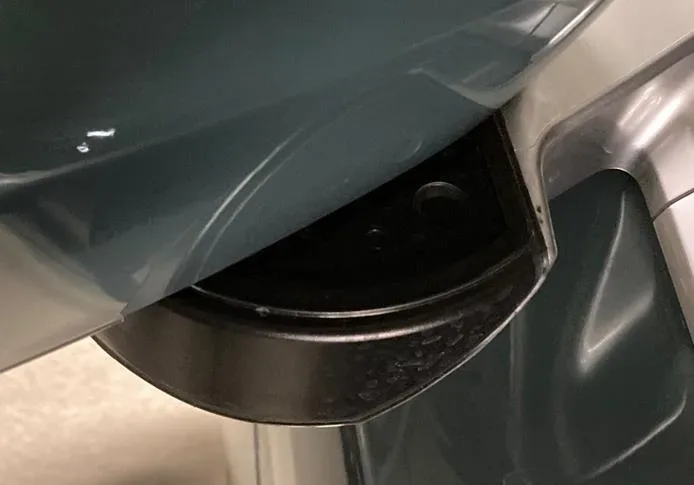

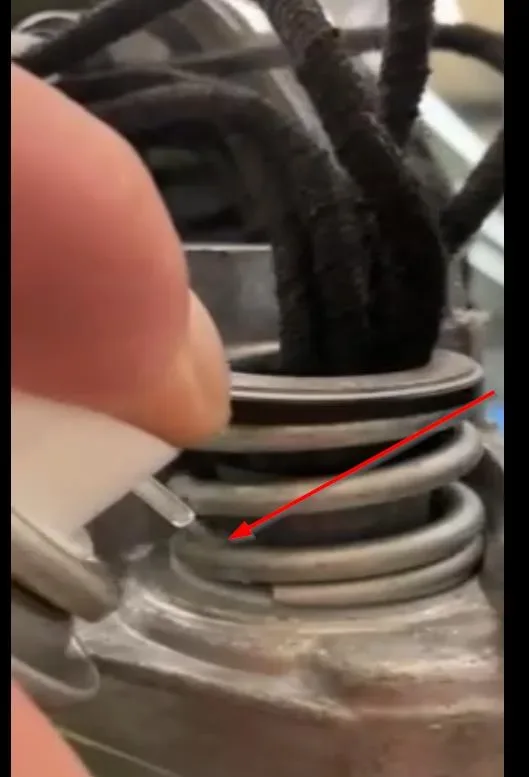

3. Clean the sliding surface on the exterior mirror assembly and apply PF1 lubricant.

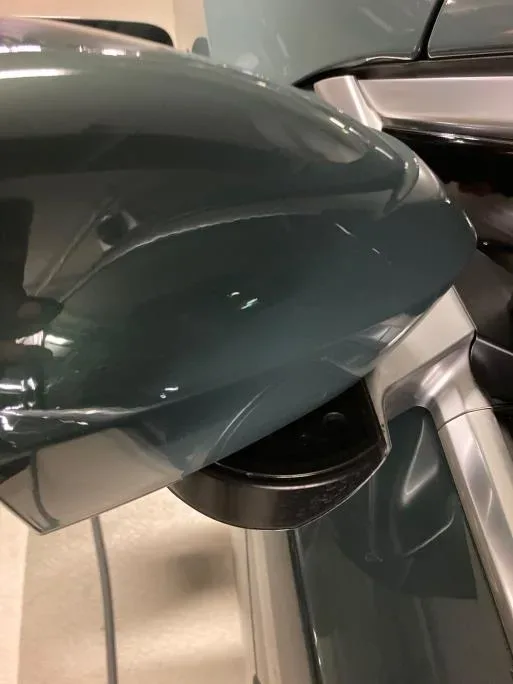

4. Manually fold the exterior mirror assembly outwards.
5. Clean the sliding surface again and apply PF1 lubricant.
6. If the squeaking sound persists after lubrication, the affected exterior mirror assembly should be replaced.

BMW also provides an attached video, V51 02 24, to assist technicians with this procedure.

Required Tools or Parts

To perform this repair, specific materials are required:

• Lubricant PF1 (50 gr/1.75 oz): Part Number 83 23 0 309 627.

If mirror replacement is necessary, the exterior mirror assembly (Driver) and exterior mirror assembly (Passenger) part numbers should be obtained through the Electronic Parts Catalog (ETK) or Aftersales Information Research (AIR) system, ensuring compatibility with the specific vehicle's chassis number and equipment.

Warranty and Claim Information

This repair is covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks. Dealerships will follow specific labor operation codes for diagnosis and repair, including 51 00 001, 00 58 500, and 00 58 000 for diagnosis, and 51 99 000 for the cleaning and lubrication procedure. If replacement is needed, codes like 51 16 002 or 51 16 022 (with additional codes for vehicles with Autonomous Parking Camera) will be used.

Important Warnings

BMW notes that "THIS REPAIR IS MOBILE FRIENDLY," indicating that this service can potentially be performed by mobile service units. Owners should also be aware that a video, V51 02 24, is available to technicians for guidance on this specific repair.

Owner Action

If your 2025 BMW 530i or X3 is experiencing a BMW squeaking exterior mirror when folding, you should contact your authorized BMW dealership. They will be able to diagnose the issue and perform the necessary cleaning, lubrication, or replacement under warranty, as outlined in SIB 51 02 24.

NHTSA ID: 11017280
