2024 BMW 530i Spring Strut Parts Return TEC709

BMW has issued Parts Bulletin TEC709, instructing dealers to inspect and return certain spring strut part numbers. This bulletin, identified as C32-1224-0687, specifically targets parts that have been delivered and shipped containing particular AI Index Numbers. The 2024 BMW 530i spring strut return is critical due to the classification of these components as Dangerous Goods.

What's Being Returned

The bulletin requires the return of the following spring strut part numbers:

• 31 30 5 A13 5A4
• 31 30 5 A13 AB2
• 31 30 5 A13 AC5
• 31 30 5 B3E 063
• 31 30 5 A13 5A6
• 31 30 5 A13 AB5
• 31 30 5 A13 AC6
• 31 30 5 B3E 064
• 31 30 5 A13 5A7
• 31 30 5 A13 AB6
• 31 30 5 A13 AD3
• 31 32 5 A58 BC3
• 31 32 5 A58 BD8
• 31 30 5 A13 5C1
• 31 30 5 A13 AC1
• 31 30 5 A2E 804
• 31 32 5 A58 BC4
• 31 30 5 A13 AB1
• 31 30 5 A13 AC2
• 31 30 5 A2E 812
• 31 32 5 A58 BD7

Why These Parts Are Important

These specific spring strut parts are considered Dangerous Goods. This classification means they require special handling and shipping procedures. If you need to return any of the listed parts, you must be hazmat certified and possess a DGIS subscription. If these certifications are not available, a scrapping certification will be provided instead.

Identifying Affected Parts

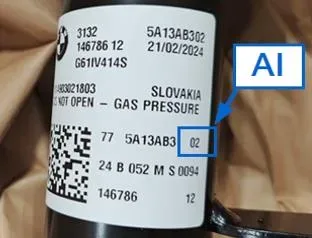

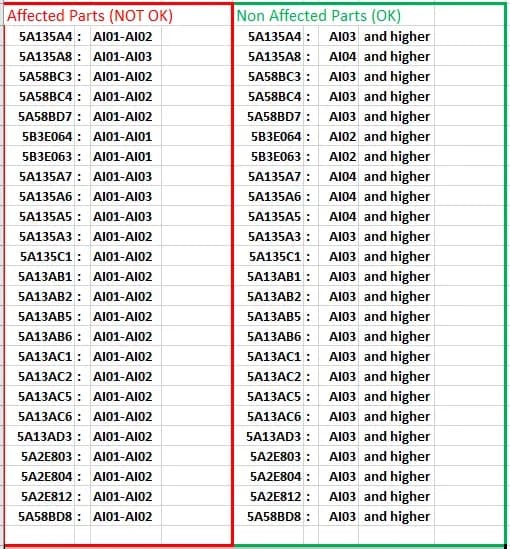

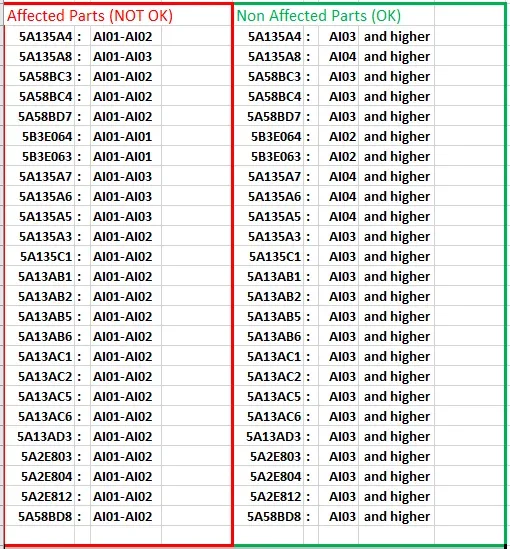

To determine if a spring strut is affected by this 2024 BMW 530i spring strut return, you must check the AI Index Numbers. The bulletin provides a clear distinction between affected (NOT OK) and non-affected (OK) parts based on these index numbers. The image on the bulletin shows an example of where to find the AI index on the part label.

Important Warnings for Dealers

BMW has issued several critical instructions regarding these parts:

• "Affected available inventory must not be sold."
• "These parts are considered Dangerous Goods. If you need to return any parts listed above, you must be hazmat certified and have a DGIS subscription. If you don't have either, a scrapping certification will be provided."
• "When submitting a return claim, please specify in the comment section if the part is in its original factory seal or if it was previously opened. If the seal on the packaging has been opened, a scrapping certification will be provided."
• "TEC709 is valid from December 12, 2024, through December 26, 2024. The deadline for filing a claim under TEC709 is December 26, 2024. All parts must be returned to your facing RDC no later than January 09, 2025."
• "Please reorder the same part number if needed."

Return Procedure Summary

To return affected spring strut parts, follow these steps:

1. Return all affected part(s) to your facing Regional Distribution Center (RDC).
2. Submit for return using a YR26 damage claim with order reason BM2.
3. Ensure a valid BMW delivery and delivery item number is entered.
4. The bulletin number TEC709 must appear in the text of your TEC claim.
5. If you cannot locate the delivery number, submit an IDS ticket to Parts Logistics>Returns>Claims>Quality>Claims for assistance.
6. For questions regarding hazmat, DGIS, or scrapping certification, use the IDS Ticket location: Parts Logistics US>Return/Claims/Quality>Other.

The deadline for filing a claim under TEC709 is December 26, 2024, and all parts must be returned by January 09, 2025.
