2023-2024 BMW Front Axle Thumping and Groaning Noise TSB SIB 31 01 26

Symptoms of BMW Front Axle Noise

Owners of affected 2023-2024 BMW vehicles may notice a distinct BMW front axle noise.

Specifically, a "thumping" noise can be heard from the front axle when driving over uneven road surfaces. Additionally, under certain weather conditions, a "groaning" noise may become apparent during steering movements. BMW references a video, V 31 01 26, that illustrates the thumping noise symptom.

The Root Cause: Detached Auxiliary Damper

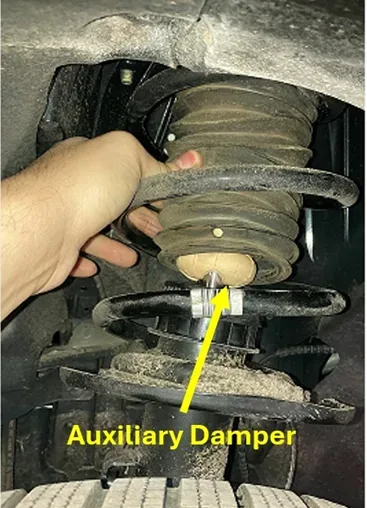

The primary cause for this BMW front axle noise is the auxiliary damper, also known as an additional shock absorber, detaching from its support bearing (guide support). This separation allows for play and movement that results in the audible thumping and groaning sounds.

Important Warnings and Installation Notes

When performing the repair outlined in SIB 31 01 26, technicians must adhere to specific instructions to ensure proper function and durability. Owners should be aware of these critical steps:

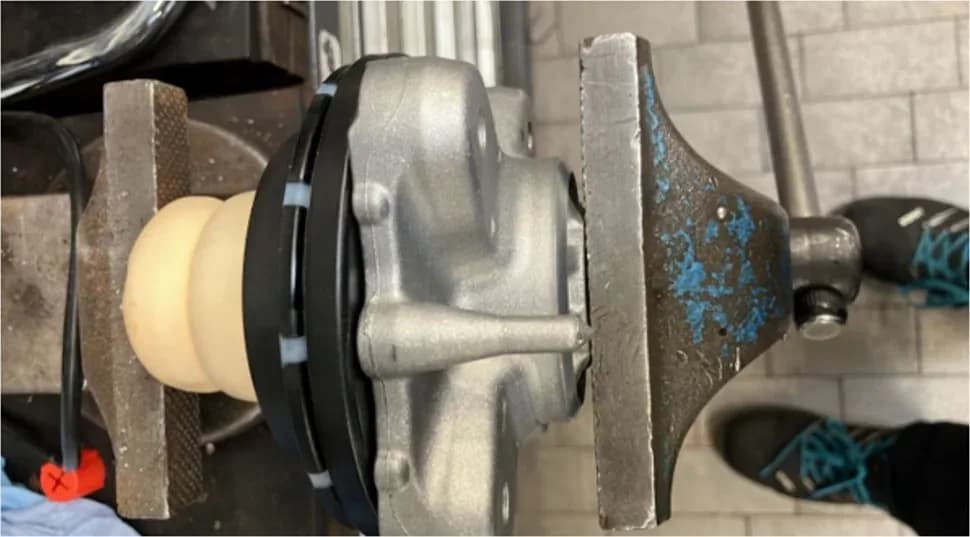

• Pressing Time: "Install the new auxiliary dampers into the support bearing and press together in a vice for at least 10 hours." This extended pressing time is crucial for proper adhesion and seating.
• Centering: "Be sure to center the damper and bearing before securing in the vice for setup." Correct alignment is vital for the component's performance.
• Adhesive Application: "Avoid getting the windshield adhesive in the center of the damper and support bearing's through-hole for the spring strut." Misapplication of the adhesive could interfere with the spring strut's installation or movement.

Repair Procedure Summary

The repair procedure detailed in BMW Technical Service Bulletin SIB 31 01 26 involves replacing both the left and right support bearing and auxiliary damper. The process includes several key steps:

1. Dismantling: Remove and dismantle the left and right front spring strut shock absorbers, following the instructions in REP 31 31 031.

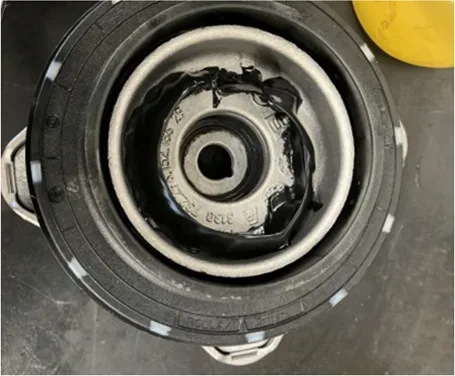

2. Adhesive Application: Apply window adhesive, specifically part number 83 19 2 289 181, to the new support bearings as illustrated in the bulletin.
3. Assembly and Curing: Install the new auxiliary dampers into the support bearing. These components must then be pressed together in a vice for a minimum of 10 hours to allow the adhesive to properly cure and bond the parts.
4. Reassembly: Once the new components are securely assembled, reassemble the spring struts and reinstall them back into the vehicle.

Required Tools or Parts

To address the BMW front axle noise, the following parts are required. Specific part numbers for certain components should be determined by entering the vehicle's VIN/chassis number into ETK or AIR, which accounts for specific equipment and options.

• Guide support: Quantity 2 (Refer to ETK/AIR)
• Hex bolt with washer: As required (Refer to ETK/AIR)
• Self-locking collar nut: As required (Refer to ETK/AIR)
• Additional shock absorber, front: Quantity 2 (Refer to ETK/AIR)
• Window-glass adhesive (DN = 300 mL of adhesive): Part Number 83 19 2 289 181, sublet as needed.

Additional small parts, fluids, lubricants, one-time use screws, nuts, and seals, as specified in ISTA repair instructions or ETK/AIR, must also be replaced.

Warranty Information

This repair, identified by Repair Code 3133900100, is covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks. Labor operations for diagnosis (51 00 001*, 00 58 500*) and repair (31 31 051, 31 31 517, 31 31 511, 00 78 971) are specified. Reimbursement for bulk supply materials, such as the window-glass adhesive, can be claimed under Sublet Code 4, up to $30.00.

What Owners Should Do

If your 2023-2024 BMW is exhibiting a "thumping" or "groaning" BMW front axle noise, it is recommended to schedule an appointment with an authorized BMW dealership. Reference Technical Service Bulletin SIB 31 01 26 when discussing the issue with your service advisor. The dealership technicians will diagnose the specific cause and perform the necessary repairs under warranty.

NHTSA ID: 11028921
