2021 BMW 3 Series False Seat Occupancy Alert

Symptoms

Owners of affected 2021 BMW 3 Series vehicles may notice several warning signs related to a false seat occupancy alert. The primary symptom is a "fasten seat belt" warning appearing even when the front passenger seat is not occupied by a person.

Accompanying this, a "front passenger seat air bag deactivation message" may be displayed, indicating that the airbag system incorrectly believes the seat is occupied. In some cases, the Air bag Warning Light on the instrument cluster may also illuminate, signaling a potential issue with the Advanced Crash Safety Module (ACSM).

Furthermore, the Passenger Occupancy Light (POL) light, which typically indicates seat occupancy status, might not function correctly. These combined indicators point to an erroneous detection of a passenger in the front seat, even when it is empty, creating a BMW 3 Series false seat occupancy condition.

Fault Codes / DTCs

When a false seat occupancy alert occurs, the Advanced Crash Safety Module (ACSM) in your BMW may store a specific diagnostic trouble code (DTC). This code helps technicians identify the nature of the problem.

The relevant fault code for this situation is:

• 930A1C: Front passenger seat occupancy detection transmitting fault (moisture)

This fault code specifically points to an issue with the front passenger seat's ability to accurately detect occupancy, often linked to moisture-related problems within the sensor system.

Diagnosis / Trigger Conditions

The BMW 3 Series false seat occupancy issue can stem from several conditions, often involving the front passenger's seat occupancy sensor system. Understanding these triggers is crucial for accurate diagnosis and repair.

One common cause is the placement of electronic devices, such as smartphones, laptops, or tablets, on the passenger seat. This is particularly true if these devices are connected to the vehicle's electrical system via a USB charging port or cigarette lighter adapter, as their electrical signals can interfere with the sensor.

Another significant factor is moisture or fluid contamination of the passenger seat. This can occur due to very high humidity, wet clothing, spilled liquids, or rain entering through open windows or sunroofs. Moisture can directly affect the functionality of the capacitive interior sensor (CIS) mat, leading to false readings.

During vehicle assembly or previous repairs, the seat heater/seat mat sensor may have been inadvertently pierced. This can happen if crimp rings, used to secure the seat in place, are positioned unfavorably. Finally, an insecure or loose ground connection for the seat heater/CIS mat can also disrupt the sensor's operation and trigger the false alert.

Important Warnings

Owners should be aware of several critical points regarding this service bulletin, SIB 72 02 25:

• This bulletin is a notice of a limited warranty extension and is NOT a notice of a Recall or Service Action. This means it addresses a specific component's warranty coverage rather than a safety recall campaign.

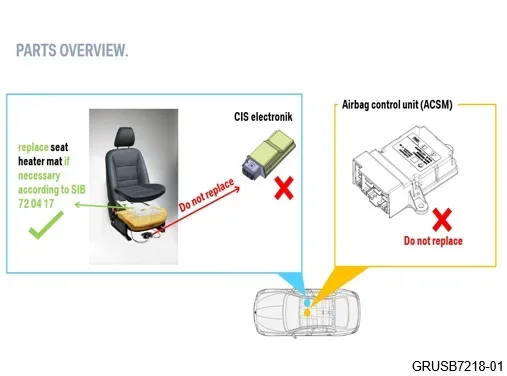

• Do NOT replace the CIS electronics or the ACSM module as a first step, as this will not correct the underlying issue causing the false seat occupancy alert. The problem typically lies with the sensor mat itself or its connections.
• There is no immediate repair required unless your BMW vehicle is currently experiencing the problem. If the symptoms are not present, no action is necessary.
• The extended warranty coverage specifically excludes issues caused by outside influences. This includes problems related to electronic devices placed on the seat, wet/fluid intrusion (such as spilled drinks or rain), or other unrelated seat heating or Supplemental Restraint Systems (SRS) issues.
• Repairs for damage or issues caused by non-genuine BMW parts or used BMW passenger car/light truck parts are not covered under this extended warranty.

Repair Procedure Summary

Addressing the BMW 3 Series false seat occupancy issue involves a series of diagnostic and repair steps performed by a qualified technician. The procedure aims to identify the root cause, which often relates to the Front Passenger's Seat Capacitive Interior Sensor (CIS) Mat.

Initial Diagnostic Steps:

1. Customer Consultation: The technician will first consult with the vehicle owner to determine if objects were placed on the passenger seat or if the seat was exposed to moisture (e.g., rain, wet clothes, spilled fluids). This information helps narrow down potential causes.
2. Non-Invasive Checks: A visual inspection will be performed to check for any signs of moisture or stains on the seat surface. If moisture is detected, the mat will be dried, and the fault code will be cleared to see if the issue resolves.

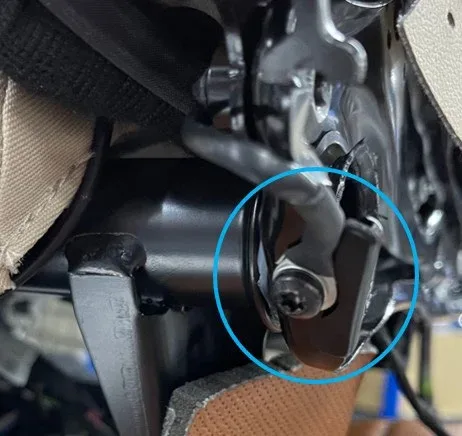

3. Electrical Connector and Ground Connection Check: The electrical connector for the CIS evaluation electronics module will be inspected. Crucially, the ground connection of the CIS mat sensor to the vehicle's structure will be checked for security. If any free play is identified, the ground screw will be re-secured and torqued to 4.5 Nm (+/-0.5) to ensure a solid connection.

Advanced Repair Steps (if initial checks do not resolve the issue):

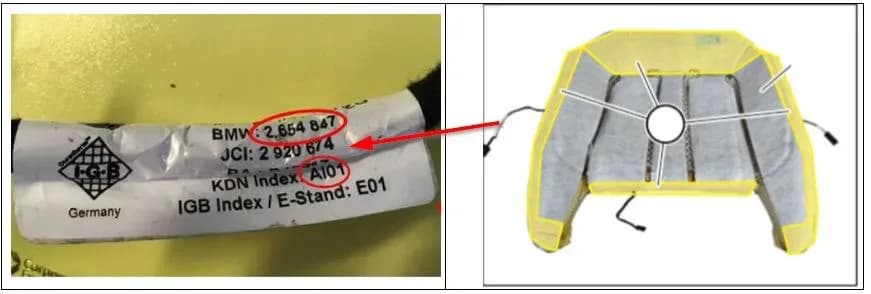

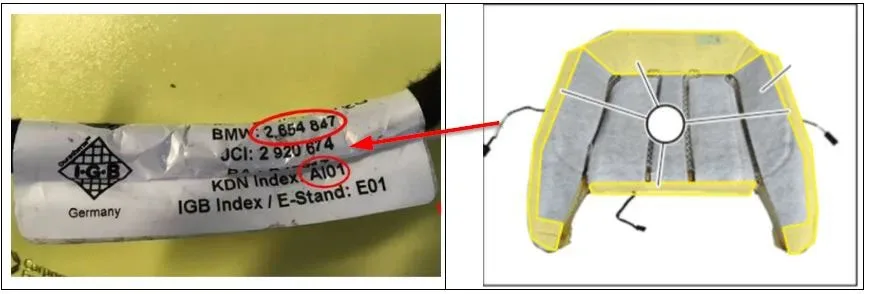

4. CIS Mat Part Number and Revision Index Check: If the initial steps do not resolve the false alert, the technician will access the bottom seat cushion. This allows them to identify the front passenger's seat heating/CIS mat part number and its revision index number. This information is critical for the next step.
5. CIS Mat Replacement Matrix: The identified part number and revision index will be compared against a specific matrix provided by BMW. If the Change Index number of the installed mat is lower than what is specified in the matrix for the matching seat option and part number, then the front passenger's seat heating/CIS mat must be replaced. If the Change Index number is equal to or greater than the specified value, this bulletin's repair procedure does not apply, indicating a different root cause.

Post-Repair Verification:

After any repair, the technician will perform a final validation. This includes ensuring that no fault codes or check control messages are displayed in the vehicle's system. Additionally, the seat occupancy function will be confirmed to operate correctly by having an adult sit in the passenger seat.

Required Tools or Parts

For repairs related to SIB 72 02 25, specific parts and labor operations are involved. Technicians will need to refer to BMW's Electronic Parts Catalog (ETK) or Aftersales Information Research (AIR) system to determine the exact part numbers based on the vehicle's VIN and installed equipment.

While specific part numbers are VIN-dependent, the bulletin mentions components such as the foam pad and Sport seat (CIS) mat. The primary repair code for this issue is 6577900500, labeled as "G01 G02 G20 Crimping CIS mat."

Various labor operation codes are associated with the diagnostic and repair process, including:

• 00 00 006 (Carrying out vehicle test - Main work)
• 00 00 556 (Carrying out vehicle test - Plusposition)
• 61 21 528 (Supporting voltage of the vehicle electrical system / recharging vehicle battery)
• 61 00 006* (Performing vehicle diagnosis – test module)
• 00 58 500* (Diagnosis Worktime Flat Rate)
• 65 77 611 (Replacing seat occupancy mat for (front) passenger seat)
• 61 00 730 (Program/encode control unit(s), includes deleting the fault memory)

These codes ensure proper documentation and claim submission for warranty-covered repairs.

Extended Warranty and Reimbursement

BMW of North America, LLC (BMW NA) has extended the limited warranty for the Supplemental Restraint Systems (SRS) Front Passenger's Seat Occupancy Capacitive Interior Sensor (CIS) Mat. This extended limited warranty (ELW) now covers defects in materials and/or workmanship for 10 years/120,000 miles, whichever comes first, as determined from the vehicle's original in-service or first delivery date.

This component-specific ELW applies to eligible US-specification BMW vehicles registered and operated in the United States (including Puerto Rico). The coverage is tied to the specific vehicle's VIN and is transferable to subsequent owners, adhering to the same eligibility requirements, limitations, and exclusions as the standard BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks.

BMW NA is proactively notifying owners of eligible vehicles through VIN-specific customer notification letters. This ensures that affected owners are aware of the extended coverage for the BMW 3 Series false seat occupancy issue.

Reimbursement for Previous Customer-Pay Repairs:

If you previously paid for a qualifying repair to address this false seat occupancy alert before the release of this extended warranty, you may be eligible for reimbursement. A qualifying repair must primarily address a covered issue with the SRS Passenger Seat Occupancy (CIS) Sensor Mat, and the repair facility's procedures must have met BMW Group approved repair standards.

To request reimbursement, customers can submit their request online at www.BMW-RP.com. The specific reference for this reimbursement is BMW ELW RF Seat CIS Mat 10Y120M. Required documentation includes legible copies of the repair order or invoice, proof of payment, and details such as your name, address, VIN, date of repair, mileage at repair, and an itemized list of labor and parts charges.

Alternatively, reimbursement requests can be mailed to:

BMW Customer Reimbursement Center Attention: BMW ELW RF Seat CIS Mat 10Y120M P.O. Box 54067 Hurst, Texas 76054

For questions regarding the reimbursement process, you can call 1-844-857-0341. Please allow 4-6 weeks for processing your request.

Source: NHTSA ID 11017100
