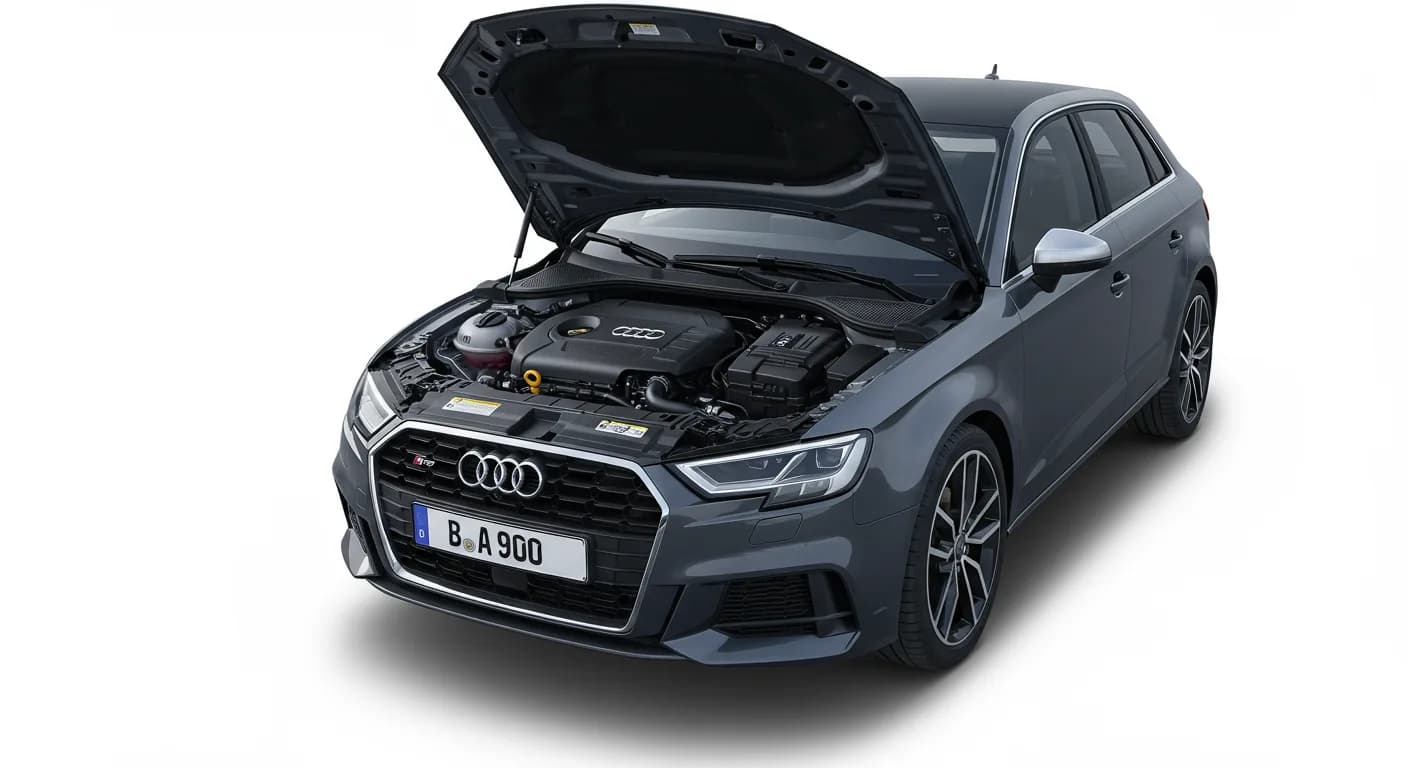

2023-2024 Audi A3 / S3 / RS 3 P0A8200 Cooling Fan Fault

Symptoms

Owners of affected 2023-2024 Audi A3, S3, and RS 3 vehicles may observe a warning message in their instrument cluster stating, "Vehicle electrical system fault". This message indicates a problem within the vehicle's electrical system, specifically related to the 48V Mild Hybrid Electric Vehicle (MHEV) components.

Fault Codes / DTCs

When the "Vehicle electrical system fault" message appears, a workshop scan will likely reveal the following diagnostic trouble code (DTC):

Code	Description	Module / Diagnostic Address
P0A8200	Hybrid/EV Battery Pack Cooling Fan 1 Performance/Stuck Off	Battery Management 2 (Battery 48V) -A6- (diagnostic address 0021)

This specific DTC, P0A8200, points directly to an issue with the performance or operation of the cooling fan for the 48V hybrid battery pack.

Diagnosis / Trigger Conditions

Audi Technical Service Bulletin 2080516/1 addresses the "Vehicle electrical system fault" when the DTC P0A8200 is stored. The diagnostic process begins by confirming the customer's complaint and verifying that the specific DTC P0A8200 is present in the Battery Management 2 (Battery 48V) control unit, identified by diagnostic address 0021.

The TSB outlines several potential underlying causes for the P0A8200 fault, which can trigger the "Vehicle electrical system fault" message. These include:

• 12V battery low charge: An undercharged 12V battery can impact the overall electrical system, potentially affecting the operation of other components, including the 48V system's cooling fan.
• 48V battery low charge: The primary 48V battery itself being undercharged can directly lead to performance issues for its cooling fan, as the fan relies on this power source.
• Dirt on 48V battery fan: Physical obstructions like dirt or debris on the 48V battery cooling fan can impede its proper function, leading to reduced performance or causing it to become stuck, thus triggering the P0A8200 code.

Repair Procedure Summary

For vehicles exhibiting the "Vehicle electrical system fault" and storing the P0A8200 DTC, the repair procedure outlined in TSB 2080516/1 involves a series of diagnostic and corrective steps:

1. Initial Verification: Technicians must first reproduce the customer complaint to ensure it aligns with the conditions described in the TSB. The presence of the specific DTC "P0A8200: Hybrid/EV Battery Pack Cooling Fan 1 Performance/Stuck Off" must be confirmed.
2. Battery Charging: The 12V battery should be charged according to the specifications in the Workshop Manual. Subsequently, the 48V battery must also be charged following its respective Workshop Manual procedures. Low battery voltage in either system can contribute to the cooling fan issue.
3. Cooling Fan Inspection: The 48V battery cooling fan needs to be thoroughly checked for any accumulation of dirt or debris. If dirt is present, the fan must be carefully cleaned to restore its proper operation.
4. Post-Repair Check: After completing these steps, the vehicle should be re-evaluated to confirm that the "Vehicle electrical system fault" message no longer appears and the P0A8200 DTC is no longer stored.
5. Further Diagnosis (if needed): If the event memory entry for P0A8200 reappears and the initial steps have already been performed, technicians are directed to proceed with Guided Fault Finding for a more in-depth diagnosis.

Important Warnings

Audi emphasizes the importance of accurate diagnosis and adherence to the specified repair criteria. The Technical Service Bulletin states: "Otherwise, this solution will not eliminate the problem and repeat repairs may be necessary. In such a case, the warranty claim may be rejected, and the cost of the parts may be charged back." This means that if the repair is performed without strictly meeting all the criteria (such as vehicle model, year, VIN range, and specific equipment like the 48V MHEV System), the repair may not resolve the issue, and owners could face charges for parts and labor that might otherwise be covered under warranty.

Warranty Information

This Technical Service Bulletin (TSB 2080516/1) is intended for informational purposes if the vehicle's warranty has expired. For vehicles still under warranty, claims must be submitted in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review and audit by Audi Warranty.

The TSB provides specific codes for warranty claims:

• Service Number: 2704
• Damage Code: 0040

Labor operations and their associated Technical Units (TU) are also specified:

• GFF / Guided Functions: 0150 0010 (See SRT with associated operations)
• GFF / Guided Functions: 0150 0060 (Time stated on the diagnostic protocol)
• Clean additional battery for coasting function: 2704 0199 (10 TU)
• Check additional battery for coasting function: 2704 2999 (10 TU)

All warranty claims should include the comment "As per TSB 2080516/1" to ensure proper processing.

Owner Action

If you own a 2023-2024 Audi A3, S3, or RS 3 equipped with the 48V MHEV system and are experiencing a "Vehicle electrical system fault" message, especially if you suspect an issue related to the Audi A3 P0A8200 cooling fan, it is recommended to visit an authorized Audi service center. Provide your service advisor with details of the symptoms you've observed. Reference Technical Service Bulletin 2080516/1 to ensure your vehicle receives the appropriate diagnostic and repair procedures.

Source: NHTSA ID 11027440
