2022-2024 Audi e-tron GT Front License Plate Installation

Audi has released Technical Service Bulletin (TSB) 66 23 99 2064015/3 to provide instructions for installing a front license plate on 2022-2024 Audi e-tron GT and RS e-tron GT models. This bulletin, issued on April 13, 2023, supersedes an earlier TSB, Group 66 number 21-75, dated September 15, 2021, with revisions including an updated header and service procedure details.

Why This TSB Exists

The aesthetic design of the new Audi e-tron GT and RS e-tron GT models means that the "front bumper cover and fascia do not provide obvious mounting points" for a traditional front license plate carrier. Instead, the license plate is designed to attach directly to the front bumper cover or grille assembly. This TSB outlines the precise method for this direct attachment.

Important Considerations for Owners

Owners should be aware that this TSB is "informational only and not applicable to any Audi warranty." This means that the cost associated with installing the front license plate, including parts and labor, will likely be the responsibility of the vehicle owner. The bulletin also notes that there are "no customer concerns" reported regarding this issue, indicating it is a proactive installation guide rather than a repair for a defect.

Front License Plate Installation Procedure

To install the front license plate on your Audi e-tron GT front license plate, technicians should follow these steps:

1. Prepare Screws: Obtain two self-tapping screws, part number N 909 747 01.

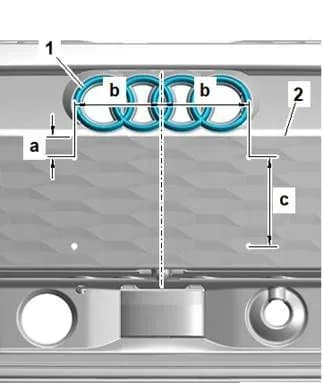

2. Determine Placement: Refer to the Elsa repair manual (Body >> Body Exterior >> 66 Exterior Equipment >> Radiator Grille/Front Trim >> License Plate, Mounting) for the exact dimensions for correct license plate placement. Key dimensions are -a- 21.0 mm, -b- 89.0 mm, and -c- 120.5 mm.
3. Create Template: Fashion a template from a manila folder or card stock using the specified dimensions. Align the top edge of the template with the top fold and ensure the centerline is consistent with the Audi Rings motif.
4. Mark Holes: Use a hole-punch to mark the screw attachment points on the template.

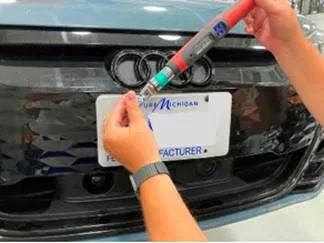

5. Transfer Marks: Position the template on the bumper and mark the locations of the holes onto the vehicle.

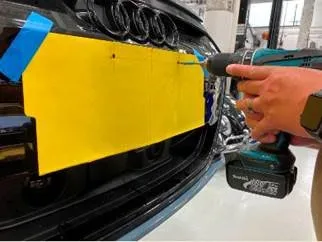

6. Drill Holes: Drill two 3mm (1/8") diameter holes. Ensure the holes are no deeper than 15mm (19/32"). It is recommended to mark the 15mm depth on the drill bit with tape for accuracy.
7. Install Screws: Install the N 909 747 01 screws into the drilled holes.
8. Torque Screws: Torque the screws to 2.0 Nm.

Required Parts and Tools

For this installation, the following part is required:

• Part Number: N 90974701
  • Description: Hexagon socket head panel bolt
  • Quantity: 02

Audi emphasizes that only parts listed in this TSB should be used, even if other part numbers are mentioned elsewhere, as this TSB includes superseding part numbers.

Source: NHTSA ID: 10234570
