2021-2023 Audi Q8 A/C Inoperative DTC B11AE15 TSB

Symptoms

Owners of 2021-2023 Audi Q8, SQ8, and RS Q8 vehicles may experience an inoperative air conditioning system. The primary symptom is that the A/C does not cool the vehicle, leading to discomfort, especially in warmer climates. This issue directly impacts the cabin climate control and overall driving experience.

Fault Codes / DTCs

When the A/C system is inoperative, a specific Diagnostic Trouble Code (DTC) may be stored in the onboard supply control unit J519, diagnostic address 0009. The relevant DTC is:

• B11AE15: A/C compressor regulator valve, open circuit/short circuit to B+

This code indicates a problem with the electrical circuit controlling the A/C compressor's regulator valve, which is crucial for the system's operation.

Technical Background

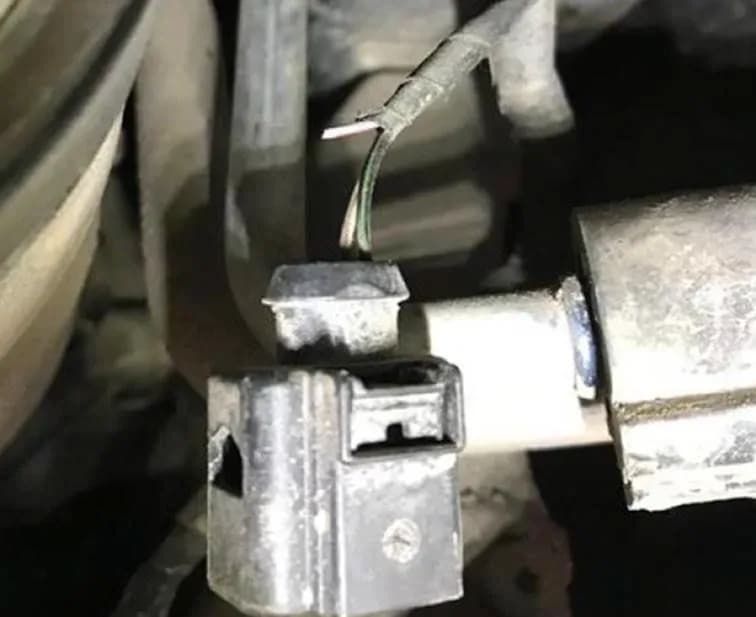

Technical Service Bulletin 2067362/1 explains that the underlying cause for the Audi Q8 A/C inoperative condition is insufficient length of the wiring connected to the A/C compressor connector T3r. Over time, these wires can become stretched, leading to breakage or being pulled from the connector. This damage disrupts the electrical connection to the A/C compressor regulator valve, resulting in the system's failure and the storage of DTC B11AE15.

Audi has implemented a production solution to address this by increasing the harness length in newer vehicles.

Repair Procedure Summary

To resolve the Audi Q8 A/C inoperative issue and clear DTC B11AE15, technicians will perform a specific repair procedure. First, if DTC B11AE15 is stored, the wiring at connector T3r near the A/C compressor will be inspected for damage. It may be necessary to cut back the harness tape to fully expose any damaged sections.

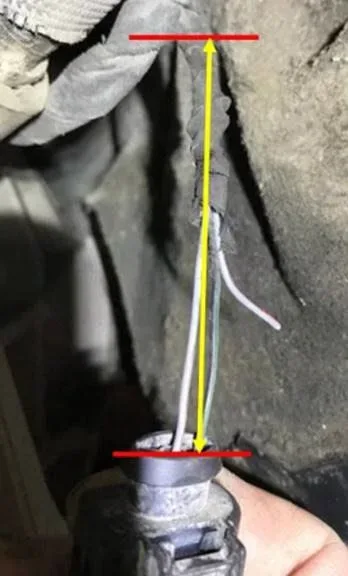

If damage is found, all three affected wires will need to be extended. The damaged wire sections are cut back until clean, and new wire is spliced in to extend them. The goal is to achieve an approximate length of 110 mm from the base of the connector to the first branch in the harness, ensuring sufficient slack to prevent future stretching without allowing the wires to hang loosely. The harness is then repaired and modified using specialized tools and materials, including fabric adhesive tape, to secure the new wiring. Finally, all fault codes are cleared, and a functional check of the A/C system is performed to confirm the repair.

Required Parts and Tools

To perform the repair described in TSB 2067362/1, specific parts and tools are required:

• Tool: VAS 1978 B (for harness repair and modification)
• Fabric Adhesive Tape: N 107 920 02
• Crimp Connectors: 000 979 940 (quantity: 3)
• Individual Wires: 000 979 025 E (quantity: 0.3, typically charging 2 wires from a pack of 5)
• Fasteners, Bolts, Nuts, and Screws: As needed, per the Repair Manual (checked via ETKA/ELSA)

Always confirm the latest part numbers and availability with your Audi Parts Department.

Warranty Information

This Technical Service Bulletin (TSB) 2067362/1 outlines warranty coverage for the repair. The standard warranty applies for up to 48 months or 50,000 miles, whichever comes first. For Audi Certified Pre-Owned (CPO) vehicles, coverage is under G10, and ownership will be verified. It is important to note that if your vehicle falls outside of any applicable warranty, this Technical Service Bulletin serves as informational guidance only, and repair costs may be the owner's responsibility.

The service number for this repair is 9712, with a damage code of 0015. Labor operations include removing and installing noise insulation (code 10 82 19 00) and repairing the wiring harness (code 97 09 41 53).

Important Warnings

Owners should be aware that if their vehicle is outside of any applicable warranty period or mileage, this Technical Service Bulletin is for informational purposes only. In such cases, the repair costs may not be covered by Audi. It is always recommended to consult with an authorized Audi service center to determine your vehicle's specific warranty status and potential repair costs for the Audi Q8 A/C inoperative condition.

---

Source: NHTSA ID: 10214782
