2021-2023 Audi Q7/Q8/SQ7/SQ8/RS Q8 Steering Column Noise

Owners of certain Audi Q7, Q8, SQ7, SQ8, and RS Q8 models may notice a distinct clicking noise when adjusting their steering column vertically. This issue, detailed in Audi Technical Service Bulletin (TSB) 2064535/2, addresses this specific concern to ensure a smooth and quiet operation of the steering column.

This TSB, identified as 48 22 25 2064535/2, supersedes a previous bulletin, Group 48 number 21-11, dated September 16, 2021. The updated bulletin provides revised information for addressing the steering column noise.

Symptoms

Owners report hearing "noises when adjusting the steering column vertically (clicking noise)". This clicking sound occurs specifically when the steering column is moved up or down.

Diagnosis and Trigger Conditions

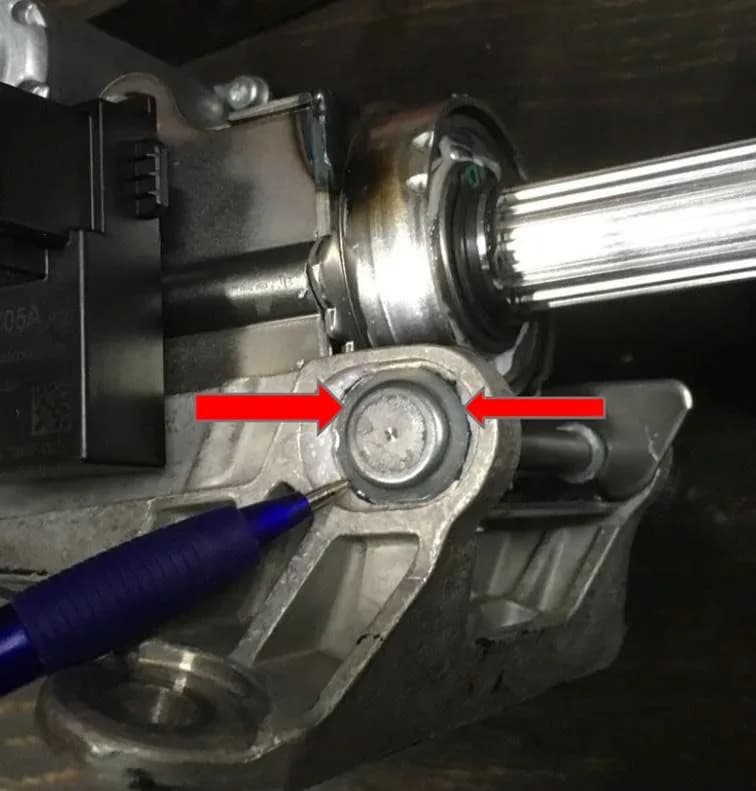

Workshop technicians can typically reproduce the noise by vertically adjusting the steering column. The sound is localized to the pin/hinge area of the steering column assembly. Audi's technical background indicates that the steering column was initially assembled under tension, which is the root cause of the Audi Q8 steering column clicking noise.

Repair Procedure Summary

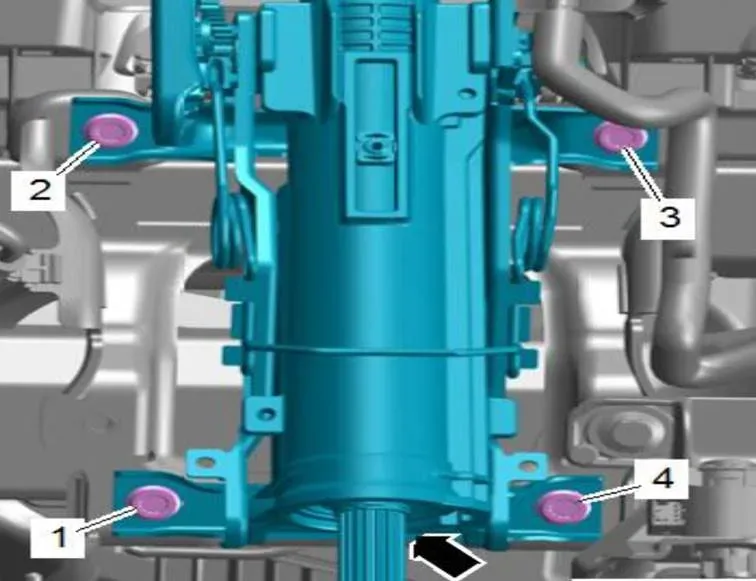

The repair outlined in TSB 2064535/2 involves replacing specific bolts within the steering column assembly. Technicians are instructed to refer to the Audi Repair Manual, specifically the "Chassis >> 48 Steering >> Steering Column" section in Elsa, for detailed instructions. The process requires careful adherence to the tightening sequence and torque specifications to ensure the issue is resolved correctly.

Important Warnings for Technicians and Owners

Audi emphasizes several critical points for the repair:

• "It is crucial to follow the tightening sequence and torque specification exactly." Incorrect tightening can lead to further issues or prevent the resolution of the clicking noise.
• "Use new bolts only." Reusing old bolts is not permitted and may compromise the repair's effectiveness.

Required Tools or Parts

No specific special tools are listed, but technicians must obtain new fasteners, bolts, nuts, and screws as needed for the repair. These parts should be sourced according to the information available in ETKA and the Repair Manual.

Warranty Information

This repair is covered under Audi's New Vehicle Limited Warranty for up to 48 months or 50,000 miles, whichever comes first. For Audi Certified Pre-Owned (CPO) vehicles, the claim type is G10, and coverage should be verified with the owner. If the vehicle is outside of any applicable warranty, this Technical Service Bulletin is for informational purposes only, meaning the owner would be responsible for repair costs.

For warranty claims, the service number is 4818 and the damage code is 0020. The labor operation for replacing the steering column bolts is 4814 0999, with an allowance of 50 time units (TU). Diagnostic time (GFF) is 0150 0000, with a maximum allowance of 50 TU. Road tests before and after the service procedure are not allotted additional time (0 TU).

Owner Action

If you experience a Audi Q8 steering column clicking noise when adjusting your steering column, it is recommended to schedule an appointment with an authorized Audi service center. Inform them about the clicking noise and mention Technical Service Bulletin 2064535/2. The dealership will diagnose the issue and perform the necessary repair as per Audi's guidelines.

---

Source: NHTSA ID: 10210566
