2017-2023 Audi Q5, Q7, Q8 Front Suspension Noise TSB

Owners of certain 2017-2023 Audi Q5, Q7, Q8, SQ5, SQ7, SQ8, and RS Q8 models may experience rumbling or knocking noises emanating from the front suspension. This issue, specifically the Audi Q8 front suspension noise, is addressed by Audi Technical Service Bulletin (TSB) 40 22 36 2059996/2, released on March 16, 2022. This bulletin supersedes an earlier TSB, Group 40 number 20-11, dated July 8, 2020, which was initially published on July 2, 2020. The current revision (Revision 2) updated the header to include additional model years.

Symptoms of Front Suspension Noise

Vehicle owners may notice "rumbling or knocking noises" coming from the front end of their vehicle, particularly when driving on uneven roads. Workshops have confirmed that this noise can be consistently reproduced during diagnosis.

Technical Background

Audi has identified that the root cause of this rumbling or knocking noise is often "tension in the body." This tension can develop around the bolted connection of the front tower brace, leading to audible symptoms.

Repair Procedure Summary

To resolve the Audi Q8 front suspension noise and similar issues in other affected models, Audi outlines a straightforward service procedure:

1. Check Tower Brace Connection: A technician will first inspect the bolted connection of the front tower brace.
2. Secure Bolts: If necessary, the technician will secure the bolts to the correct torque specifications. This step is crucial for relieving the tension in the body that causes the noise. The procedure requires consulting the repair manual for precise torque values, specifically within Elsa at "Repair Manual, Chassis >> Suspension, Wheels, Steering >> 40 Front Suspension >> Suspension Strut, Upper Control Arm >> Overview Tower Brace."

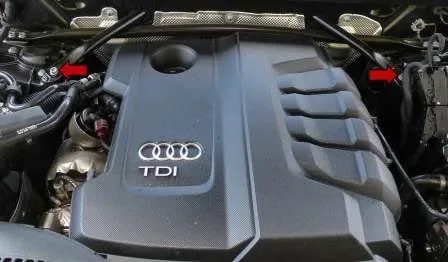

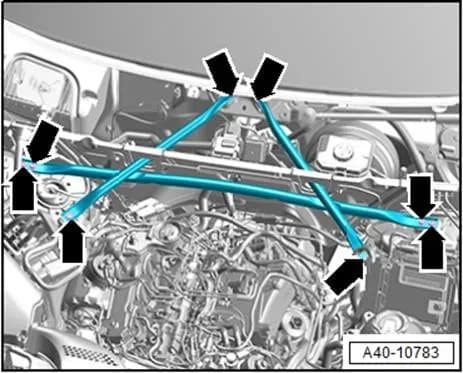

Figures 1 and 2 in the TSB illustrate the tower brace location. Figure 1 provides an example for an Audi Q7, showing the brace in the engine bay. Figure 2 offers a detailed technical diagram of the tower brace for an Audi Q5, highlighting the bolted connections that need to be checked and torqued. After securing the bolts, the technician will reassess the vehicle to ensure the concern is resolved.

Warranty Information

This repair is generally covered under Audi's warranty program.

Claim Type	Details
110	Up to 48 Months / 50,000 Miles

The specific codes for warranty claims are:

• Service Number: 4086
• Damage Code: 0020
• Labor Operations:
  • Check torque for tower brace: 4086 0199 (20 Time Units)
  • Diagnostic Time GFF: No allowance (0 Time Units)
  • Road test prior to service: 0121 0002 (10 Time Units)
  • Road test after service: 0121 0004 (10 Time Units)
• Claim Comment: As per TSB 2059996/2

All warranty claims must adhere to the Audi Warranty Policies and Procedures Manual and are subject to review by Audi Warranty.

Important Notes for Owners

If your vehicle is outside the specified warranty period (48 months or 50,000 miles), this Technical Service Bulletin is for informational purposes only. In such cases, repair costs may apply. Owners should also be aware that all part and service references within TSB 2059996/2 are subject to change. It is recommended to consult with an authorized Audi service center, as they will check the latest information, including parts bulletins and the Repair Manual for any fasteners, bolts, nuts, and screws that require replacement during the repair.

---

Source: NHTSA ID: 10209244, TSB ID: 2059996/2
