2021-2023 Audi Q7/SQ7 Power Door Latch Inoperative

Symptoms of an Inoperative Power Closing Door Latch

Owners of affected vehicles may notice that the power closing door latch system intermittently does not work. This can also be accompanied by an "electronic parking brake warning is displayed in the instrument cluster." Despite these warnings, the door typically closes and latches properly, though the power assist function fails. Workshop findings indicate that the door striker might stop in the pre-latch position, preventing the door from fully closing via the power closing system.

No Associated Fault Codes

It is important to note that, according to TSB 57 22 89 2058159/4, there are no relevant Diagnostic Trouble Codes (DTCs) stored in the door control modules when this specific issue occurs. This means traditional diagnostic scans may not immediately identify the problem, requiring technicians to rely on observed symptoms and the detailed repair procedure outlined in the bulletin.

Understanding the Problem: Technical Background

The root cause of the intermittently inoperative power closing door latch is often related to insufficient counter-pressure on the door latch from the door or door seal. For the door control module to reliably recognize the customer's intent to close the door, it requires a specific level of counter-pressure. If the door striker is adjusted in a way that doesn't provide this necessary pressure, the door control module may not register the latch signal long enough, or at all, leading to the power closing system failing to engage.

Repair Procedure Summary

The repair process for an inoperative Audi Q7 power door latch involves several steps, starting with ensuring the vehicle's software is up-to-date. Technicians should first check for any applicable TSBs, such as TSB 2051540, to confirm the door control modules have the latest software levels installed. Any software updates must be performed before proceeding.

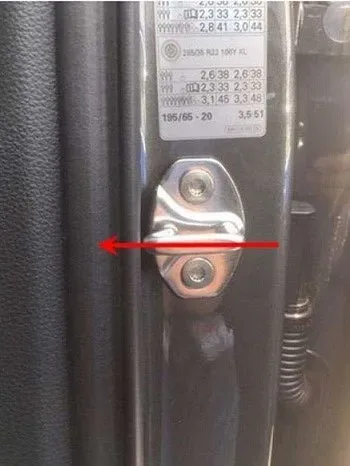

If the concern persists after software updates, the next step is to inspect and adjust the door striker. The striker's alignment to the latch should be checked, and adjustments made to center it. Specifically, the door striker should be adjusted inward by at least 0.5 mm. This adjustment aims to increase the counter-pressure. After this adjustment, the functionality of the power closing door latch system must be rechecked. If the door closes properly, no further repairs are needed.

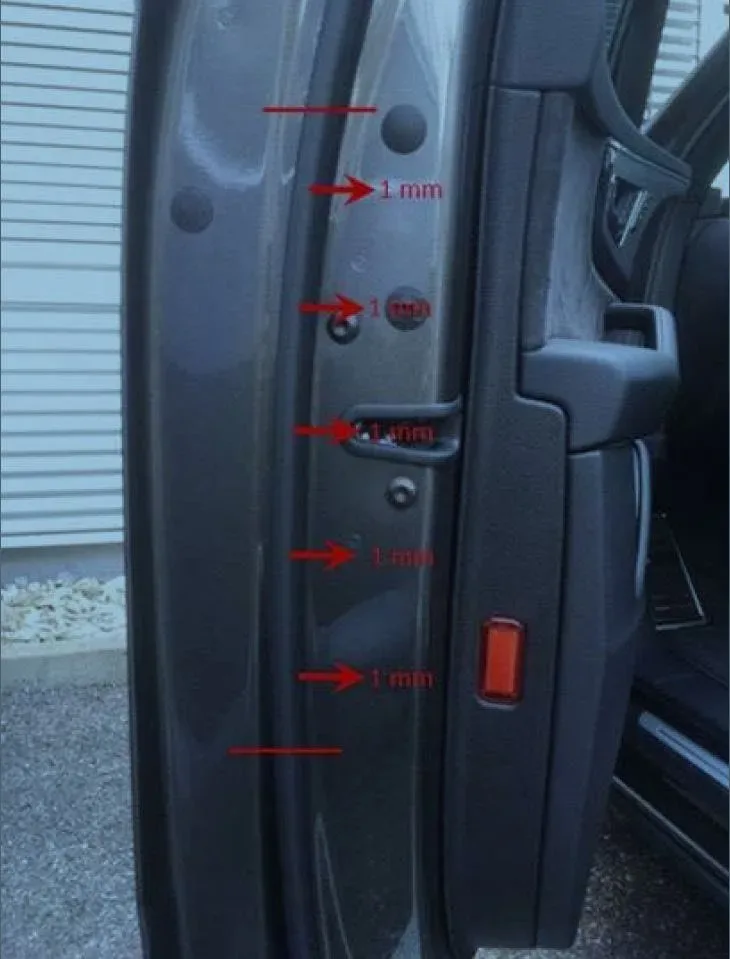

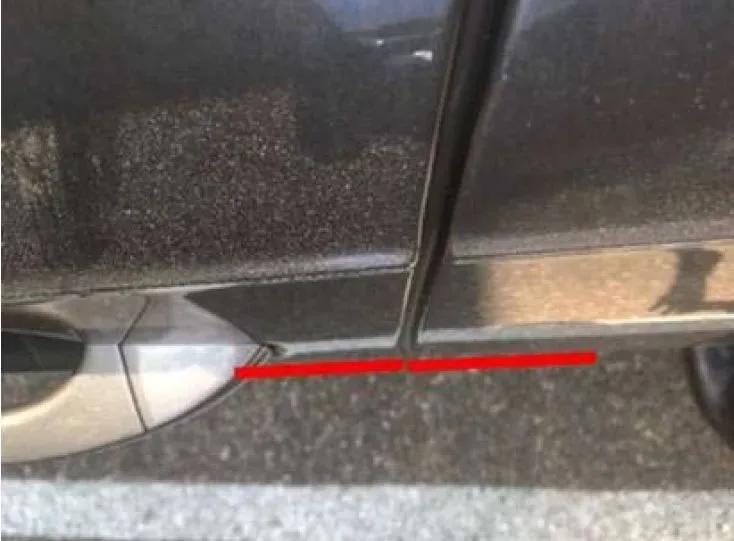

Should the issue continue, the final step involves installing a new outer door seal. This new seal must be installed with an inward offset of 1.0 mm compared to the original seal's position. Technicians are advised to mark the original seal's position before removal to ensure accurate placement of the new seal. This modification further increases the counter-pressure, helping the door control module detect the closing signal reliably for the Audi Q7 power door latch.

Required Parts and Tools

To perform the repairs outlined in TSB 57 22 89 2058159/4, specific parts may be required:

• Fasteners, Bolts, Nuts, and Screws: As needed per the Repair Manual (refer to ETKA/ELSA).
• Front outer door seal: Part number 4M0837911C (quantity 0-2).
• Rear outer door seal: Part number 4M0839911C (quantity 0-2).

Technicians should always consult their Parts Department and/or ETKA for the latest information and parts bulletins.

Warranty Information and Important Notes

Repairs performed under TSB 57 22 89 2058159/4 are typically covered under Audi's New Vehicle Limited Warranty for up to 48 months or 50,000 miles, whichever comes first. For Certified Pre-Owned (CPO) vehicles, coverage falls under the G10 claim type. The service numbers associated with this TSB are 5741 and 5841, with a damage code of 0016. Labor operations include front striker plate adjust (5725 1500), rear striker plate adjust (5825 1500), front door outer seal remove + reinstall (5765 1955), and rear door outer seal remove + reinstall (5864 1950).

Important Warning: If the vehicle is outside of its warranty period, this Technical Service Bulletin is informational only, meaning the repairs may not be covered free of charge. Owners should verify their warranty status with an authorized Audi dealer.

NHTSA ID: 10206964
