2021-2022 Audi Q7 Power Closing Door Latch Inoperative TSB

Audi has issued Technical Service Bulletin (TSB) 2058159/3 to address an issue with the power closing door latch system in 2021-2022 Audi Q7 models. Owners may experience an intermittently inoperative power closing door latch, which can be accompanied by an electronic parking brake warning in the instrument cluster. This TSB provides a detailed repair procedure for technicians to resolve the concern.

The TSB 2058159/3, dated September 15, 2021, supersedes an earlier bulletin, Group 57 number 20-64, which was dated February 6, 2020. The updated bulletin includes revised header information and added model years 2020-2022, along with revised condition details.

Symptoms

Owners of affected Audi Q7 vehicles may report that "The power closing door latch system intermittently does not work and the electronic parking brake warning is displayed in the instrument cluster." Despite this, the door typically still closes and latches properly. Workshop findings indicate that the door striker often stops in the pre-latch position, preventing the power closing system from fully engaging the door. Importantly, no relevant Diagnostic Trouble Codes (DTCs) are usually stored in the door control modules for this specific issue, making the "Audi Q7 power closing door latch inoperative" symptom the primary indicator.

Diagnosis / Trigger Conditions

The technical background for this issue explains that the door latch requires sufficient counter-pressure from the door and door seal to generate a reliable signal for the door control module. If the door striker is adjusted in a way that does not provide enough counter-pressure, the door control module may not recognize the door latch signal long enough, or at all. This prevents the door from closing correctly via the power closing system.

Repair Procedure Summary

Before performing any repairs outlined in TSB 2058159/3, technicians are instructed to check for and apply any applicable software updates, such as those mentioned in TSB 2051540, to ensure the door control modules have the latest software levels. If the customer concern persists after software updates, the following steps are performed:

1. Striker Alignment Check: The door striker to latch alignment is checked, and any necessary adjustments are made to center the striker to the latch.

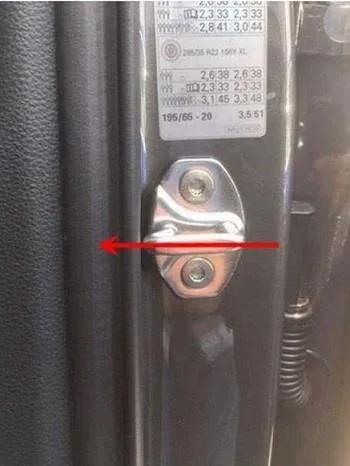

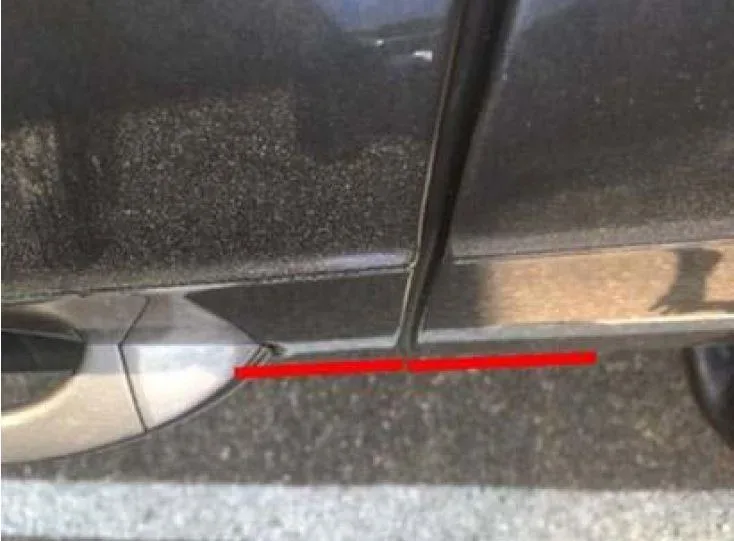

2. Inward Striker Adjustment: The door striker is adjusted inward by at least 0.5 mm. The front door can be flush or slightly under flush to the rear door, ensuring no wind noise is created.
3. Functionality Recheck: After striker adjustment, the power closing door latch system's functionality is rechecked. If the door now closes properly, no further repairs are needed.

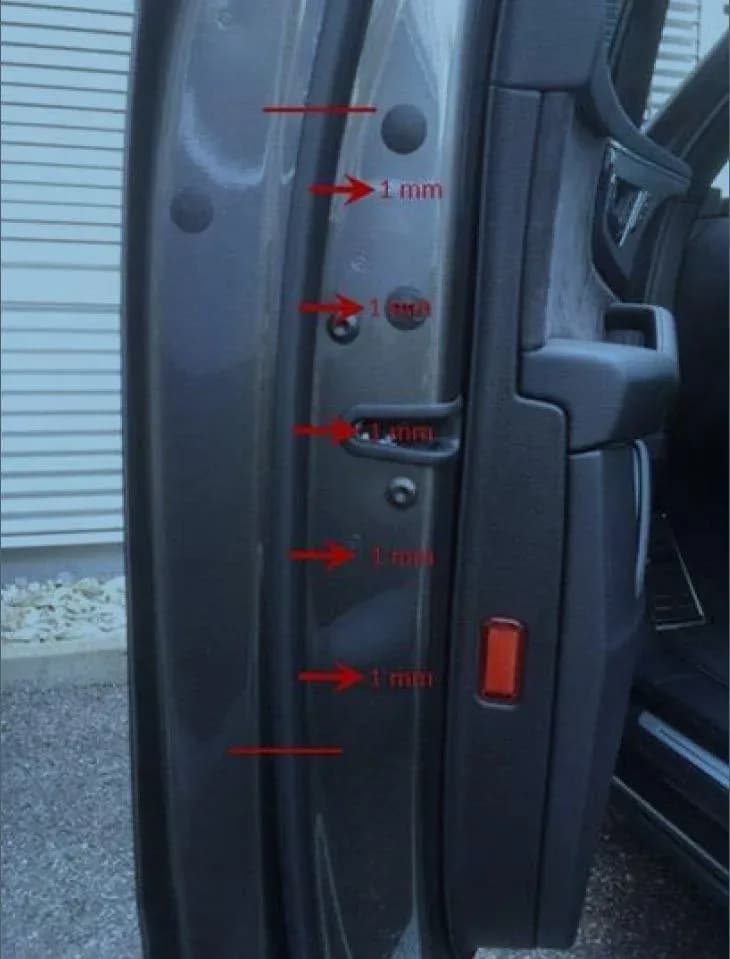

4. Outer Door Seal Replacement (If Necessary): If the problem with the Audi Q7 power closing door latch inoperative condition continues, a new outer door seal is installed. This new seal is positioned with an inward offset of 1.0 mm compared to the original location. Technicians are advised to mark the original seal position before removal.

Required Tools or Parts

For repairs related to TSB 2058159/3, the following parts may be required:

• Front outer door seal: Part Number 4M0837911C (Quantity 0-2)
• Rear outer door seal: Part Number 4M0839911C (Quantity 0-2)
• Fasteners, bolts, nuts, and screws as needed, which should be sourced by checking ETKA and the repair manual.

Warranty Information

Warranty claims for this issue are processed under specific guidelines. For vehicles within the standard warranty period, coverage extends up to 48 months or 50,000 miles. For Certified Pre-Owned (CPO) vehicles, a G10 claim type is used, requiring verification of ownership. If the vehicle is outside of any warranty coverage, this Technical Service Bulletin is for informational purposes only. The service number associated with this procedure is 5741, and the damage code is 0016. Labor operations include 5725 1500 for front striker plate adjustment, 5825 1500 for rear striker plate adjustment, 5765 1955 for front door outer seal removal and reinstallation, and 5864 1950 for rear door outer seal removal and reinstallation.

Owner Action

If your 2021-2022 Audi Q7 is experiencing an intermittently inoperative power closing door latch or displaying an electronic parking brake warning, it is recommended to contact your authorized Audi dealership. Reference TSB 2058159/3 when discussing the issue with the service department. They can perform the necessary diagnostic steps and apply the appropriate repair to resolve the Audi Q7 power closing door latch inoperative condition.

Source: NHTSA ID 10201503
