2025 Audi Q5 Front License Plate Bracket Missing TSB

Audi has released Technical Service Bulletin (TSB) 2078020/1 to address an issue with missing front license plate brackets on certain 2025 Audi Q5 vehicles. This TSB, released on May 19, 2025, provides detailed instructions for modifying and installing a new front license plate bracket.

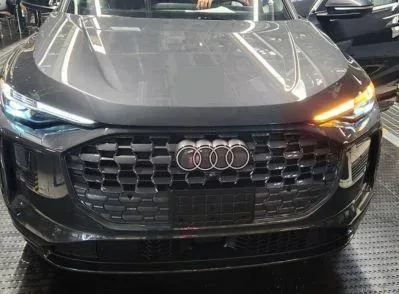

The problem stems from a production error that resulted in an incorrect front radiator grille being installed on affected vehicles. This error also led to the absence of the front license plate bracket, which is essential for proper license plate mounting.

Symptoms

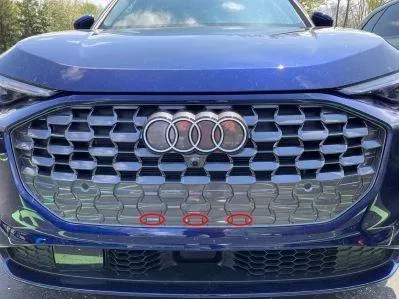

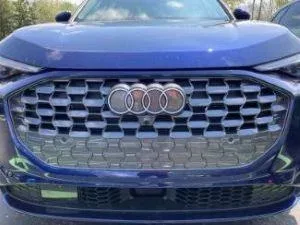

Owners of affected 2025 Audi Q5 vehicles may notice that "The front license plate bracket is missing from the vehicle. It is not present in the bei-pack, trunk area or in any other area of the vehicle." Additionally, technicians have confirmed that the rectangular openings in the lower portion of the front radiator grille, designed to receive the lower tabs of the license plate bracket, are also absent.

Technical Background

The root cause of this issue is a production error. An incorrect front radiator grille was installed on these vehicles during manufacturing. This specific grille design did not accommodate the standard front license plate bracket, leading to its omission. Audi states that this error has since been corrected in production, allowing newer vehicles to have the front license plate bracket simply clipped to the radiator grille.

Repair Procedure Summary

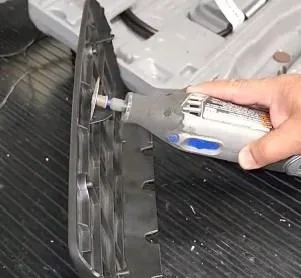

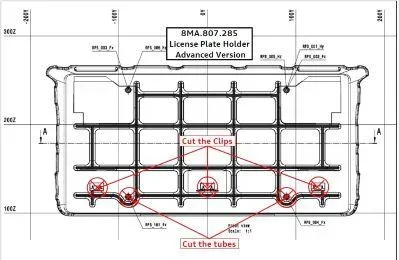

To resolve the missing 2025 Audi Q5 front license plate bracket, technicians will perform a modification and installation procedure. This involves ordering a new front license plate bracket and specific screws. The new bracket will need to be modified by cutting off three lower tabs and two screw barrels using a rotary cut-off tool to ensure it sits flush against the radiator grille.

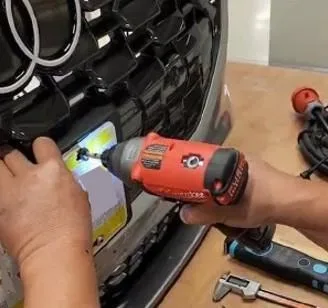

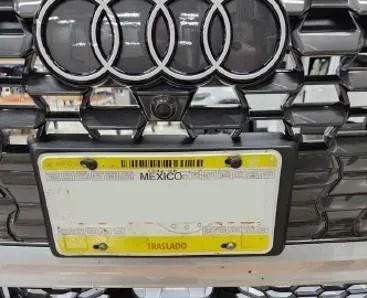

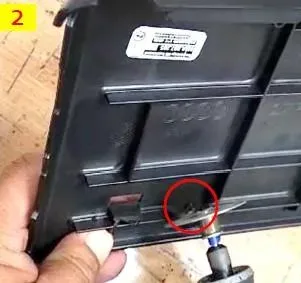

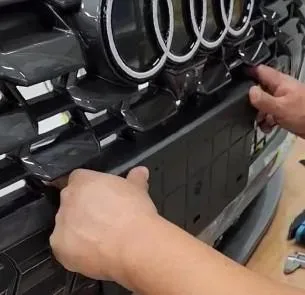

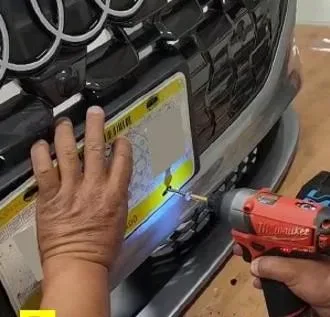

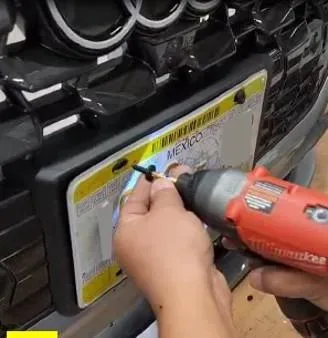

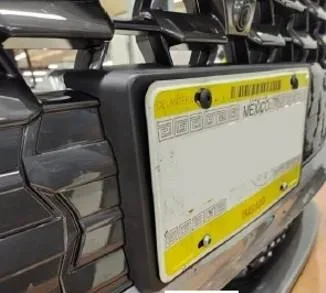

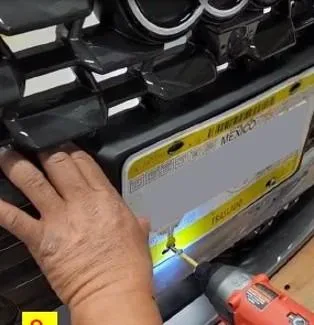

After modification, the bracket is test-fitted. Two 3.5mm holes are then drilled through the lower portion of the bracket into the grille material, being careful not to drill too deep. Finally, the license plate is positioned, and two N 10547902 self-tapping screws are inserted through the license plate, bracket, and into the grille. Two additional N 90915901 self-tapping screws are installed into the upper license plate holes and into the bracket to secure the assembly.

Required Parts and Tools

To complete this repair, the following parts are required:

• 8MA807285 9B9: Front license plate bracket – Satin black (Quantity: 1)
• N 90915901: 5 x 14 self-tapping screw (Quantity: 2)
• N 10547902: 6 x 35 self-tapping screw (Quantity: 2)

Warranty Information

For vehicles still under warranty, the claim type is 12i. The service number is 6683, and the damage code is 0038. The labor operation for modifying and installing the front license plate bracket is 6683 5599, with an estimated time of 20 TU (Technical Units). The claim comment should specify "As per TSB 2078020/1".

Important Warnings

Audi explicitly states that "If the vehicle is outside of any warranty, this Technical Service Bulletin is informational only." This means owners of out-of-warranty vehicles may be responsible for the cost of this repair. Furthermore, technicians are advised to "Only use parts listed in this TSB, this includes superseding part numbers!" to ensure proper fitment and function.

NHTSA ID: 11019001
