2022-2023 Audi e-tron Front License Plate Installation TSB

Why This TSB Was Issued

Audi issued Technical Service Bulletin (TSB) 2064015/2 to provide clear guidance for Audi e-tron license plate installation on the 2022-2023 Audi e-tron GT and RS e-tron GT models. This TSB supersedes an earlier bulletin, 21-74, and includes updated information regarding the technical background and service procedures.

While owners typically don't report concerns about this issue, workshops have noted during pre-delivery inspection (PDI) or other diagnostic work that the front bumper cover and fascia lack obvious mounting points for a front license plate.

Technical Background

The distinctive design aesthetic of the new Audi e-tron GT and Audi RS e-tron GT models means that a traditional front license plate carrier cannot be used. Instead, the front license plate is designed to attach directly to the front bumper cover or grille assembly. This direct attachment method requires precise placement to ensure proper installation and appearance.

Front License Plate Installation Procedure

To correctly perform the Audi e-tron license plate installation, technicians should follow a detailed procedure outlined in the TSB:

1. Prepare Mounting Points: The front license plate is secured using two self-tapping screws (part number N 909 747 01) at the top of the plate.

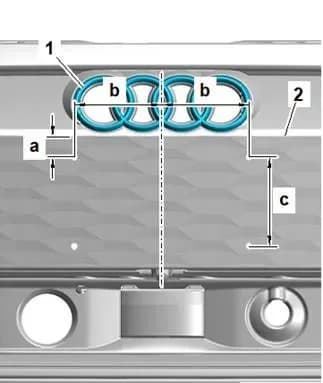

2. Create a Template: To ensure accurate and repeatable placement, a template must be fashioned from a manila folder or card stock. This template should incorporate specific dimensions for the screw locations: 21.0 mm for dimension 'a', 89.0 mm for dimension 'b', and 120.5 mm for dimension 'c' (referencing the Audi Rings motif as a centerline).
3. Mark Hole Locations: Use a hole punch to create precise marks on the template. Then, align the template with the Audi Rings motif on the bumper and mark the exact drilling locations through the template onto the bumper.

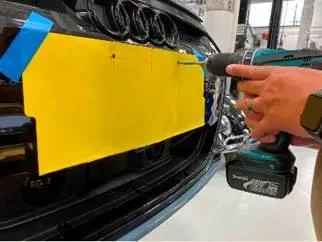

4. Drill Holes: Carefully drill two 3mm (1/8-inch) diameter holes at the marked locations. It is crucial that these holes are no deeper than 15mm (19/32-inch). Technicians are advised to mark the 15mm depth on the drill bit with tape to prevent over-drilling.
5. Install Screws: Once the holes are drilled, install the two self-tapping screws (N 909 747 01). Torque these screws to a specification of 2.0 Nm for secure fastening.

Required Parts and Tools

For proper Audi e-tron license plate installation, only specific parts listed in this TSB should be used. It's important to note that these parts may differ from those listed in ETKA (Electronic Parts Catalog), and the TSB-specified parts include any superseding part numbers.

• Part Number: N 909 747 01
• Part Description: Hexagon socket head panel bolt
• Quantity: 2

Technicians will also need standard tools for drilling and torquing, along with materials like a manila folder or card stock for creating the installation template.

Important Notes for Owners

This Technical Service Bulletin is informational only and does not fall under any Audi Warranty coverage. If you need a front license plate installed on your 2022-2023 Audi e-tron GT or RS e-tron GT, you may need to arrange for this service with your Audi dealer or perform the Audi e-tron license plate installation yourself following these instructions. Ensure that only the specified part number N 909 747 01 is used for the screws.

Source: NHTSA ID 10201504
